Digital Forecast Bridge UHD M HS HDMI 2.0 to 12G SDI Converter with HD/3G/6G/12G Support

ITEM #: DF-UHD-M-HS MFG #: UHD M HS

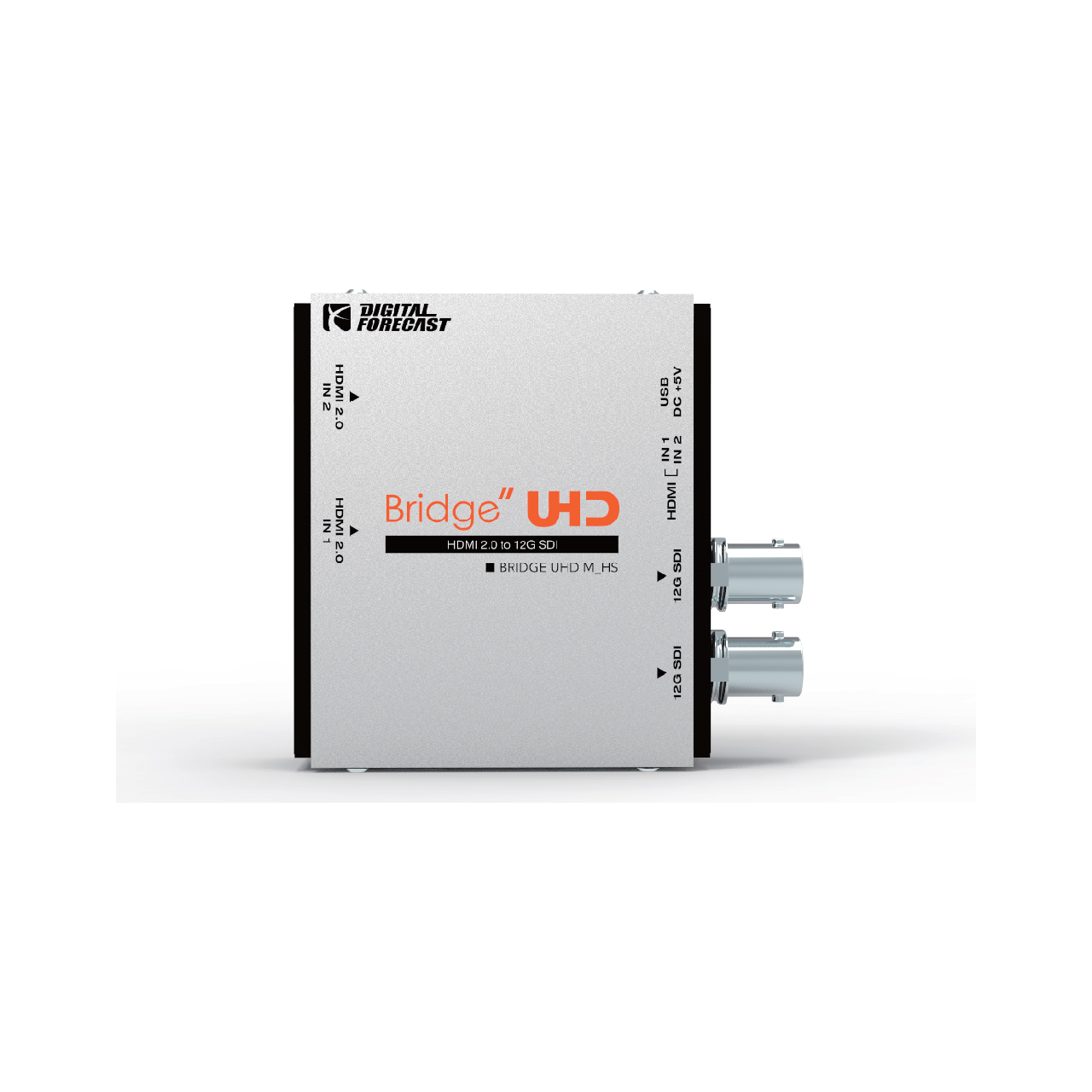

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
DIGITAL FORECAST
Free Shipping with $49 Minimum Order

List Price:

$439.00

Our Price:

$419.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    UHD M HS - Overview

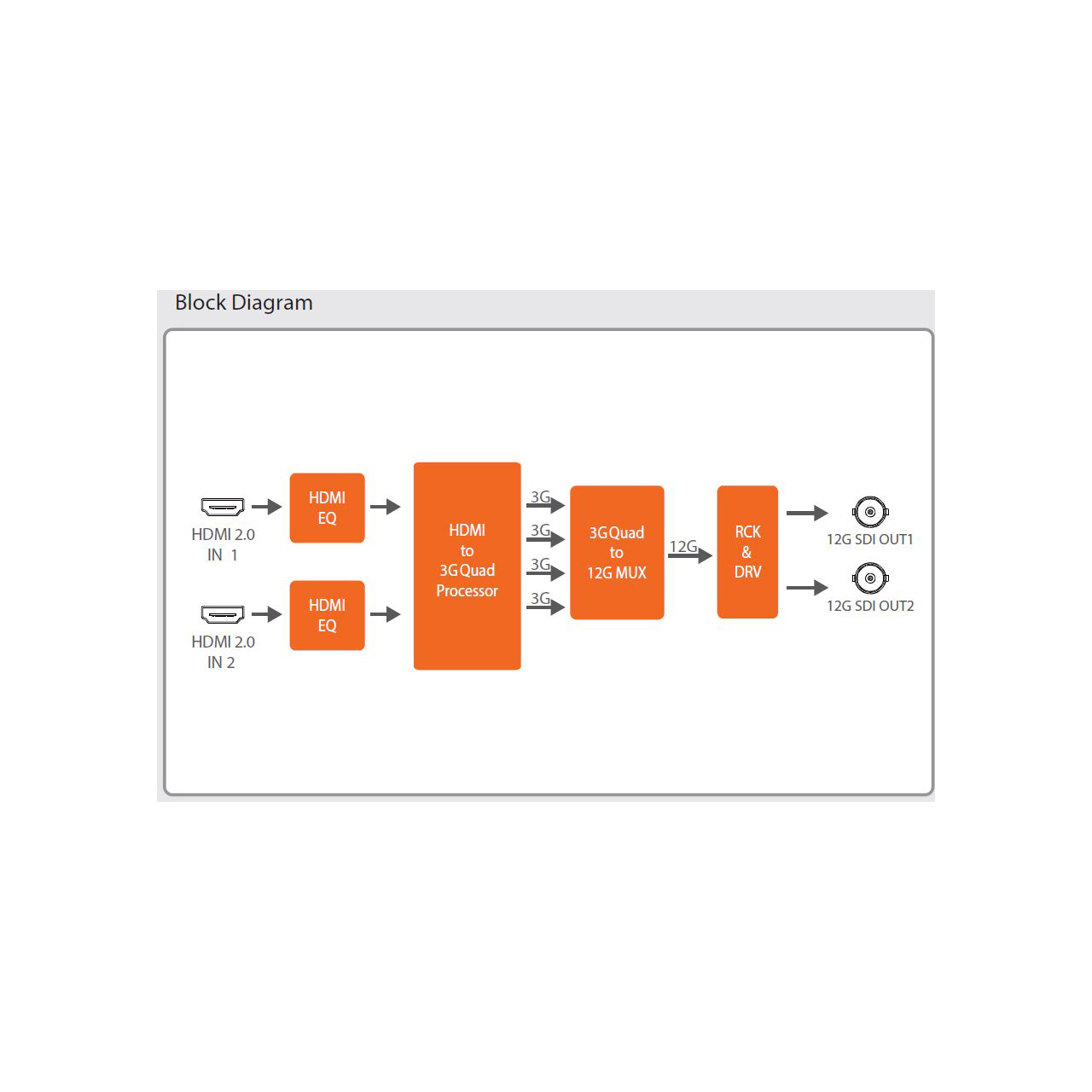

    The Digital Forecast Bridge UHD M_HS converts HDMI 2.0 signals to 12G-SDI by providing two 12G-SDI outputs. UHD M_HS supports HD resolutions up to 2160p60. It also has two HDMI 2.0 inputs that be switched selectively or automatically.

    • Features:

      • 2x HDMI 2.0 inputs (main & sub)
      • 2x 12G-SDI outputs
      • Standard SDI (HD, 3G, 6G, 12G) format output supported
      • USB-C power (+5V)


    • Specifications:

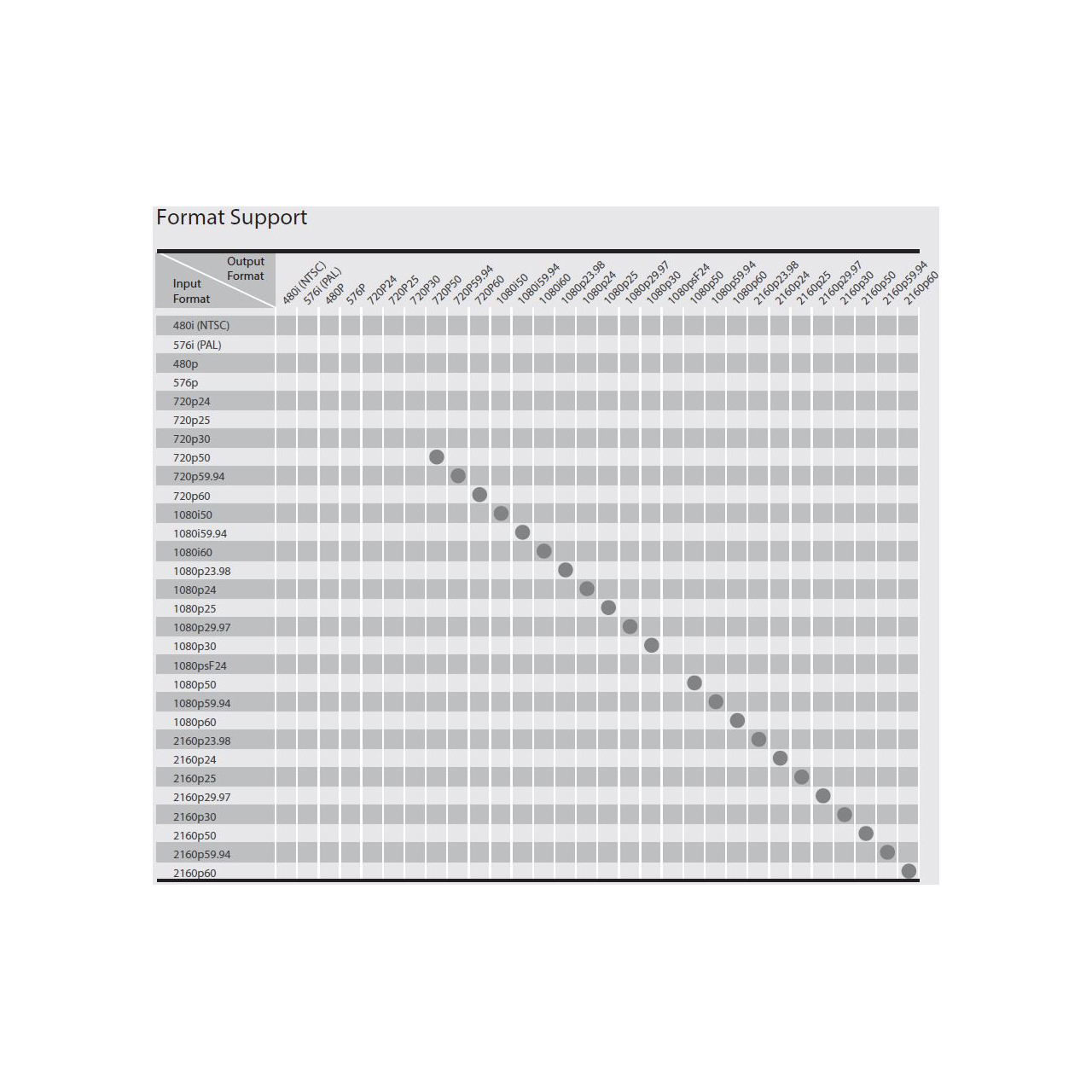

      • Digital Video Specs
      • HD: 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (23.98/24/25/29.98/30)
      • FHD: 1080p (60/59.94/50)
      • 2K/4K: 2160p (23.98/24/25/29.98/30)
      • 4K: 2160p (60/59.94/50)

      • Power Level: +5V USB-C
      • Power Consumption: 4 Watts (max 5 Watts)
      • Operating Temperature: 0°C - 55°C
      • Humidity: 0-95% RH, non-condensing
      • Data Rate: max 600MHz
      • Signal Level: 800mVp-p +/- 80mV
      • Weight: 0.28lb
      • Dimensions: 3.1 x 2.7 x 0.91"


    • Item Includes:

      • 1x Digital Forecast Bridge UHD M HS HDMI 2.0 to 12G SDI Converter with HD/3G/6G/12G Support
