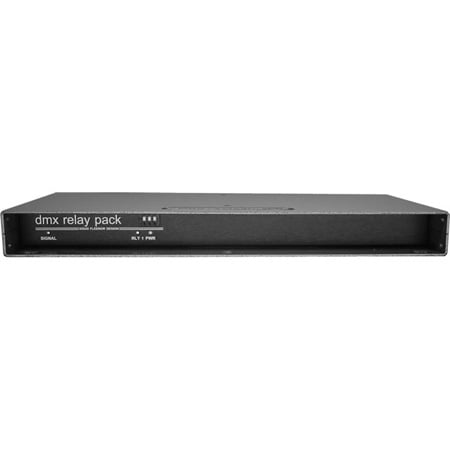

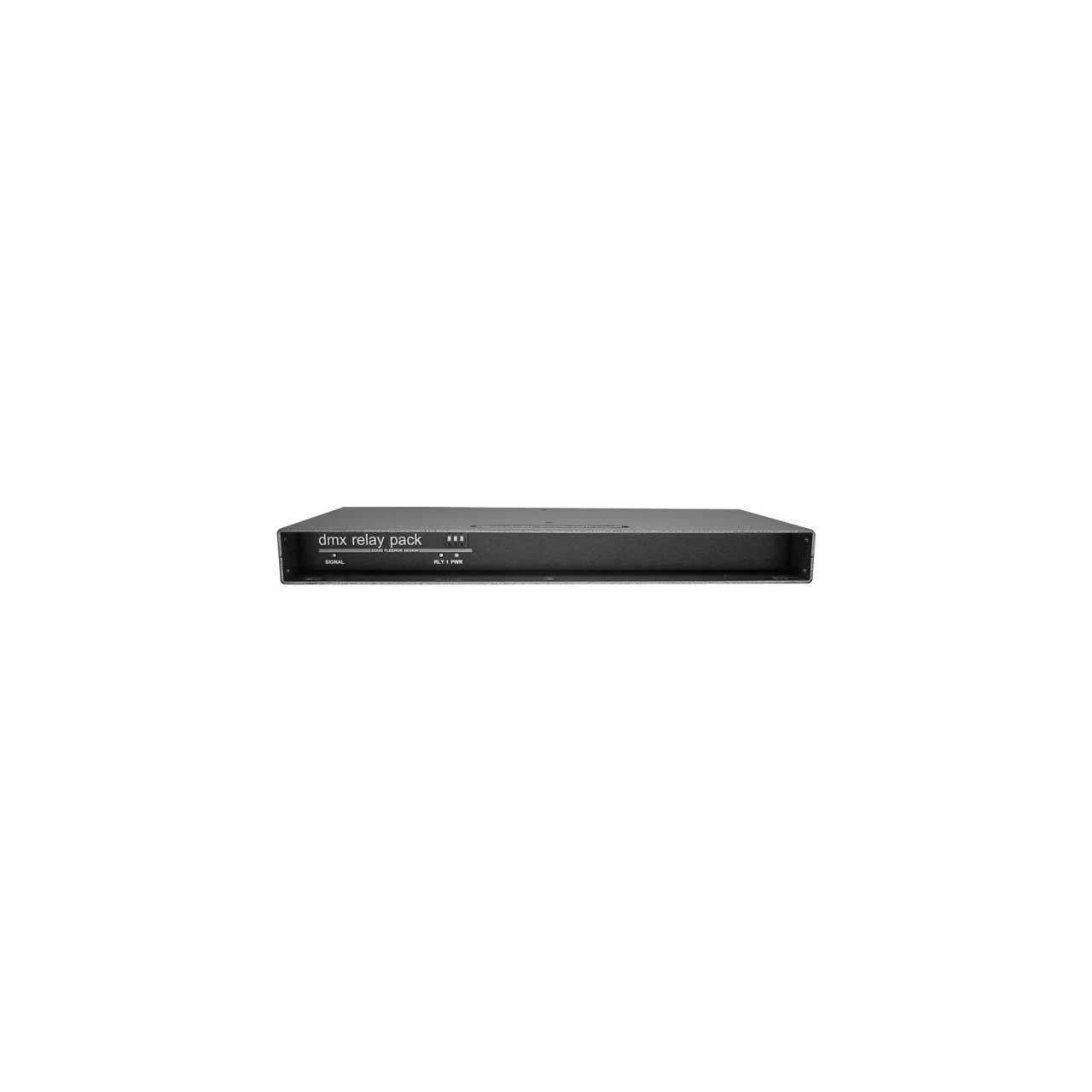

Doug Fleenor Design DMX6REL15A Six Channel DMX512 Relay Pack with 1 Line In 15A Pigtail

DMX6REL15A - Overview

• Specifications:

  • Input signal: 250 Kilobaud, 0.2 volts minimum, 12 volts maximum.
  • Input circuit: EIA-485 receiver protected against 120 VAC line cross and transients to 5 KV by two 100 ohm PTC self resetting fuses and four low capacitance transient suppression diodes.
  • Input connector: Gold plated 5 pin male (Neutrik D-1 series).
  • Input pass through: Gold plated 5 pin female (Neutrik D-1 series). All five pins are passed through.
  • Power input: 120 volts, 50/60 hertz, 2 watts (plus load).
  • Power input plug: NEMA type 5-15P dead front plug standard.
  • Power input rating: 15 amps per line input pigtail with standard plug.
  • Power output: Input power is switched to output.

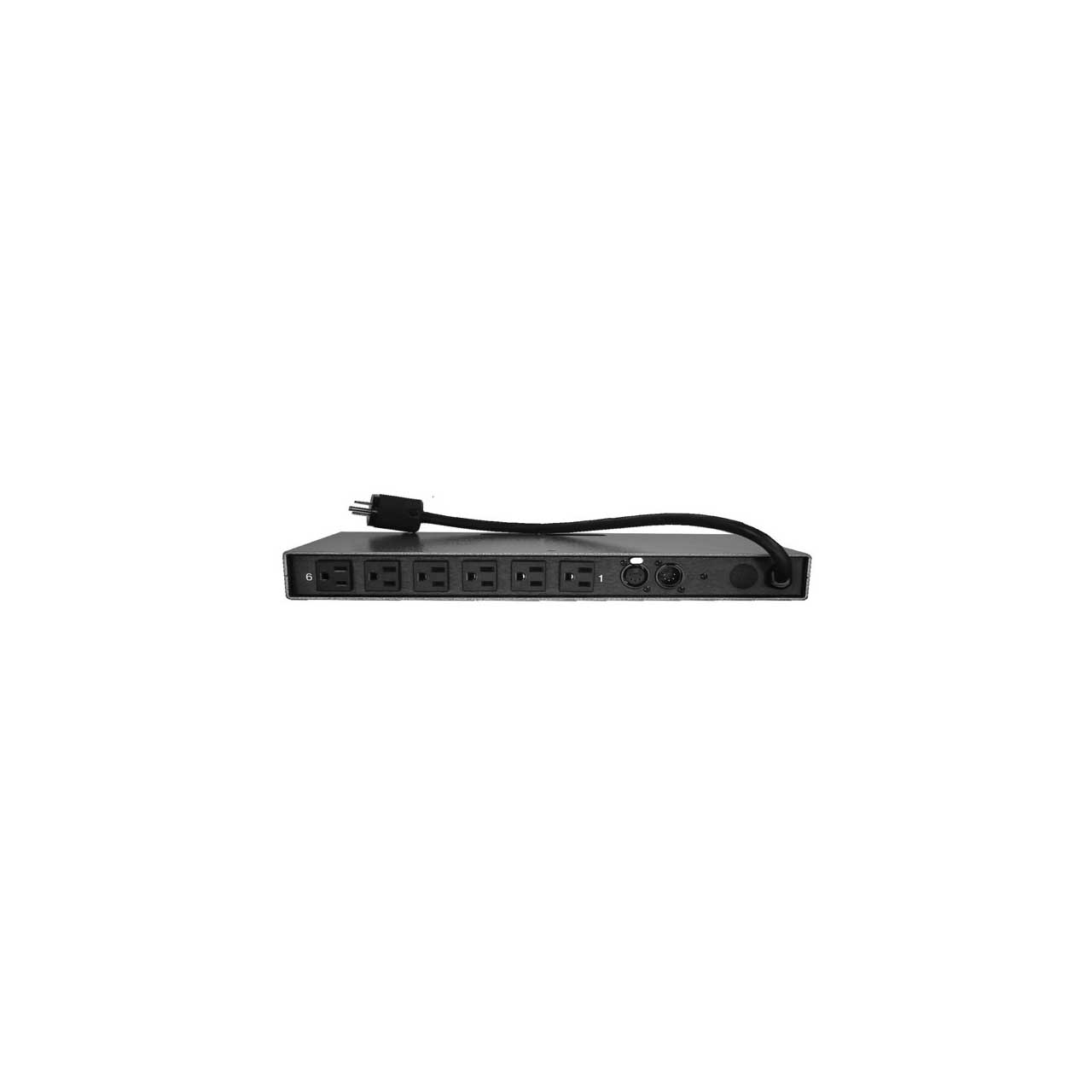

  • Power output socket: Nylon NEMA type 5-15R receptacle.
  • Power output rating: 15 amps per output. Maximum total load is limited by input rating.
  • Output device: Aromat JTN. Mechanical life: 10,000,000 operations minimum. Electrical life: 300,000 operations minimum at 5 Amps. 125,000 operations minimum at 15 Amps.
  • Color: Top, bottom and sides: Silver hammer tone. Front and back: Black.
  • Size / Weight(D x H x W): 6.5 in x 1.7 in x 16 in / 5 pounds


• Warranty:

  • 5 year
