Doug Fleenor Design ES2 Entry Station 2 DMX Snapshot Recorder For 2 Preset Scenes

ITEM #: DFD-ES2 MFG #: ES2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$788.00

Our Price:

$639.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ES2 - Overview

The Doug Fleenor Design ES2 is a stand-alone DMX snapshot recorder which can store two preset scenes or "looks". It can be used as a stand-alone main station or configured as a remote station in conjunction with another ES2 configured as a main station. It can be used as a remote station with Doug Fleenor Design’s Preset 10-A, Preset 10-A2, or Rerun stations.

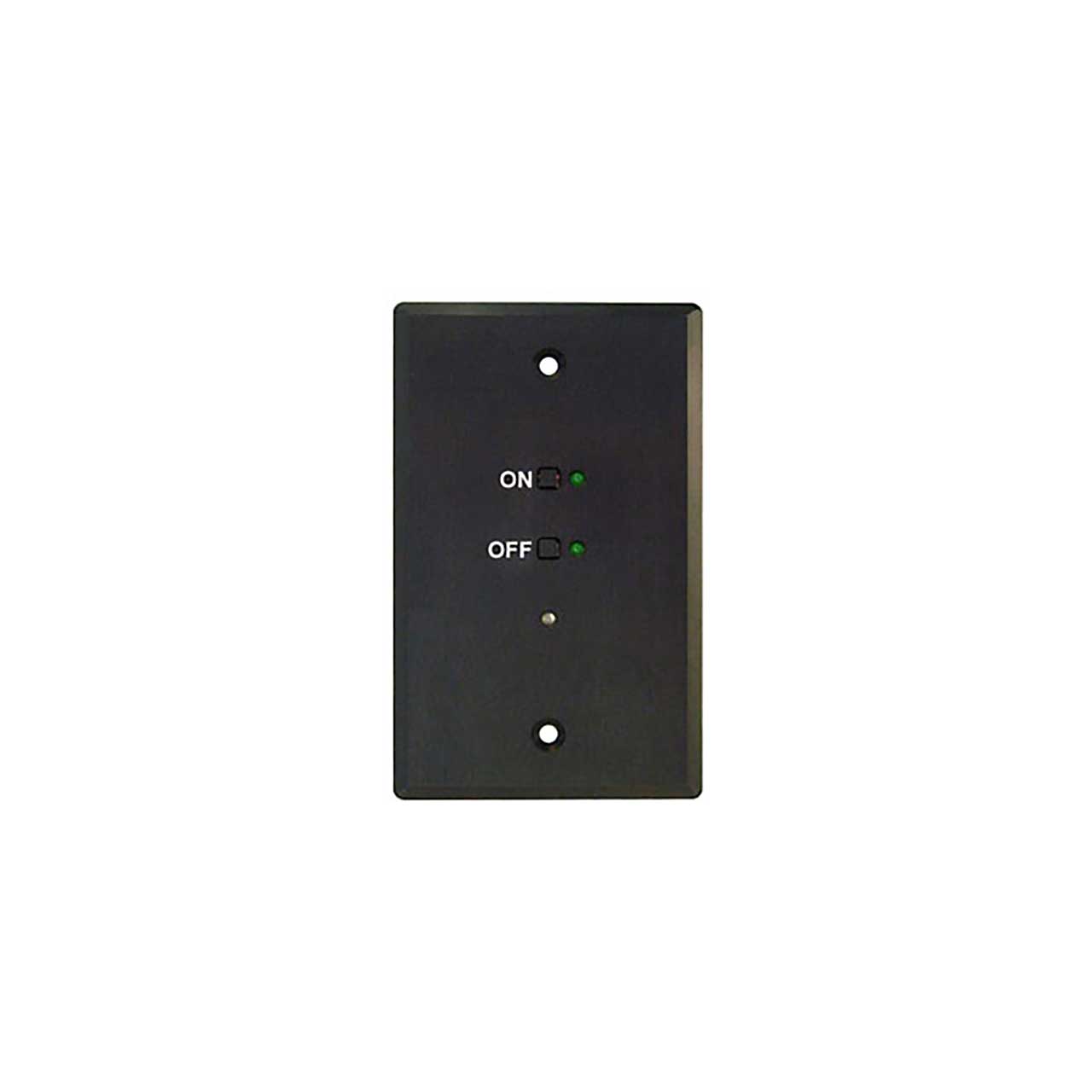

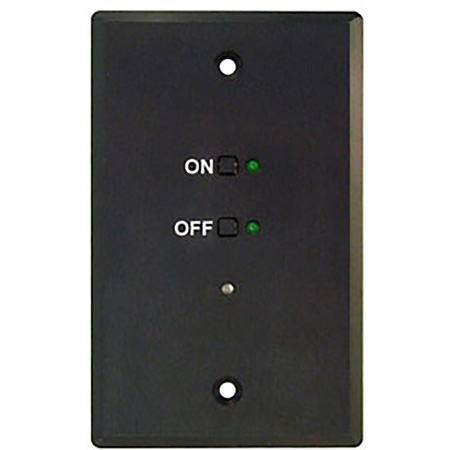

In remote mode, the ES2 has two buttons which can be assigned to remotely trigger any of the presets/shows on a master station. There is also a recessed button which is used to record presets and to set fade times when the ES2 is configured as a main station.

  • Specifications:

    • Connector: Phoenix Contact MSTB series 5 position two part terminal block
    • Model: MSTB 2,5/5-ST-5,08 Order Number: 17 57 04 8
    • Connector pin out: 1 (C) DMX512 common; 2 ( -) DMX512 data -; 3 (+) DMX512 data +; 4 (C) Supply common (internally tied to pin1); 5 (V) Supply voltage "hot"
    • Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)
    • Indicators: Two green preset indicators; One bi-color indicator (Red = Lockout, Yellow = Time, Green = Inactive)
    • User controls: Two push buttons
    • Option jumpers: Set button association and select main/remote
    • Power input: 9 to 24 volts DC or 6 to 16 volts AC / 200mA per station; (A 10 volt class 2 "doorbell" transformer is recommended for fixed installations)
    • Color: Black anodized with optional laser engraving
    • Size Faceplate(H x W x D): 4.5 in x 2.75 in x 0.2 in
    • Faceplate rear inset(H x W x D): 4.15 in x 2.4 in x 0.1 in
    • Electrical box minimum inside dimensions(H x W x D): 2.75 in x 1.5 in x 1.25 in

  • Warranty:

    • 5 year
