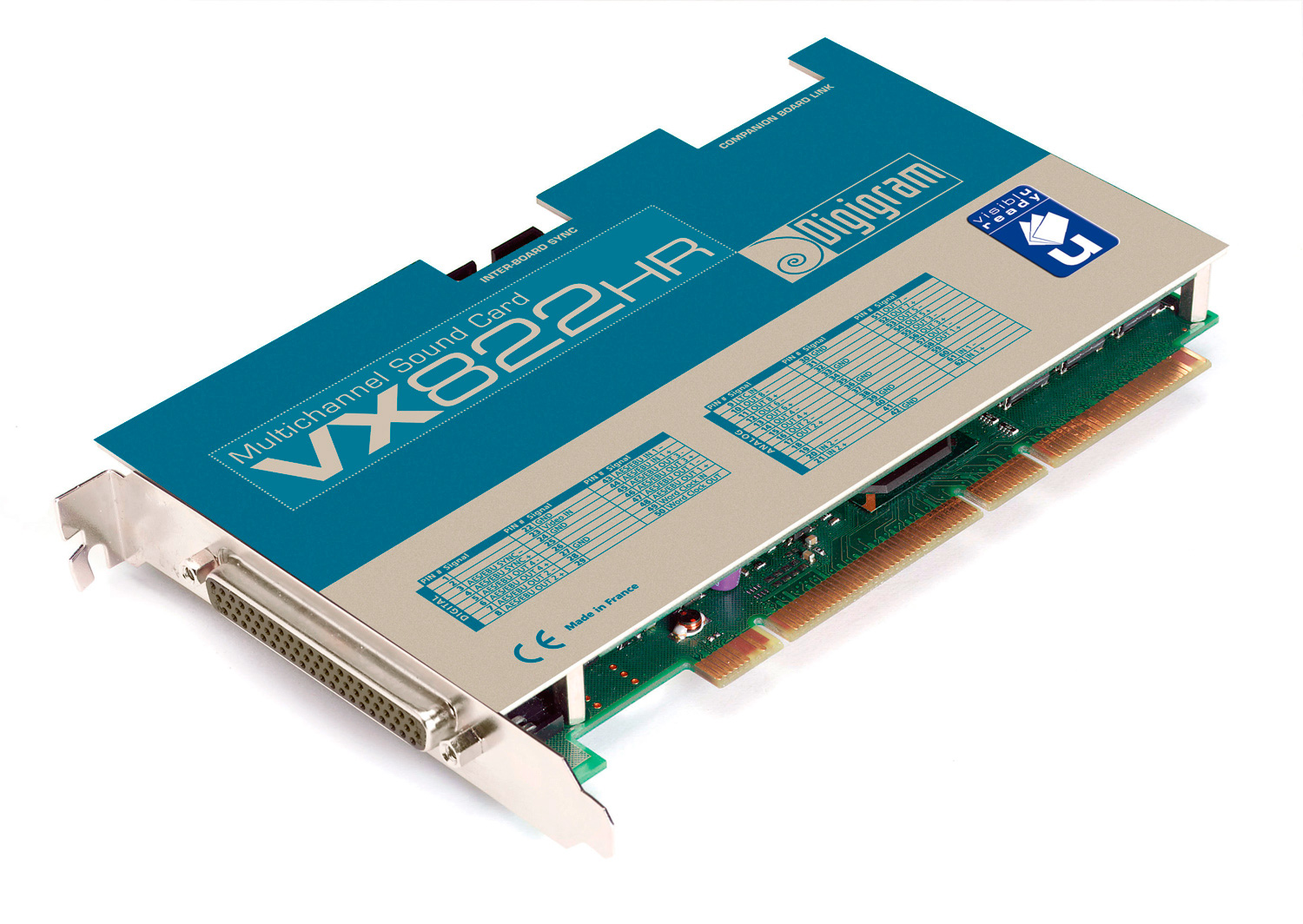

Digigram VX822HR PCI Audio Card

ITEM #: DGR-VX822HR MFG #: VX822HR

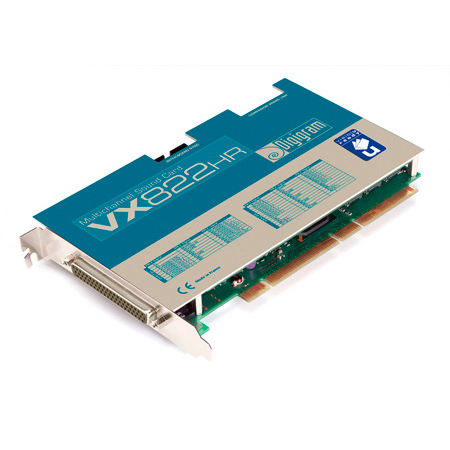

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DGR-VX822HR

VX822HR - Overview

2-in/8-out analog and digital PCI linear sound card for demanding applications in broadcast such as production, on-air, and logging. Exacting specs, outstanding quality, absolute reliability and total connectivity make this new generation the number one choice for pro audio manufacturers and software vendors.

  • Features:

    • 2 balanced analog mono line inputs, with software programmable analog and digital gain
    • 8 servo-balanced analog mono line outputs, with software programmable analog and digital gain
    • 192 kHz / 24-bit converters
    • Maximum level on analog inputs and outputs: +24 dBu
    • 1 AES/EBU stereo input, with hardware sample rate converters (up to 192 kHz on VX822e, 96 kHz on VX822HR)
    • 4 AES/EBU stereo outputs (up to 192 kHz)
    • 1 AES/EBU stereo sync input (up to 192 kHz)
    • 1 standard Word Clock input (up to 96 kHz)
    • 1 standard Word Clock output (up to 96 kHz)
    • 1 video sync input
    • 1 SMPTE/LTC (Linear Time Code) input
    • PCI form factor


  • Item Includes:

    • Breakout cable
