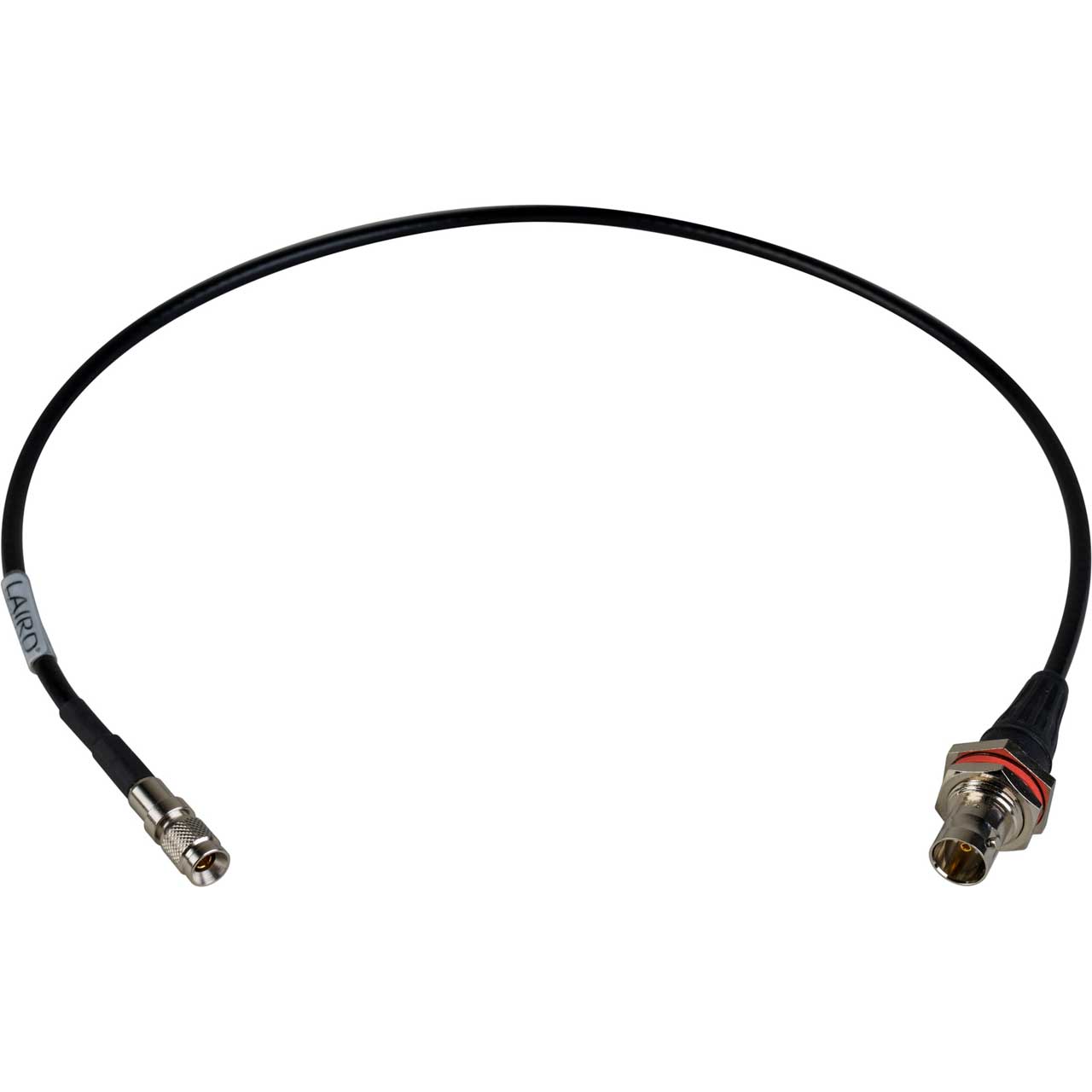

Laird DIN 1.0/2.3 to BNC Female Chassis Mount 3G-SDI Video Interface Cable - 1 Foot

ITEM #: DIN-1855-CBF-01 MFG #: DIN-1855-CBF-01

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$39.95

Our Price:

$34.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DIN-1855-CBF-01 - Overview

Simplify router and video extender installs with Laird's DIN-1855-CBF series. These 3G-SDI DIN 1.0/2.3 to BNC Female cables have a unique design allowing the cable to be mounted directly into a standard 1/2"-D cutout chassis at the front or back of your rack patchbay but can also be used in-line. Made with Belden 1855A cable and terminated with Amphenol and Connectronics connectors, they will be sure to offer system design flexibility and save installation time. Cables support 3G-SDI video or AES 67 audio and are commonly used in Imagine X50 and similar applications.

  • Features:

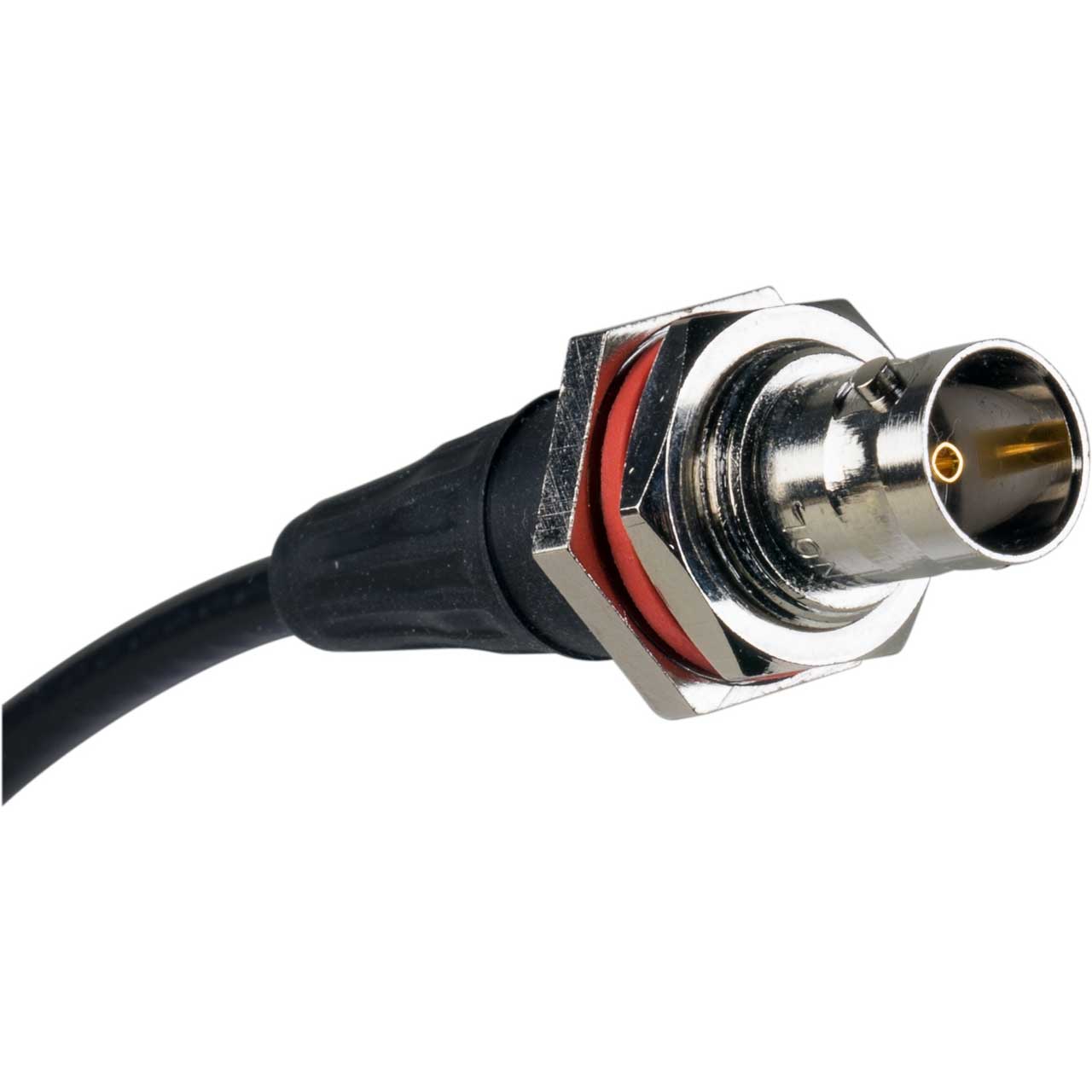

    • Chassis Mount BNC Connectors for Quick Connect and Disconnect to DIN 1.0/2.3 Connector
    • Supports AES 67 Audio and 3G-SDI Video Formats

  • Specifications:

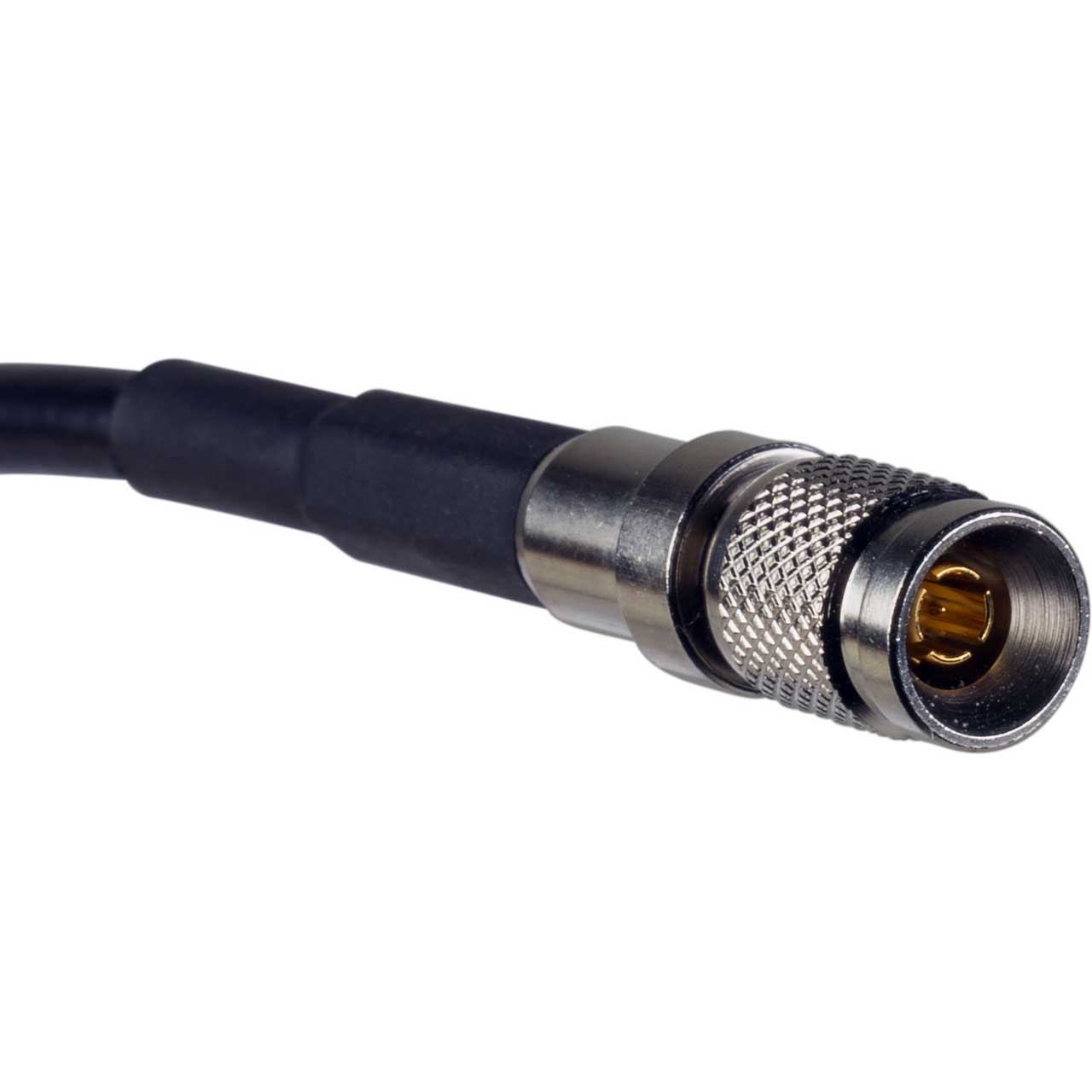

    • Amphenol RF BNC Straight Crimp Jack to DIN 1.0/2.3 Connector
    • Impedance 75 ohm
    • Frequency Max 4GHz
    • Mating Cycles 500
    • Belden 1855A Cable
    • RG Type: Sub-miniature 59/U
    • AWG: 23
    • Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Nom. Characteristic Impedance: 75 Ohm +/- 1.50

  • Warranty:

    • 1 Year
