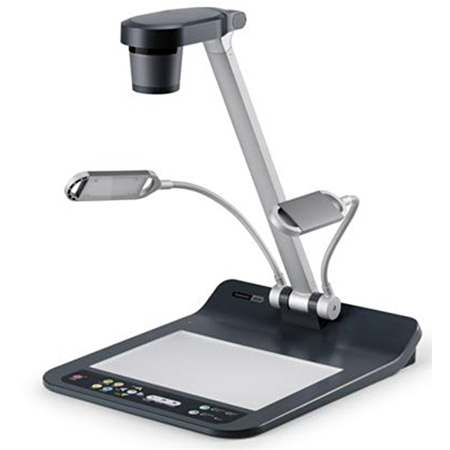

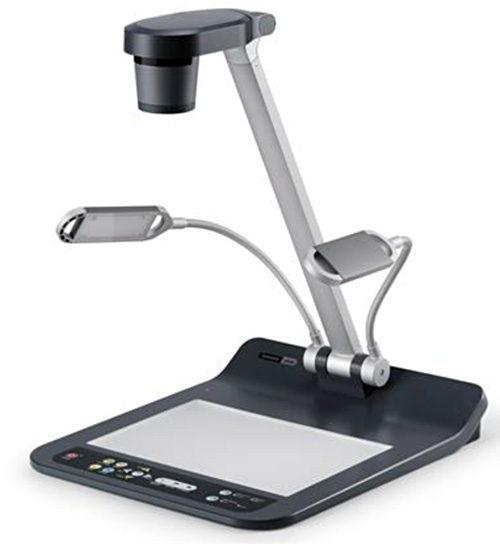

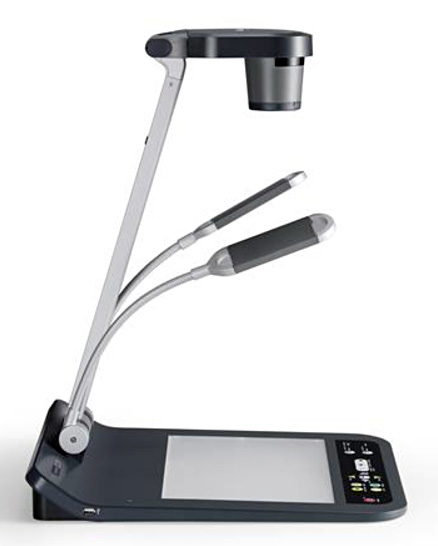

Dukane DVP510B 1080P Desktop Document Camera with 20x Zoom and Built-In Audio Video Recording

ITEM #: DK-DVP510 MFG #: DVP510

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DK-DVP510

DVP510 - Overview

The DVP510 is a desktop document camera equipped with 20x zoom capability and a professional image sensor to deliver vivid colors at high-definition, the DVP510 has Full HD 1080p output resolution and 30 frames per second. The DVP510 not only supports HDMI input/output, it is also compatible with high definition audio/ video equipment. Its internal memory stores up to 240 images and is expandable with a USB flash drive. One-touch audio/video recording records presentations without the need for a PC. A built-in backlight design achieves the multi-image display requirements. The dual, adjustable side-lamp design prevents reflections. Single-button auto-tune provides the perfect image quality every time. The DVP510 has a unique projector mode for connecting LCD and DLP projectors to reduce interference caused by different types of projectors, delivering the best image quality.

  • Features:

    • High Resolution XGA, SXGA, WXGA, and 1080p
    • HDMI Digital Output & Input
    • 20x Zoom, 2x Digital Zoom, 10x Optical Zoom
    • Built in Microphone
    • Image Capture, Video/Audio Recording and Playback
    • LED Illumination & Backlight
    • Internal Memory and USB Flash Drive Port
    • USB Connection Capability
    • Compatible with All Interactive Whiteboards
    • New B-Works2 Software Included
    • 5 Year Warranty

  • Specifications:

    • Imaging
    • Full screen Video/audio recording and playback
    • Output Resolution: XGA (1024 x 768), SXGA (1280 x 1024), WXGA (1280 x 800), 1080p (1920 x 1080)
    • Frame Rate: VGA (SXGA - 1080p) - 30 fps; USB - 30 fps
    • Zoom Capacity: 20X Zoom, 2X pixel and 10X optical
    • Capture Area: 17.3" x 13" (440 x 330 mm)
    • Lamp Type: 2 LED lamps for completely even light coverage, LED Backlight 11.7" x 8.3"

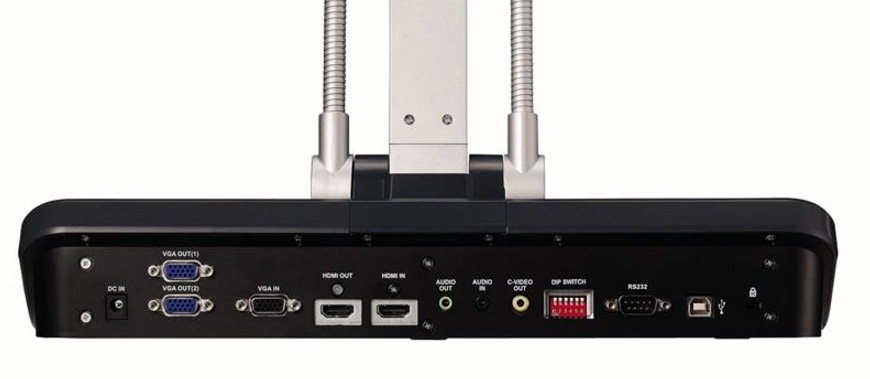

      Input/Output
    • Power Supply: Built-in, 100-240 VAC, auto switching
    • Digital Out: HDMI XGA/SXGA/WXGA/1080p
    • Digital In: HDMI Active pass through
    • VGA In: Active pass through from the computer
    • VGA Out: VGA output to the projector
    • Audio In: Built-in microphone
    • Audio Out: 3.5mm phone jack for earphones or speakers
    • Internal Memory Capacity: Up to 240 JPEG images
    • External Memory Capacity: USB Flash Drive to 32 GB
    • USB Support: USB 2.0 High Speed (up to 480 Mbps) for seamless integration with interactive whiteboards
    • RS-232: Yes
    • C-Video: RCA Jack (PAL, NTSC)

      Software
    • B-Works2 Software Included: Supports PC Windows 8, 7, XP, Vista and Mac OSX
    • Video Recording with Audio: Record video with various compression formats. Playback with audio out- No PC needed
    • Image Capture: Single or continuous capture of JPEG images
    • Annotation: Add annotations directly to live image
    • Controls and Operations: Same set of controls as the remote control
    • USB Driver: Supports UVC, WIA and TWAIN for integration with interactive whiteboards including Promethean, SMART, Hitachi Starboard, Mimio, and others

      Security
    • Lock-Down Mode: Lock the unit with password entry
    • Auto Erase Mode: Option to automatically erase internal memory during power down
    • Anti-Theft: Kensington Lock Port on document

      Other
    • Weight: 12.0 lbs
    • Shipping Weight: 19 lbs
    • Dimensions (Operating): 20" x 15" x 18" (L x W x H)
    • Dimensions (Folded): 21" x 16" x 6" (L x W x H)
    • Shipping Dimensions: 25" x 18" x 9" (L x W x H)
    • Warranty: 5 Years (includes lamps)

  • GTIN:

    0605194005789
