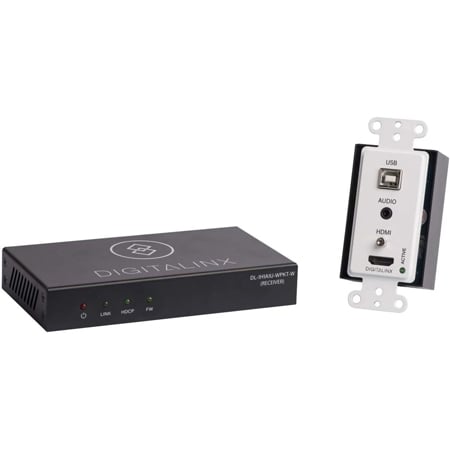

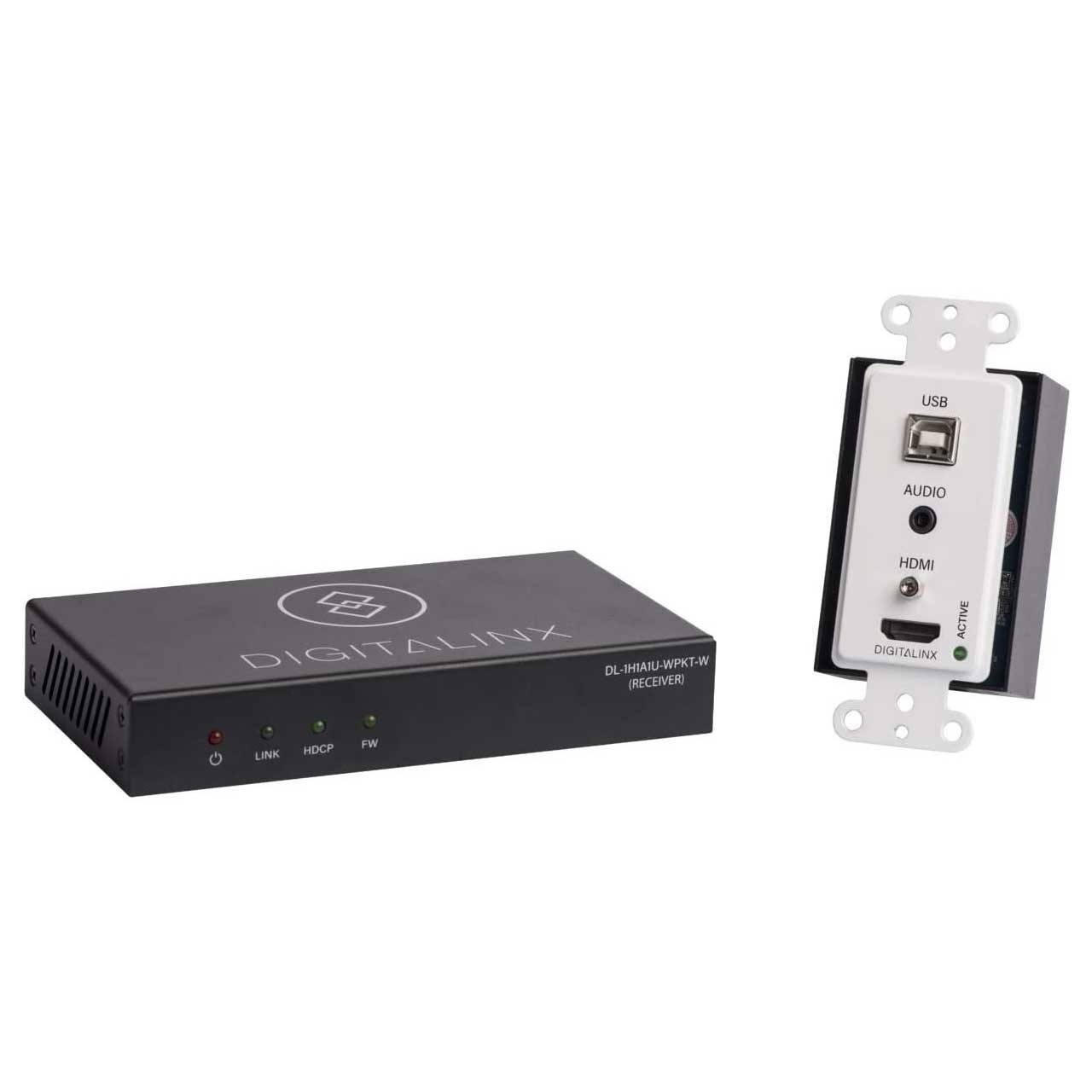

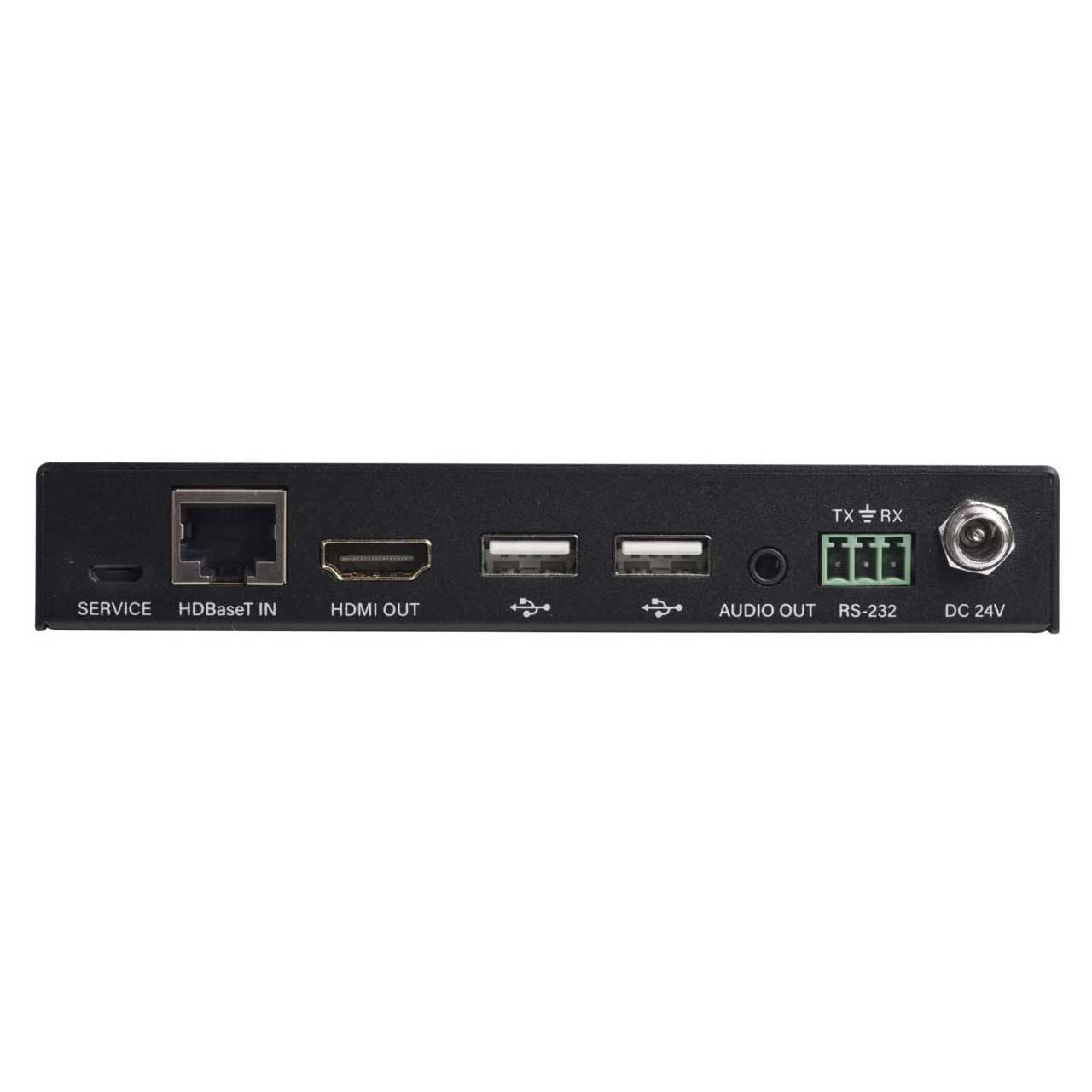

The Digitalinx DL-1H1A1U-WPKT-W HDBaseT 2.0 extender set transmits HDMI, Audio, USB High Speed (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1U-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120' and 1080P up to 70m / 230'. The audio circuit is completely separate and is not dependent on the HDMI or USB input source to be active. The Digitalinx DL-1H1A1U-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC pass through. The DL-1H1A1U-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate. The DL-1H1A1U-WPKT-W is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
Applications
Extend HDMI source, USB2.0 high speed, and audio source at the same time or independently
Extension of HDMI, 3.5mm audio, USB2.0 high speed signals
Education, K-12, commercial video, residential
