DMXDECELERATOR-5 - Overview

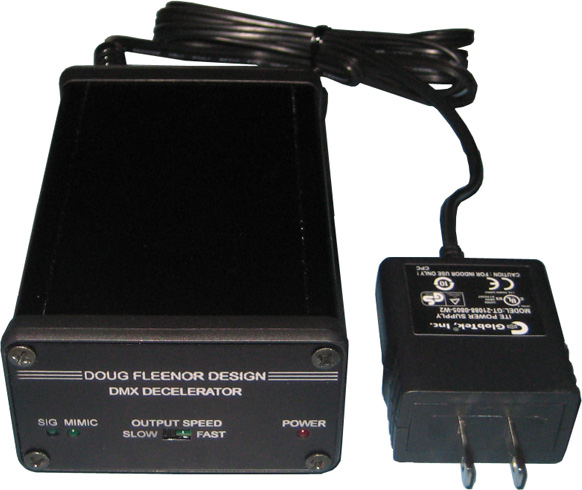

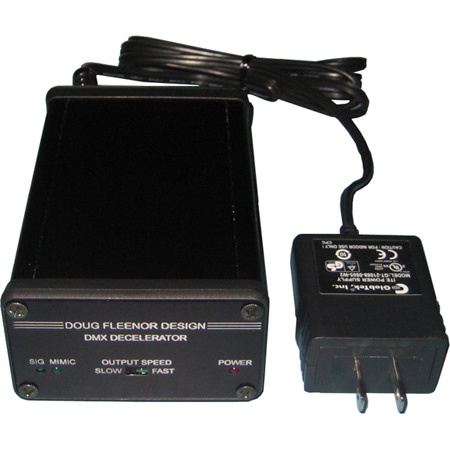

The Doug Fleenor DMXDECELERATOR-5 DMX Decelerator is a DMX512 isolator and re-timing device. It can receive any signal within the DMX512 specification and it can accept some signals outside of the specification. It produces a DMX output signal with "relaxed" timing characteristics which are required by some DMX receiving devices.

The DMX DECELERATOR is powered by a universal input supply. Its DMX512 input is fully opto-isolated and protected against transient voltages.

  • Specifications:

    • Input power: 90V - 260VAC, 50/60 Hz. 5 Watts
    • Environmental: Operating temperature: 0-40° C, 10-90% humidity, non-condensing, indoor use only
    • Input signal: DMX512, DMX512/1990, DMX512-A (250 Kb/s, 0.2 Volts min. 12 Volts max). Input is terminated
    • Input circuit: Transient protected EIA-485 transceiver (LT1785)
    • Input protection: 15,000 Volt transient, ± 60 Volt continuous

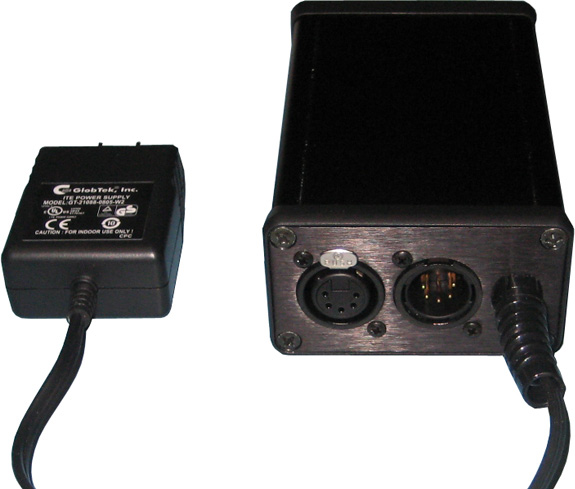

    • Input connector: Gold plated 5 pin male (Neutrik D-1 series)
    • Input isolation: 600 Volts
    • Output signal: DMX512-A with variable timing characteristics
    • Output connector: Gold plated 5 pin female XLR (Neutrik D-1 series)
    • Indicators: Green signal indicator, green MIMIC indicator (tracks the level of channel 1), red power indicator
    • User controls: One slide switch used to select slow or fast output timing characteristics
    • Color: Black with laser engraved nomenclature
    • Size(D x W x H) / Weight Chassis: 5.3 in 3.2 in x 1.8 in / 12 ounces (0.75 lbs)
    • Power supply(L x W x H): 2.2 in x 1.9 in x 1.0 in


  • Warranty:

    • 5 year
