DirectOut Technologies MADI.BRIDGE 8-port (8 x 64 Channel) MADI Switcher and Router with Remote Control & Preset Memory

ITEM #: DOT-MADI-BRIDGE MFG #: MADI-BRIDGE

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DOT-MADI-BRIDGE

MADI-BRIDGE - Overview

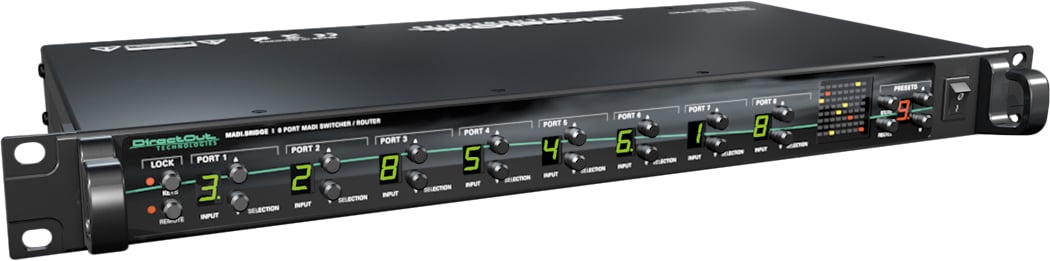

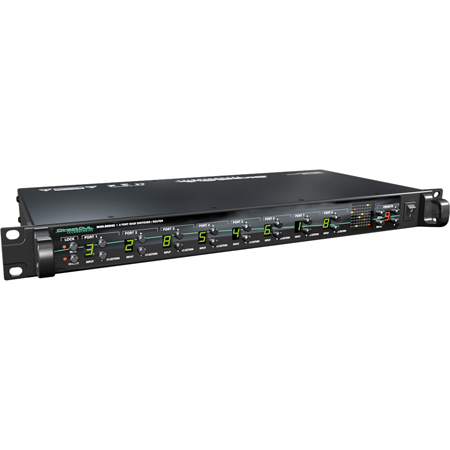

Direct Out MADI.BRIDGE is an 8-port (8 x 64 channel) MADI switcher and router with remote control and a preset memory. It features six coaxial (BNC) and two optical (SC) MADI I/Os to link between MADI devices from any manufacturer.

Recently updated and redesigned, it acts as a patchbay, signal distributor, signal buffer and input selector all in one device.

New features include redundant power supplies, a USB port to enable firmware updates for future enhancements and additional remote control capabilities.

  • Features:

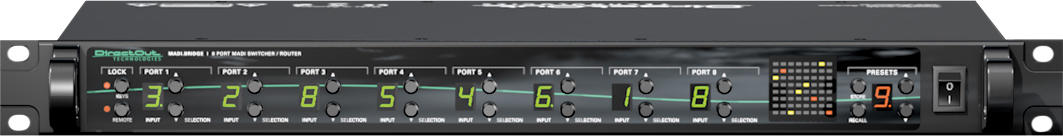

    • Flexibility: Any port input can be assigned to any port output, allowing copying, distribution and format conversion of MADI signals. The port selection is monitored by individual displays on the front panel.
    • Compatibility: All input signals are transported in their native state, thus supporting any format regardless of channel count, whether or not control data and/or sample rates are included, or even violations of the MADI protocol. Highly sensitive input stages mean that up to 100 m coaxial cable runs can be supported, even between devices.
    • Accessibility: Push buttons offer quick access to port selection, preset management and device lock. A matrix display previews stored signal routing in nine possible presets.
    • Fast, safe operation: An intuitive and easy to navigate user interface makes for fast and straightforward operation.
    • Key lock: A device lock on the front panel safeguards against accidental changes.

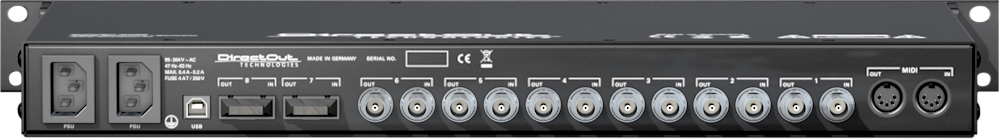

    • Safe operation: Thanks to two phase-redundant power supplies with separate IEC inlets and AC power switches on the rear panel the device offers the highest reliability.


  • Specifications:

    • Interfaces
    • MADI ports (I/O):
      2 x optical SC-Socket multi-mode
      6 x coaxial BNC, 75 Ω

      Digital
    • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
    • MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX

      Communication
    • MIDI (I/O): 2 x DIN-Socket for remote control
    • Remote Software: globcon

      Global
    • Service: USB 2.0 for firmware updates (Windows®) and remote control
    • Display: 64 dot matrix, 9 x segment display
    • Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant
    • Power Consumption: 15 W
    • Dimensions:
    • Width: 19" (483mm)
    • Height: 1 RU (44.5mm)
    • Depth: 7.8" (200mm)
    • Weight: about 6.61Lbs (3kg)
    • USB Serial driver: Windows®

      Device variants
    • Single-mode: MADI port: SC-Socket single-mode
