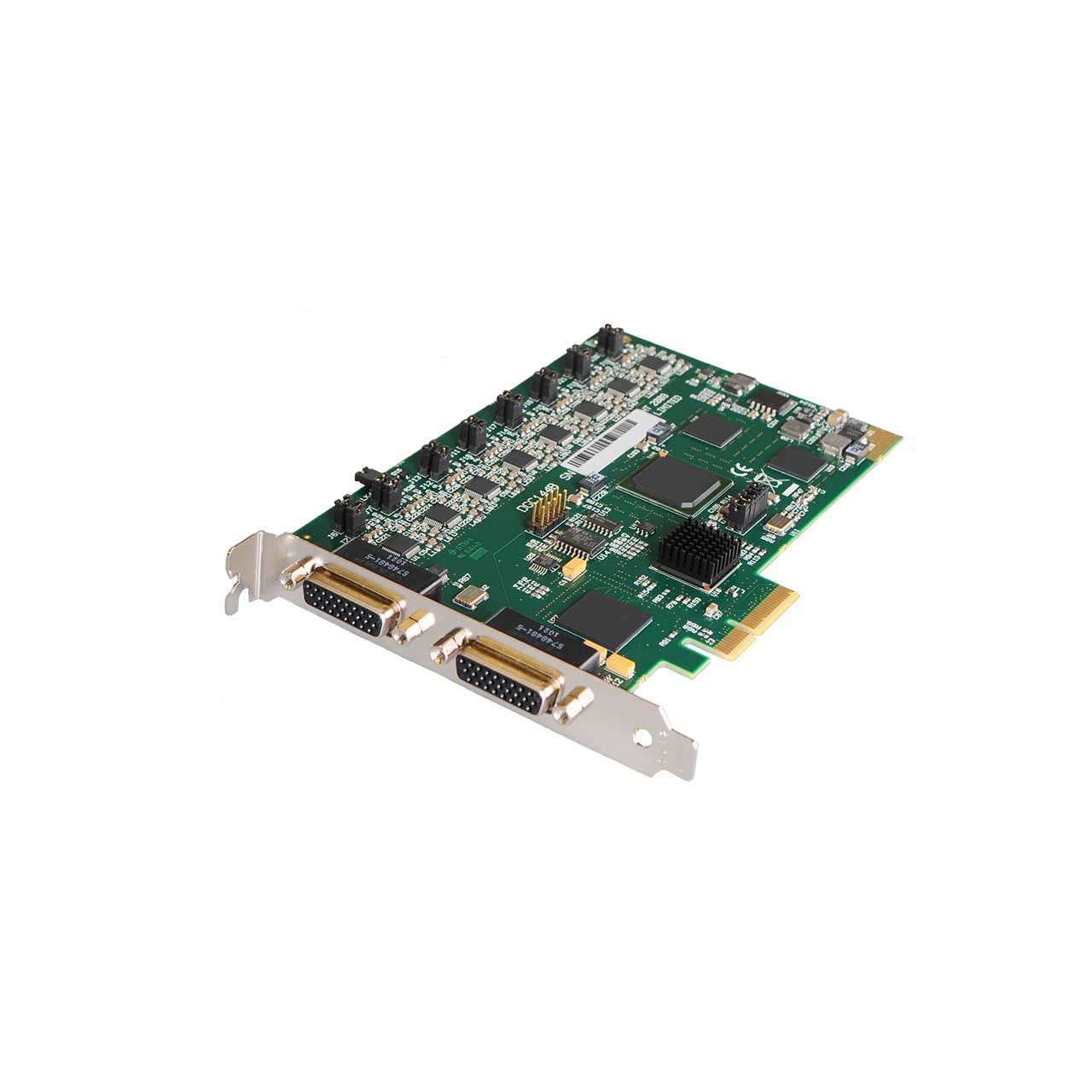

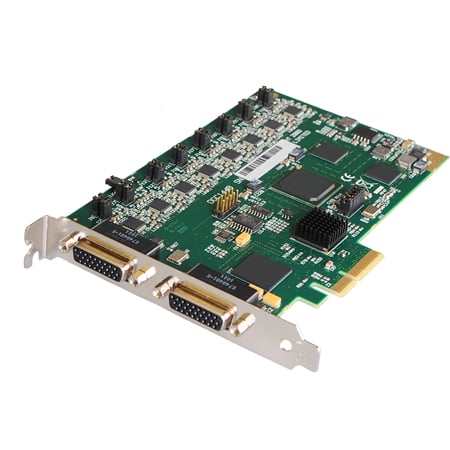

The Datapath VisionSD8 is an eight channel PCI Express video capture card. The card supports PAL, NTSC and SECAM in both composite and S-video input formats. VisionSD8 video capture card supports de-interlaced video capture and display at 25 / 30 fps for real time video overlays.
The VisionSD8, a stand alone PCI Express four lane plug in capture card, delivers extreme performance with 480 MB/s transfer bus bandwidth. This industry beating performance makes the VisionSD8 ideal for a wide range of applications including:
- Machine vision: acquires high resolution camera outputs
- Voyage data recorders: capture radar images
- Simulation/ Military: acquire high resolution video and simulation for comment and control
- Multi-display presentation software: recommended by industry leaders Dataton WATCHOUT
- Digital signage
Please note!. As per the Mfg, this capture card comes with 2(two) 26 pin D-SUB to 8 channel SD (BNC) breakout cables. Also note that you can only use 1 cable at a time. You cannot capture 16 channels, only 8 channels. The second 26 pin D-Sub connector is used as a video loop-through. The VisionSD8 can be integrated into the Datapath family of video wall products. The VisionSD8 captures 8 video outputs from one source and displays them on the video wall in real time.
Also Noted By The Manufacturer! "We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
