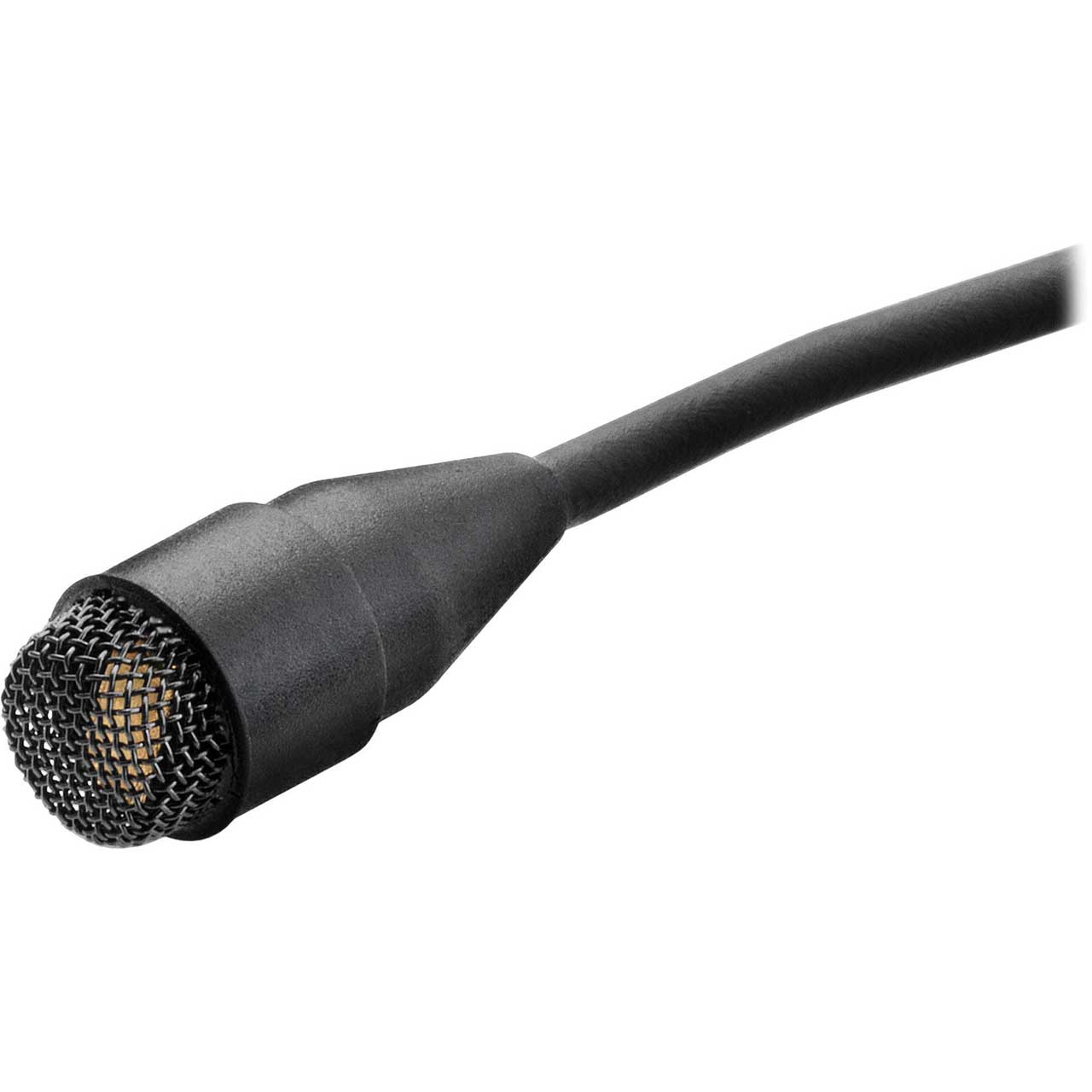

DPA 4060-OC-C-B00 discreet™ CORE 4060 Omni Lav Mic Normal SPL MicroDot - Black

ITEM #: DPA-4060-OC-CB00 MFG #: 4060-OC-C-B00

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$510.00

Availability: In Stock
iAvailability Description Popup


4060-OC-C-B00 - Overview

The 4060-OC-C-B00 high-sens, normal SPL, black d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems in performance and theatrical presentations. The Core 4060 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4060 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well. The d:screet Core 4060 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence. With an SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4060 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs.

  • Features:

    • For Stage and Television
    • Hardwired MicroDot Connector
    • High-Sensitivity, Normal SPL
    • Core Increases Mic Performance by 6 dB
    • Suitable for Wireless Transmitters
    • Humidity-Resistant Design
    • Includes Soft- and High-Boost Grids
    • An Adapter is Required

  • Specifications:

    • Sound Field: Mono
    • Operating Principle: Pressure Operated
    • Transducer: Condenser
    • Polar Pattern: Omnidirectional
    • Frequency Range: 20 Hz to 20 kHz
    • Signal to Noise Ratio: 71 dB A-Weighted
    • Equivalent Noise Level: 35 dB ITU-R 468
    • Maximum SPL: 134 dB SPL Peak
    • THD: < 1%
    • Impedance: 40 Ohms
    • Sensitivity: 20 mV/Pa at 1 Hz
    • Dynamic Range: 106 dB A-Weighted

  • GTIN:

    5713055011543
