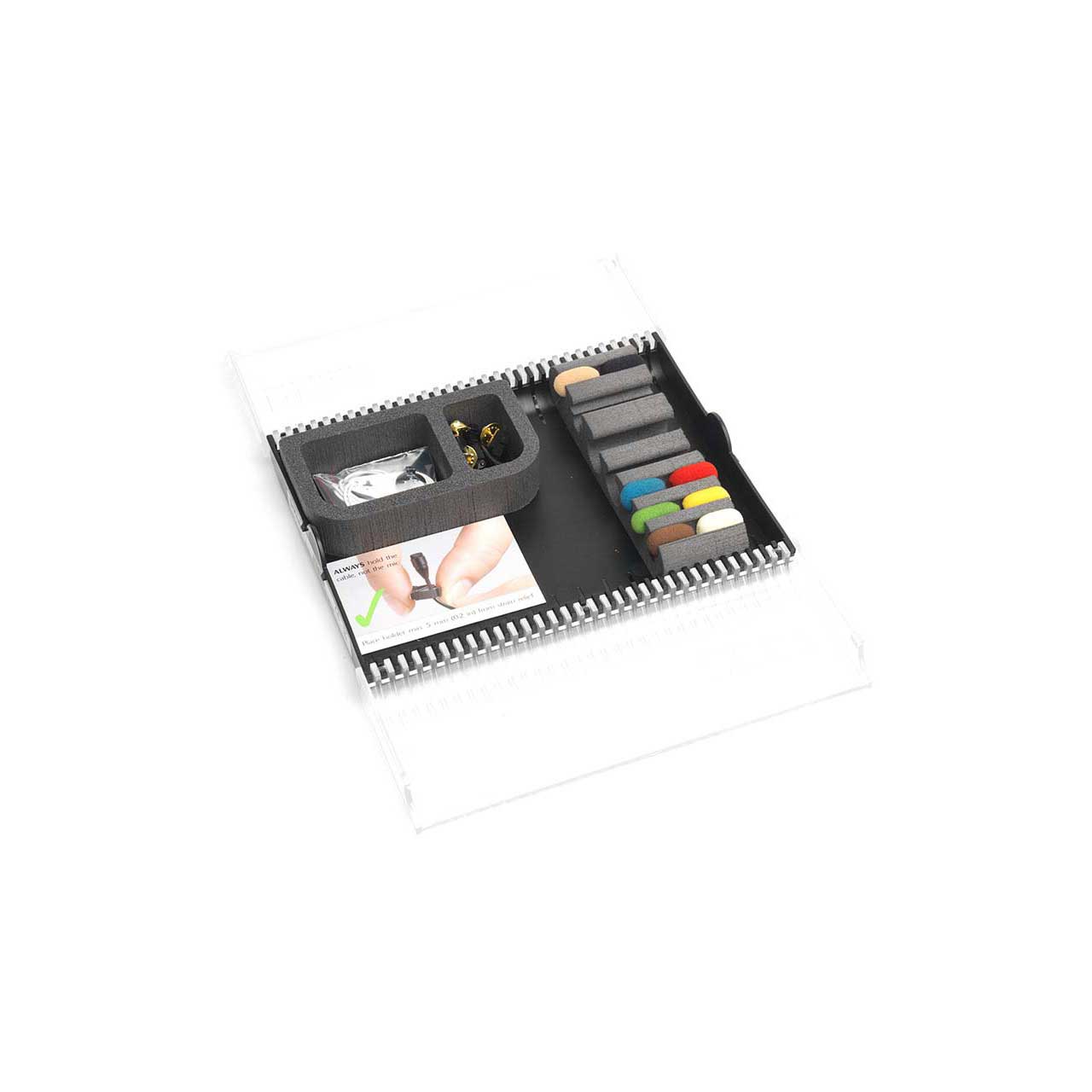

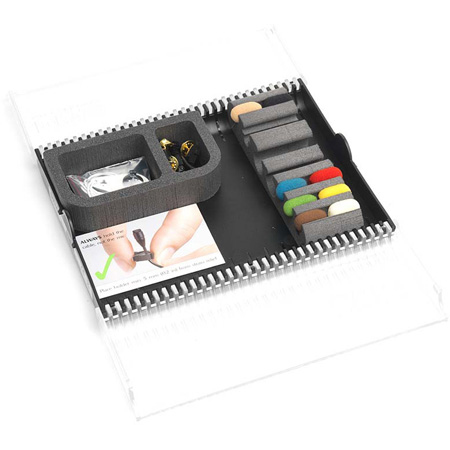

DPA DAK4060 Accessory Kit for D:Screet 4060 4061 4062 and 4063 (DAK4060)

DAK4060 - Overview

• Features:

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems


• Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ±2 dB: SC4060, SC4061, SC4062, SC4063, SCO60-H, SCO61-H:
  • Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
  • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • SC4071, SCO71-H: 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: SC4060, SCO60-H: 20 mV/Pa; -34 dB re. 1 V/Pa SC4061, SCO61-H, SC4063, SC4071, SCO71-H: 6 mV/Pa; -44 dB re. 1 V/Pa SC4062: 1 mV/Pa; -60 dB re. 1 V/Pa
  • Total Harmonic Distortion (THD): <1% up to 123 dB SPL peak; <1% up to 120 dB SPL RMS sine
  • Output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply For wireless systems: Min. 5 V to max. 50 V through DPA adapter
  • With DPA XLR adapter: 48 V phantom power ±4 V
  • Connector: MicroDot
  • Cable length: 1.8 m (6 ft)
  • Color: SC4060, SC4061: Black, beige, brown, white SC4062, SCO60-H, SCO61-H, SCO71-H: Black, beige SC4063, SC4071: Black, beige, white
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin


• GTIN:

  5713055006143
