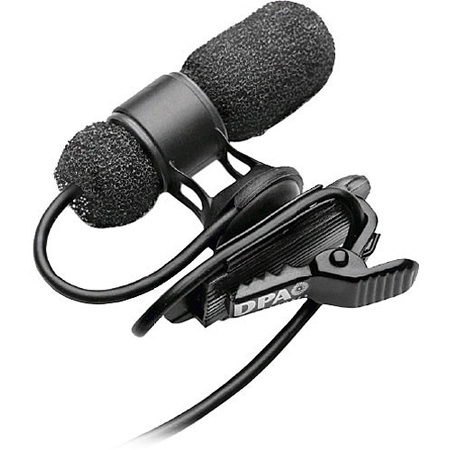

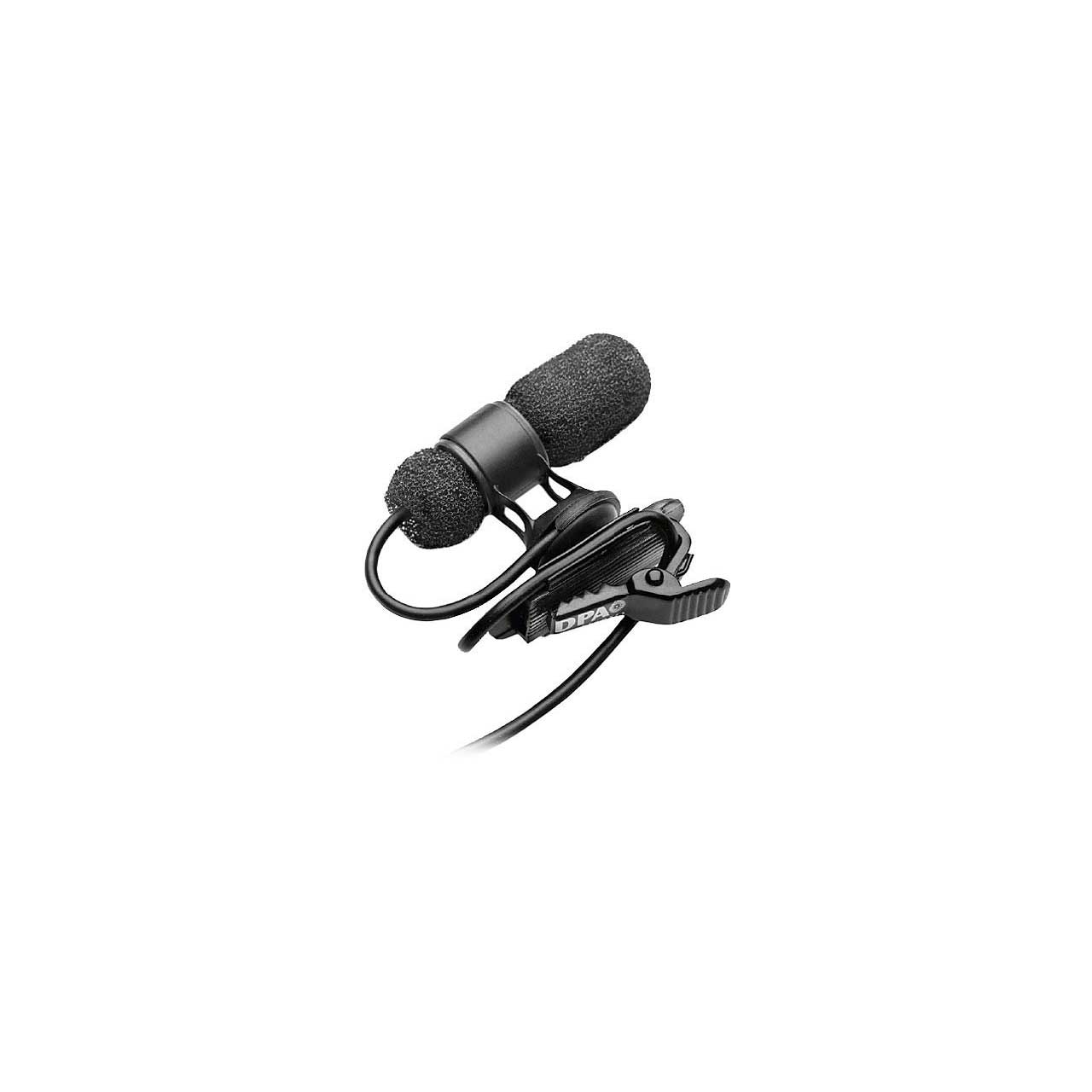

DPA 4080DC-D-B00 d:screet CORE 4080 Cardioid Microphone - Normal SPL - Black - MicroDot

ITEM #: DPA-4080DC-D-B00 MFG #: 4080DC-D-B00

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$650.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4080DC-D-B00 - Overview

While DPA's 4080-DC-D-B00 miniature omnidirectional mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The 4080 Cardioid Lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.

  • Features:

    • Excellent speech reproduction
    • Discreet, compact design
    • Fits both left and right buttoned shirts
    • Delivered with both black and white pop filters
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20 Hz - 20 kHz
    • Effective Frequency Range ±2 dB: 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)
    • Sensitivity, Nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
    • Equivalent Noise Level, A-Weighted: Typ. 23 dB(A) re. 20 æPa (max. 26 dB(A))
    • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
    • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
    • Dynamic Range: Typ. 100 dB
    • Max. SPL, THD 10%: 134 dB SPL peak
    • Rated Output Impedance: 30 - 40 Ω
    • Cable Drive Capability: Up to 300m (984') with DAD6001-BC XLR Adapter
    • Power Supply (for Full Performance): Min. 5 V - max. 50 V through DPA adapter for wireless systems or 48 V phantom power ±4 V with DAD6001-BC XLR adapter
    • Connector: MicroDot
    • Color: Black
    • Weight: 15g (0.5oz) incl. Cable and MicroDot connector
    • Microphone Diameter: 10mm (0.4")
    • Capsule Diameter: 5.4mm (0.21")
    • Microphone Length: 30mm (1.2")
    • Cable Length: 1.2m (3.9')
    • Cable Color: Black
    • Cable Diameter: 1.6mm (0.06")
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature Range: -40°C to 45°C (-40°F to 113°F)
    • Relative Humidity (RH): Up to 90%

  • GTIN:

    5713055018719
