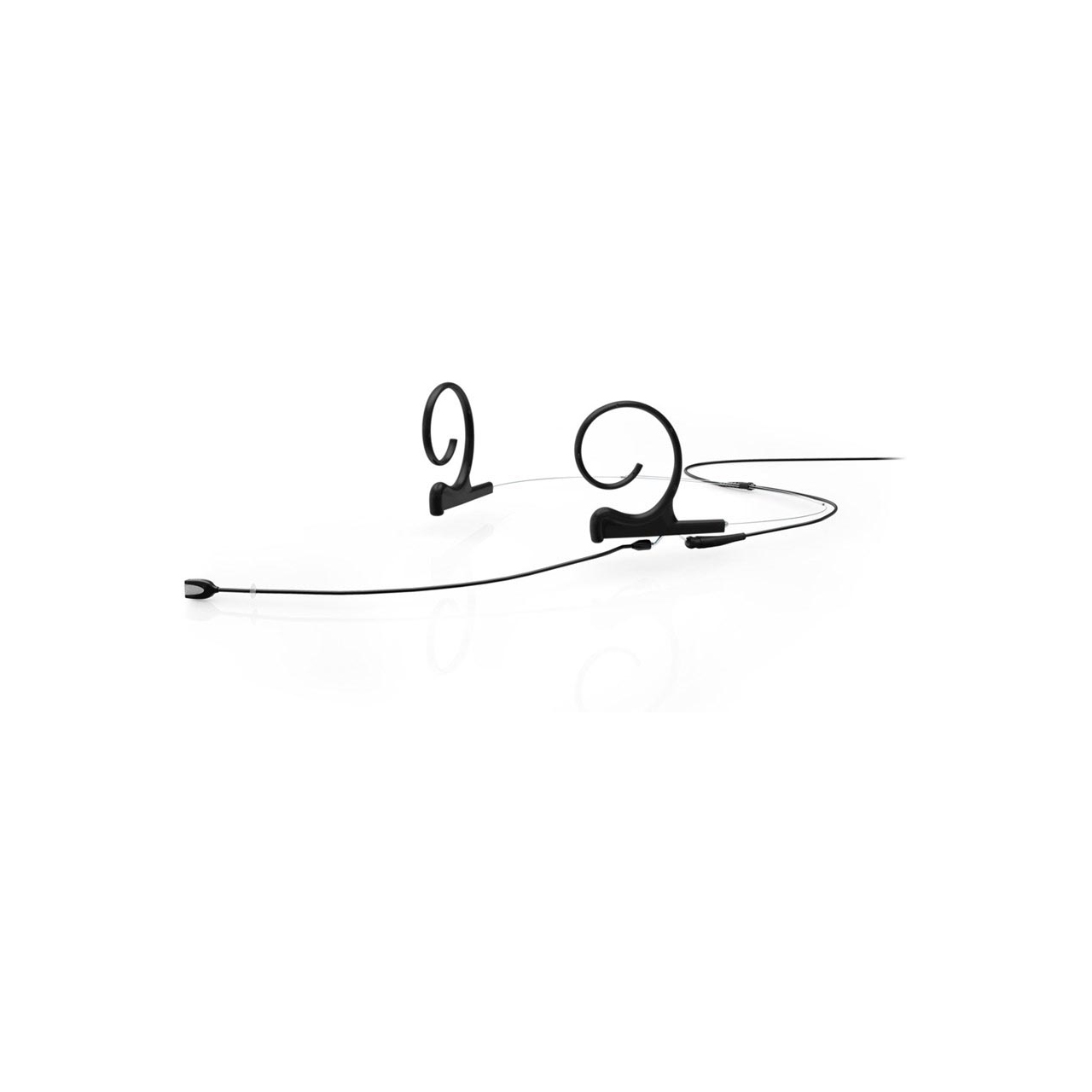

DPA 4188-DC-F-B00-LH d:fine CORE 4188 Slim Directional Flex Headset Mic - 120 mm Boom - Black - MicroDot

4188-DC-F-B00-LH - Overview

• Features:

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Minimal visual impact
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems


• Specifications:

  • Relative humidity (RH): Up to 90%
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Electromagnetic compatibility (EMC): Fully compatible
  • Temperature range: -40°F to 113°F (-40°C to 45°C)
  • Frequency response: 20 Hz - 20 kHz
  • Cable length: 4.3' (1.3m)
  • Dynamic range: Typ. 111 dB
  • Power supply (for full performance):
    - For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    - With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Rated output impedance:
    - From MicroDot: 30 - 40 Ω
    - From DAD6001-BC: 100 Ω
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Directional pattern: Cardioid
  • Cable diameter: 0.06" (1.6mm)
  • Cartridge type: Pre-polarized condenser
  • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
  • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
  • Cable drive capability: Up to 984' (300m) with DAD6001-BC XLR Adapter
  • Principle of operation: Pressure gradient
  • Connector: MicroDot
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 æPa (max. 28 dB(A))
  • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Weight:
    - Microphone boom: 0.03oz (0.8g)
    - Earhook: 0.04oz (1.1g)
    - Cabel: 0.23oz (6.6g)
    - Total: 0.30oz (8.5g)
  • Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
  • Microphone diameter: 0.21" (5.4mm)
