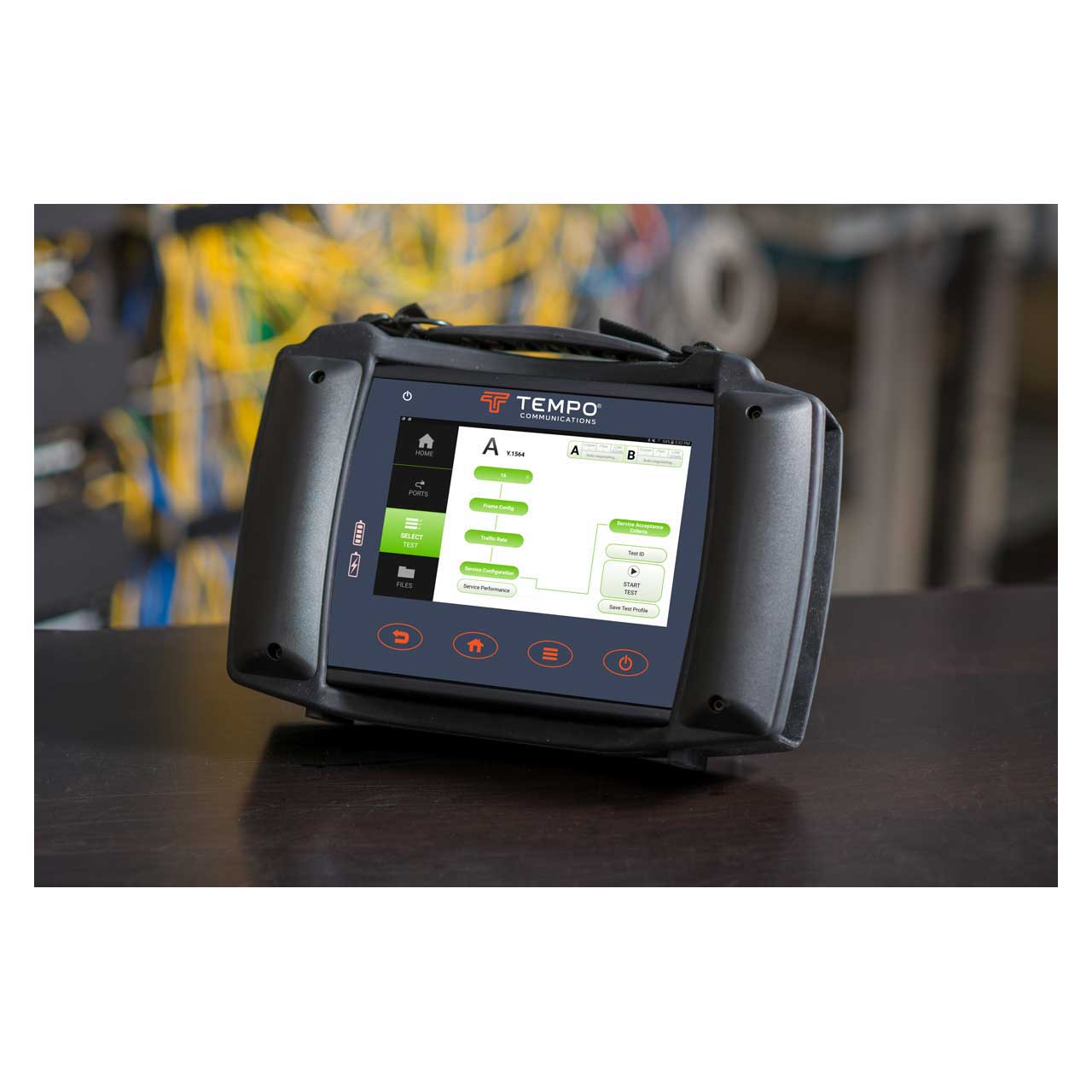

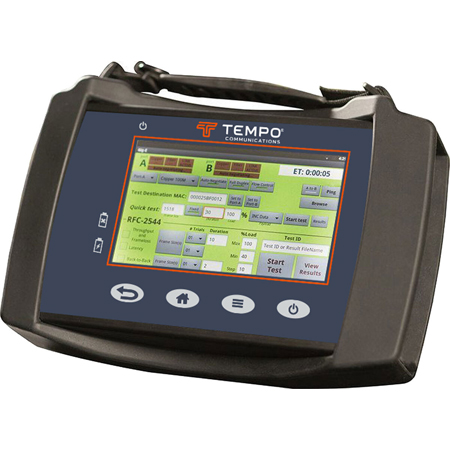

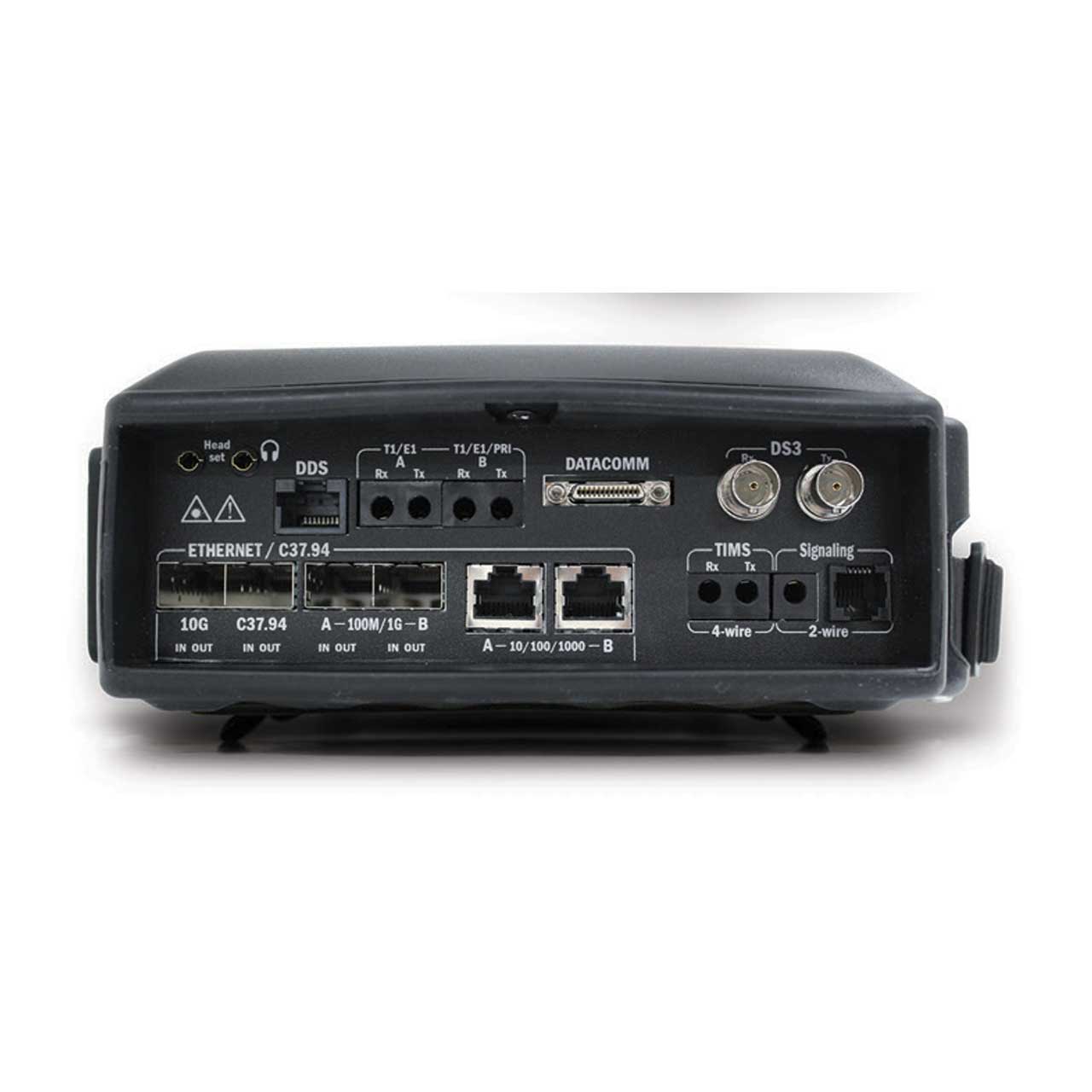

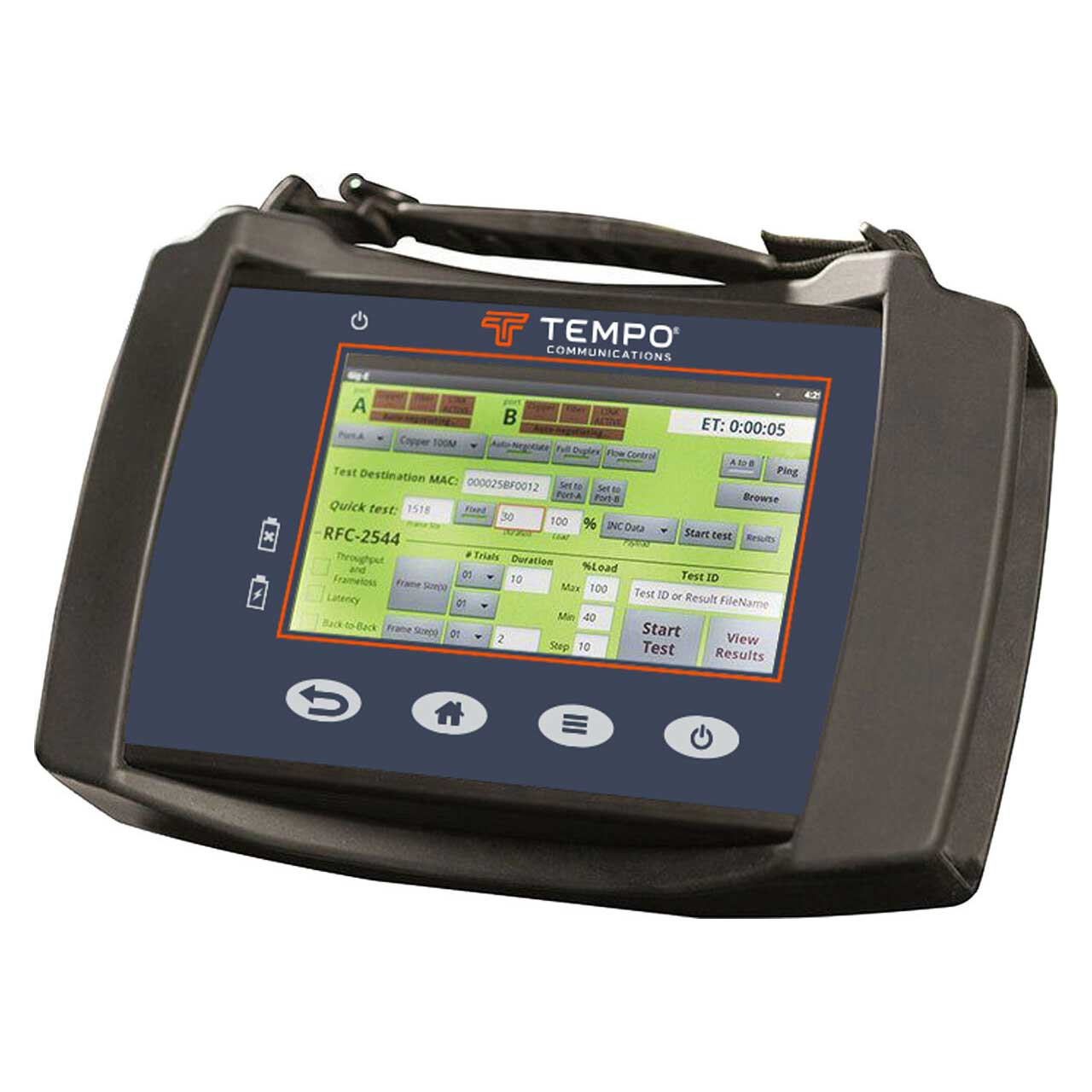

Tempo Communications DS10G-COMBO-ETHERNET DataScout 10G/DSO-TIMS/C37.94 Ethernet Tester - 1G/10G

DS10G-COMBO-ETHERNET - Overview

• Features:

  • Simple To Use, Fast To Learn
  • Touch screen tablet design
  • No confusing menus
  • Intuitive test configuration
  • Training videos embedded in application

    Advanced Features
  • Power-up 3X's faster than the competition
  • Test DS0-TIMS up to 10G Ethernet
  • Test multiple services simultaneously
  • Remote control via Bluetoothr or standard web browser

    Rugged & Reliable
  • Plug & Stay - No modules to lose!
  • Replaces up to 8 handhelds
  • Aluminum case with protective rubber boot
  • Designed, manufactured and supported in USA

    Designed For
  • Service Providers
  • Utilities & Municipalities
  • E911 Communication Networks
  • Datacenters


• Specifications:

  • Display & Input: 7"WVGA LCD touch screen 800x600 resolution
  • Weight (Varies by configuration): 0.91 kg (2.0 lbs) minimum 1.36 kg (3.0 lbs) maximum
  • Dimensions: 10 x 6.5 x 2.2 inches (WxHxD) 254 x 165 x 56 millimeters (WxHxD)
  • Operating Temperature: Operating temperature 10°C to 55°C, 14°F to 131°F
  • Operating Humidity: 0% to 93% RH non-condensing
  • Storage Temperature: -20°C to 70°C / -4°F to 158°F
  • Battery Type: Li Ion battery pack
  • Run Time: 2-8 hours (varies by test mode)
  • External Power: Mains: 110-240VAC, 50-60Hz with adapters
  • Enclosure: Shell: Rugged 1.5mm extruded aluminum. Boot: Rubber with Wi-Fi antenna storage slot. Kickstand: Power coated steel.


• Item Includes:

  • 1x Tempo DS10G-COMBO-ETHERNET DataScout 10G/DSO-TIMS/C37.94 Ethernet Tester - 1G/10G


• GTIN:

  0810025416454
