DSR8x1 Digital Switcher used with RC8x1

ITEM #: DS8X1RC MFG #: DSR8X1RC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,176.25

Our Price:

$2,599.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DSR8X1RC - Overview

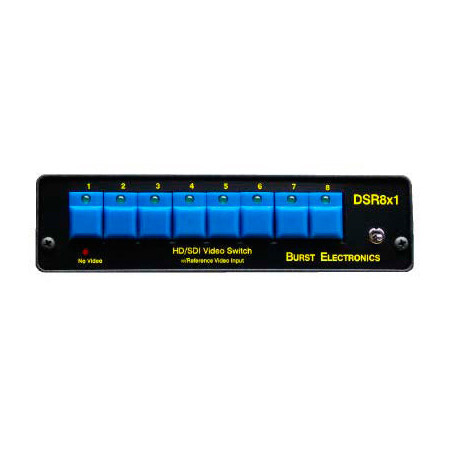

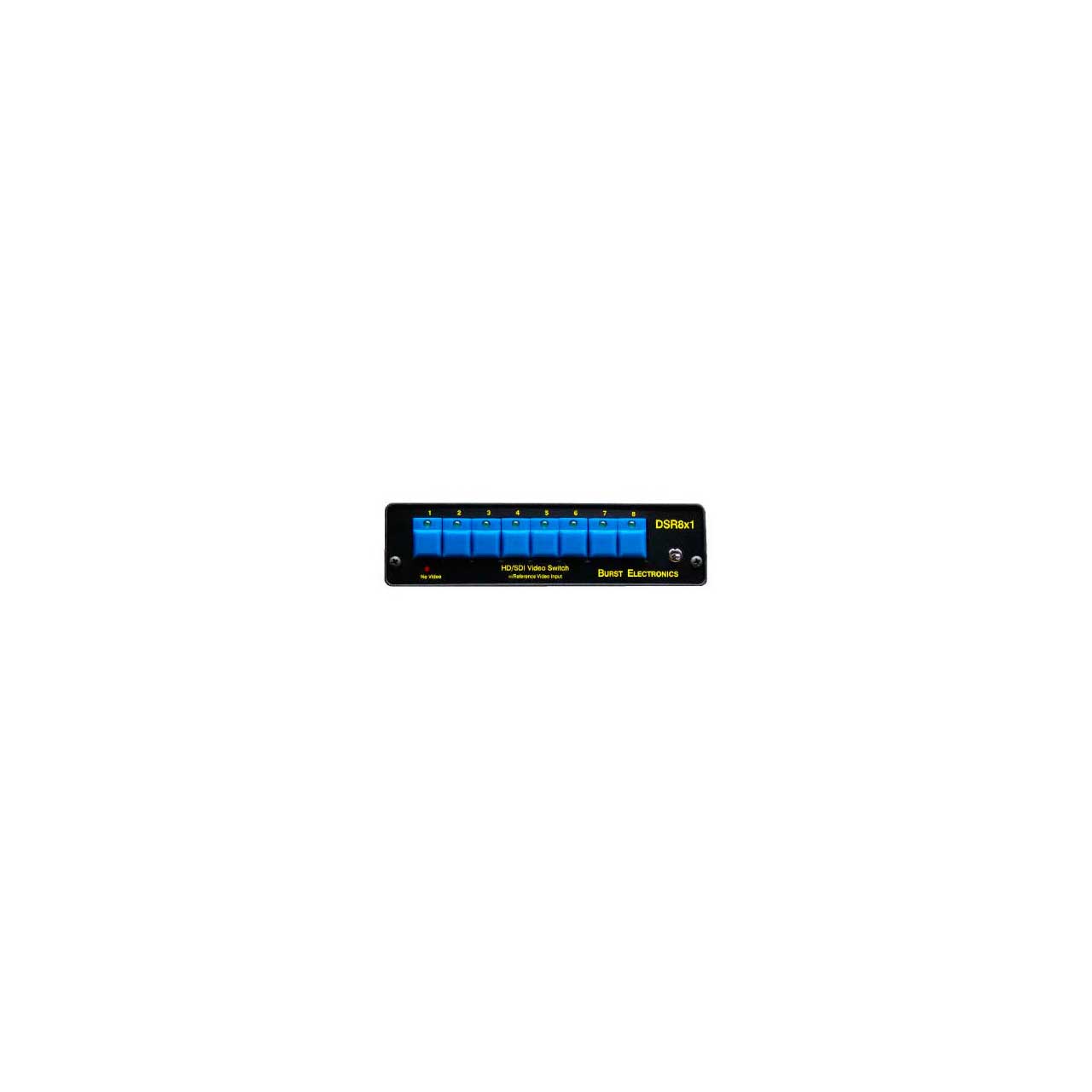

The DSR4x1 (DSR8x1) provides dependable signal routing of four (eight) HD or SD SDI video signals, between 143Mbps and 1.5Gbps, to a selected output. The output is re-clocked to remove any jitter present on the inputs and to restore original signal level, rise time, and eye-pattern at the output.There are four (eight) LED switches mounted on the front panel to select among the inputs. For remote control, there is an optional RS232 serial port that uses simple ASCII commands for input selection. The included serial control makes for a very economical remote-access SDI switcher.In addition, the DSR8x1 can be controlled by an optional RC8x1, a separate device with illuminated switches for selection between inputs. Another optional remote control for the DSR8x1 uses DTMF tones.The DSR4x1 and DSR8x1 are housed in Burst Electronics standard aluminum and steel enclosures that can be either desktop- or rack-mounted in a 1U rail. Power is supplied by any 9-15 Vac/dc power source using a 2.1mm circular connector (5Vdc optional). The units are polarity immune - perfect for vehicular and portable applications.

  • Features:

    • Accepts HD/SD-SDI signals between 143Mbps and 1.5Gbps
    • Auto-reclocked output at standardized levels
    • Local LED-lighted pushbutton for input selects
    • Analog Reference Video Input (Tri-Level or Composite Sync) for clean switching between synchronized video sources
    • Serial RS232 remote control option using simple ASCII commands
    • Easily installs in limited space situations
    • Accommodates a wide range of input power
