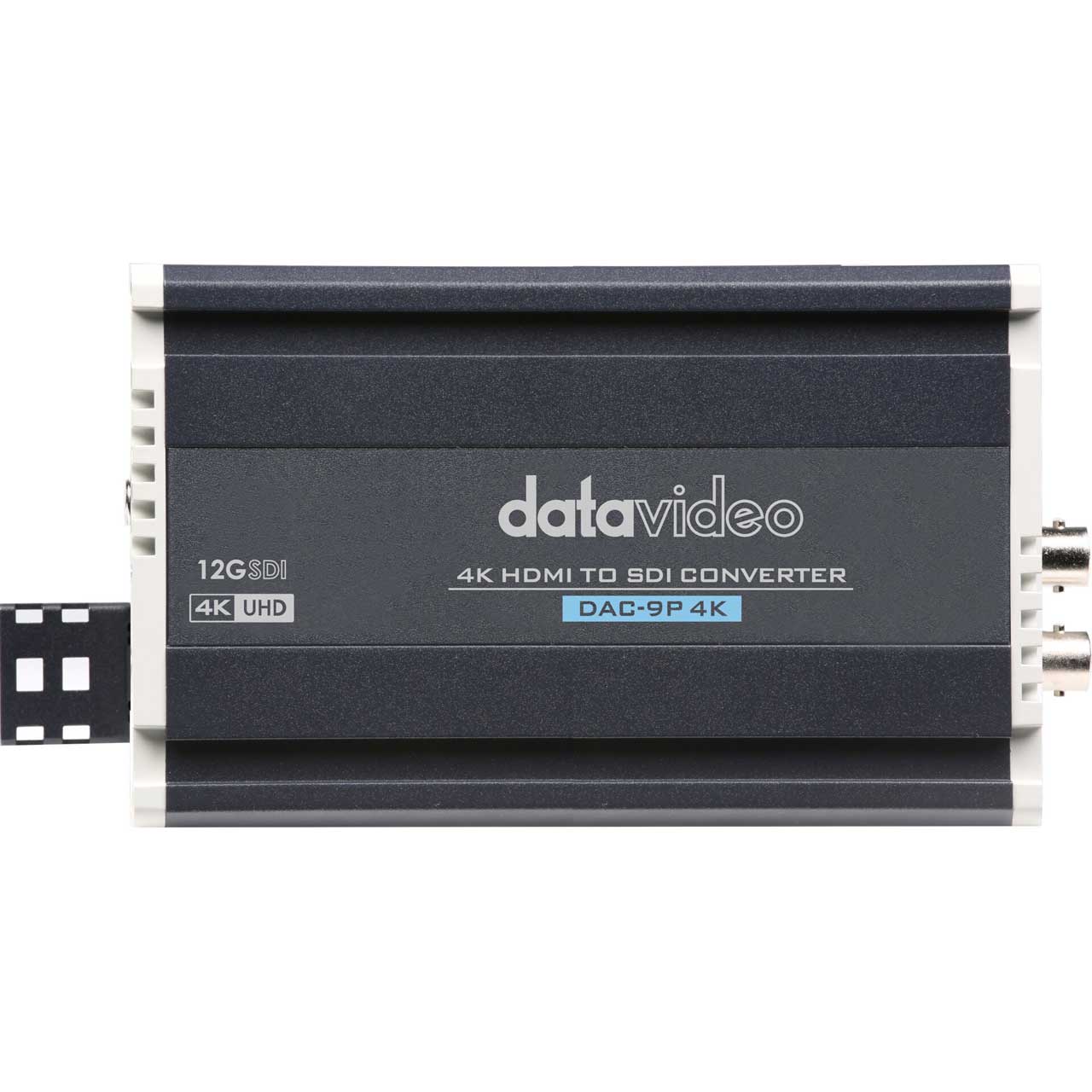

Broadcast Quality 4K HDMI to 12G-SDI Converter
The DAC-9P 4K Converter converts 4K HDMI with resolutions up to 4K50/60, to 12G-SDI. Easily connect 4K HDMI signal devices to professional 12G-SDI video equipment.
You get an HDMI input to an SDI output, and with HDMI loop output, audio is selectable from the HDMI input or RCA analog input.
The DAC-9P 4K Converter is useful for a variety of broadcast and professional AV applications.
Supports Up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
The DAC-9P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-9P 4K is also very easy to use. It is a plug and play converter, so there is no need to use a laptop for adjusting any settings.

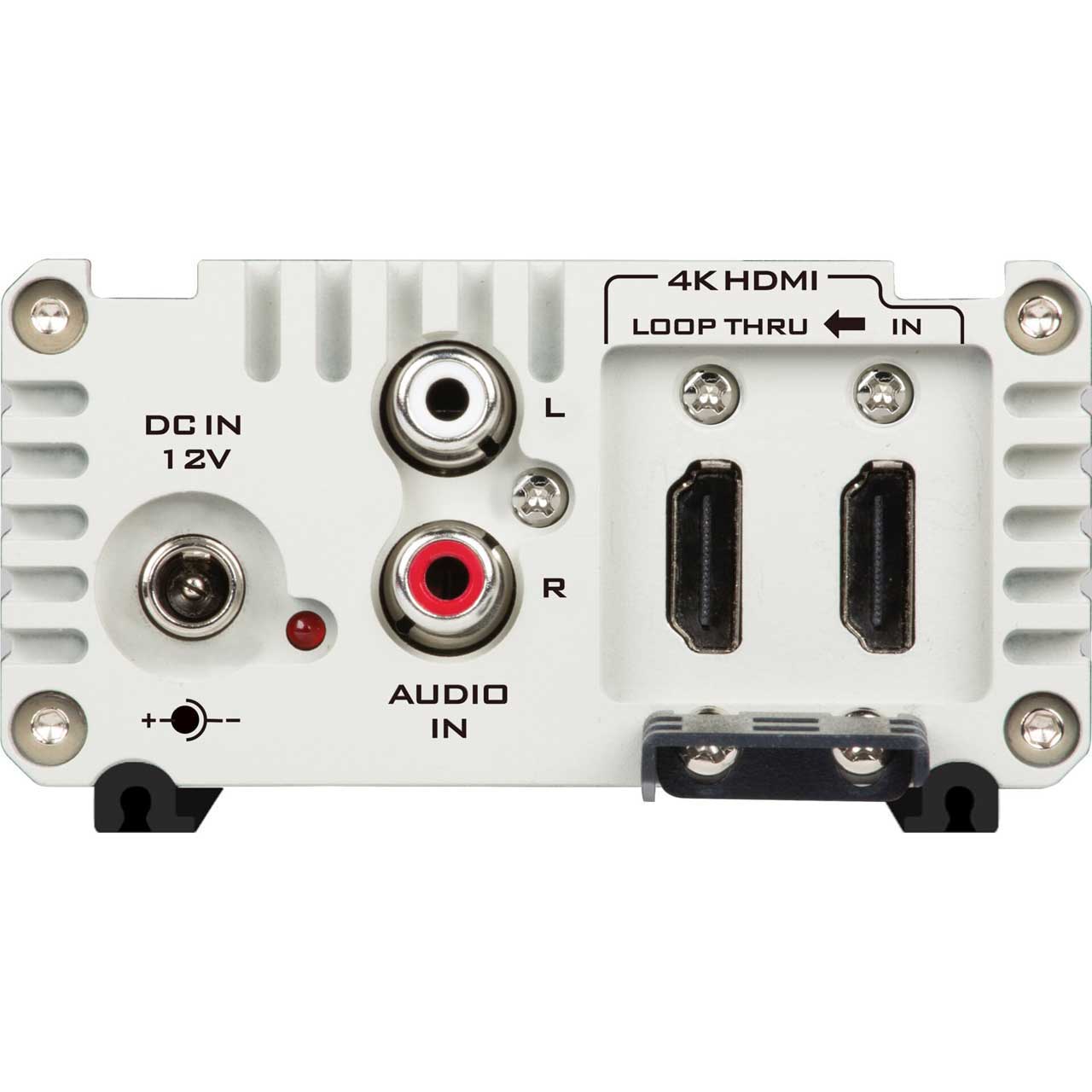

4K HDMI 2.0 Input and Loop-Thru Output

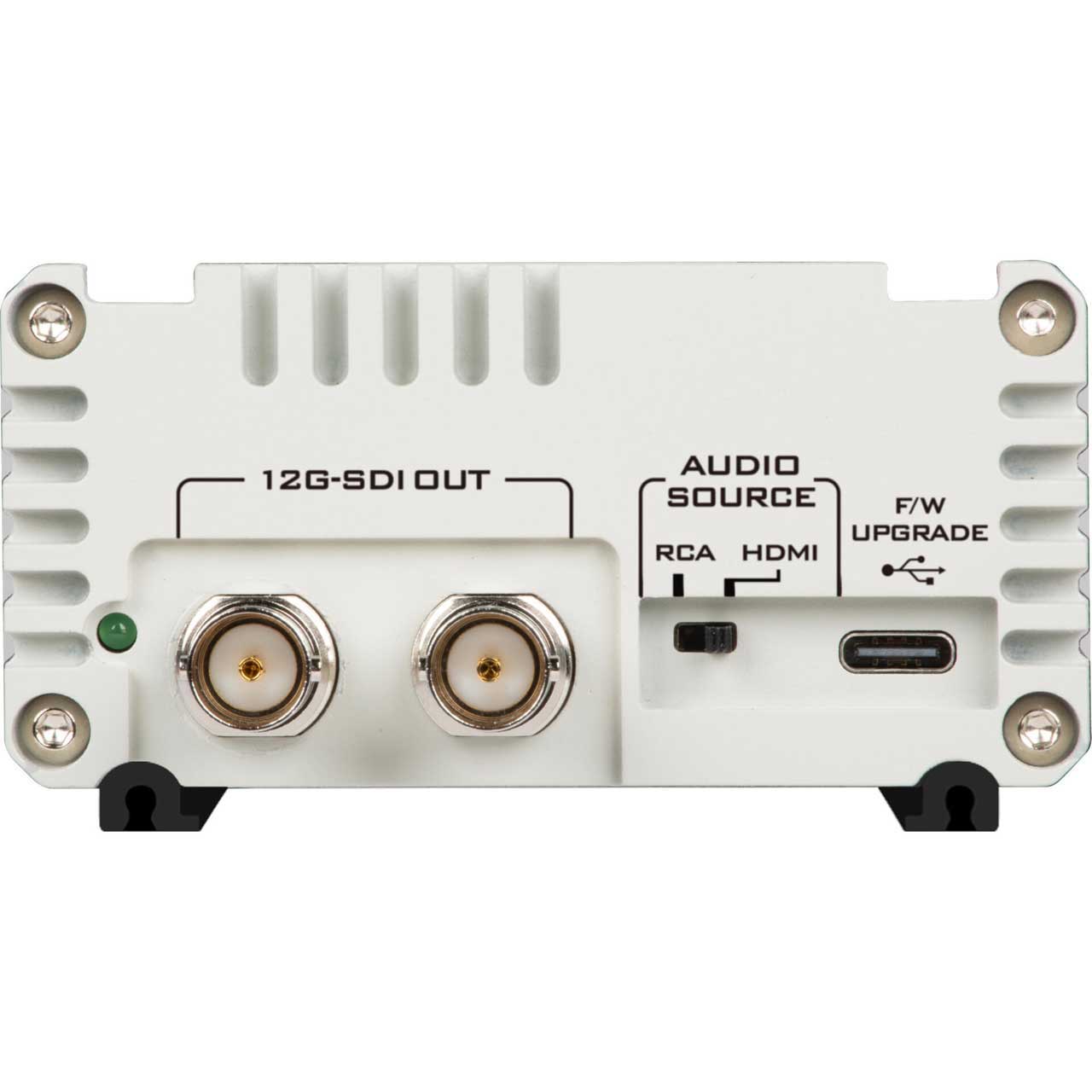

In addition to the converted 12G-SDI output, there is a HDMI loop thru for sending a signal to other devices in your workflow.
Supports Re-clocking
DAC-9P 4K will regenerate the video signal, and provide less jitter to improve output signal quality. DAC-9P 4K allows for a long distance transmission.
Not just a Video Converter, but Also an Audio Embedder
DAC-9P 4K provides a video converter from HDMI to SDI, and it also provides you an additional audio embedded selectable from 2-channel RCA analog audio or input from HDMI video to your live production.
Plug-and-Play
No Dip switch or laptop adjustment needed, Just plug and play you will receive the perfect SDI video signal for your video production.

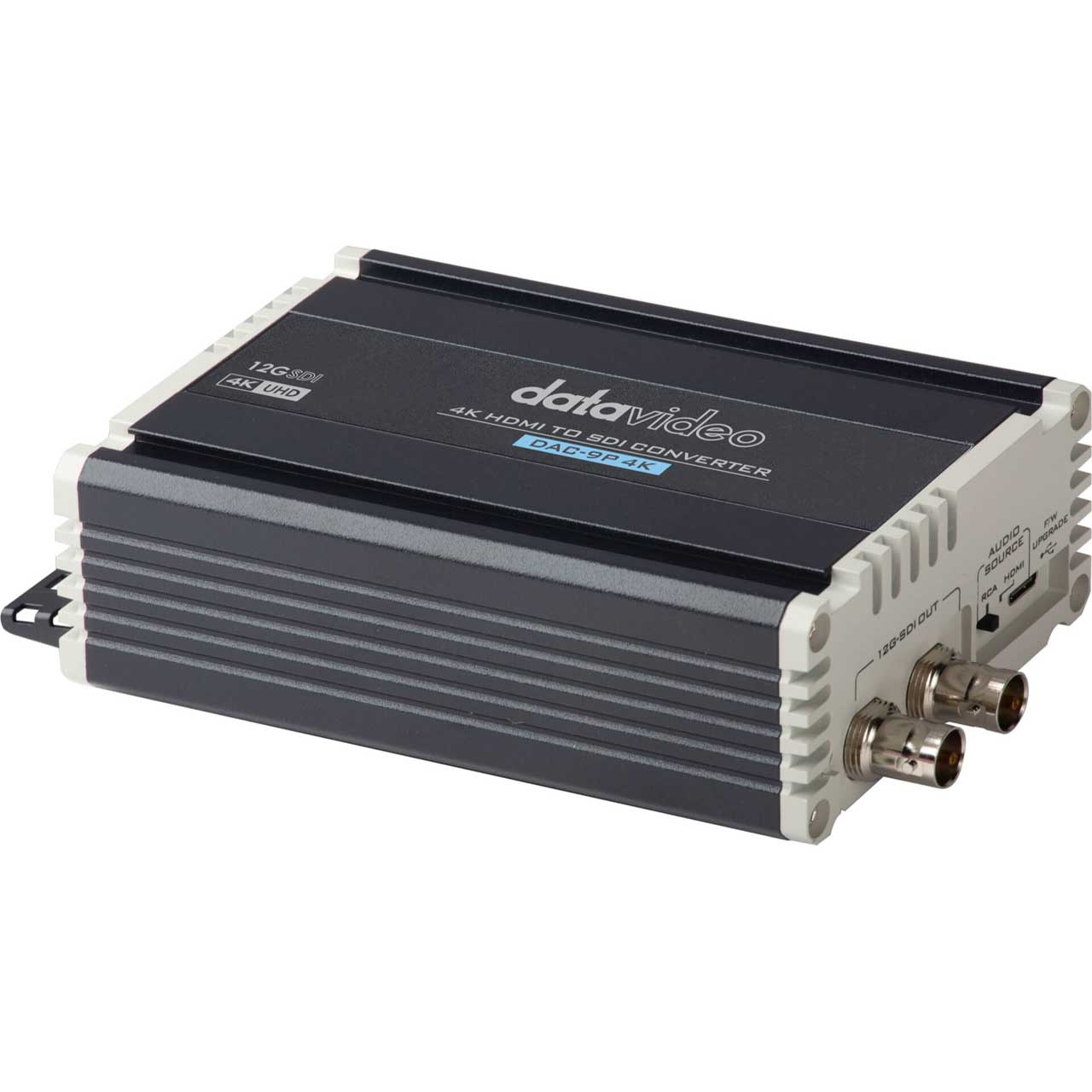

Aluminum Appearance Design, Rugged and Durable
Super sturdy and durable. The DAC series products have a rugged metal housing for use in the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
