Datavideo HS-2850-8 HD/SD 8-Channel Portable Video Studio

ITEM #: DV-HS-2850-8 MFG #: HS-2850-8

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


HS-2850-8 - Overview

The Datavideo HS-2850-8 is a cost-effective, 8-channel, 10-bit 1920 x 1080i broadcast-quality mobile hand carry switcher. Featuring 12 digital inputs, it is designed for live events and TV programs that need to blend a variety of video and audio sources. HS-2850-8 is light-weight, portable, and powerful, with features perfect for mobile switching.

As a complete AV package, the HS-2850-8 HD mobile studio enables users to switch seamlessly between video and audio sources and blend high-quality digital content on the fly.

Advanced features include a 17.3-inch video monitor which displays multiple sources, as well as preview and program.

The system is equipped with an eight-way intercom system and is supplied with four belt packs for effective communication between the whole production crew.

The HS-2850-8 is ideal for TV and video professionals working in outside broadcast or temporary video studios, such as theatres or conference centers. The HS-2850-8 is also a great value solution for the worship, education, and AV markets.

  • Features:

    • Supports 8 HD or SD Inputs in a variety of configurations:
    • 6 user-defined output options on 3 SDI output channels
    • 1 HDMI output for multi-view monitoring
    • 4x XLR Analog Audio Inputs, 2x XLR AnalogAudio Outputs,
    • User defined and positioned dual PIP
    • Two DSK with a set up choice of basic Luma key or alpha channel
    • Built-in title overlay system (TC-200) that works with CG systems
    • Cut, Mix and Wipe with border
    • Logo and Clock on screen
    • XPT (Cross Point Assignment)
    • Audio delay for each de-embedded audio source
    • SMPTE/ EBU Audio selectable via OSD
    • Black burst PAL or Tri-Level Sync Reference
    • Tally, GPI support
    • Build in 8CH Intercom system
    • One 17.3-inch with a resolution of 1600x900 dots

  • Specifications:

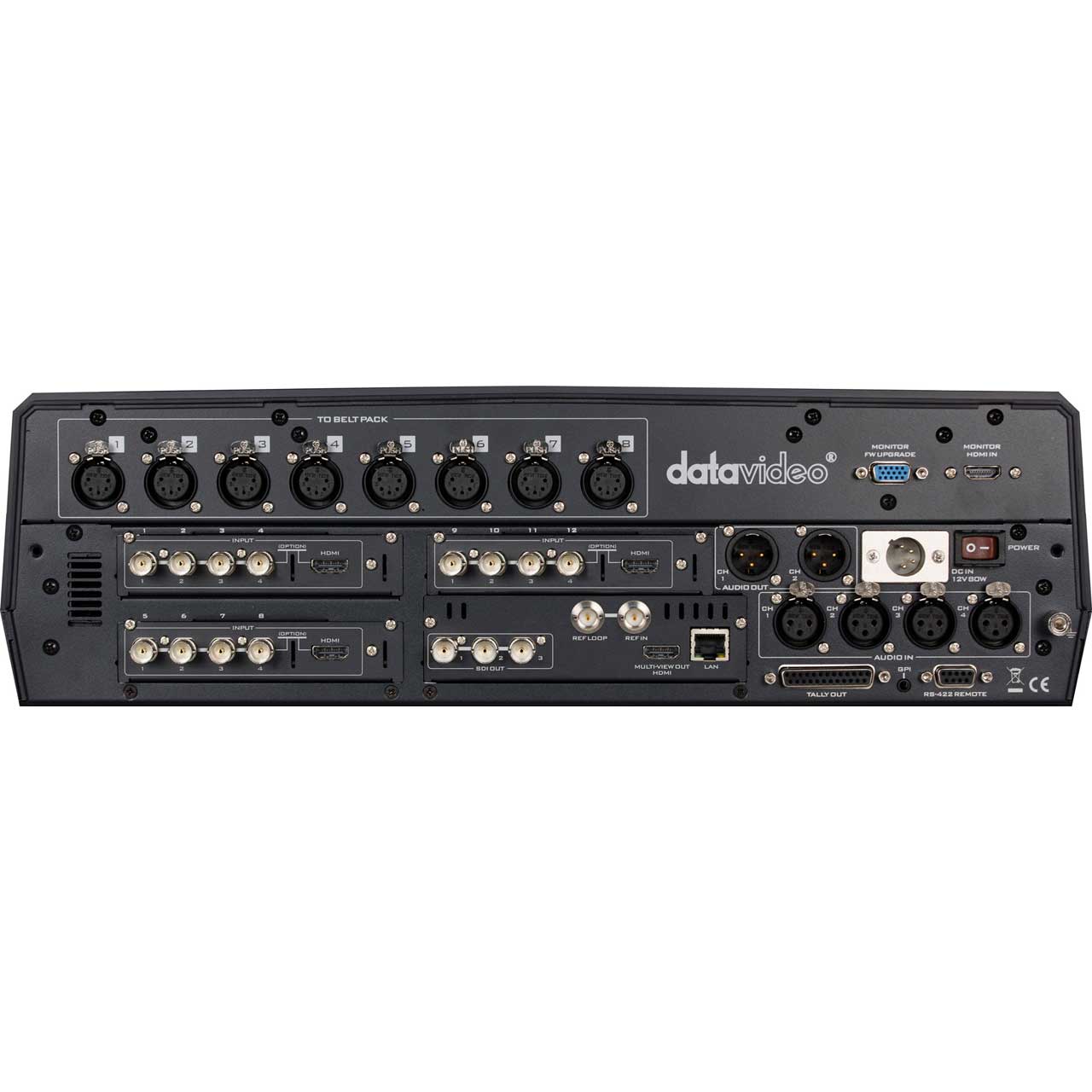

    • Connections
    • Total Video Inputs: 8 CH inputs, 8 HD/SD SDI and 2 HDMI selectable
    • Total Outputs: 3 HD/SD SDI and 1 HDMI
    • Monitor Input for External Device: 1 HDMI
    • Analog Audio Input: 4Ch Balanced XLR
    • Analog Audio Output: 2Ch Balanced XLR
    • Ref Input/Output: 1xBNC Ref in/1xBNC Ref out (loop-through)
    • Internal Frame Synchronizers: 8 All Inputs
    • PGM Out: SDI
    • Multi View Out: In SD/HD mode ; MV output by HDMI is 1920x1080p resolution
    • Audio Indicator on Multiview: Each Video input embedded Audio (2 Ch) + Preview (2 Ch)+ Program (4 Ch)
    • Tally Out: D-Sub 25 pin
    • GPI: Two mode: Level/Pulse trigger selectable
    • Ethernet: RJ45
    • D-Sub 9 pin connector: RS-422 Remote Control
    • Power Input: 12V DC

      Standards
    • Input: HD : 1080p 25/29.97/30/50/59.94/60Hz, 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz; SD: 576i 50Hz, 480i 59.94Hz
    • Output: 1080i 50/59.94/60Hz
    • Video Sampling: 4:2:2 10bit
    • Color Precision: 4:2:2 10bit
    • Color Space: 4:2:2 YUV
    • Aspect Converter: Output SD 16:9 or 4:3
    • Digital Audio Resolution: 24 bit

      Monitor System
    • LCD Display: 17.3" TFT LCD
    • Resolution: RGB 1600 x 900 pixel
    • Aspect Ratio: 4:3 and 16:9 selectable
    • LED Life time: 15,000 hrs. (approx.)
    • Brightness (Luminance): 220 cd/m²
    • Contrast Ratio: 650:1
    • View Angle: Top: 20°/Bottom: 45°, Left: 45°/Right: 45°
    • Video System: NTSC/PAL auto recognition
    • Color Adjustment: Brightness, Contrast, Color Saturation

      Extras
    • Downstream Keyers: 2
    • Linear/Luma Keyers: 2
      Pattern Generators: Color Bar
    • Effect: Transition, Split, WIPE, MIX, FTB, CUT
    • Picture in Picture: 2, Shape, Border
    • Logo insertion: 2
    • TC-200 Build In: Yes

  • Item Includes:

    • (1) HS-2850-8 Unit
    • (1) AD Switch DC 12V with AC Cord
    • (1) CB-41 / XLR to XLR Cable
    • (4) CB-3 / XLR cable
    • (1) CG-200 Utility CD w/ CD Bag
    • (1) USB Light
    • (1) Goose neck MIC
    • (4) Headphone Microphone
    • (4) ITC-100SL
    • (1) Tally light 1
    • (4) Velcro
    • (1) Thank You Card

  • Warranty:

    • 1 year
