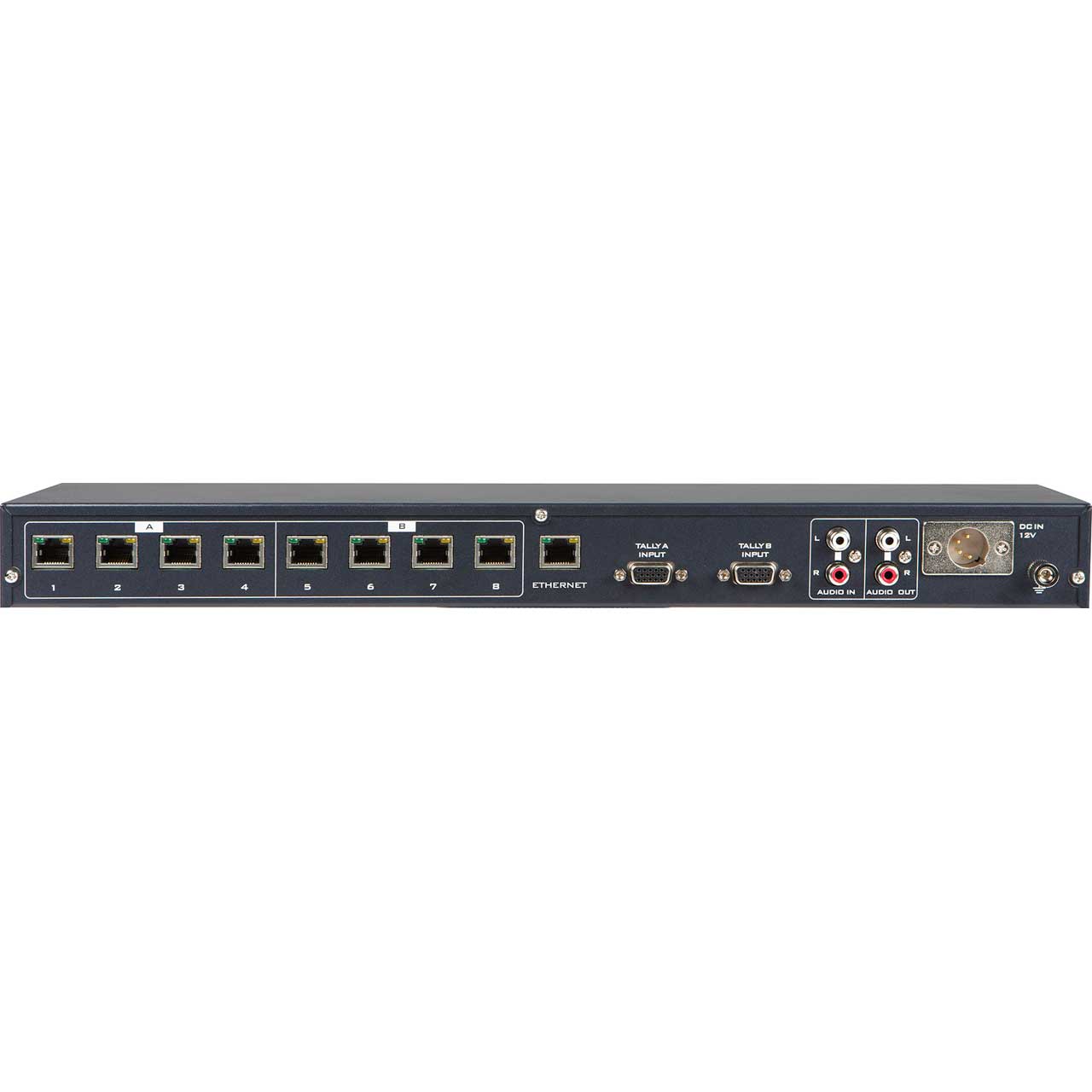

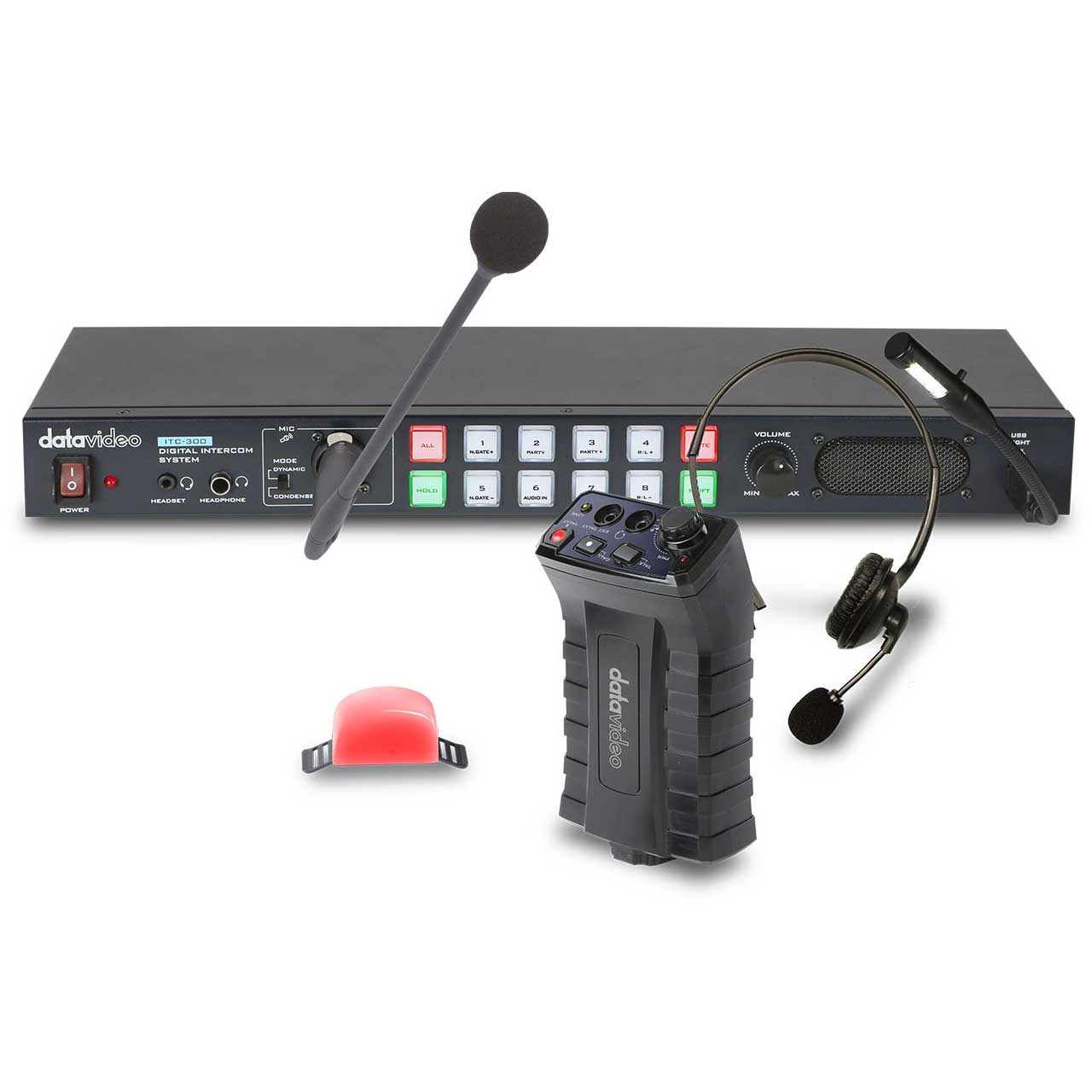

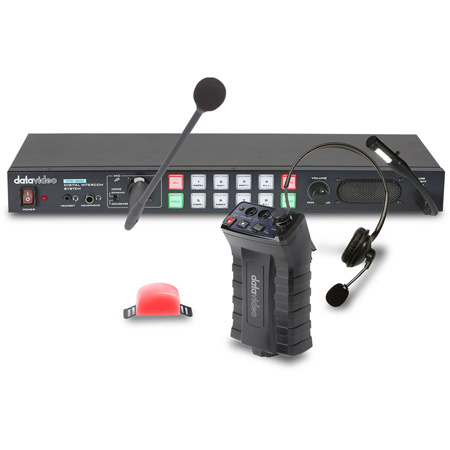

Datavideo ITC-300 Digital Intercom System - 8 Remote Users - Base Station/Headsets/Belt Packs/Tally Lights for 4 Users

ITC-300 - Overview

• Features:

  • Composite XLR / 1/4" (6.3mm) Microphone Input Jack
  • Condenser and Dynamic Gooseneck Microphone switch
  • (Complete package includes Gooseneck Microphone and USB LED Lamp)
  • 1/4" (6.3mm) Stereo Headphone Socket
  • 3.5mm Stereo Socket for Microphone Headset
  • Built-in speaker with volume control
  • Channel buttons 1 - 8 for individual channel paging and communication
  • Simultaneous ALL channel communication
  • Mute button to shut down the device audio
  • Supports 8-Way digital wired Intercom via Ethernet cables
  • Extension of Communication distance up to 100 meters
  • Two 15-pin DSub tally input ports for receiving tally signals sent from switchers

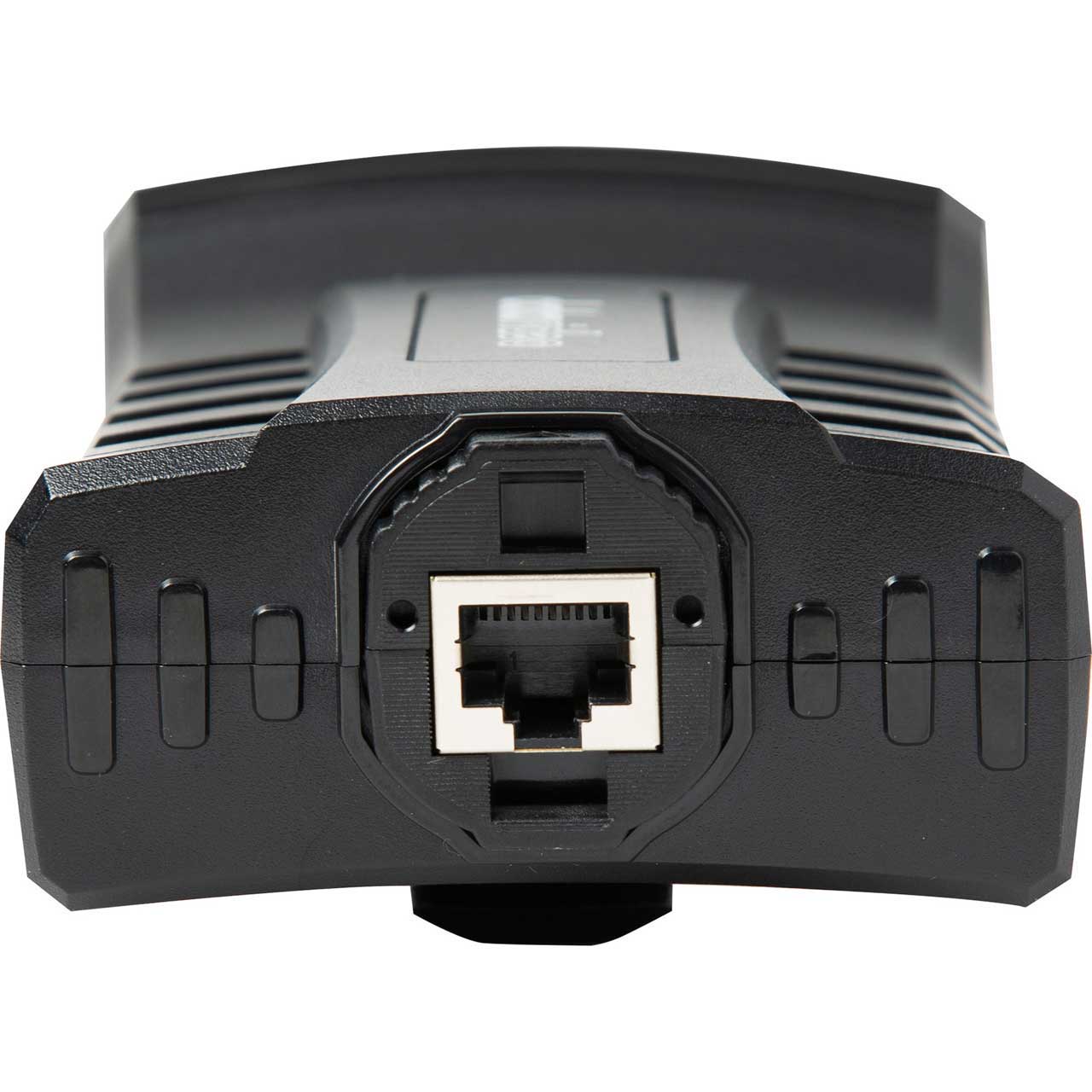

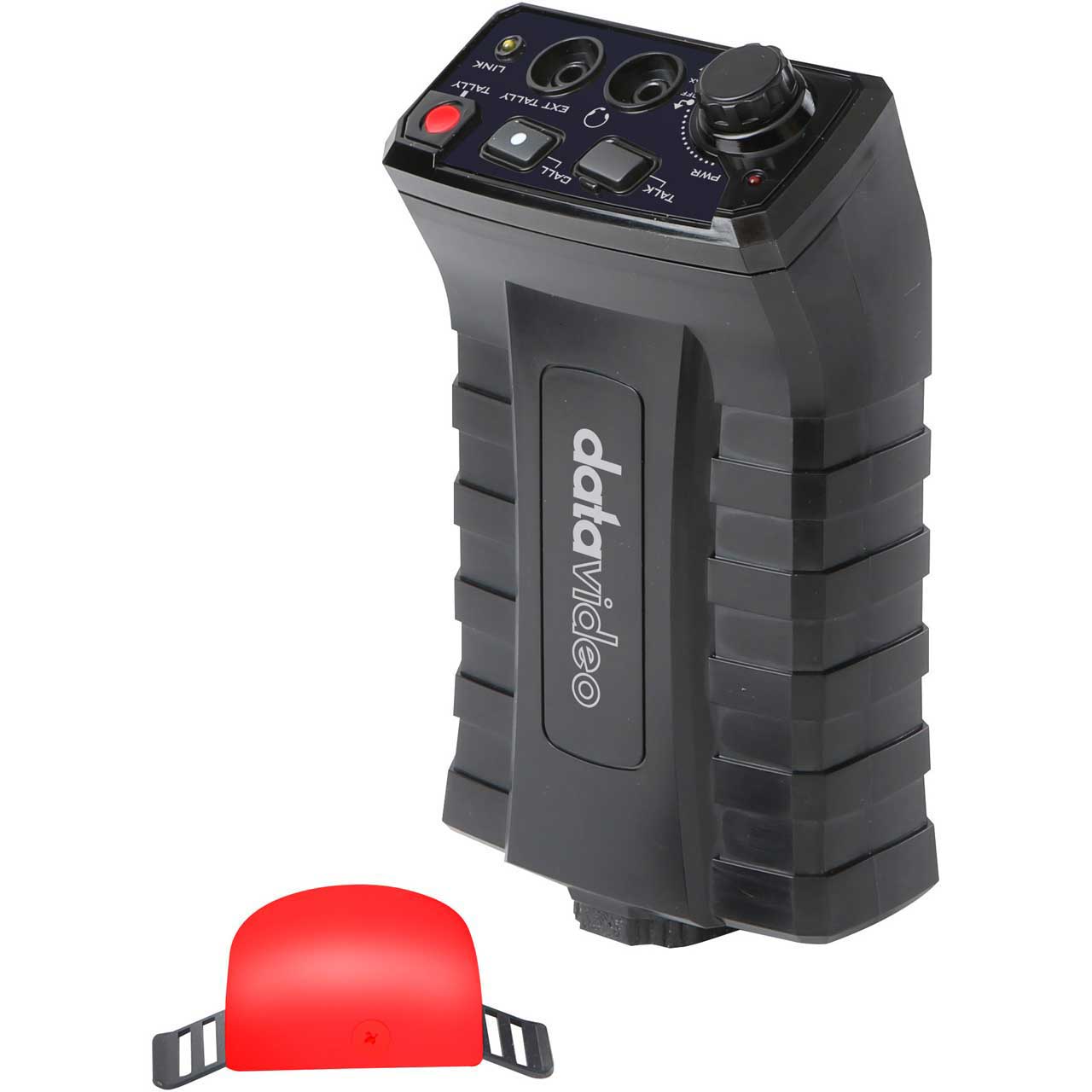

    ITC-300SL Belt Pack Features
  • High mobility
  • Call button for paging the system intercom
  • Talk button for establishing communication with the system intercom
  • Headphone volume control
  • Bi-color tally light indicator
  • Connects TD-2/3 tally light indicator installed on the camera


• Specifications:

  • Power: DC 12V, 3A
  • Tally: 2 x 15 Pin D-Sub Female Sockets for Tally A and Tally B

    MIC / Headset:
  • 1 x 3.5mm Stereo Jack Socket (For Headphone / Microphone combination)
  • Headset Impedance 24 ohm 100mW(min)
  • Microphone Level -45.2dB (Tip: Mic?Ring: Phone?Sleeve: GND)


  • Headphone: 1 x 1/4" (6.3mm) Stereo Headphone Socket (Tip: Phone?Ring: Phone?Sleeve: GND)
  • Light Socket (DC 12 V): Light Power Consumption: +5 V / 500 mA

    Microphone:
  • 3 Pin XLR / 1/4" (6.3mm) Socket x 1
  • Switchable Condenser / Dynamic
  • Input Microphone Level -67dB
  • PIN1:N/A,PIN2:MIC,PIN3:GND


  • Frequency Response: 300 Hz-7 KHz, < +/-3dB
  • THD: < 0.1% @1KHz
  • S/N: >70dB
  • Built-in Speaker: 3W - Speaker is mute when headphones or mic / headset are connected to the ITC-300
  • Operating Range: Up to 100m between Base Station and Slave
  • Operating Temp. Range: 0~40 °C
  • Dimension (LxWxH): 440 x 126 x 44mm
  • Weight: 1.9 kg


• Item Includes:

  • 1x ITC-300 Base Unit
  • 4x ITC-300SL Belt Pack
  • 4x Ethernet Cable (70ft. / 21m)
  • 4x Earphone Cable
  • 4x Headset with microphone
  • 1x Gooseneck Microphone
  • 4x Tally LED Indicator
  • 4x Velcro
  • 1x USB Gooseneck Light
  • 1x Adaptor + AC Cord
  • 2x Rack Ears for mounting
  • 1x Thank You Card


• GTIN:

  0672255008355
