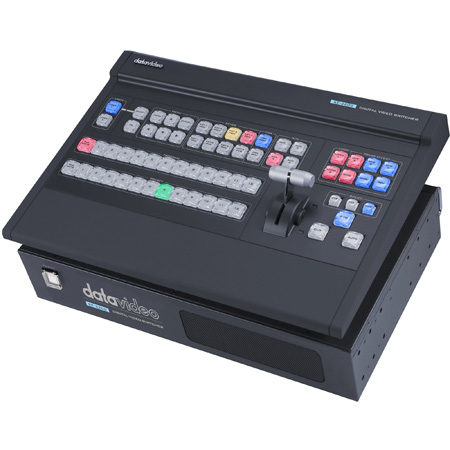

Datavideo SE-3200 Digital Video Switcher

SE-3200 - Overview

• Features:

  • Full native 1080p/60 (3G) operation
  • Up to 12 Video input interfaces (8 x SDI, 4 x HDMI). Frame Sync on each input
  • 9 Video Outputs : 6 x SDI + 2 x HDMI + 1 x HDMI (CPU)
  • Flexible Mix/Effects Processor with
  • 4 Upstream Keyers, supporting Chroma key & Linear / Luma key
  • 4 PIP (assignable to any of the keyers)
  • 2 DSK, supporting Linear & Luma Key Modes
  • 2 Logo insertion ( Animation logo, X/Y size)
  • Clock on screen
  • Count down counter on
  • Built-in DVE transition engine
  • Wipe patterns, with variable border width, color, softness
  • Wipe, Mix, Cut and Stinger Transitions
  • Clip player (150 Frames) Stinger Transitions function
  • Any Input (1-12) can be used as a Frame store (Stills Store)
  • Support XPT (Cross Point Assignment)
  • Analogue Gen-Lock (Support Black Burst and Tri Level cross reference)
  • 4 x XLR Analogue Audio Inputs
  • 2 x XLR De-embedded Analogue Audio Outputs
  • Audio delay up to 16 fields or 8 frames per channel
  • Built-in title overlay system (TC-200)
  • Remote streaming of Multi-view out using built-in Motion JPEG Streaming processor
  • Streaming in H.264 BP can also be supported
  • Timecode support
  • Tally output
  • GPI Output
  • USB Port for FW upgrade

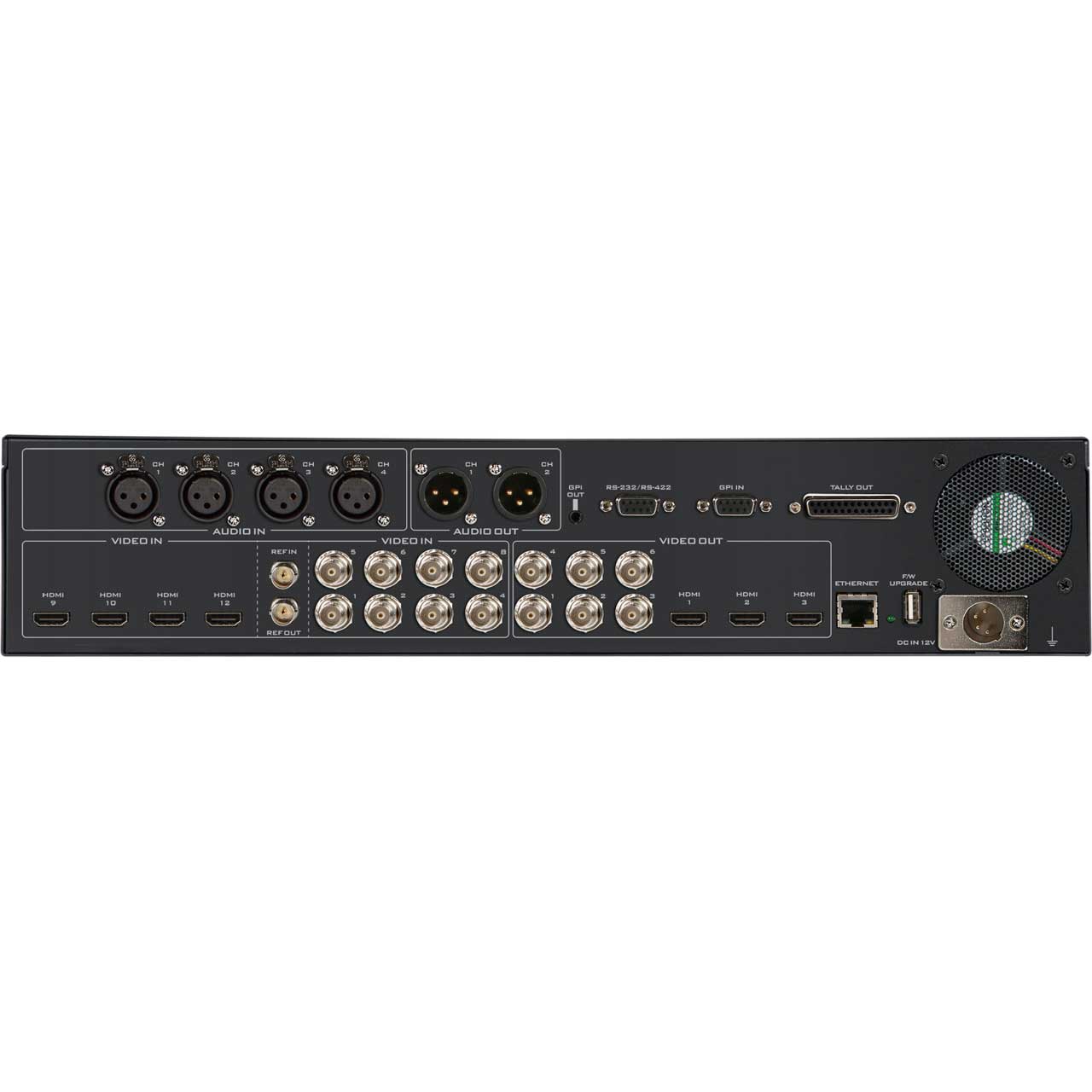

• Specifications:

  • Total Video Inputs: Total 12 live inputs 8 x SDI + 4 x HDMI
  • Total Outputs: 6 SDI + 3 HDMI
  • Analog Gen-Lock: 1xBNC Ref in / 1xBNC Ref out (loop-through)
  • SDI Audio Output (PGM output): 4CH
  • Audio Input: 4 x XLR (4 x Analogue or 2 x AES/EBU pair)
  • Audio Output: 2 x XLR (2 x Analogue or 1 x AES/EBU pair)
  • Internal Frame Synchronizers: 12 All Inputs
  • PGM Out: HDMI / SDI
  • Audio Indicator on Multi view: Each Video input embedded Audio (2 Ch) + Preview (2 Ch)+ Program (4 Ch)
  • Computer Output: Ethernet (MJPEG Streaming, H.264(BP) Streaming)
  • Control Panel Connection: RS-422 & RS-232 (software selectable)
  • Tally Output: D-Sub -25 x 1
  • GPI Input: D-Sub -9
  • GPI Output: 3.5mm Jack
  • Two mode: Level /Pulse trigger selectable
  • Power Input: 12V DC
  • Software Updates: Ethernet / USB
  • Upstream Keyers: 4
  • Downstream Keyers: 2
  • Logo (Independent Logo): 2
  • Linear/Luma Keyers: 4
  • Chroma Keyers: 4
  • Clip Play: Yes
  • Stinger Transitions: Yes ( 150 frames)
  • Picture in Picture: 4
  • DVE with 3D Borders & Drop Shadow: Yes
  • Clock: Yes
  • Timer (Count Up and Down): Yes
  • Built-in title overlay system: Yes
  • Analog Genlock: Yes
  • Pattern Generators: Color Bars
  • XPT: Yes
  • Frame store: Any Input can be used as Frame store.
  • Control Panel Compatibility: Use PC; Control panel (optional) by RS-232 / Ethernet
  • Audio Delay: up to 16 fields or 8 frames
  • Control Protocol: DVIP
  • Number of Windows: 2 (big) + 12 (small) source windows
  • Routable Windows: Y (Follow XPT)
  • Tally: Y
  • Windows Source Labels: Y
  • Full Color/Full Resolution Menu Overlay: Y


• GTIN:

  0672255007594
