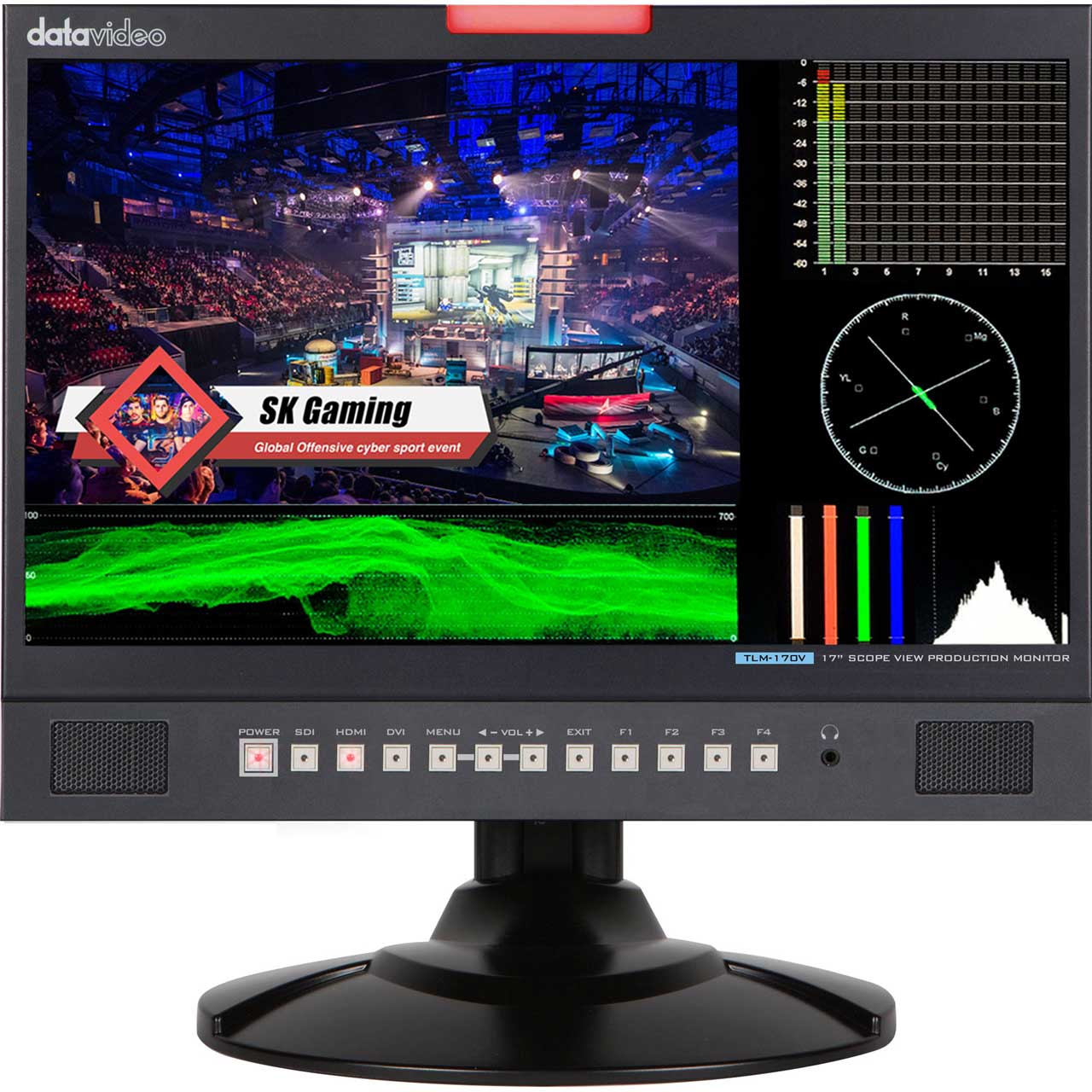

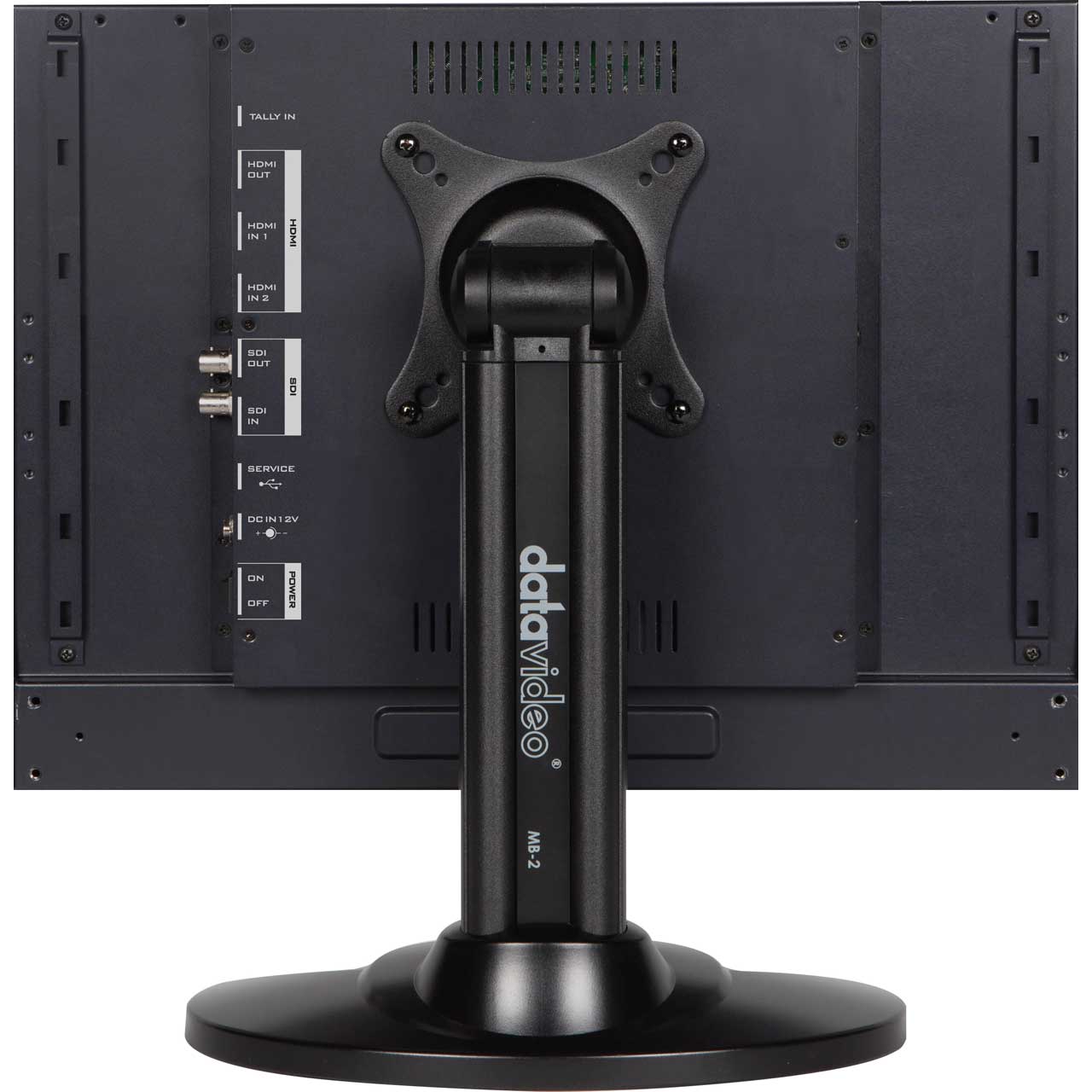

Datavideo TLM-170V ScopeView 17.3in LED Video Production Monitor with 3G-SDI and HDMI Inputs

TLM-170V - Overview

• Features:

  • 1920 x 1080P IPS Panel Resolution
  • 3G-SDI video input with loop-through output
  • HDMI video input with loop-through output
  • Built-in tally for live broadcast
  • Supports Waveform, Vectorscope and Audio Level Meter, Peaking Focus Assist, Zoom IN/OUT, Pixel to Pixel, Underscan, Check Field and etc.
  • SDI/HDMI cross format conversion
  • Brightness, contrast, color saturation and LED backlight
  • Selectable color temperatures
  • Front panel headphone jack
  • User-defined F1 / F2 / F3 / F4 shortcut keys
  • USB Firmware Upgrade


• Specifications:

  • Screen: 17.3" LED Backlit
  • Chassis: Tabletop
  • Resolution: 1920x1080
  • Viewing Angle: (H) +89/-89°/(V) +89/-89°
  • Luminance/Contrast: 300cd/m²/700:1
  • Video Inputs:
    - 1x 3G/HD/SD-SDI
    - 2x HDMI
  • Loop Through:
    - 1x 3G/HD/SD-SDI
    - 1x HDMI

    Supported Input Resolutions
  • 1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
  • 1080i(50/59.94/60Hz)
  • 720p(50/59.94/60Hz)
  • 576i(PAL), 480i(NTSC)


  • Aspect Ratio:
    - 16:9
    - 4:3
  • Tally LED:
    - Live (Red)
    - Cued (Green)
  • Audio In/Out:
    - 2x Speaker
    - 1x Headphone Jack

    Special Features
  • SDI and HDMI cross conversion
  • Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field


  • Dimensions (LxWxH): 15.87" x 12.01" x 1.61" (403mm x 305mm x 41mm)
  • Weight: 9.92lbs (4.5kg)
  • Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
  • Power: DC 10V - 18V, 32W


• Item Includes:

  • 1x Datavideo TLM-170V ScopeView 17.3in LED Video Production Monitor with 3G-SDI and HDMI Inputs


• GTIN:

  0672255008324
