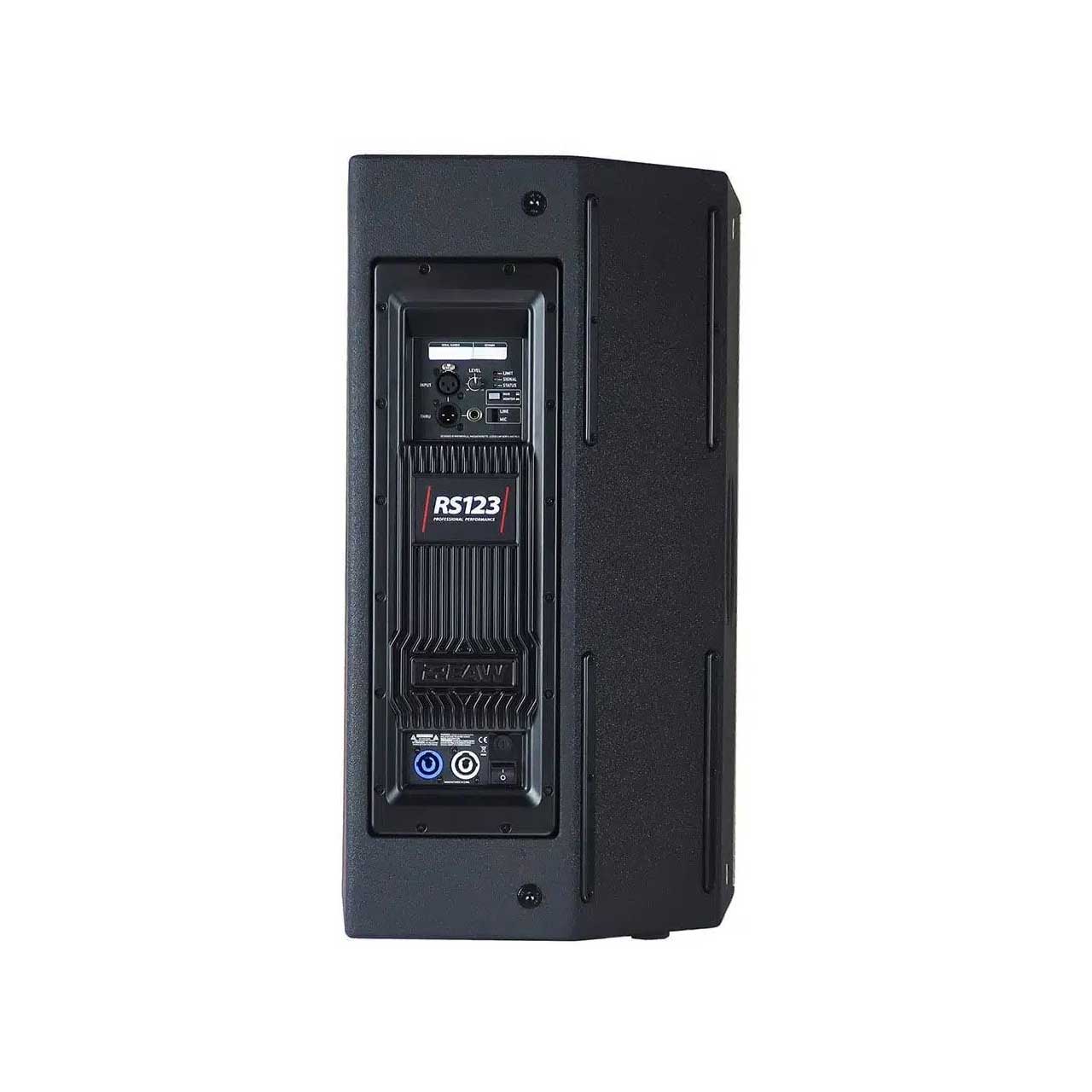

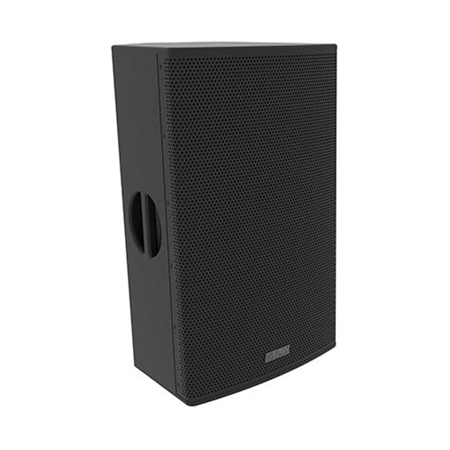

EAW RS123 RS Series 2-Way Self Powered 115V Loudspeaker 1500 Watts - Black

ITEM #: EAW-RS123 MFG #: RS123

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,465.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RS123 - Overview

The Eastern Acoustic Works RS Series RS123 delivers EAW signature performance in a portable and lightweight wooden enclosure. Each enclosure in the series is first designed around the latest breed of touring grade HF and LF transducers. The intelligent features of the series include EAW Focusing which provides unmatched musical clarity and tonal accuracy. Pattern control of the RS Series is further enhanced by the unique, constant directivity HF horn; a design theory first proven in our legendary MK Series, a series born from the audio performance needs of stadiums throughout the world.

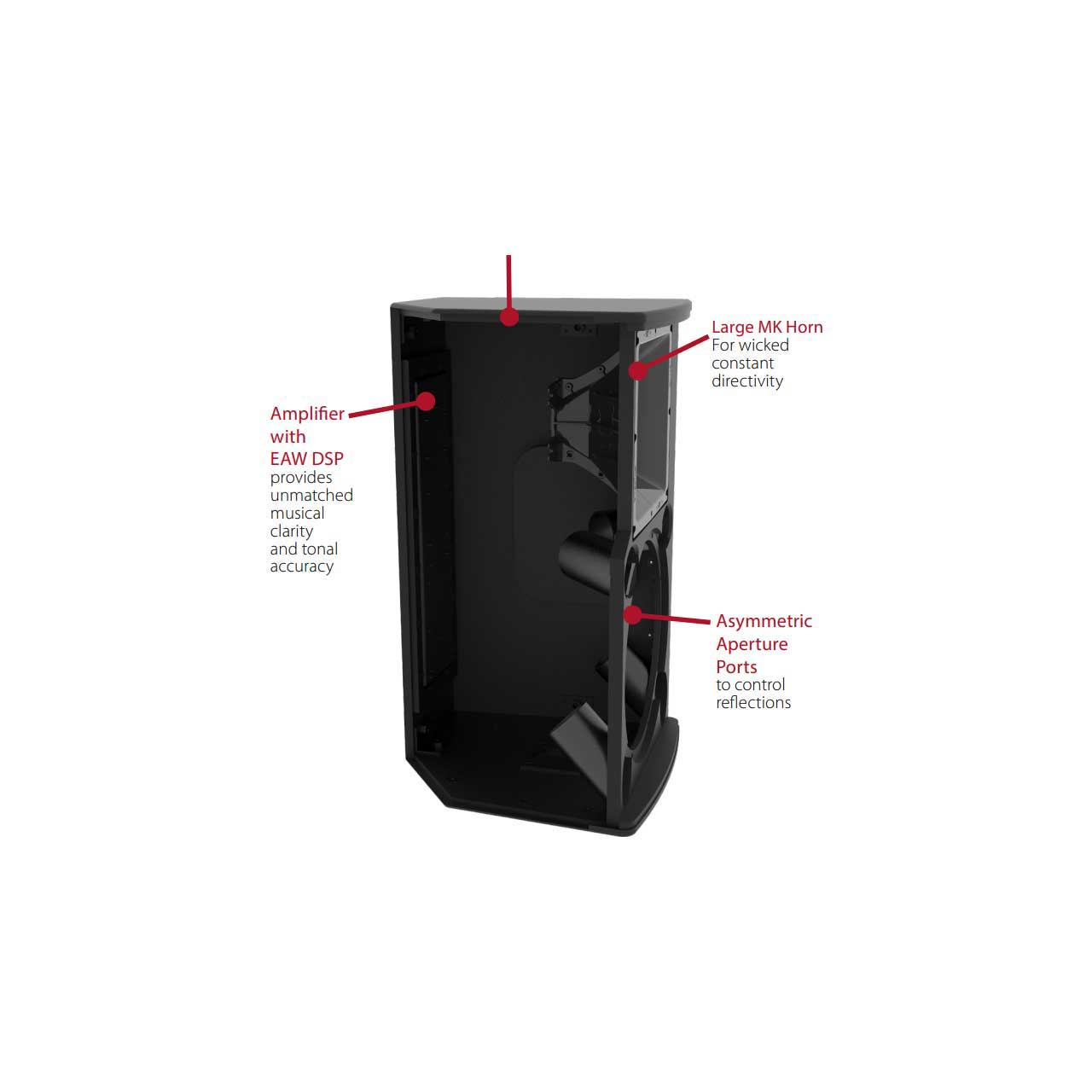

RS loudspeakers feature a lightweight and durable enclosure that houses on-board bi-amplified electronics (1500W) featuring signature EAW DSP, Focusing and DynO to deliver unmatched musical clarity and tonal accuracy throughout the listening area and at high drive levels. Advanced port design utilizes asymmetric geometry to control reflections and resonance. EAW Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple RS Series enclosures within a venue or performance space.

Applications include:

Houses of Worship
Theaters, Auditorium and Performing Arts Centers
Live Music Clubs
Corporate AV Houses
Live Production/Regional Rental Houses
Dry Hire

  • Features:

    • High quality transducers for best-in-class acoustic performance
    • EAW Focusing for unmatched clarity and accuracy
    • Rotatable MK inspired horn for EAW signature pattern control
    • Lightweight and durable wooden enclosure with M10 threaded suspension points

  • Specifications:

    • Speaker Type: 12 Inch 2-way Bi-Amp, Self-Powered Speaker, Vented
    • Max SPL: 138dB
    • Operating Range: 47 Hz - 20 kHz
    • Nominal Beamwidth: 90° Horizontal x 60° Vertical, Constant Directivity, User-Rotatable
    • Nominal Phase: ±15° from ideal high-pass filter
    • LF Tranducer: 12in Cone, 2.5in Voice Coil
    • HF Tranducer: 3in Voice Coil Neodymium Compression Driver, 1.4in Exit
    • Crossover: 800 Hz
    • Signal Processing: DSP with EAW Focusing and DynO

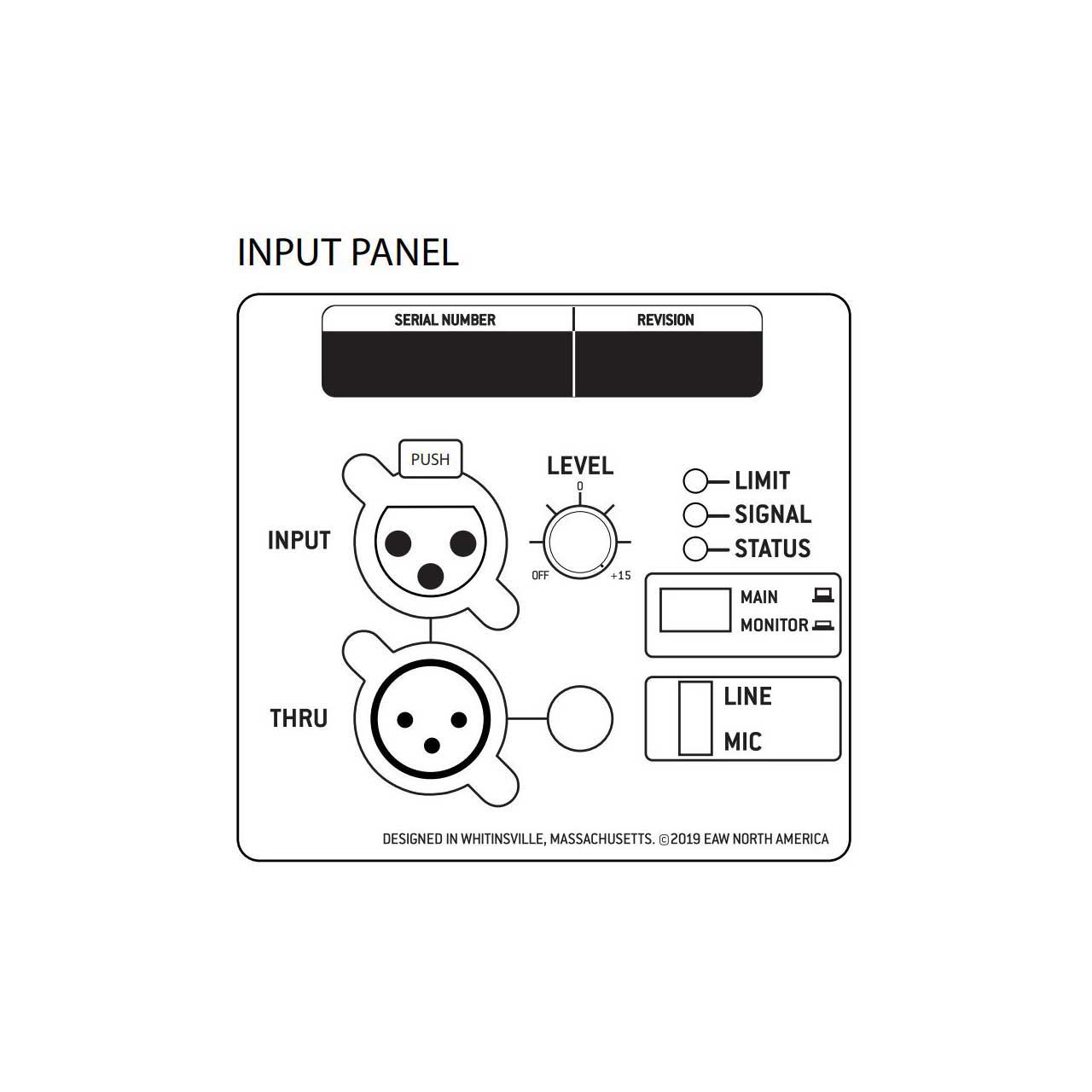

    • Modes: Main/Monitor, Mic/line
    • Input Type: Electronically Balanced XLR/TRS
    • Loop Type: Electronically Balanced XLR
    • Amplifier: Class D at 1500W Max Output
    • Current Draw:
      - Idle: 50W
      - 1/8th Power: 50W
      - 1/3rd Power: 75W
      - Full Power: 200W
    • Material: 15mm Plywood
    • Dimensions(HxWxD): 25.9 x 14.5 x 15 In
    • Net Weight: 42lbs
    • Shipping Weight: 52 lbs

  • Warranty:

    • 5 Year Warranty
