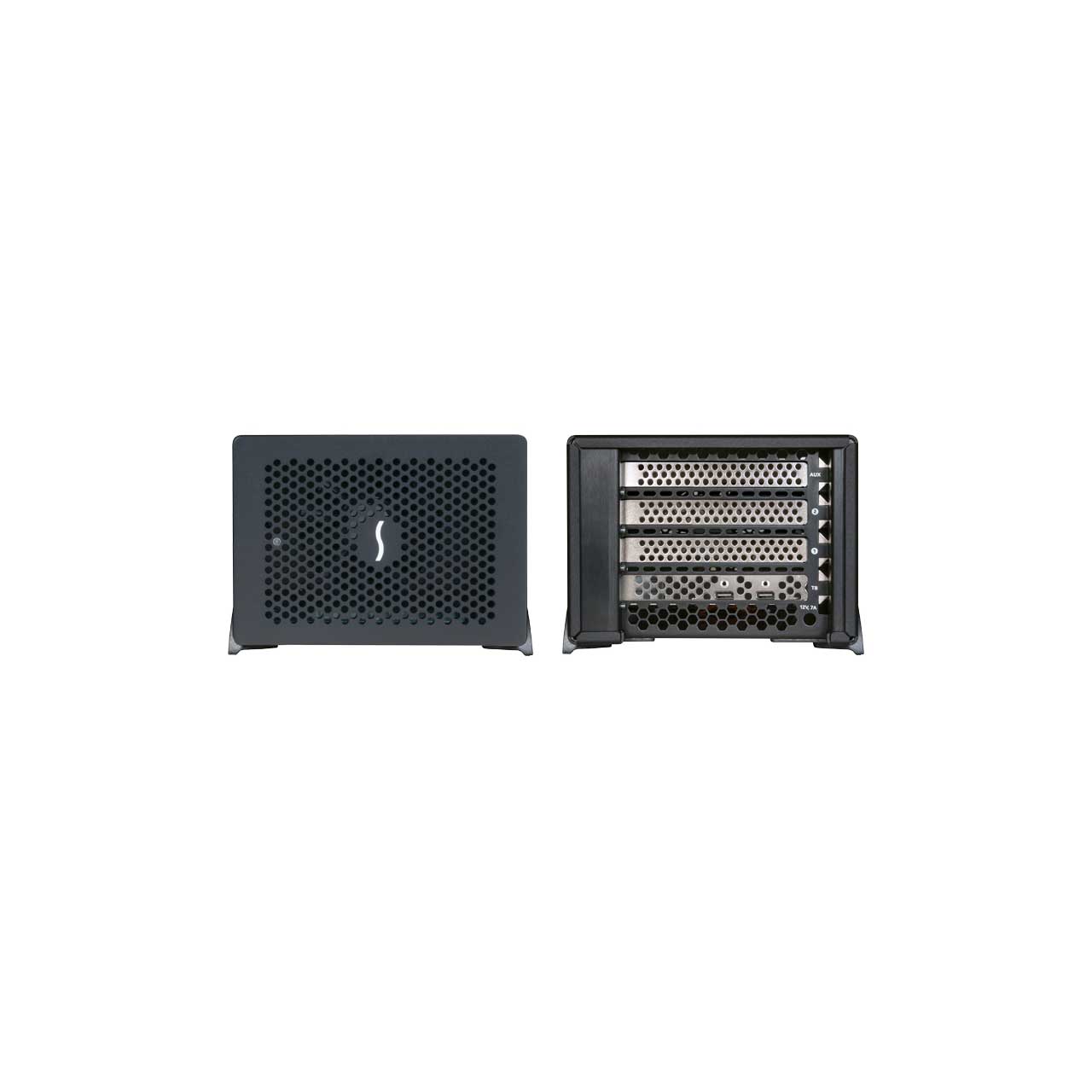

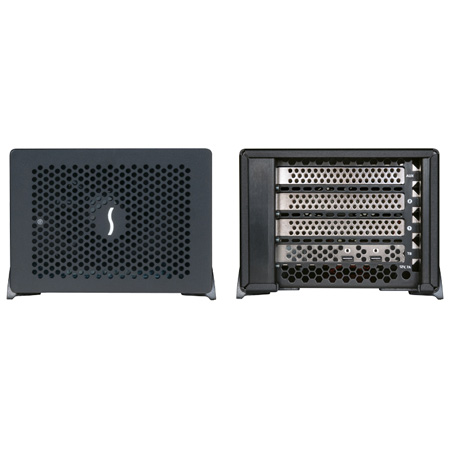

ECHO-EX-SE3E-T3 SE IIIe Expansion Chassis - Thunderbolt 3 PCIE Expansion 3-Slot

ECHO-EX-SE3E-T3 - Overview

• Features:

  • Use multiple high-performance PCIe cards with any computer with a Thunderbolt 3 port.
  • Supports three full-height, half-length+ (up to 7.75 inches long), single-width cards, or one double-width card plus one single-width card.
  • Offers 2750 MB/s of PCIe bandwidth, doubling the performance capabilities of Thunderbolt 2.
  • akes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible non-GPU PCIe card at full performance.
  • One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
  • Temperature-controlled,variable-speed fan automatically and quietly cools the cards.
  • Auxiliary PCIe power connector for a power-hungry card; daisy chain port provides up to 15W of power to connected peripherals.


• Specifications:

  • Mac Compatibility
  • Mac with Thunderbolt 3 ports
  • Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
  • macOSr 10.12.6+
  • macOS Catalina compatible

    Windows Compatibility
  • PC with Thunderbolt 3 ports
  • Windows 10 (64-bit Edition Version 1809 or greater, see note)
  • Important Note: Windows computers require the latest BIOS and Thunderbolt drivers to support this product. Check with your computer manufacturer for update information.

    Linux Compatibility
  • Linux computer with Thunderbolt 3 ports
  • Linux Kernel 5.0+
  • PCIe Card Compatibility

    Form Factor: Desktop expansion system
  • External Connectors: Two Thunderbolt 3 ports: 12V power port
  • Internal Connector: 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides power for PCIe card that requires supplemental power)
  • Expansion Slots: One x8 mechanical (x4 electrical) PCIe 3.0, Two x8 mechanical (x8 electrical) PCIe 3.0
  • PCIe Cards Supported: One half-length+ (up to 7.75 inches long), double-width, full-height x8 PCIe card, plus one single-width card or Three half-length+, single-width, full-height x8 PCIe cards
  • Power Adapter: Universal 120W, 100-240V, 50-60 Hz NRTL Certified
  • Operating Temperature: 0°C to 35°C (32°F to 95°F)
  • Dimensions (WxDxH): 6.5 x 11 x 4.6 in. (16.5 x 27.9 x 11.7 cm)
  • Weight: 2.6 lbs. (1.18 kg)
  • RoHS Compliant: Yes


• Item Includes:

  • 1x Echo Express SE IIIe
  • 1x Universal power adapter
  • 1x Power cord
  • 1x 0.7-meter Thunderbolt 3 (40Gbps) cable
  • 1x ThunderLok 3 Thunderbolt Connector Retainer Clip(1)
  • 1x Documentation


• Warranty:

  • 2-year


• GTIN:

  0732311012938
