StarTech TB3DK2DHV Thunderbolt 3 Dock - Mac & Windows - Dual 4K 60Hz - 85W Power Delivery

TB3DK2DHV - Overview

• Features:

  • Easily create a powerful dual UHD 4K workstation for your Thunderbolt 3 laptop - Mac or Windows
  • Easy to set up and ready to go with no driver installation or extra adapters required
  • Dedicated dual video output with flexible monitor options - Dual DP or DP + HDMI or DP + VGA or HDMI + VGA


• Specifications:

  • Warranty Information
  • Warranty: 3 Years

    Hardware
  • 4K Support: Yes
  • Bus Type: Thunderbolt 3
  • Chipset ID: Intel - Alpine Ridge JHL6540
  • Intel - WGI210AT
  • ASMedia - ASM1042A
  • Parade - PS176
  • Chrontel - CH7517
  • Displays Supported: 2
  • Fast-Charge Port(s): Yes
  • Industry Standards: Thunderbolt 3
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • USB 3.0 - Backward compatible with USB 2.0 and 1.1

    Performance
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
  • Maximum Data Transfer Rate: 40 Gbps (Thunderbolt 3)
  • 5 Gbps (USB 3.0)
  • 2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions: Dual display - DisplayPort - 4096 x 2160p @ 60Hz
  • Dual display - 1x DisplayPort + 1x HDMI - 4096 x 2160p @ 60Hz
  • Dual display - 1x VGA 1920 x 1200 @ 60Hz + 1x DisplayPort 4096 x 2160p @ 60Hz
  • Dual display - 1x VGA 1920 x 1200 @ 60Hz + 1x HDMI 4096 x 2160p @ 60Hz
  • Single display - DisplayPort - 4096 x 2160p @ 60Hz
  • Single display - VGA - 1920 x 1200 @ 60Hz
  • Single display - HDMI - 4096 x 2160p @ 60Hz
  • PXE: Yes
  • Type and Rate: Thunderbolt 3 - 40 Gbit/s
  • UASP Support: Yes

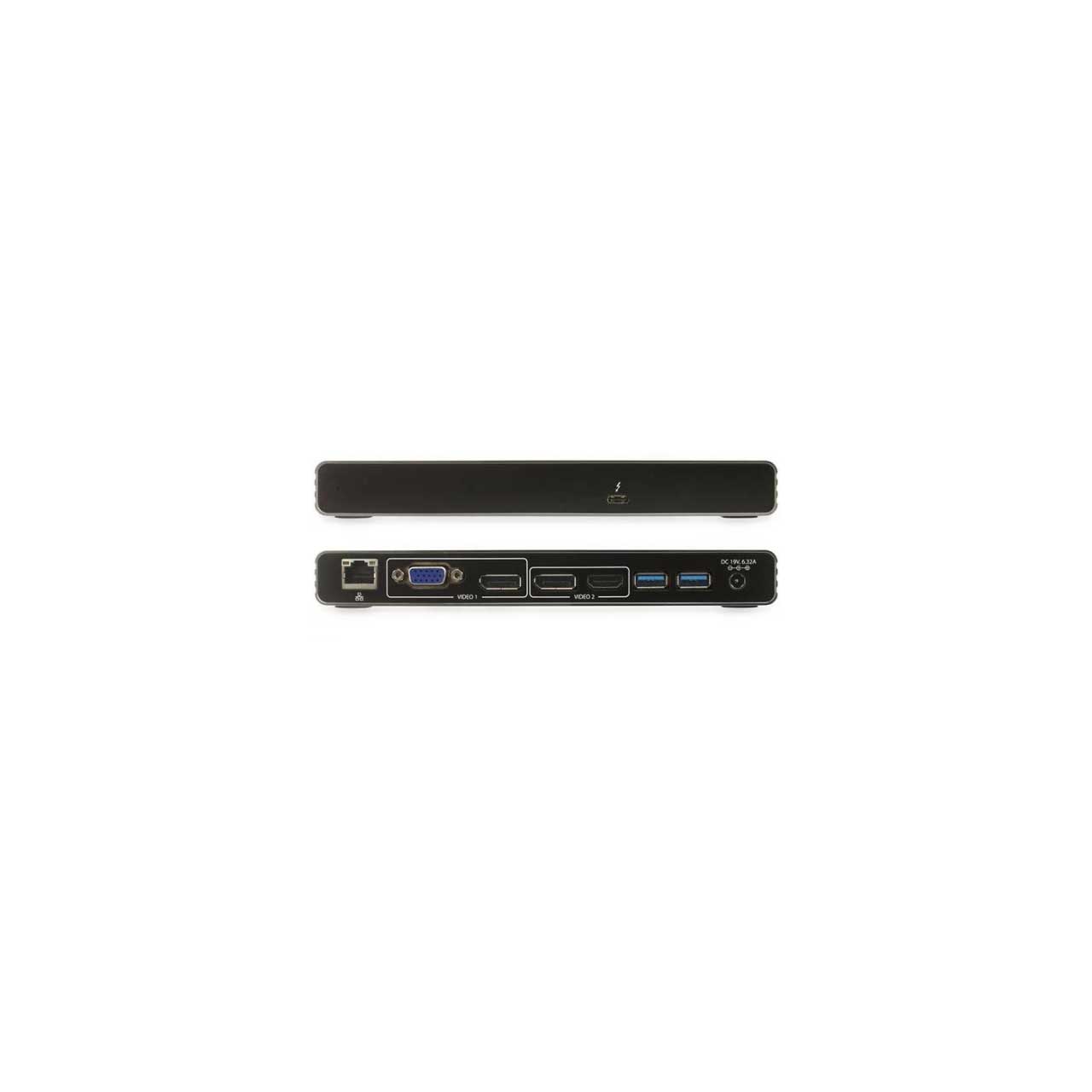

    Connector(S)
  • Connector Type(s): 1 - ThunderboltT 3 USB-C (24-pin) (40Gbps) Female
  • 2 - DisplayPort (20 pin) Female
  • 1 - HDMI (19 pin) Female
  • 1 - VGA (15 pin, High Density D-Sub) Female
  • 2 - USB Type-A (9 pin) USB 3.0 Female
  • 1 - RJ-45 Female

    Software
  • OS Compatibility: Windows® 7, 8, 8.1, 10
  • macOS 10.12 - 10.14

    Special Notes / Requirements
  • Note: A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
  • System and Cable Requirements: Thunderbolt 3 equipped computer with a Thunderbolt 3 port

    Power
  • Center Tip Polarity: Positive
  • Input Current: 1.8 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 6.32 A
  • Output Voltage: 19V DC
  • Plug Type: N
  • Power Consumption (In Watts): 120W
  • Power Delivery: 85W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 20~80% RH (Non-condensing)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)

    Physical Characteristics
  • Cable Length: 19.7 in [50 cm]
  • Color: Gray
  • Enclosure Type: Aluminum
  • Product Height: 0.9 in [2.4 cm]
  • Product Length: 7.7 in [19.6 cm]
  • Product Width: 2.3 in [58.6 mm]
  • Weight Of Product: 12 Oz [340 G]

    Packaging Information
  • Package Height: 2.6 in [65 mm]
  • Package Length: 10 in [25.4 cm]
  • Package Width: 7.4 in [18.7 cm]
  • Shipping (Package) Weight: 2.9 lb [1.3 kg]


• Item Includes:

  • 1x - docking station
  • 1x - Thunderbolt 3 cable 1.6 ft [0.5 m]
  • 1x - universal power adapter
  • 2x - power cords (NA/JP, ANZ)
  • 1x - instruction manual


• GTIN:

  0065030876230
