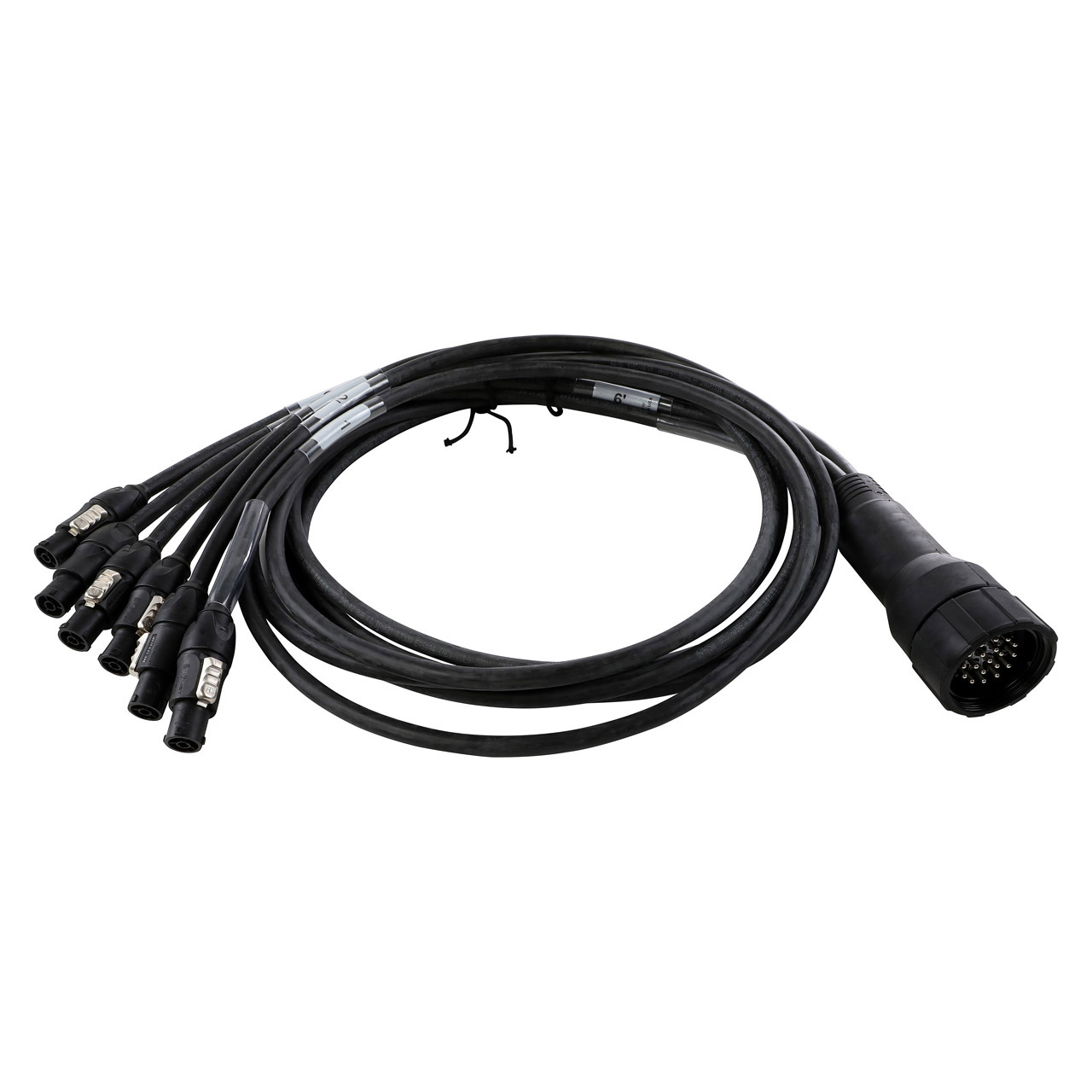

LEX EGBO100-6-TRUE1 EverGrip Molded powerCon Breakout Cable - 19-Pin Male Plug to 6 TRUE1 Female Connectors - 6 Foot

Name: LEX EGBO100-6-TRUE1 EverGrip Molded powerCon Breakout Cable - 19-Pin Male Plug to 6 TRUE1 Female Connectors - 6 Foot
Brand: LEX Products Corp
SKU: EGBO100-6-TRUE1
Price: 408.30 USD
Availability: PreSale

ITEM #: EGBO100-6-TRUE1 MFG #: EGBO100-6-TRUE1

LEX Products Corp

List Price:

$444.25

Our Price:

$408.30

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EGBO100-6-TRUE1 - Overview

LEX EverGrip EGBO100-6-TRUE1 is a 20A 125 VAC, (1) Molded LSC19 19-Pin Male (Plug) to (6) powerCON® TRUE1 Females (Connectors), #12/3 Type SJOOW Cord, Adapter. It provides power to (6) powerCON TRUE1 Inline connectors from (1) molded 6-circuit LSC19 plug.

Markets Served:
- Motion Picture and Television Production
- Theatrical Production
- Concert Touring
- Live Events
- Convention Centers

Features:
- Molded 6-Circuit LSC19 Plug

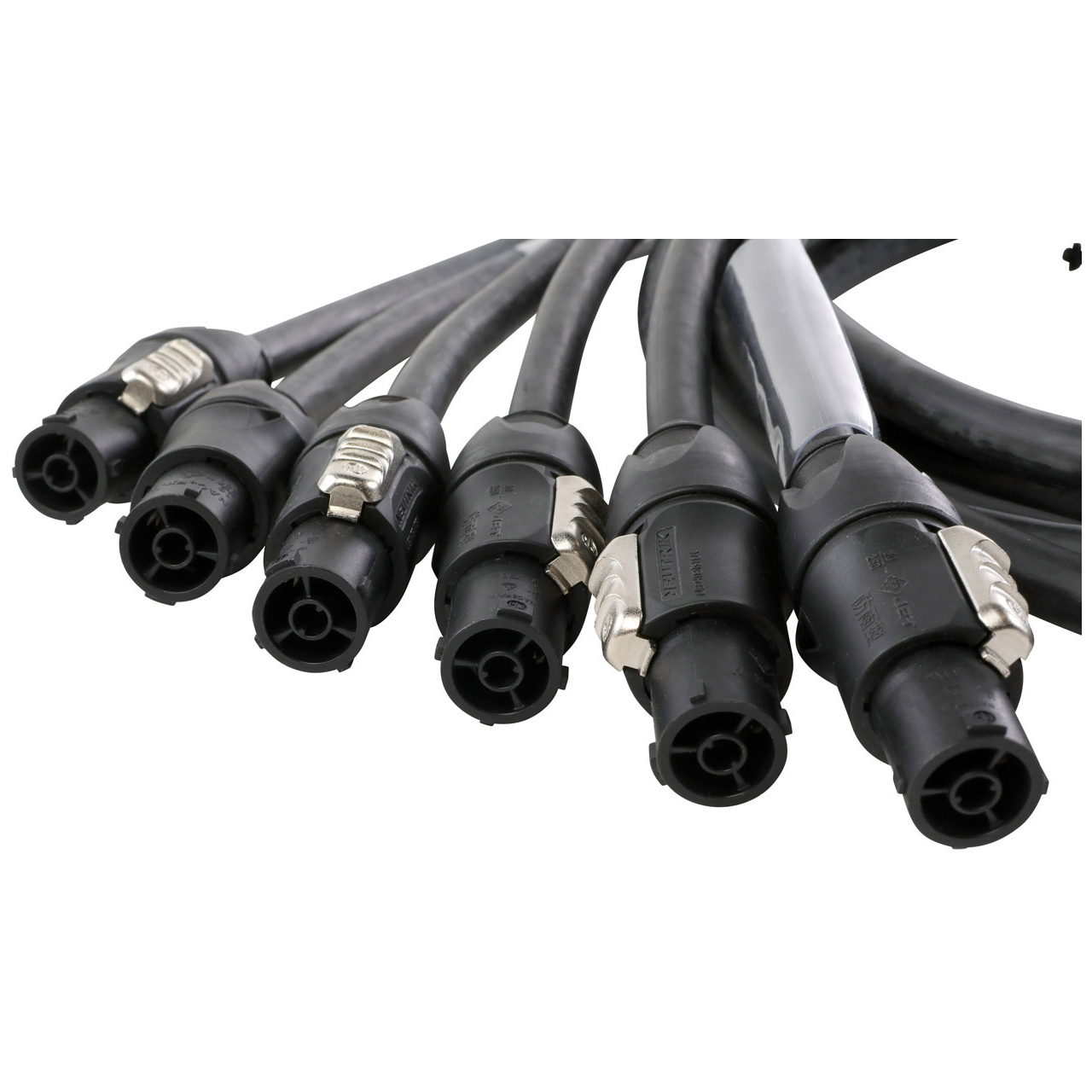

- 6 powerCON TRUE1 Inline Connectors
- Thermoplastic Resin Pre-Mold
- Thermoplastic Elastomer Overmold
- Silver-Plated Brass Contacts
Specifications:
- Rating: 0 Amp, 2-pole, 3-wire, 250V AC, 60Hz
  Note: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
- Male Plug: 1x Molded 20A 19-Pin Male (Plug), Black
- Cable/Cord: 6x #12/3 Type SJOOW, Black
- Length: 6 feet
- Female Connector: 6x powerCON TRUE1 Females (Connectors)
Item Includes:
- 1x EverGrip Breakout Cable
Warranty:
- 5-years
