Obsidian Control Systems Netron EN12-45 High-Density Ethernet to DMX Gateway - 12 RDM Compatible RJ45 DMX Ports

Name: Obsidian Control Systems Netron EN12-45 High-Density Ethernet to DMX Gateway - 12 RDM Compatible RJ45 DMX Ports
Brand: Elation
SKU: ELAT-EN12-45
Price: 1040.00 USD
Availability: PreSale

ITEM #: ELAT-EN12-45 MFG #: NRE302

Elation

List Price:

$1,300.00

Our Price:

$1,040.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NRE302 - Overview

The Obsidian Control Systems Netron EN12-45 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible RJ45 DMX ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.

Features:
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications:
- Connections

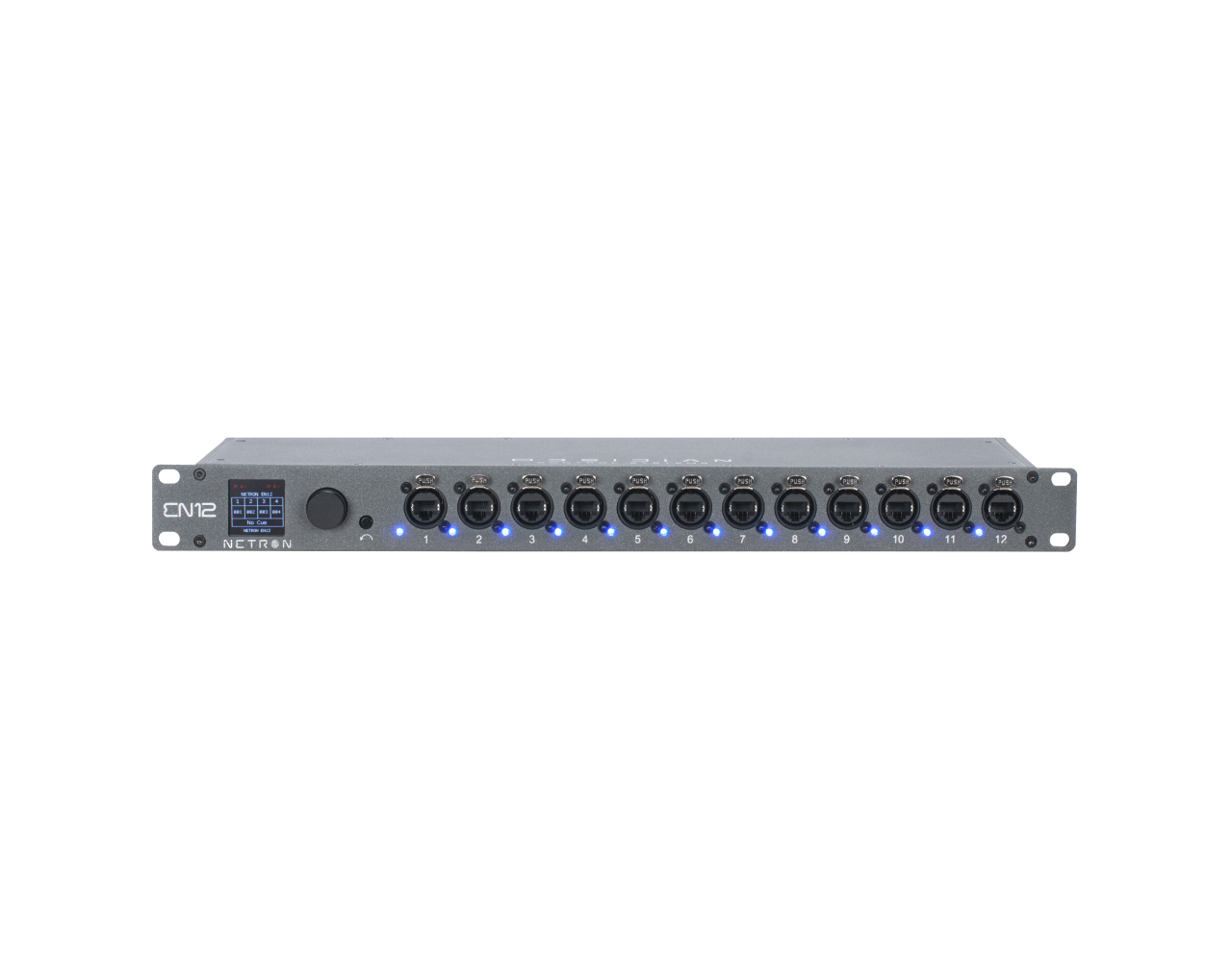

- Front:
  - 12x RJ45 DMX/RDM optically isolated ports (ESTA Compliant)
  - Ports are bidirectional for DMX In and Output
  - Full color OLED display
  - Encoder w. Push to Select / Exit Button

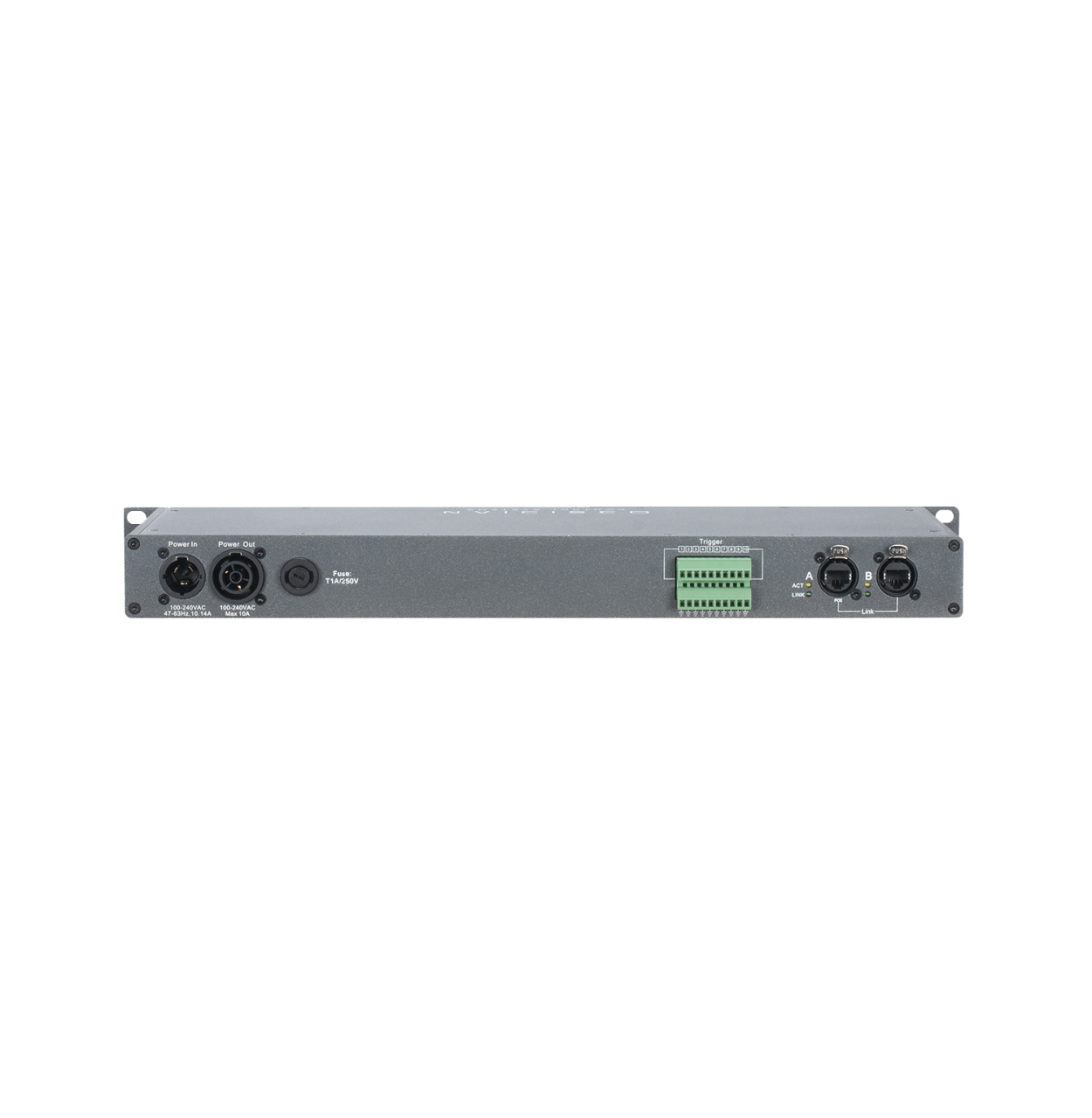

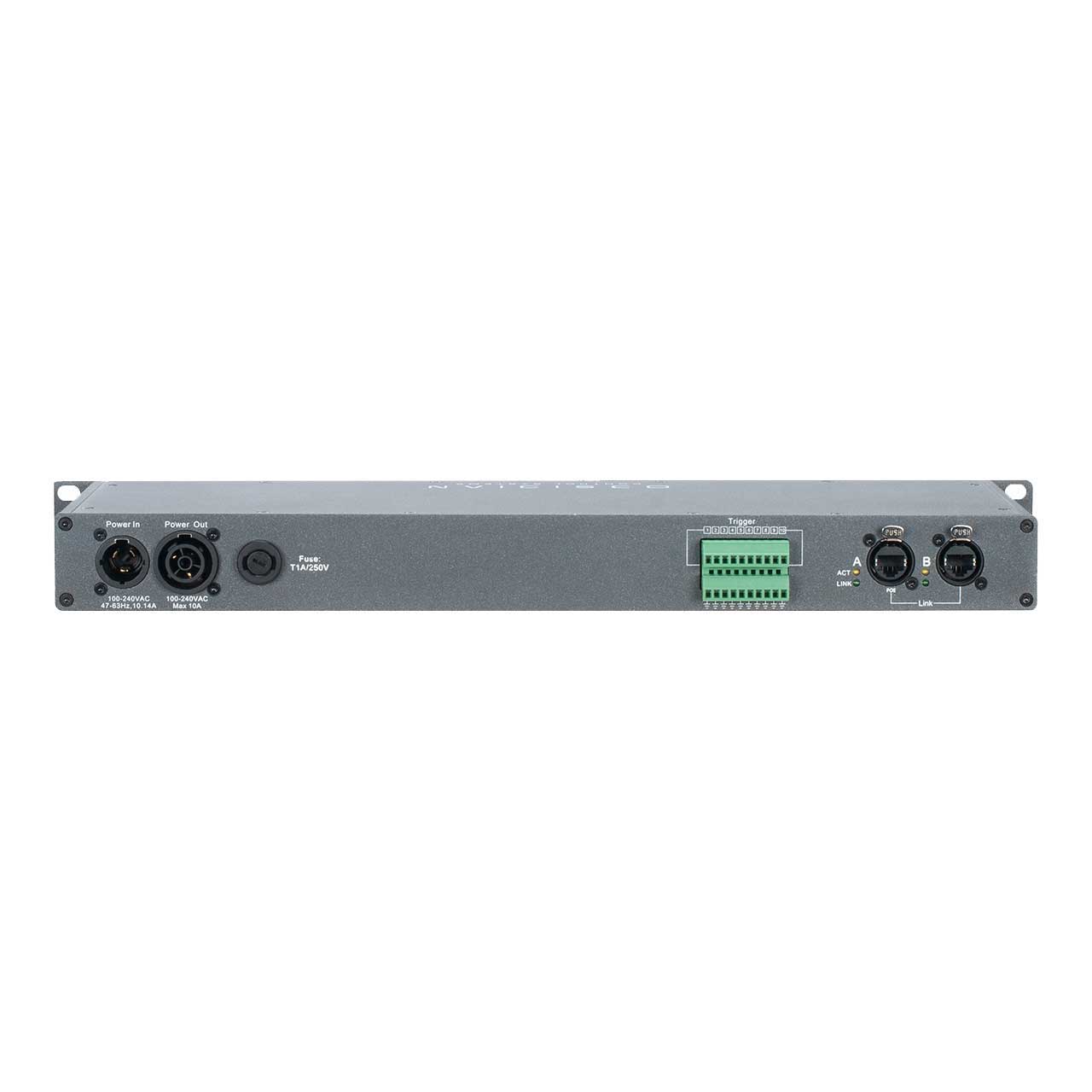

- Back
  - 2x Locking RJ45 Ethernet network In
  - 10x Contact Closures (Terminal Block)
  - Locking Power In/Thru

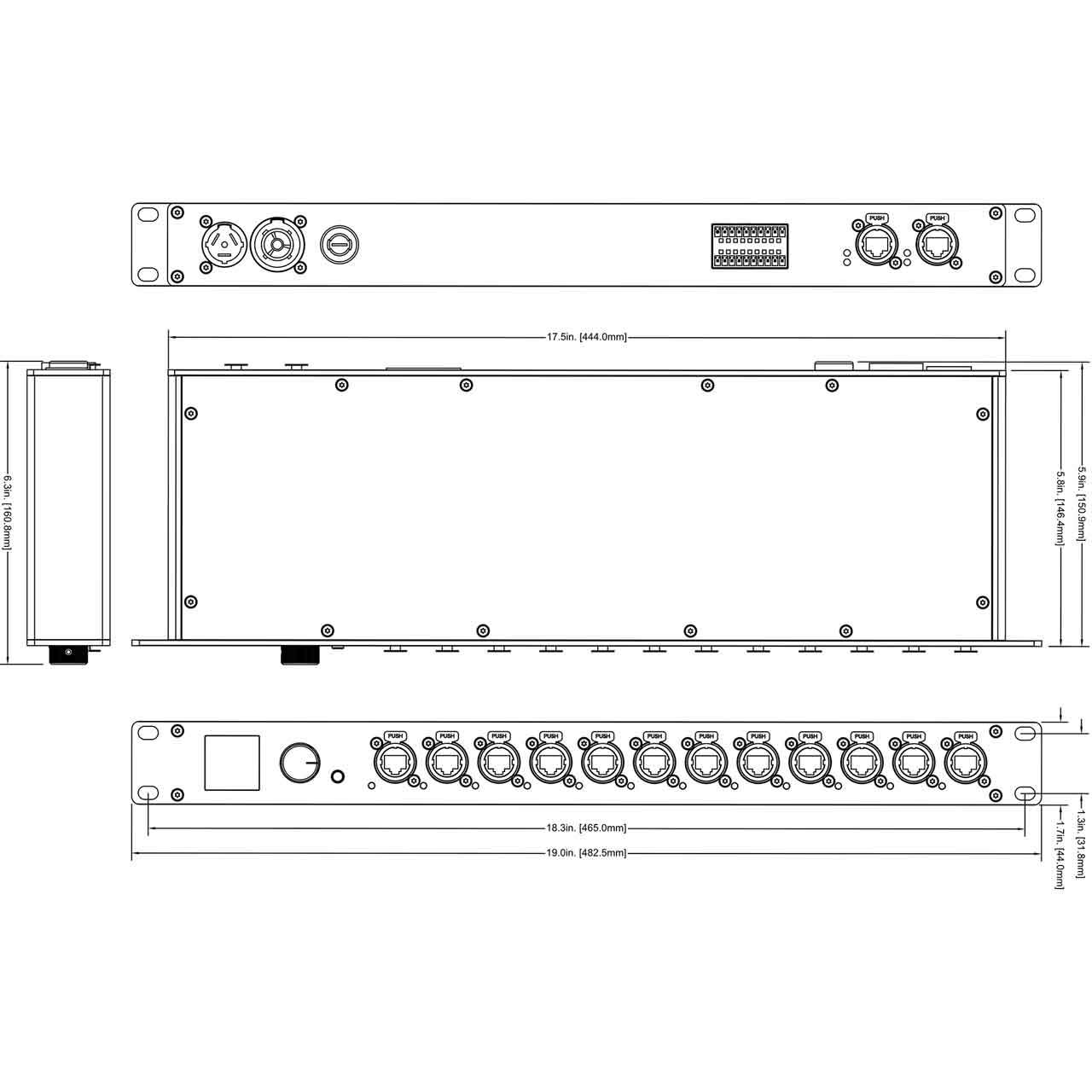

  Physical
- Length: 6.3in. (160.8mm)
- Width: 19in. (482.5mm)
- Height: 1.7in. (44mm)
- Weight: 1.82 kg (4 lbs.)

  Electrical
- 100-240 V nominal, 50/60 Hz
- POE 802.3af

  Approvals / Ratings
- CE | cETLus | IP20
Item Includes:
- 1x 1.5m Locking power cable (EU or US version)
Warranty:
- 2 Year Warranty
GTIN:
0810008262597
