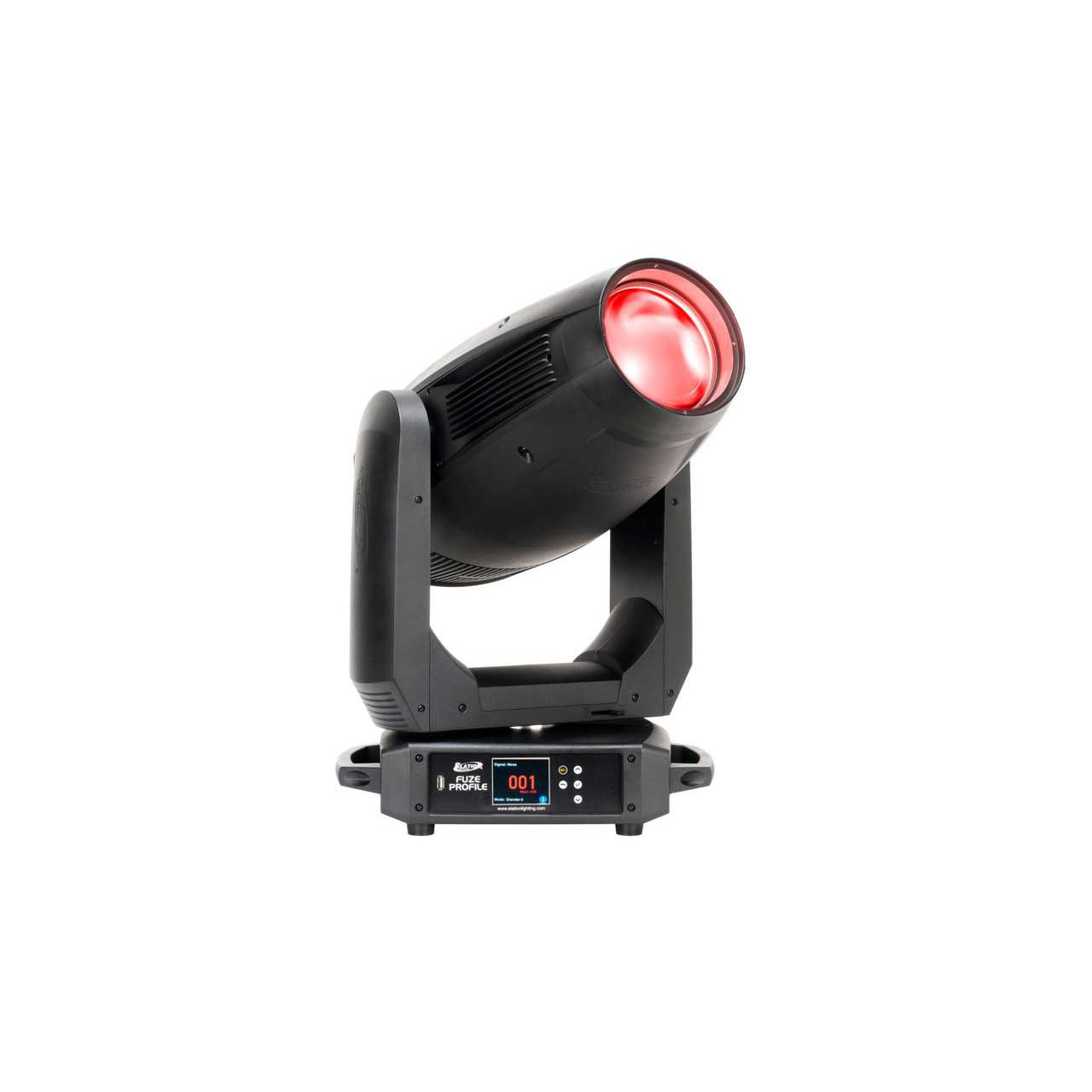

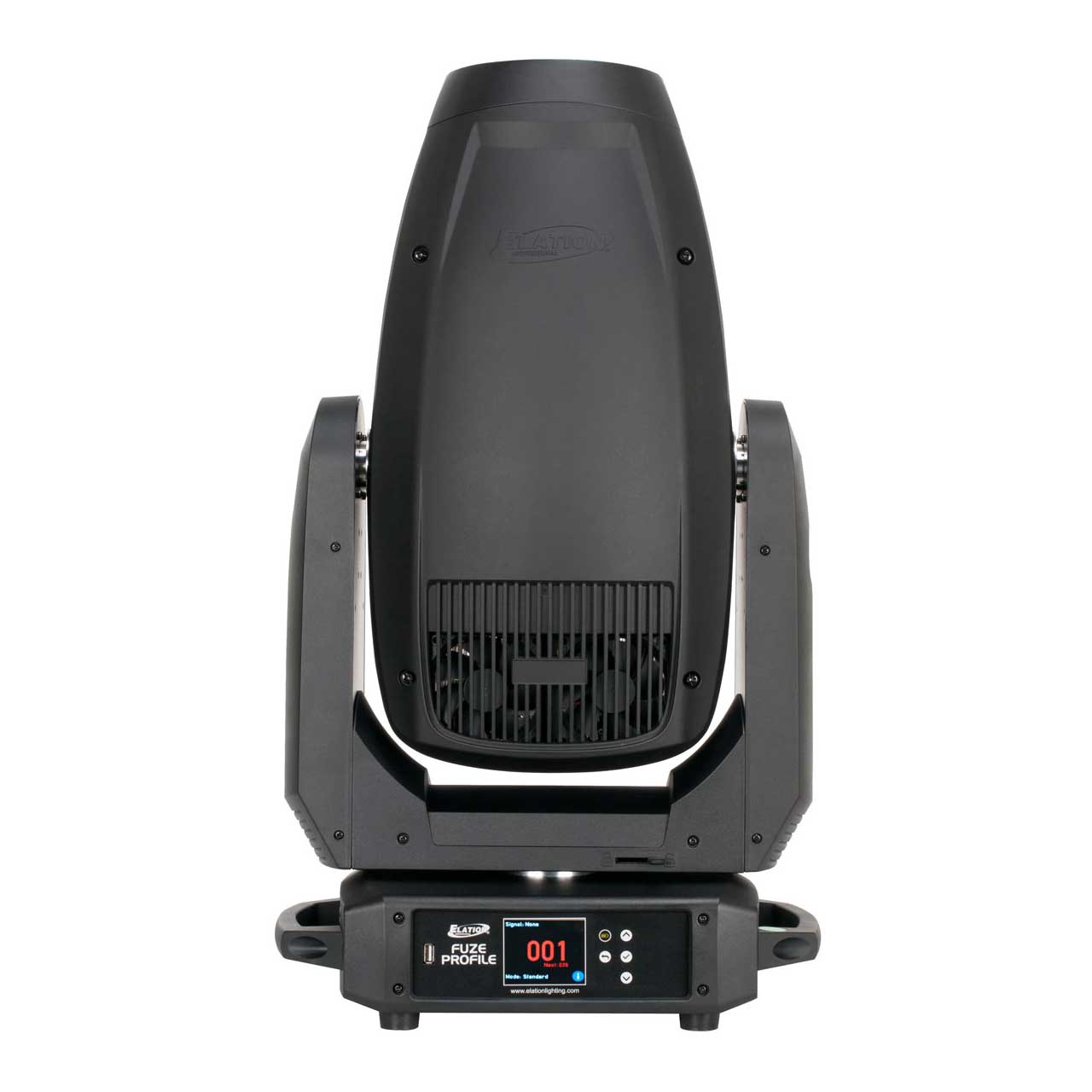

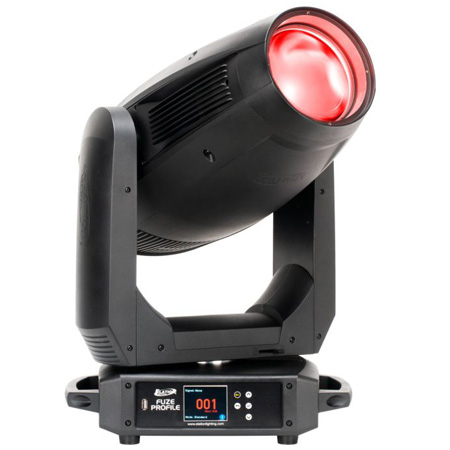

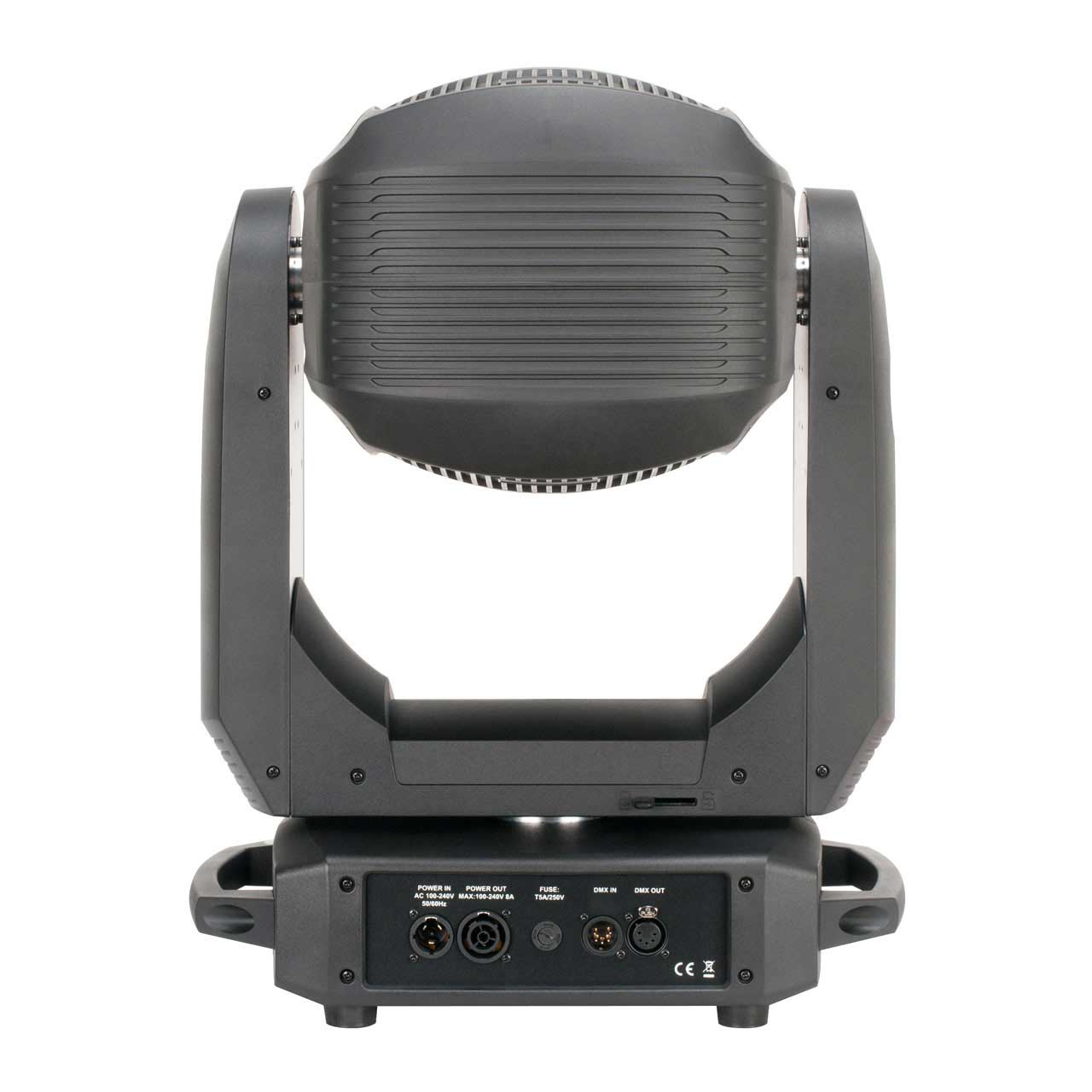

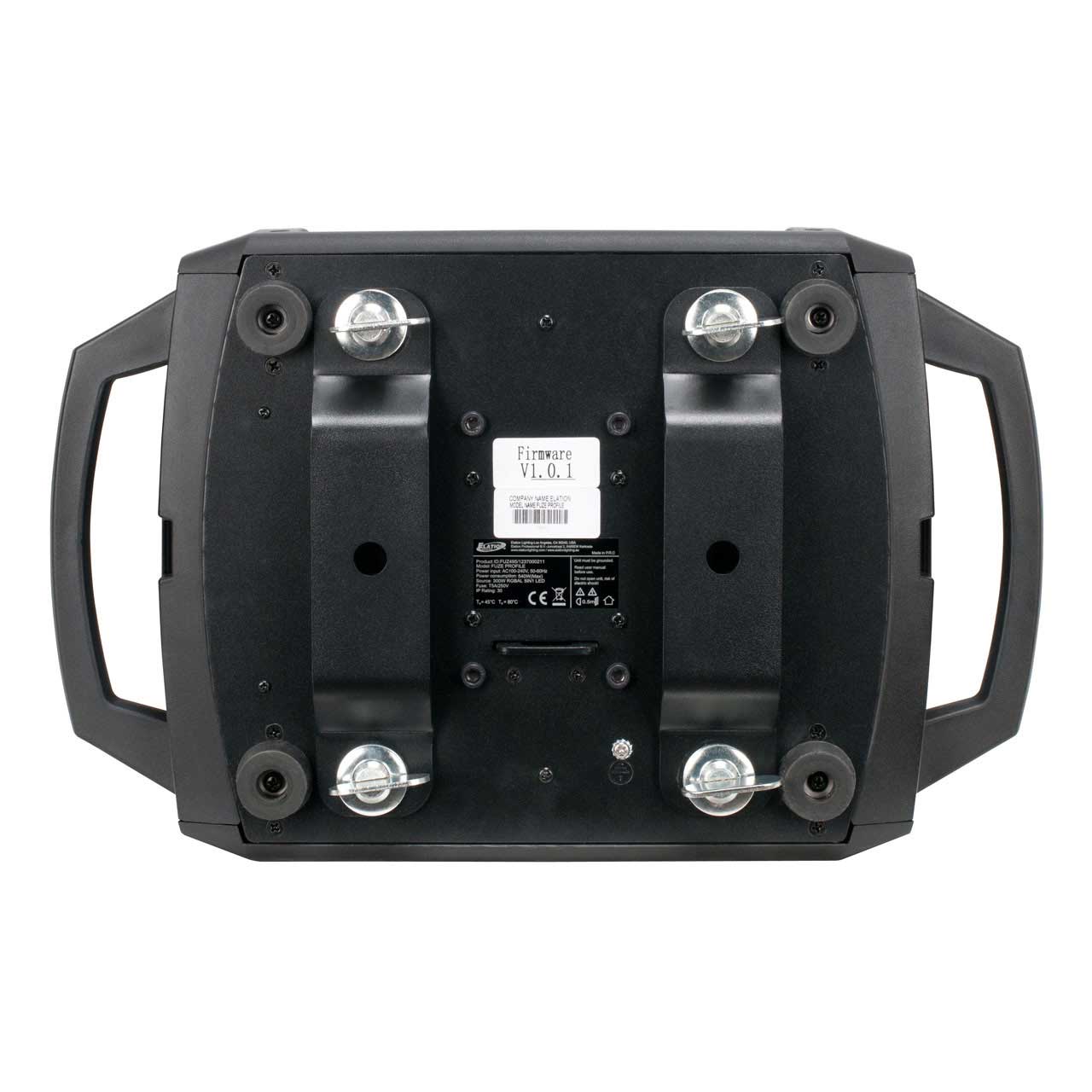

Elation Professional FUZ495 FUZE PROFILE Automated LED Framing Fixture for Theater/TV

ITEM #: ELAT-FUZ495 MFG #: FUZ495

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,300.00

Our Price:

$4,995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FUZ495 - Overview

The Elation Professional FUZE PROFILE™ is an automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The Elation Professional FUZE PROFILE is designed for any application where fully automated ellipsoidal fixture with outstanding and impactful color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

  • Features:

    • Extended color RGBMA LED Engine, 92 CRI
    • Rotating and Fixed Gobos plus Animation Wheel
    • Full Blackout Framing System
    • Iris, Prism, and Frost
    • Wide Zoom Range from 7° to 42°

  • Specifications:

    • Source
    • 305W 6,500K RGBMA LED Engine, 92 CRI
    • 30,000 Hour Average LED Life*
    • *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

      Photometric Data
    • 10,000+ Total Lumen Output

      Effects
    • 7° - 42° Motorized Zoom
    • 4 Rotating Full Blackout Framing Blades, +/- 45 Index
    • Variable Frost Filter
    • 4 Facet Prism
    • Motorized Iris
    • Variable 16-bit Dimming Curve Modes
    • High Speed Electronic Shutter and Strobe

      Color
    • RGBMA Color Array
    • CMY Emulation
    • Virtual Color Correction
    • Green/Magenta Shift
    • Virtual Gel Swatch Book

      Gobos
    • 1x 6 Rotating / Indexing Interchangeable Glass Gobos
    • 1x 7 Fixed Glass Gobo
    • Animation Wheel

      Control / Connections
    • 4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55)
    • 16-bit Pan, Tilt, and Dimming Control
    • DMX Adjustable LED Frequency
    • DMX, RDM Protocol Support
    • 4 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 16 Bit Resolution Adjustable Movement
    • 5pin DMX In/Out
    • Neutrik powerCON TRUE1 Power In/Out
    • With Wired Digital Communication Network

      Size / Weight
    • Length: 16.0" (407mm)
    • Width: 10.1" (256mm)
    • Vertical Height: 27.4" (698mm)
    • Weight: 55.1 lbs. (25kg)

      Electrical / Thermal
    • AC 100-240V - 50/60Hz
    • 540W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)

      Approvals / Ratings
    • CE | cETLus pending | IP20

  • Item Includes:

    • 1x Elation Professional FUZ PROFILE
    • 1x Power Cable

  • Warranty:

    • 2 year

  • GTIN:

    0810008260265
