The Elation PIXEL DRIVER 4000 V3 is designed specifically for the Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP series and PIXEL WASH 40IP, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels, 1,020 pixels per port, via Kling-Net, Art-Net and sACN (streaming ACN) protocols.

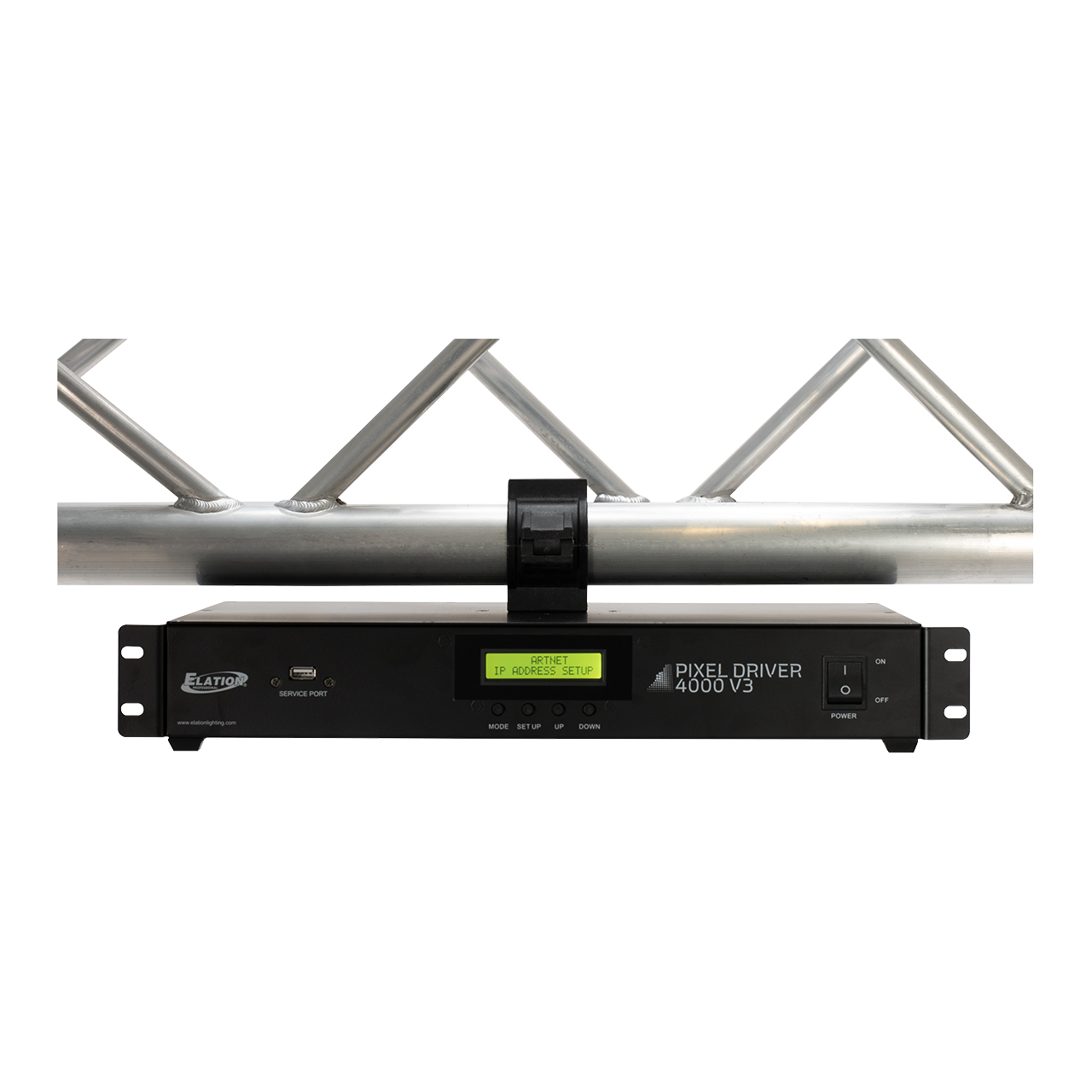

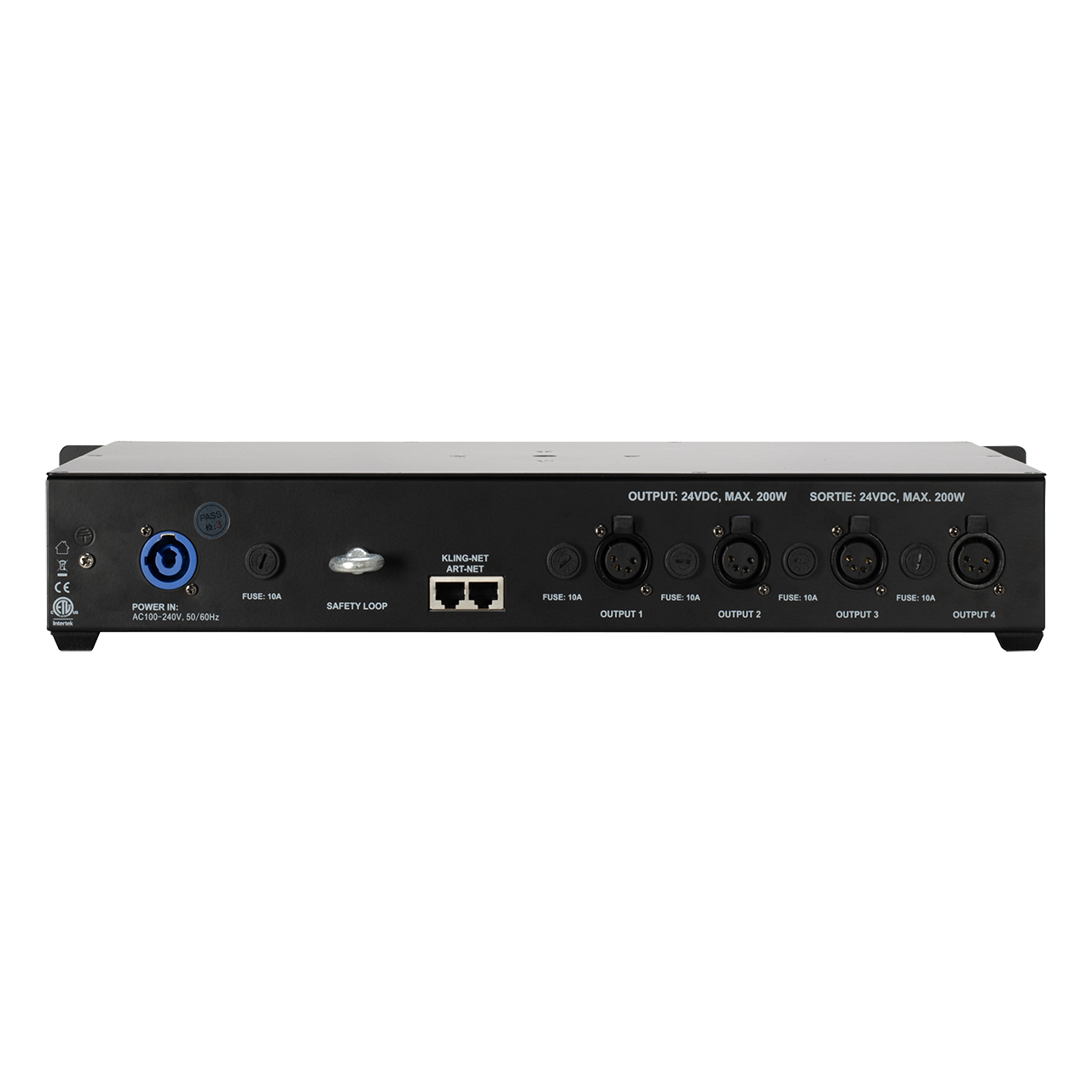

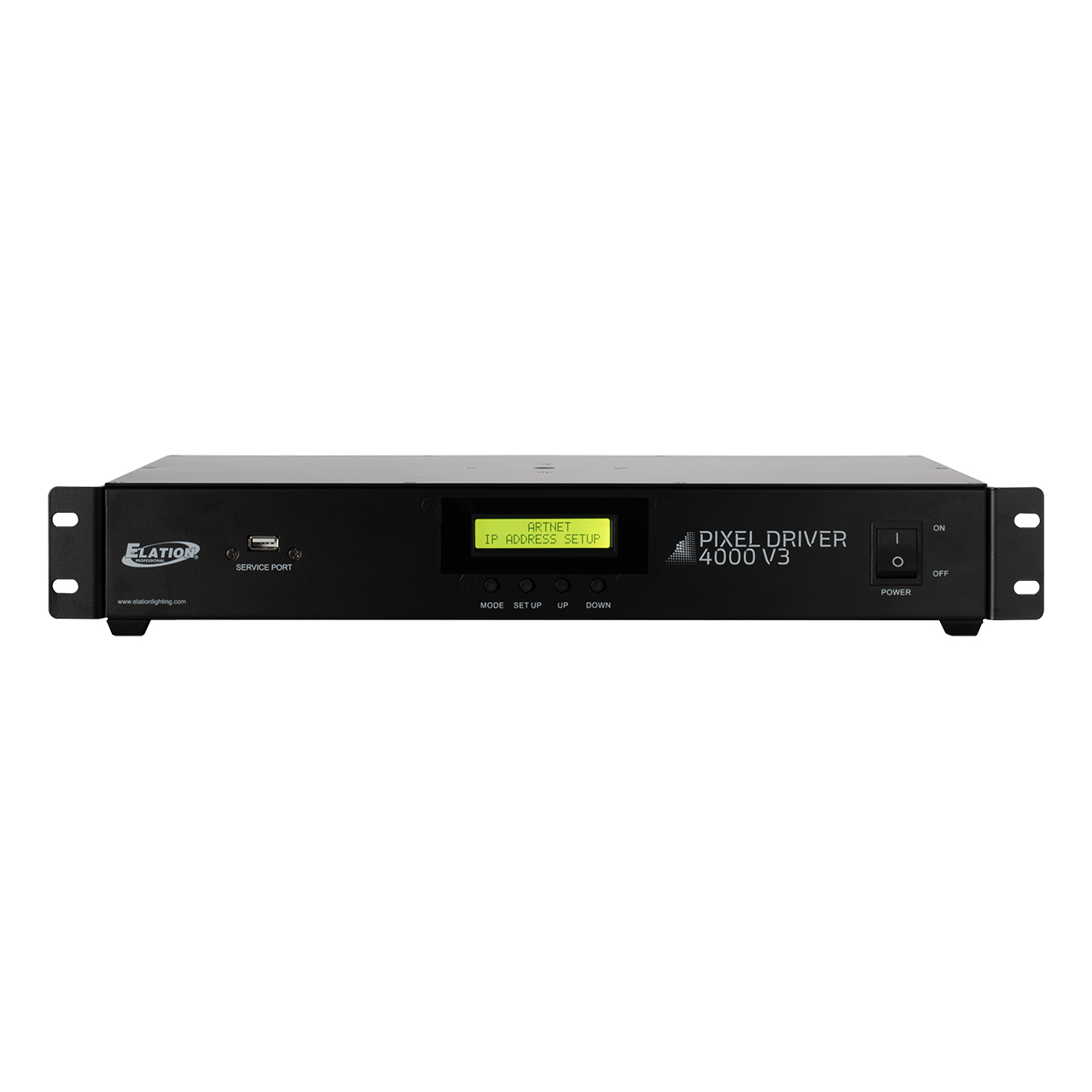

The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
