Elite Core Audio EC-PMA Personal Monitor Headphone Amplifier

ITEM #: ELI-EC-PMA MFG #: EC-PMA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$167.99

Our Price:

$125.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


EC-PMA - Overview

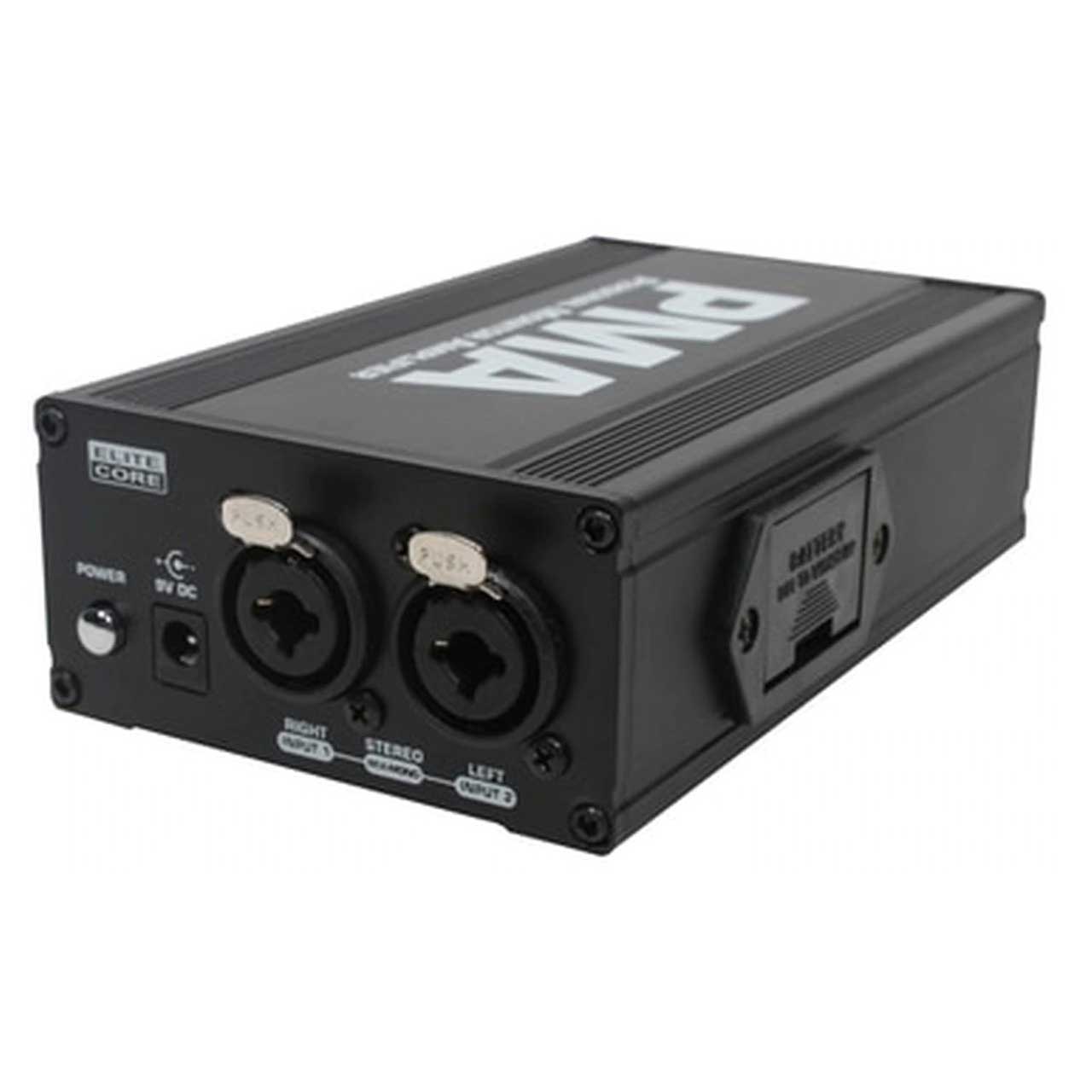

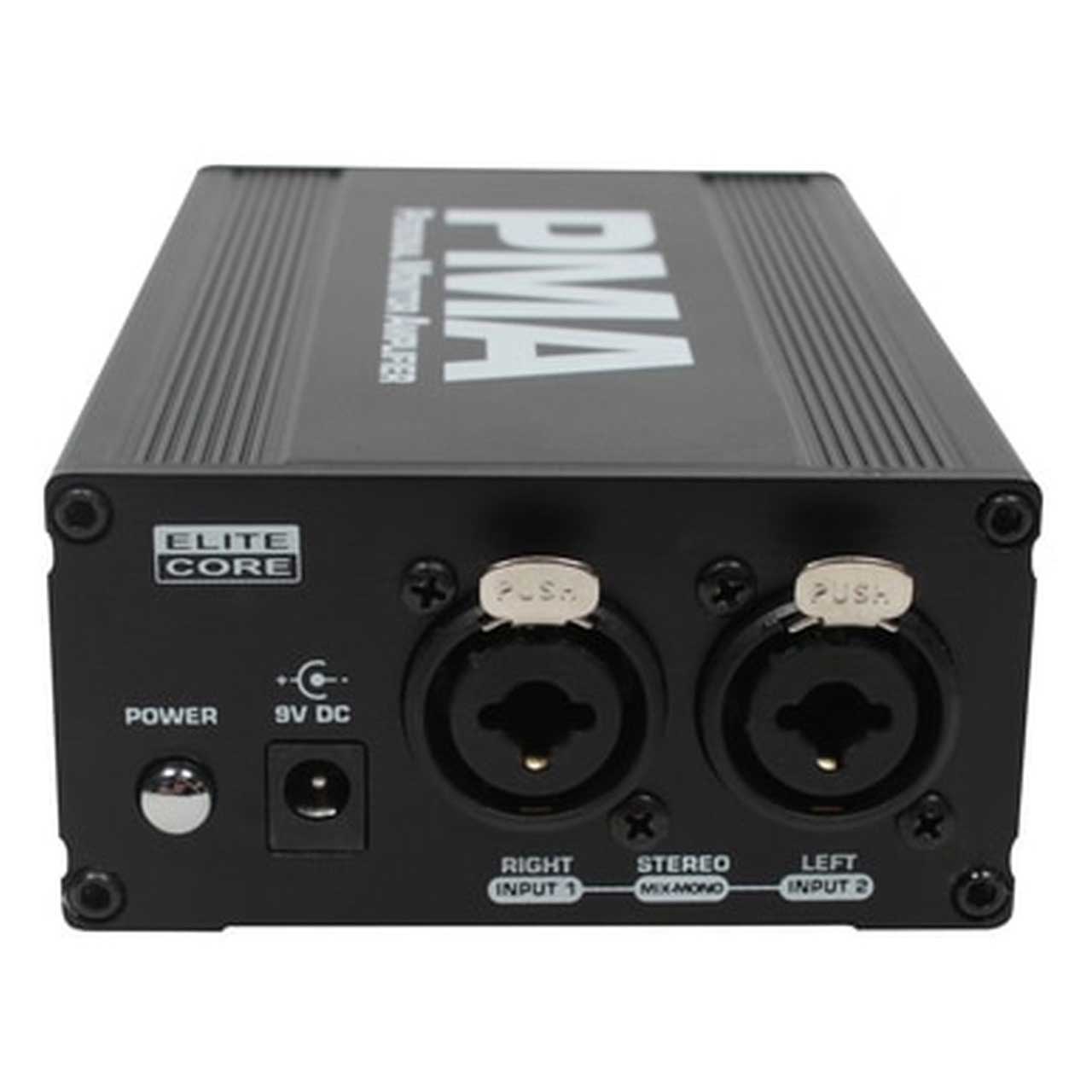

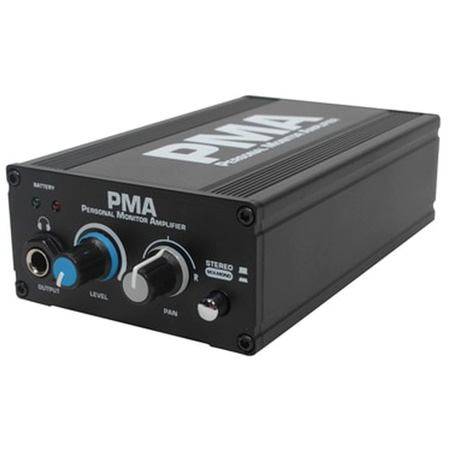

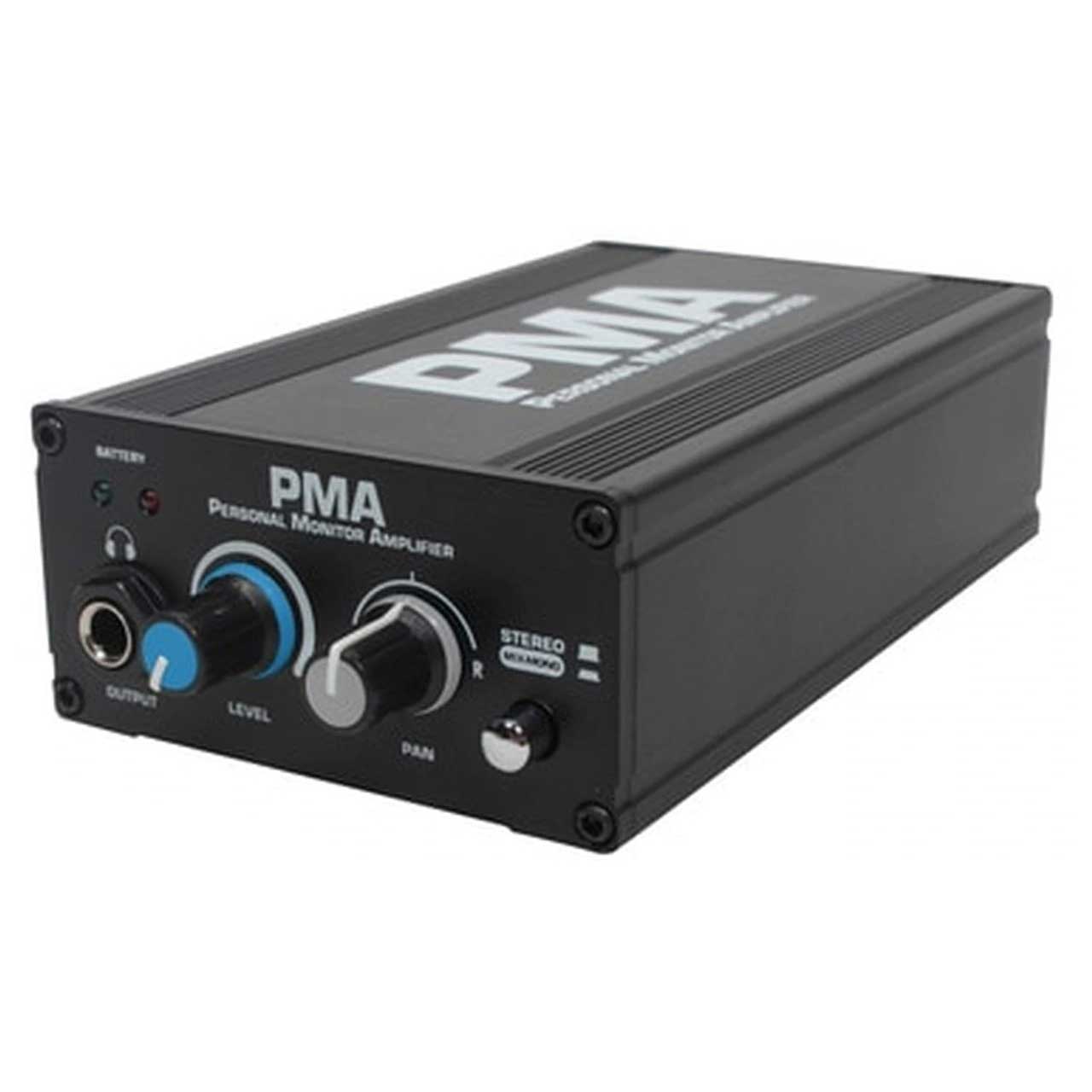

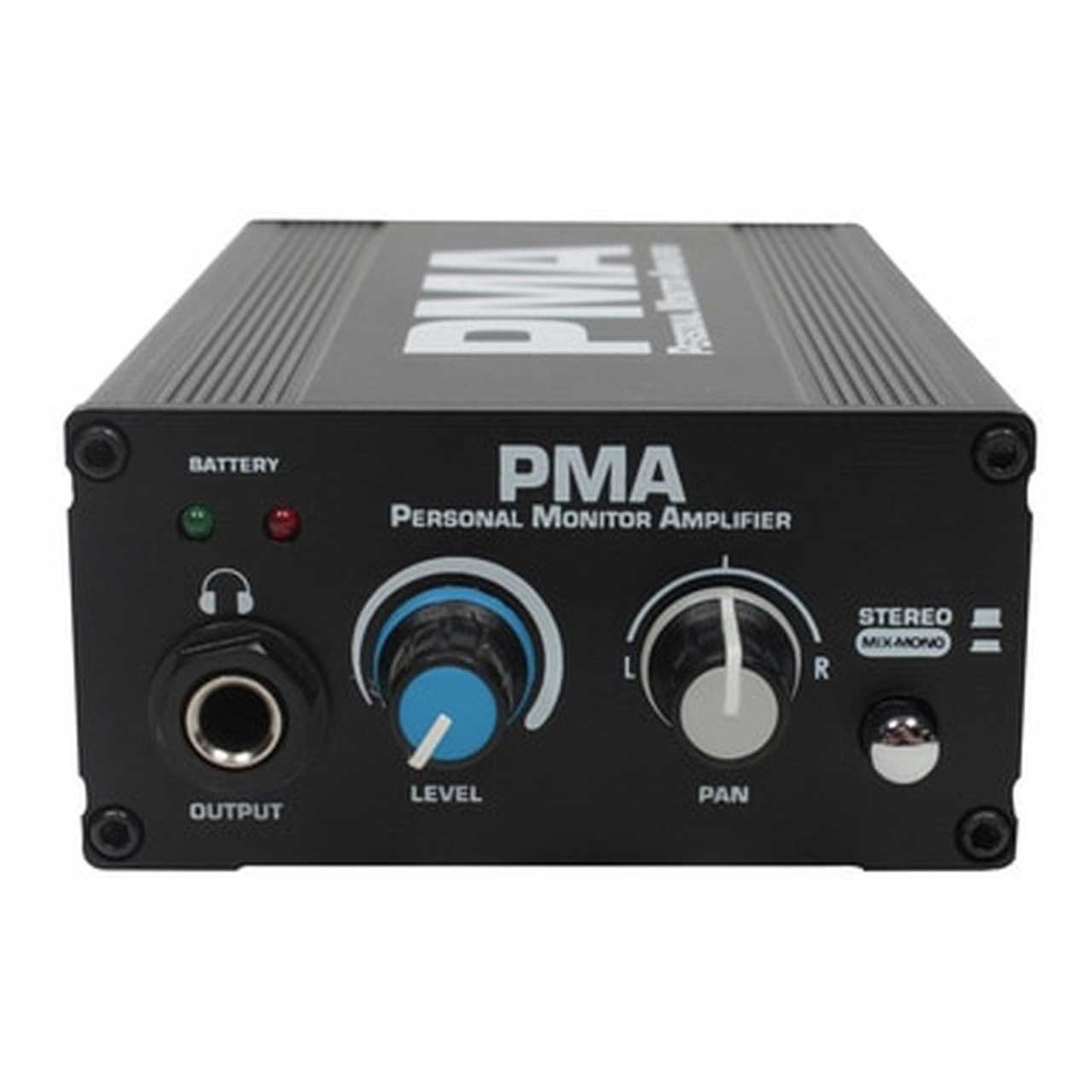

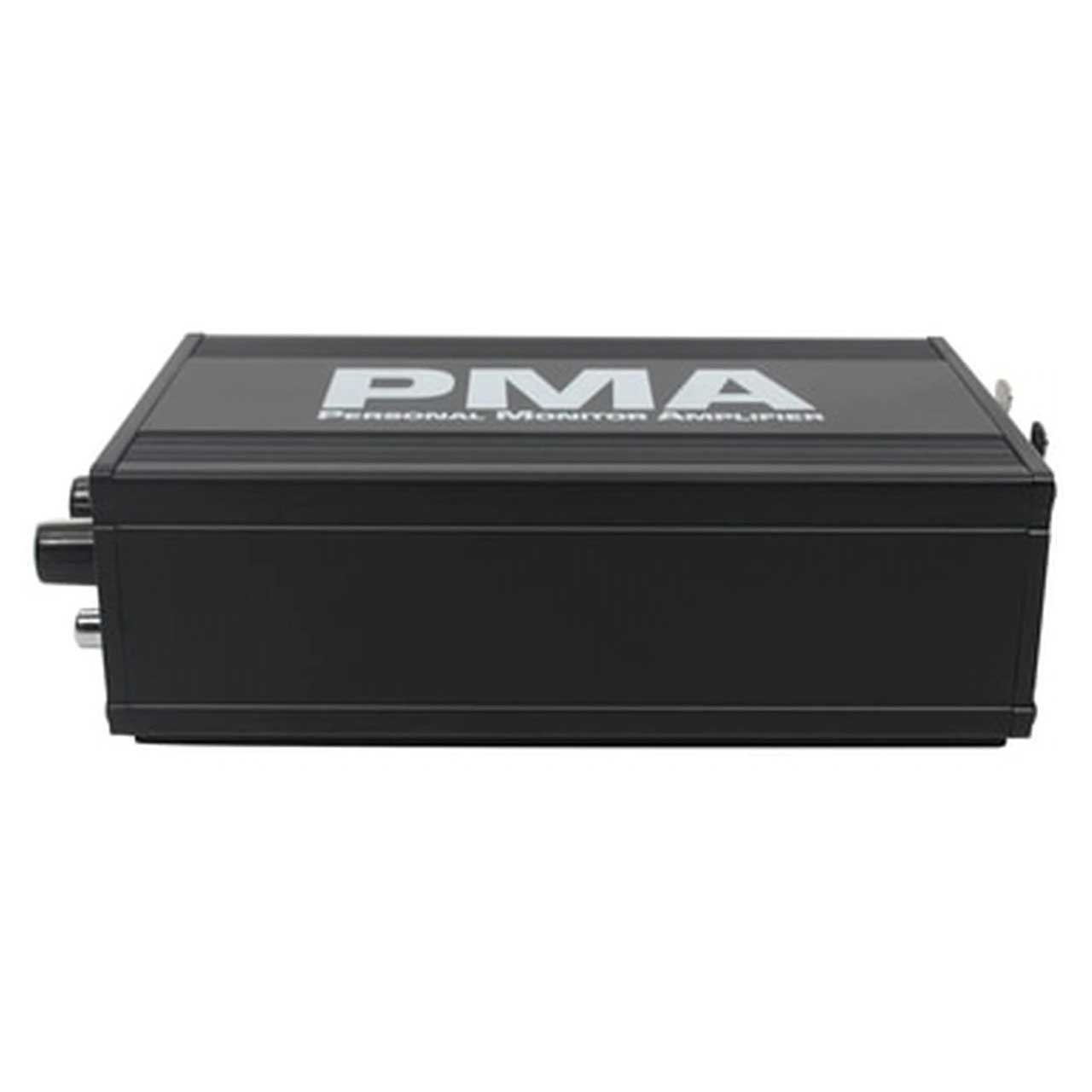

The Elite Core PMA is a high-powered stereo or mix-mono personal monitor headphone amp designed to provide loud and clear monitoring through headphones or earphones. Signals from AUX outs are connected to the inputs of the PMA via combo XLR/TRS jacks. Headphones or earphones are powered by a strong 50mW per channel amplifier. The PMA can be conveniently mounted onto standard mic stand threads. Powered by the included 9V AC power adapter, or by a 9V battery.

  • Features:

    • 2 Direct Symmetric Combo XLR/TRS Inputs
    • Stereo or Mix-Mono Mode Selection
    • Level & Pan Controls
    • Sturdy Aluminum Case
    • 5/8" - 27 internal threads on bottom - suitable for mounting on standard microphone stand or SA001 stand adapter
    • Operates with 9V Battery or included AC/DC power adapter

  • Specifications:

    • Dimensions: 170x93x47mm
    • Net Weight: 0.4kg
    • Input Jacks: 2 x Combo XLR/TRS
    • Output Jack: 1/4" Stereo
    • Frequency Response: 30Hz-20kHz A2dB
    • Min Headphone Impedance: 16 ohms per side
    • Input Impedance: 15 Kohm
    • Nominal Input Level: 0dBV
    • Maximum Input Level: +4dBV
    • Limit Input Level: +5dB
    • Maximum Output Power (into 20ohm): 50mW per channel
    • Maximum Operating Current: 40mA
    • AC Power Supply: 9V Battery
    • DC Input Socket: DC 9V (PIN - / RING +)
