Ensemble Designs Avenue 3750-IS 3G/HD/SD/ASI Electrical to Optical Converter

ITEM #: ENDE-3750-IS MFG #: 3750-IS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


3750-IS - Overview

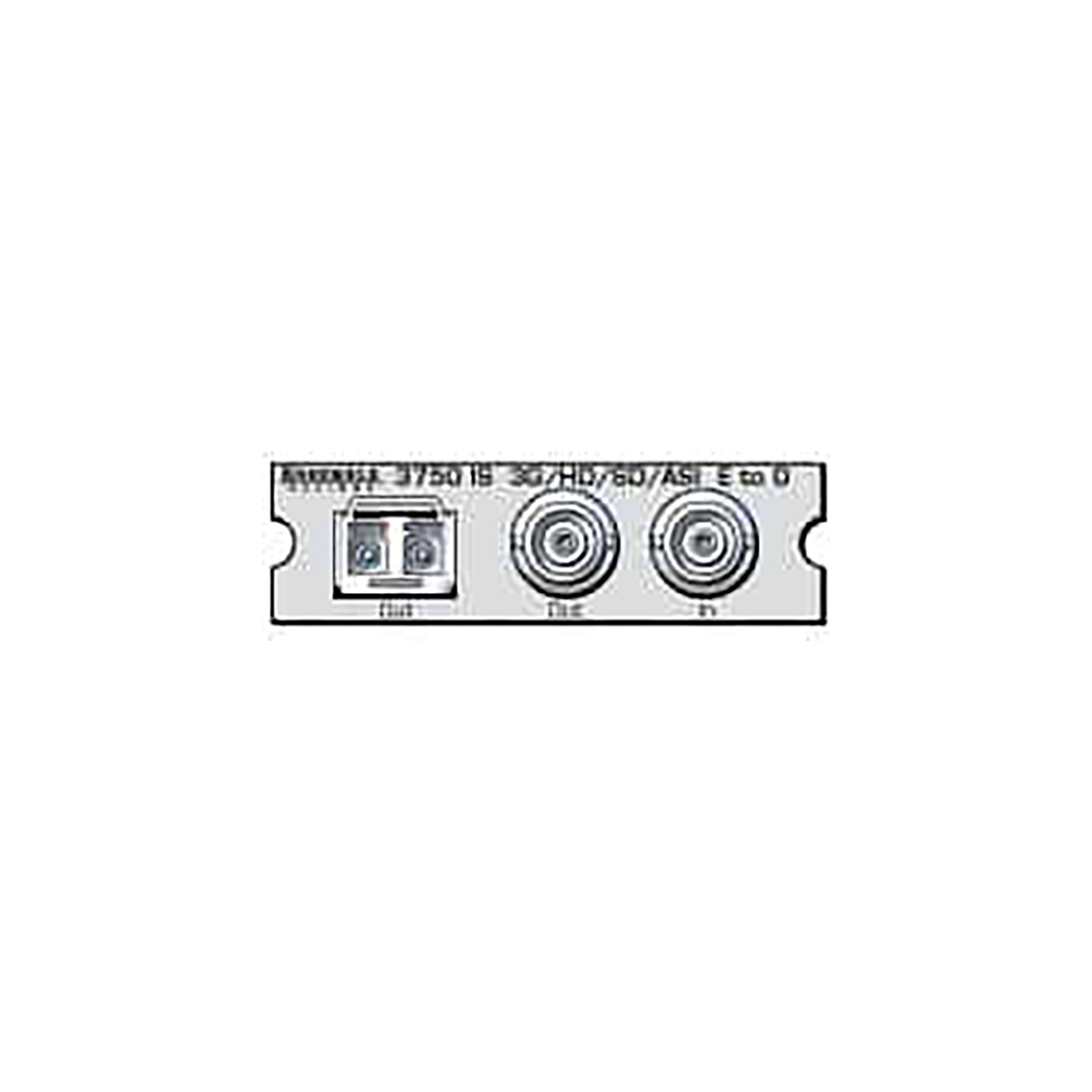

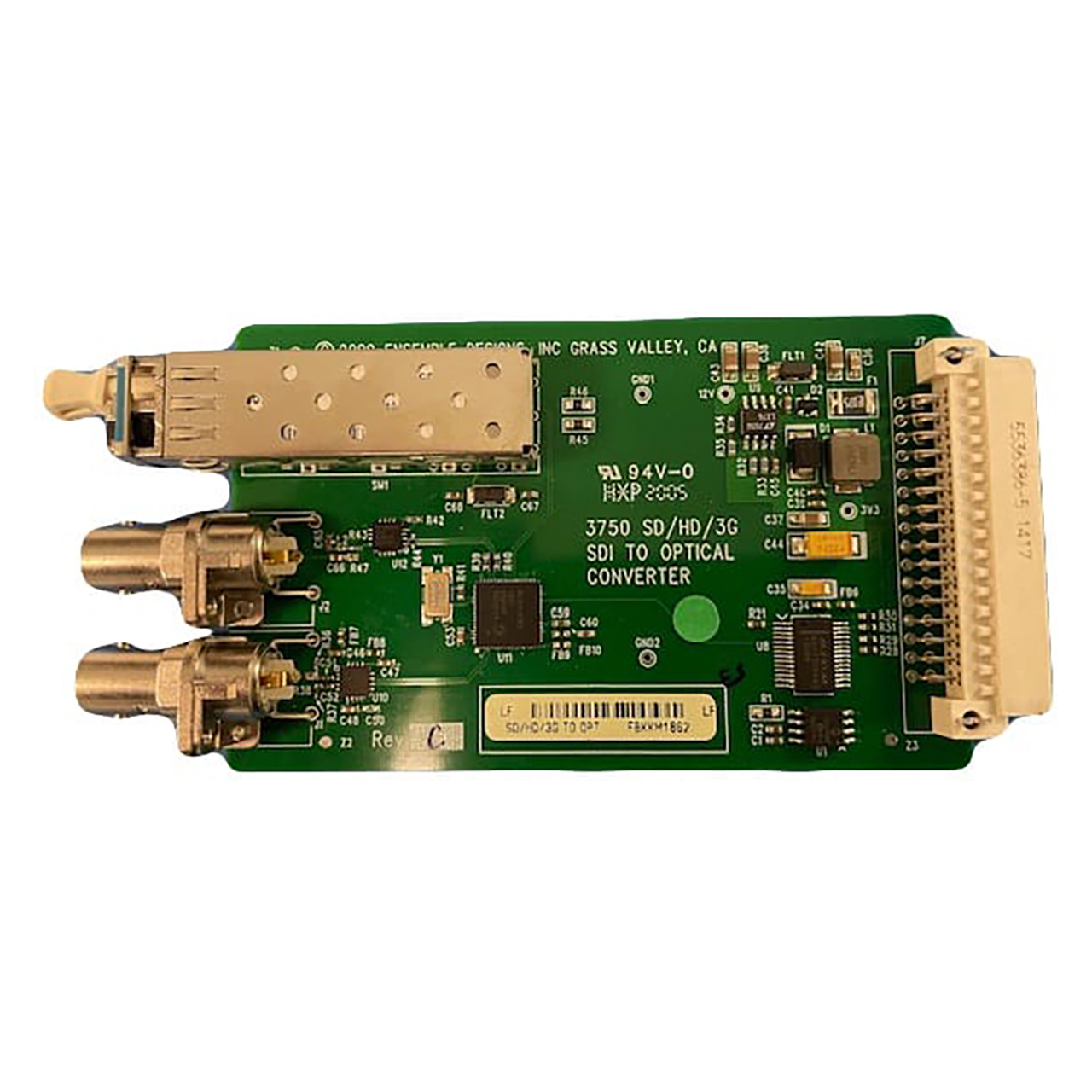

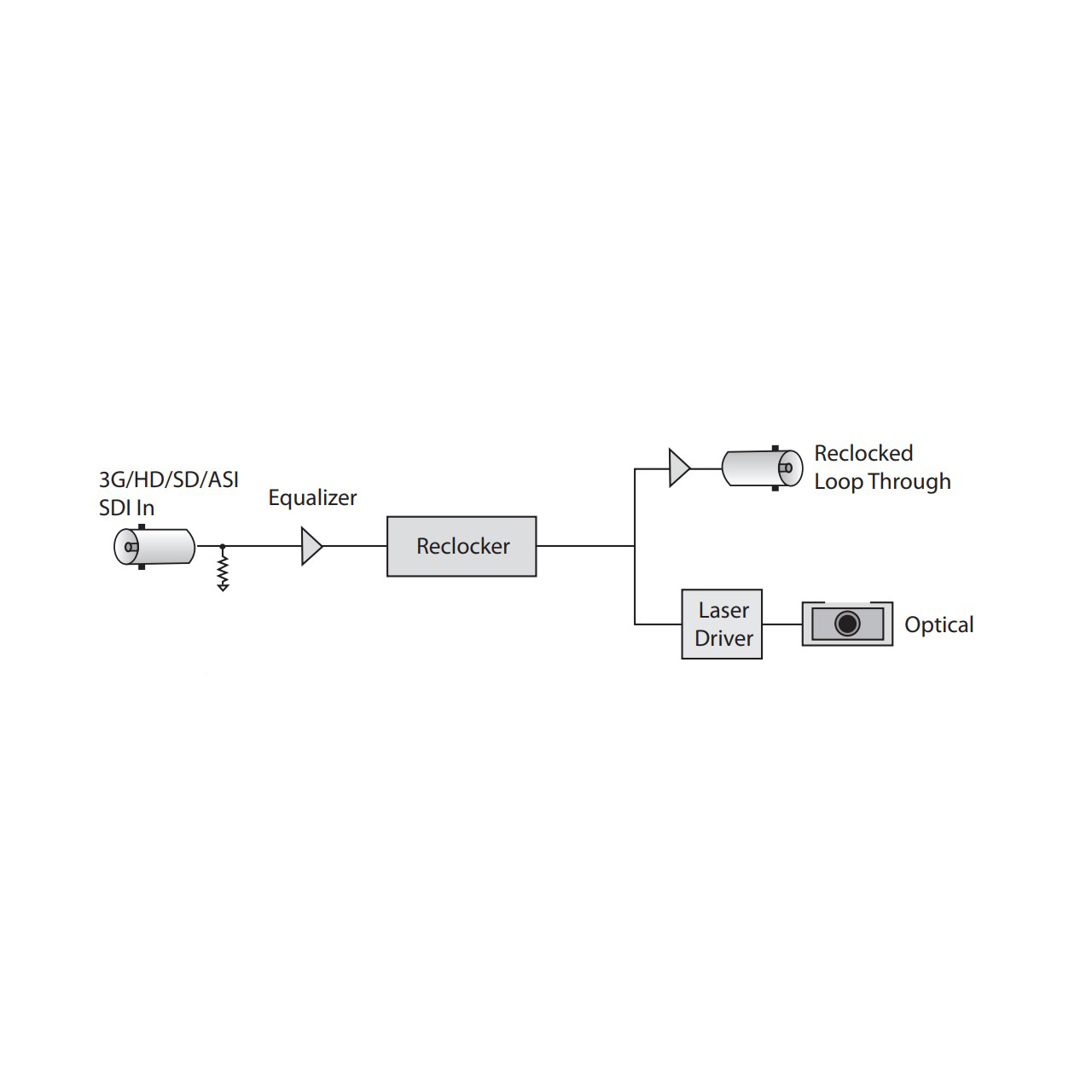

The Ensemble Designs Avenue 3750-IS module is an electrical-to-optical converter that can be used with 3 Gb/s and 1.5 Gb/s high definition signals, standard definition signals or ASI signals. The video input is converted to an optical signal and presented on an optical SC connector. This optical output can drive single mode fiber to a distance of 20 kilometers. With an optical launch power attenuator, multi-mode fiber can also be used.

  • Features:

    • Electrical to Optical Converter
    • 3G/HD/SD/ASI Signals
    • Optical SC connector
    • Single mode fiber, up to 20km
    • Supports multi-mode fiber when using launch power attenuator
    • High Density in Avenue Intersection Frame

  • Specifications:

      Serial Digital Input
    • Count: One
    • Signal Type:
      - 270 Mb/s SD Serial Digital
      - SMPTE 259M or DVB-ASI at 270 Mb/s
      - 1.485 Gb/s HD Serial Digital
      - SMPTE 274M, 292M or 296M
      - 2.97 Gb/s HD Serial Digital
      - SMPTE 424M, 425M
    • Impedance: 75Ω
    • Return Loss:
      - >15 dB to 1.485 GHz
      - >10 dB to 2.97 GHz
    • Max Cable Length:
      - 984' (300m) for 270 Mb/s
      - 328' (100m) for 1.485 Gb/s
      - 229.66' (70m) for 2.97 Gb/s

      Serial Digital Output
    • Count: One (Follows input)
    • Signal Type:
      - 270 Mb/s SD Serial Digital
      - SMPTE 259M or DVB-ASI at 270 Mb/s
      - 1.485 Gb/s HD Serial Digital
      - SMPTE 274M, 292M or 296M
      - 2.97 Gb/s HD Serial Digital
      - SMPTE 424M, 425M
    • Impedance: 75Ω
    • Return Loss:
      - >15 dB to 1.485 GHz
      - >10 dB to 2.97 GHz
    • Output DC: None (AC coupled)

      Optical Output
    • Count: One (Follows input)
    • Signal Type:
      - 3G/HD/SD/ASI
      - SMPTE 297M, optical equivalent of 259M
      - DVB-ASI at 270 Mb/s
      - SMPTE 274M, 292M or 296M
      - SMPTE 424M, 425M
    • Wavelength: 1310nm (non-CWDM)
    • Power: -7 dBm
    • Max Cable Length: 12.43 miles (20km)
    • Fiber Type: Single Mode (Multi-mode compatible with attenuation at transmit end)
    • Connector: SC/UPC

      General
    • Power Consumption: <5.0 watts
    • Temperature Range: 32°F - 104°F (0°C - 40°C) ambient
    • Relative Humidity: 0% - 95%, noncondensing
    • Altitude: 0ft - 10,000ft
