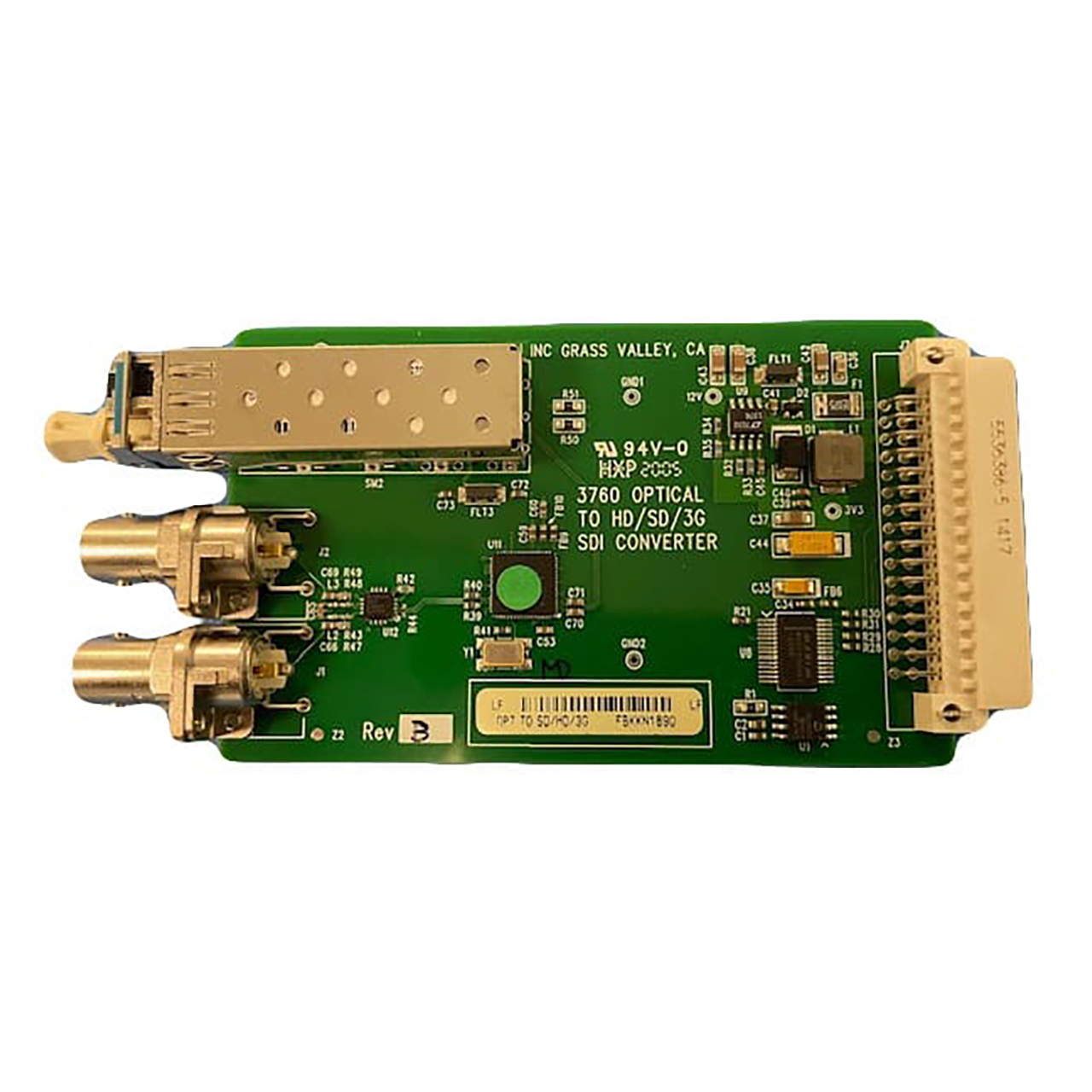

Ensemble Designs Avenue 3760-IS 3G/HD/SD/ASI Optical to Electrical Converter

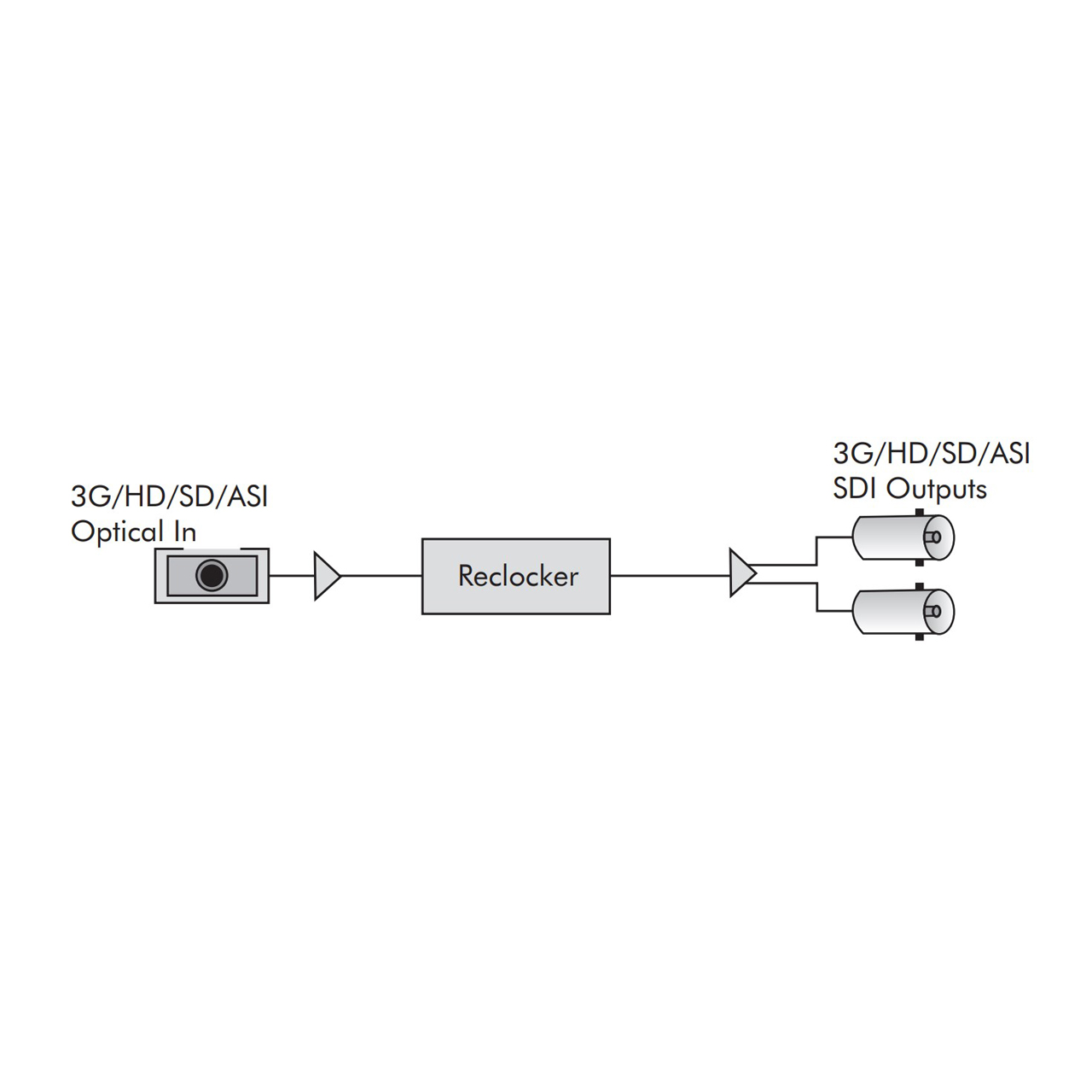

3760-IS - Overview

• Features:

  • Optical to Electrical Converter
  • 3G/HD/SD/ASI

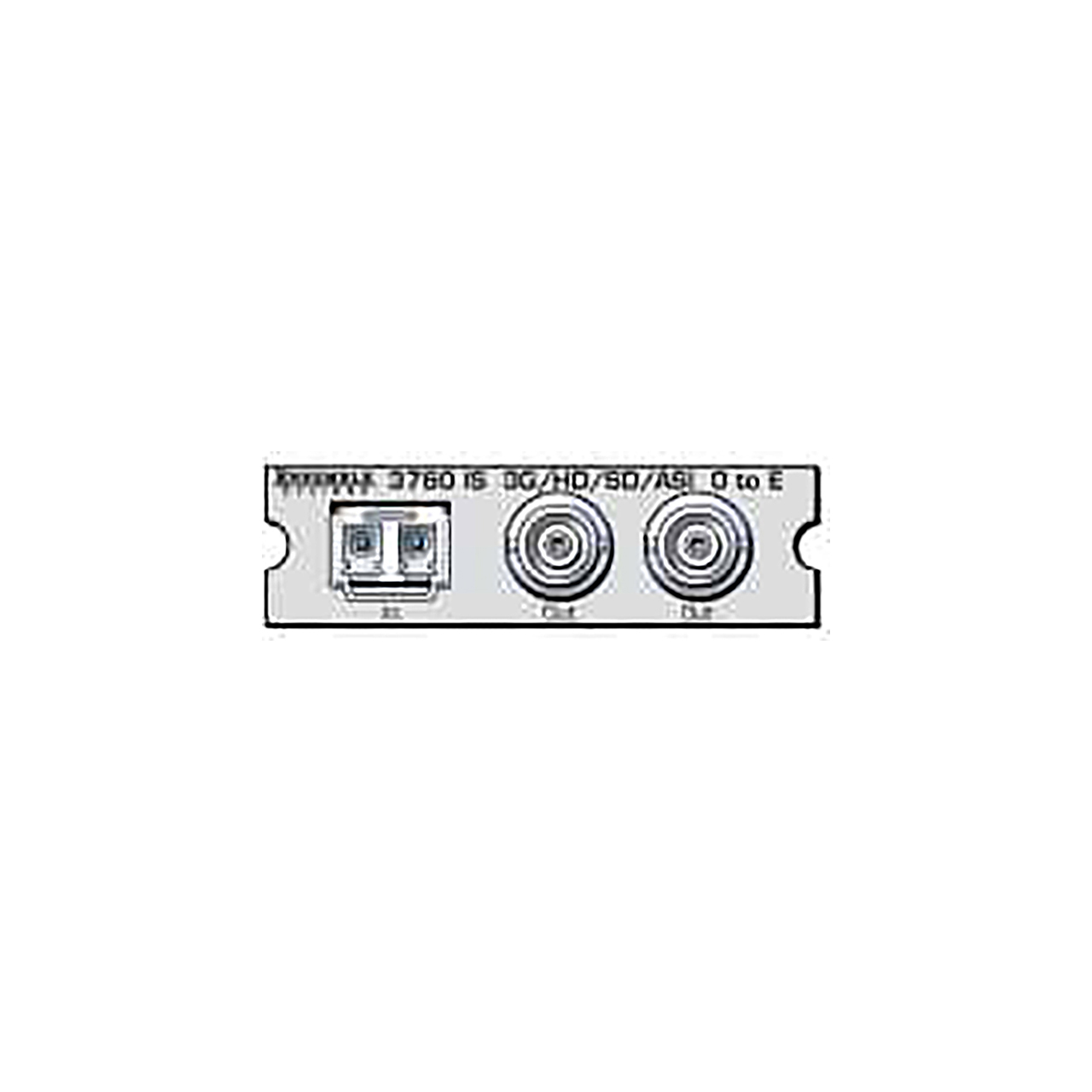

  • SC Optical Connector
  • High Density in Avenue Intersection Frame


• Specifications:

  Optical Input
  • Count One
  • Signal Type:
    - 3G/HD/SD/ASI
    - SMPTE 297M, optical equivalent of 259M
    - DVB-ASI at 270 Mb/s or
    - SMPTE 274M, 292M, 296M
    - SMPTE 424M, 425M
  • Wavelength: 830 to 1610nm
  • Receiver Sensitivity:
    - SD and ASI: -18 dBm
    - HD: -18 dBm
  • Max Cable Length: 12.43 miles (20km)
  • Fiber Type: Single Mode (Multi-mode compatible with attenuation at transmit end)
  • Connector: SC/UPC

    Serial Digital Output
  • Count: Two (Follows input)
  • Signal Type:
    - 270 Mb/s SD Serial Digital
    - SMPTE 259M or DVB-ASI at 270 Mb/s
    - 1.485 Gb/s HD Serial Digital
    - SMPTE 274M, 292M or 296M
    - 2.97 Gb/s HD Serial Digital
    - SMPTE 424M, 425M
  • Impedance: 75Ω
  • Return Loss:
    - >15 dB to 1.485 GHz
    - >10 dB to 2.97 GHz
  • Max Cable Length:
    - 984' (300m) for 270 Mb/s
    - 328' (100m) for 1.485 Gb/s
    - 229.66' (70m) for 2.97 Gb/s

    General
  • Power Consumption: <5.0 watts
  • Temperature Range: 32°F - 104°F (0°C - 40°C) ambient
  • Relative Humidity: 0% - 95%, noncondensing
  • Altitude: 0ft - 10,000ft
