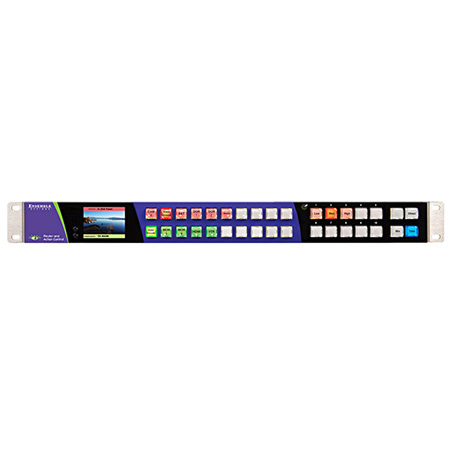

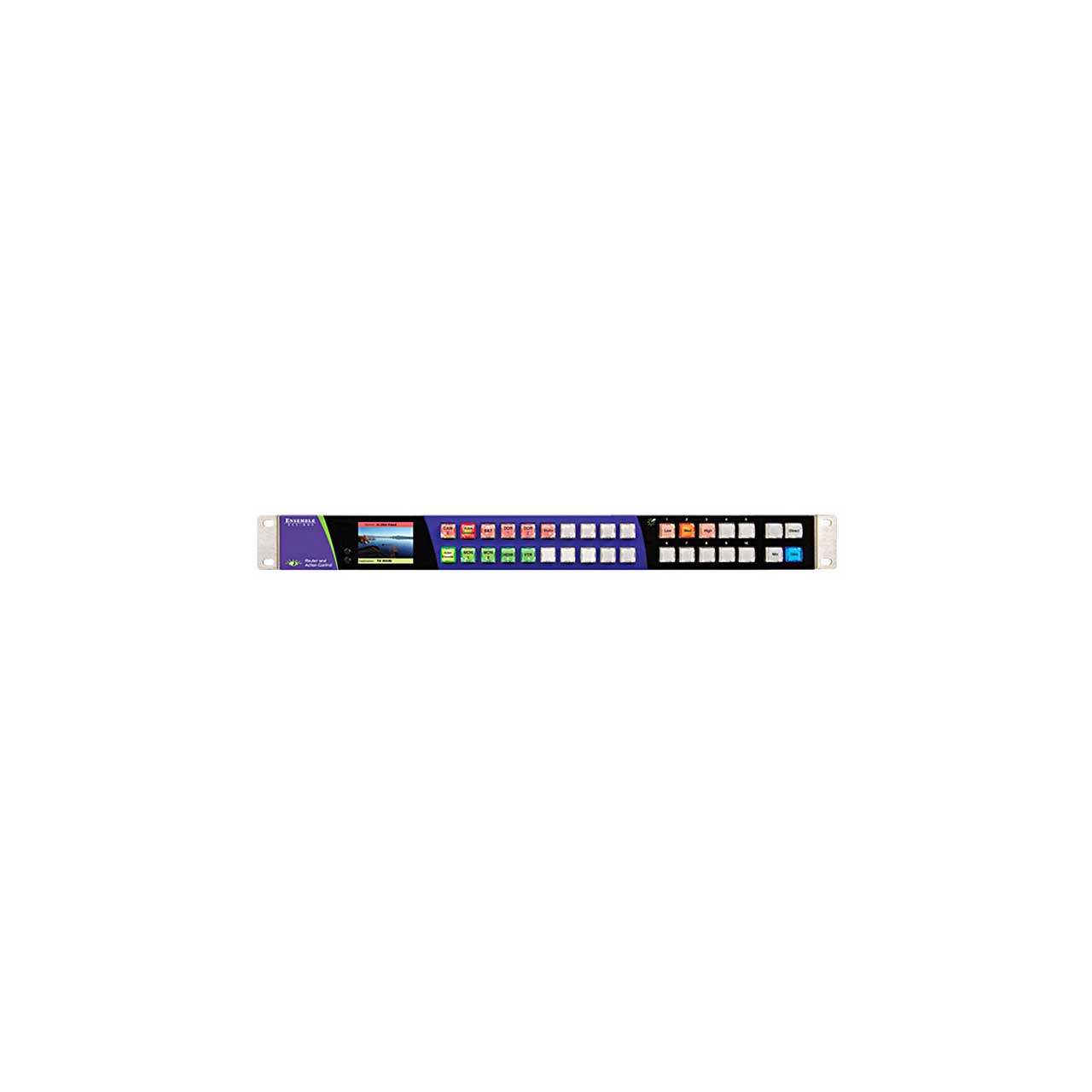

Ensemble Designs BrightEye 5835 Action Control Panel for Use with NXT Products

5835 - Overview

• Features:

  • Fully Programmable Action Keys for Recalling Presets
  • LCD Thumbnail Preview - See Your Sources Before Doing a Take or Mix Transition
  • Provides Hard Surface Control Panel for Salvos
  • Use Action Keys to Recall PiP Presets (450, 445, 430-X, 410-H)


• Specifications:

  • Reference Input
  • Number: One
  • Type: 1 V P-P Composite Video, PAL or NTSC or Tri-Level Sync
  • Impedance: 75Ω
  • Return Loss: >40 dB
    Audio
  • SDI paths support: 16 channels of audio
  • HDMI support: 8 channels of audio
  • Clean Switches: 16 channels Sample Rate Conversion (SRC) for PCM sources; Multi-Channel Surround (Dolby, AC-3) pass-thru
    Control
  • LAN Port: RJ-45; 10/100
  • Supports: Web, TCP/IP, and Telnet
  • GPI/GPO: using external interface
    General
  • Size: 5.63” W x 1.65” H x 6.75” D including connectors and flange
  • Weight: 1.7 lbs
  • Temperature Range: 0 to 40° C ambient
  • Relative Humidity: 0 to 95%, non-condensing
  • Altitude: 0 to 10,000 ft.
