Ensemble Designs BEM-2F BrightEye Mitto Fiber / HD / SD Scan Converter

ITEM #: ENDE-BEM-2F MFG #: BEM-2F

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ENDE-BEM-2F

BEM-2F - Overview

New! Introducing BrightEye Mitto HD Fiber and BrightEye Mitto Pro Fiber

YouTube and Skype Video Made Easy
The BrightEye Mitto family of high performance scan converters provide a new way to take just about any source to 3G, HD or SD SDI video. Computer video can now be used for the most demanding applications including broadcast, high-end military, medical, classroom, church and corporate. All Mitto units accept VGA, DVI and HDMI input signals from PC and Mac computers.

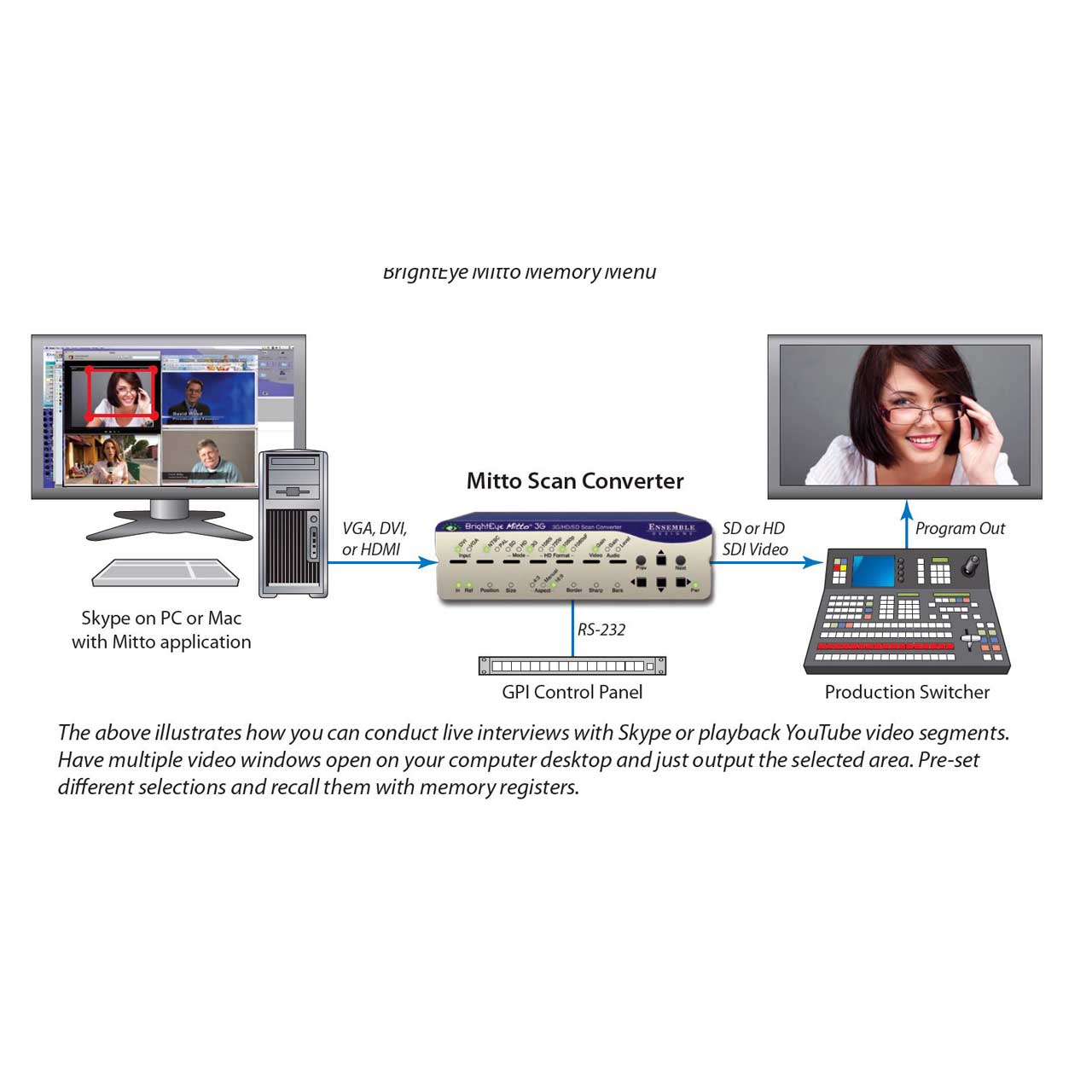

Six different BrightEye Mitto units, each with varying types of outputs and capabilities, allow you to choose the best one for your particular video application. All BrightEye Mitto units convert YouTube, Skype video, weather radar, emails and maps to video. Just a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full screen HD. Ensemble uses the latest technology in its proprietary upconversion and filtering and that means you have the best looking video. Compare Mitto to any other scan converter and see the difference!

A superior quality scan converter, BrightEye Mitto has the advantage of proprietary scaling technology and exclusive multi-tap filtering. Even a small part of the computer screen, such as a YouTube video, will be upconverted to full screen HD. The region selected for output determines if Mitto acts as an upconverter or downconverter. The filters automatically adjust in accordance with the conversion being performed. The result is that the output looks as good, or better, than the original and passes the most stringent testing.

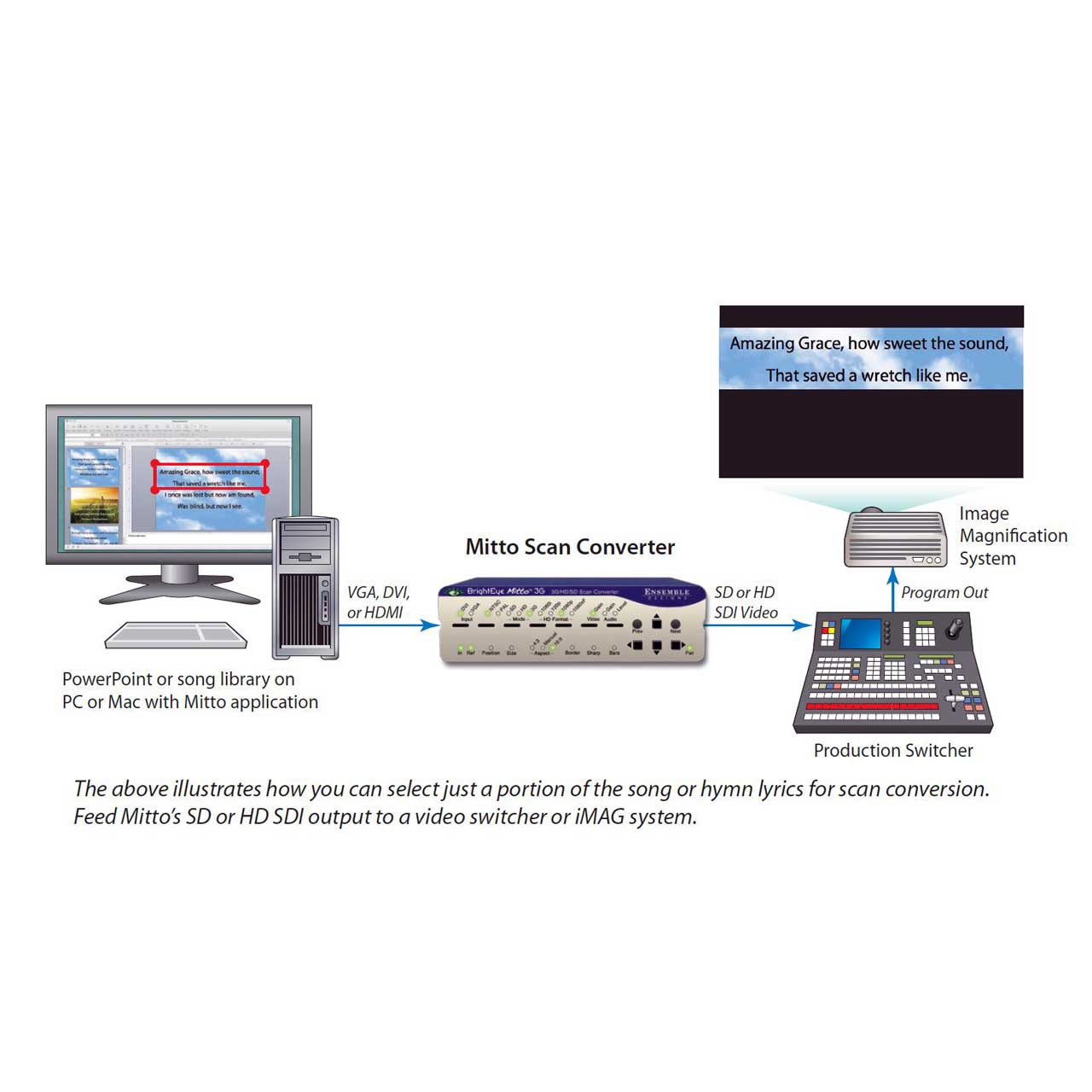

BrightEye PC and BrightEye Mac software let you simply use your mouse to click and drag over the specific portion of computer video that you want to output. The beauty of this user interface is that you can see which parts of the screen you don't want to output, as well as the parts you do want to use. The perspective of seeing the whole screen gives you the ability to choose exactly which portion of the video you want to output. It's easy to output the entire screen or just a selected portion.

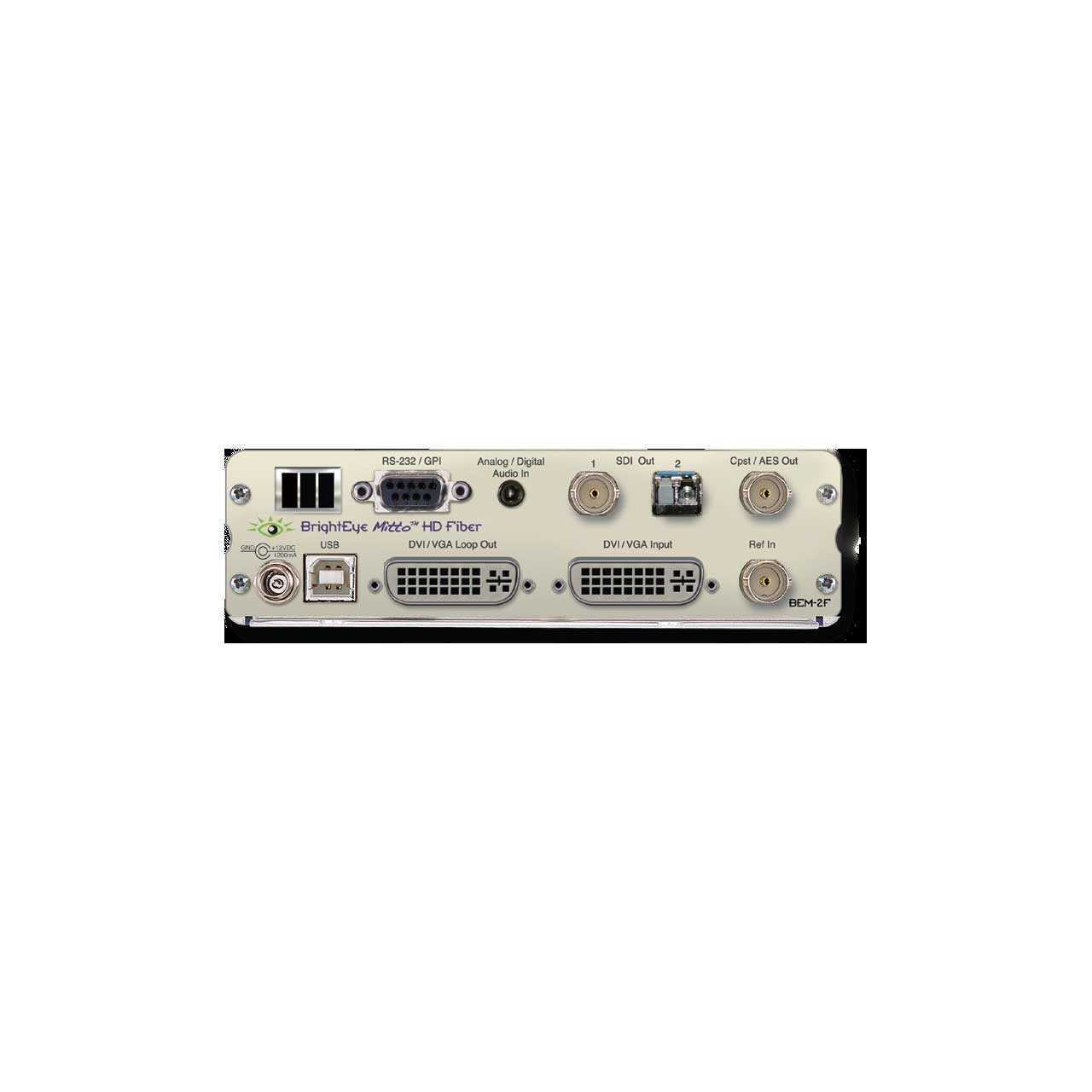

Order the BrightEye BEM-2F if you need an SDI optical output.The BEM-2F sports a simplex (single) LC/UPC connector output that transmits a Singlemode signal. (Multi-mode compatible with attenuation at transmit end). So if you need to convert your HDMI/DVI/VGA signal to SDI fiber this is your unit.

  • Features:

    • New BrightEye Mitto HD Fiber and BrightEye Mitto Pro Fiber
    • High Performance Scan Converter for PC and Mac
    • Best way to bring YouTube, Skype, Weather Radar, Maps and Emails to Video for Production Use
    • Superior Quality- Proprietary Scaling and Filtering System Provides Maximum Detail, Flicker-Free Video Output

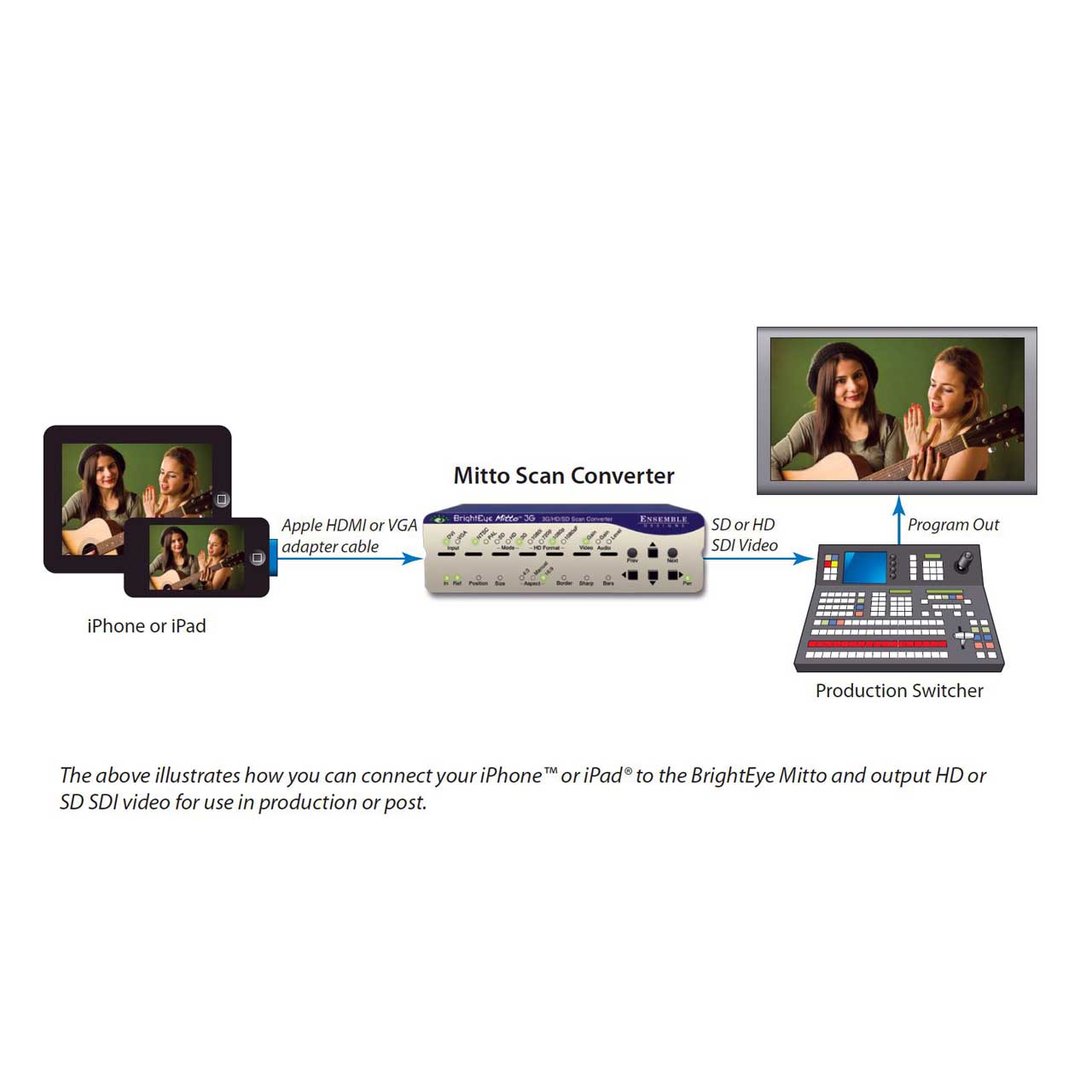

    • Use with all Types of Macs and PCs including Laptops, iPhoner and iPad

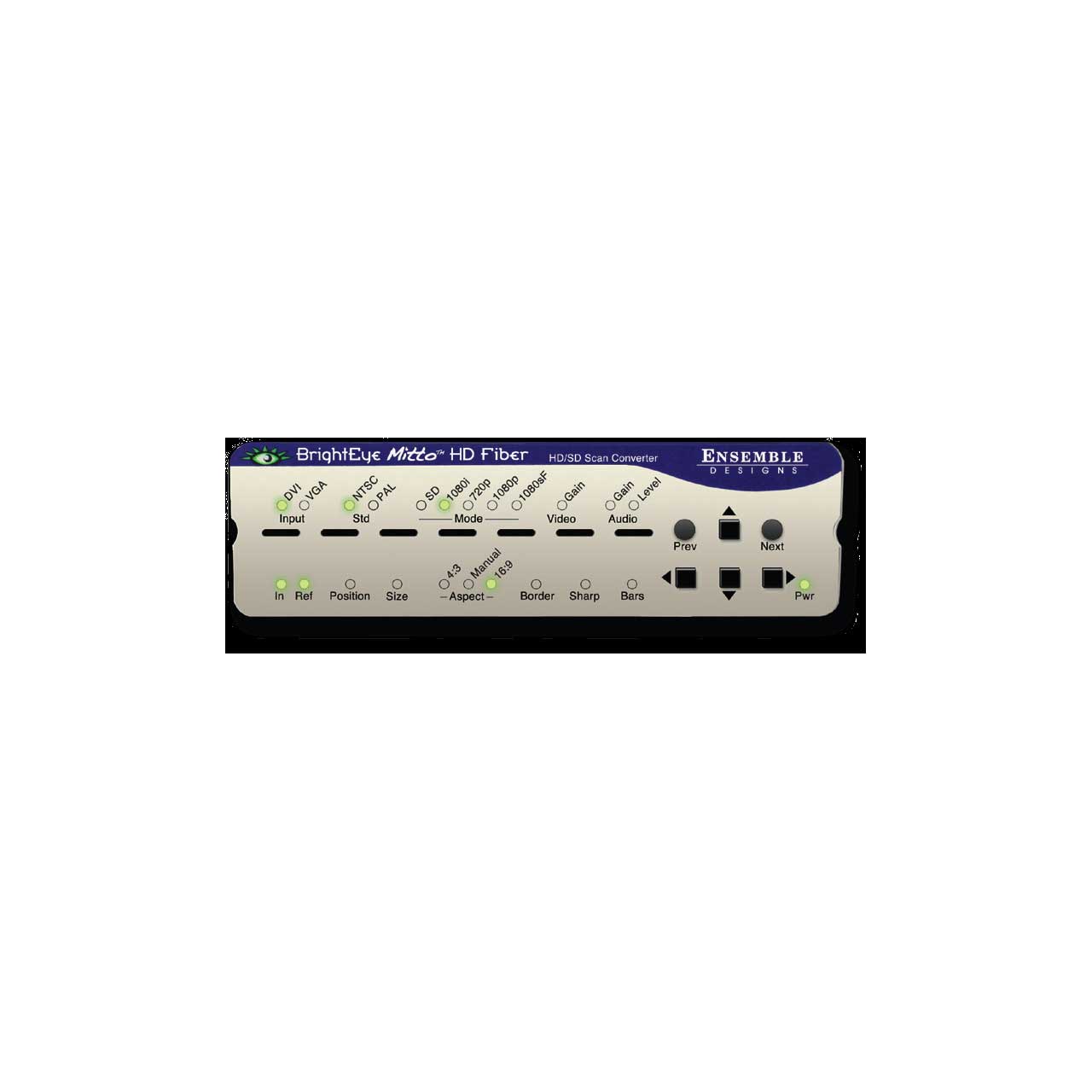

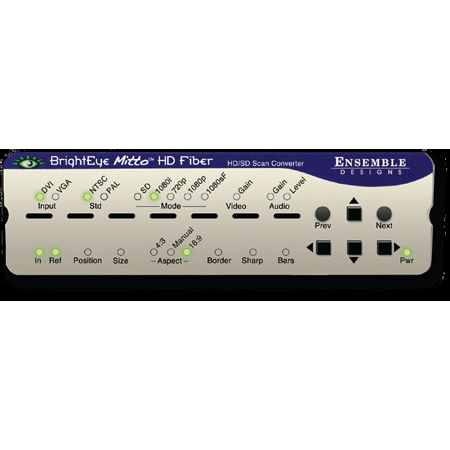

    • Intuitive Front Panel Controls
    • Output Choices: 1.5 and 3 Gb/s HD, SD SDI, Composite Video, Fiber OpticDVI I/O, VGA and HDMI Support with an AdapterAuto senses DVI or VGAChoose a Mitto with Adjustable Audio Delay for Skype and Broadcast Applications
    • Use a Mouse to Select the Part of the Video You Want to Output
    • Easily Adjust Video Parameters and Select Video Output Format
    • Genlock and Time to House Reference, Fully Timeable
    • Rackmountable
    • Memory Presets for Your Favorite Settings
    • 5-Year Warranty and Free Software Upgrades

  • Specifications:

    • Computer Input
    • One
    • Type DVI (Supports HDMI or VGA with adapter)
    • Connector DVI-I
    • Resolution Up to 1920 x 1200
    • Reference Input
    • One, BNC
    • Type 1 V P-P Composite Video
    • PAL, NTSC, Tri-Level Sync
    • Impedance 75 U
    • Return Loss >40 dB
    • Note: When no reference is provided, Mitto runs from an internal
    • "sync gen grade" precision frequency reference.
    • Analog Audio Inputs
    • One stereo pair
    • Connector 1/8" mini jack
    • Impedance >15K U
    • Max Input Level 24 dBu
    • Quantization 24 bits, 128 x oversampled
    • Sample Rate 48 KHz
    • Reference Level -10 dBu or +4 dBu
    • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
    • Crosstalk <106 dB
    • Dynamic Range >106 dB
    • AES/EBU Digital Inputs (BEM-1, 1F, 2, 2F)
    • Two (four channels)
    • Type AES3id, S/PDIF
    • Connector 1/8" mini jack
    • Bit Depth 20 and 24 Bit
    • Sample Rate 30 KHz to 192 KHz (Sample Rate Converted
    • Internally to 48 KHz)
    • Serial Digital Output
    • Two, BNC
    • One for BEM-1F and 2F
    • Signal Type 270 Mb/s SD SDI, SMPTE 259M
    • 1.485 Gb/s HD SDI,SMPTE 274M, 292M, 296M
    • 2.97 Gb/s HD SDI (BEM-1 and BEM-1F only)
    • SMPTE 424M, 425M
    • Processing 16 bit processing
    • 12 and 14 bit upconversion
    • Delay Adjustable from 16 msec to 40 msec
    • Note: Output is fully timeable with respect to the reference input.
    • Audio Embedded
    • Impedance 75 U
    • Return Loss >15 dB to 1.485 GHz
    • >10 dB to 2.97 GHz
    • Output DC None (AC coupled)
    • Standards Supported
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
    • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
    • 525i, 625i (SMPTE 259M)
    • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A (BEM-1 and BEM-1F only)
    • Optical Output (BEM-1F, 2F)
    • One, LC/UPC
    • Type Follows SDI configuration
    • Wavelength 1310 nm (non-CWDM)
    • Wavelengths 170 nm -1610 nm
    • at 20 nm CWDM spacing available.
    • Power -7 dBm
    • Max Cable Length 20 km
    • Fiber Type Single Mode
    • Multi-mode compatible with
    • attenuation at transmit end
    • Analog Video Output
    • One, BNC
    • Type Composite PAL or NTSC
    • (when SD is selected on the SDI output)
    • Return Loss >40 dB
    • Output DC <100 mV
    • Computer Monitor Output
    • One, looping
    • Type DVI (Supports HDMI or VGA with adapter)
    • Connector DVI-I
    • Format Follows input
    • Control (BEM-1, 1F, 2, 2F)
    • One
    • Connector 9 pin D
    • Type RS-232, GPI
    • General Specifications
    • Size 5.63" W x 0.8" H x 5.98" D
    • (143 mm x 21 mm x 152 mm)
    • including connectors and flange
    • Weight 1 lb 6 oz
    • Power 12 volts, 12 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95° non-condensing
    • Altitude 0 to 10,000 ft.
