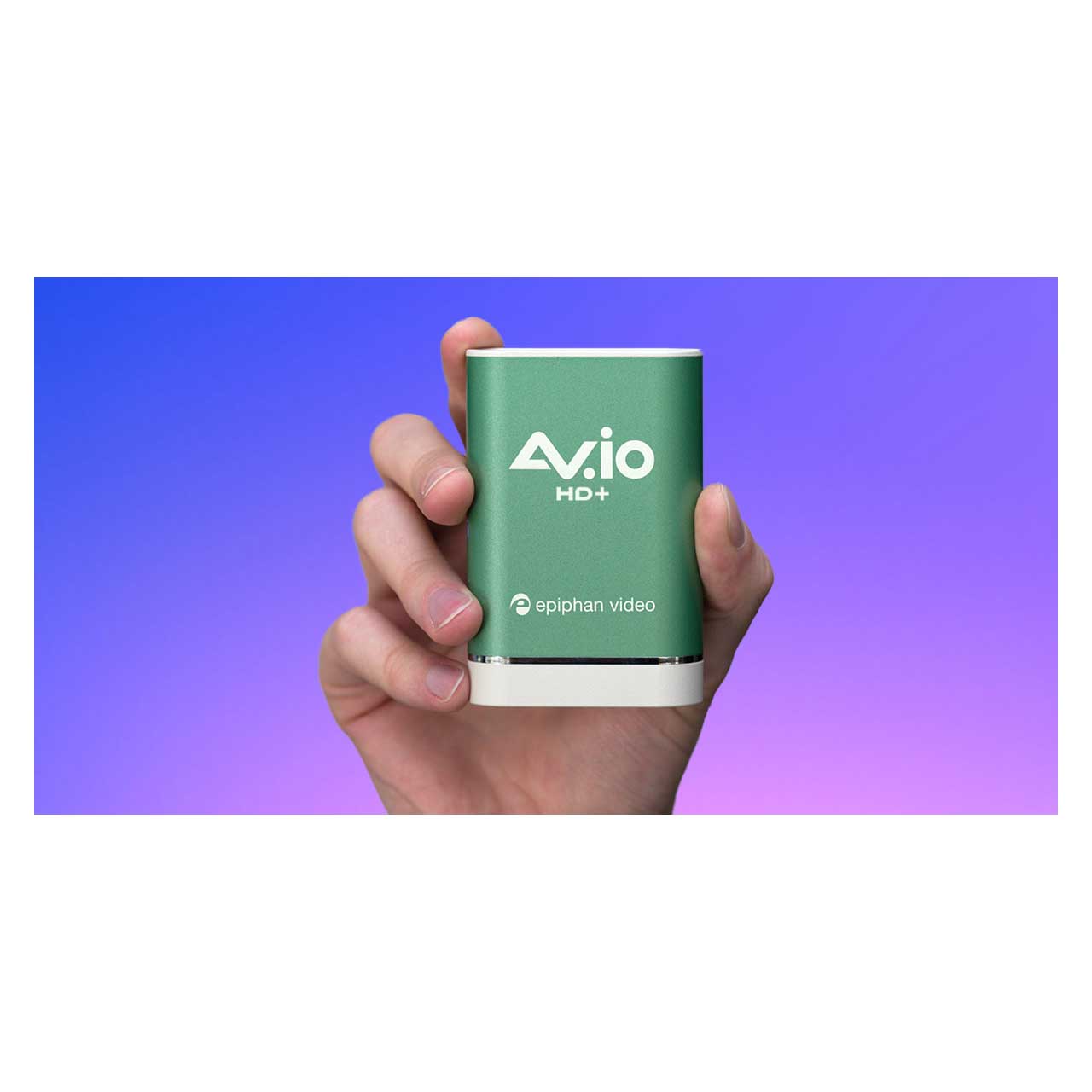

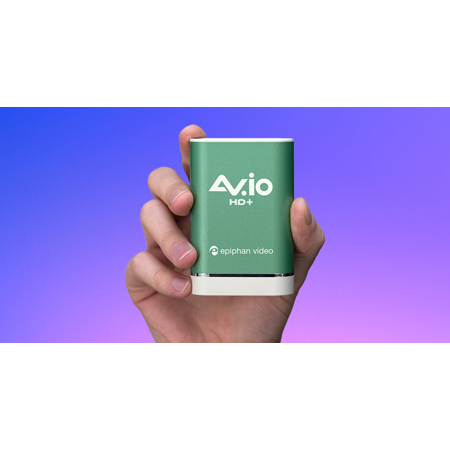

Epiphan ESP1815 AV.io HD+ HDMI to USB Capture Card/Video Grabber

AV.IO HD+ - Overview

• Features:

  • Bring in Your Audio: Capture audio directly from your HDMI source, or through the 3.5 mm input to capture from a mixer or other external source. You can even bring in audio from both inputs simultaneously.
  • Minimize Noise: Whisper-quiet performance makes AV.io HD+ a silent addition to your workflows, meaning it won't add noise or distract from the task at hand.

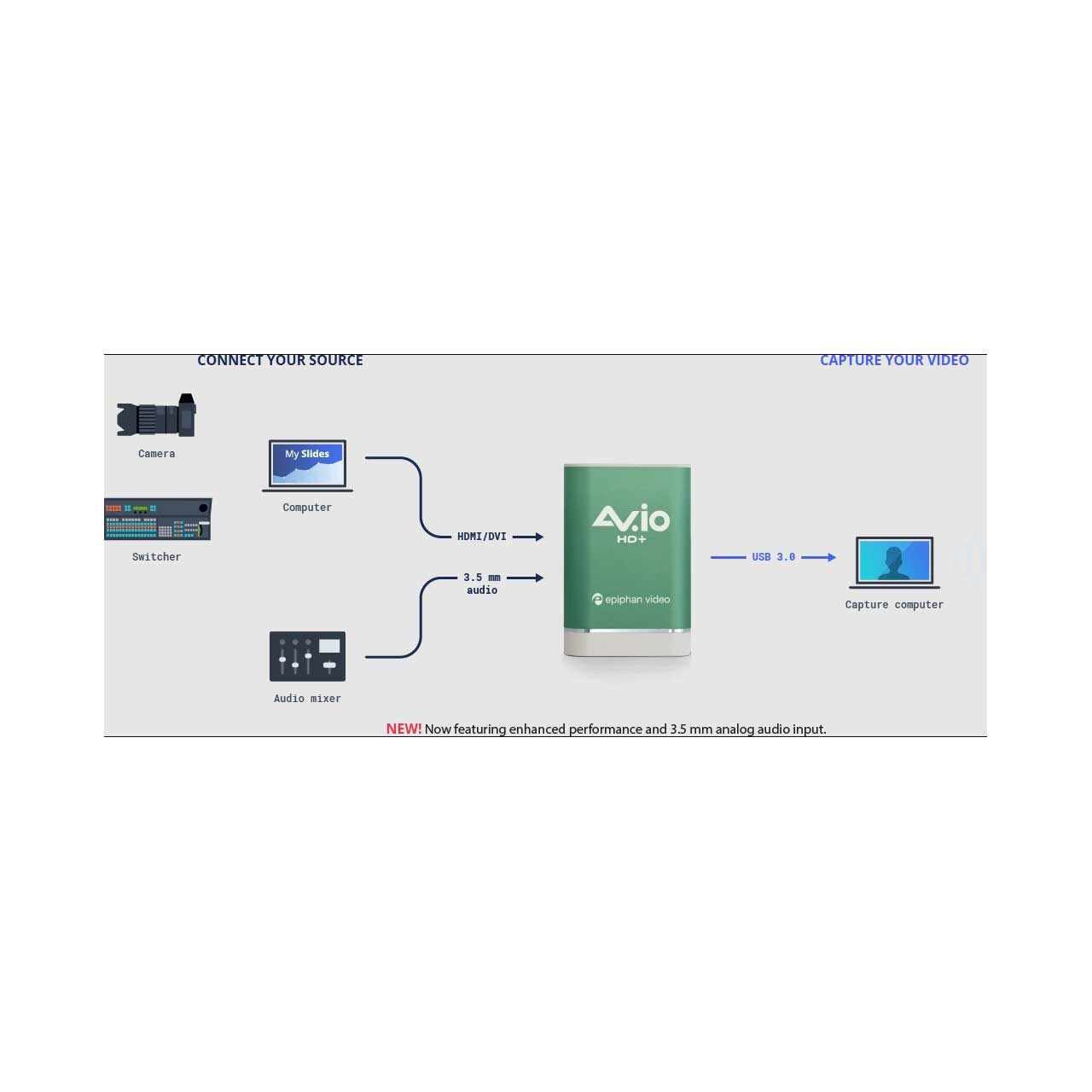

  • Make Video Capture Effortless: With AV.io HD+, capturing video from HDMI and DVI devices on Windows, Mac, or Linux is as easy as using a plug-and-play webcam. Just connect your device to one end of the capture card and your computer to the other, then select your device as a source in your software. That's all there is to it - no driver installation required.
  • Size And Scale Effortlessly: There's no need to think about video scaling or aspect ratios with this capture card. AV.io HD+ will automatically adjust your image based on the software you're using, delivering superior video quality even when swapping between sources.
  • Elevate Your Favorite Apps: You can use AV.io HD+ with any program that accepts USB as a video source. That includes video conferencing apps such as Zoom and Microsoft Teams as well as streaming software like Wirecast and OBS.
  • Take Your Capture Card With You: AV.io HD+ is light and compact. It's powered over USB, which means one less adapter to carry around. And with its rugged all-metal exterior and durable connectors, it'll stand up to repeated, long-term use.


• Specifications:

  • Interface: USB 3.0, USB 2.0
  • OS Drivers: UVC and UAC device
  • Dimensions: 3.54" x 2.36" x 0.91" (90 mm x 60 mm x 23 mm)
  • Connectors:: HDMI, USB 3.0 B-Type connector
  • Input: HDMI (including audio), DVI, 3.5 mm analog (audio)
  • Input Resolution: Up to 1920x1200
  • Output Resolutions: 320x240, 640x360, 640x480, 720x480, 720x576, 768x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1152x864, 1280x1024, 1280x720, 1280x800, 1280x960, 1360x768, 1366x768, 1440x900, 1600x1200, 1600x900, 1680x1050, 1920x1080, 1920x1200
  • Available Frame Rates: 5 fps to 60 fps
    Note: Third-party software will set frame size and frame rate.
  • Output Color Space: YUV 4:2:2
  • Capture Latency: Near zero (third-party applications may add to capture delay)
  • HDMI Audio (Input): 16-bit and 24-bit PCM encoded audio at 32 kHz, 44.1 kHz, and 48 kHz sampling rates
  • Audio Output: 16-bit 48 kHz stereo sampling rates
  • LED: One LED to indicate status (power, readiness, operation in progress)
  • Power Consumption: < 200 Ma
  • OS Support: Windows 7 and up, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher
  • HDCP Compliance: Can't capture from video sources protected by HDCP (High-bandwidth Digital Content Protection)


• Item Includes:

  • 1x HD+ HDMI-to-USB capture
