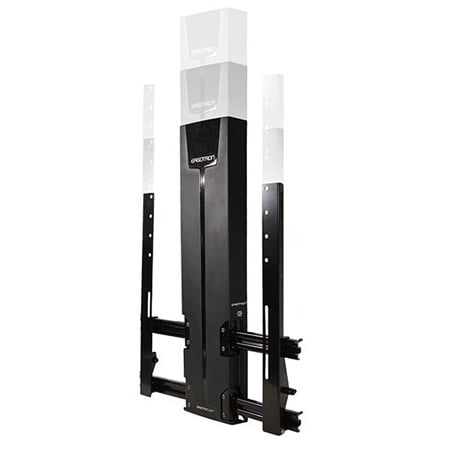

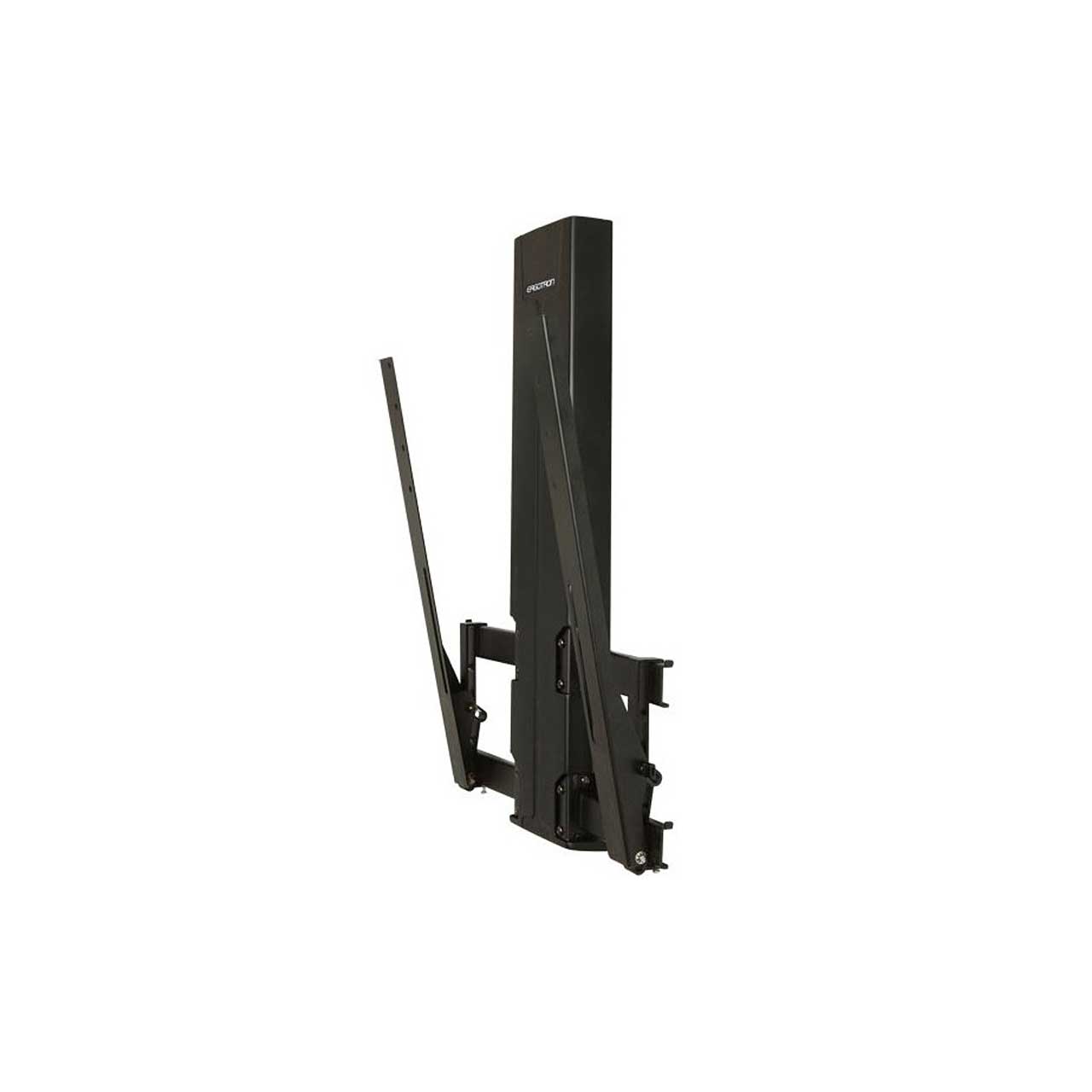

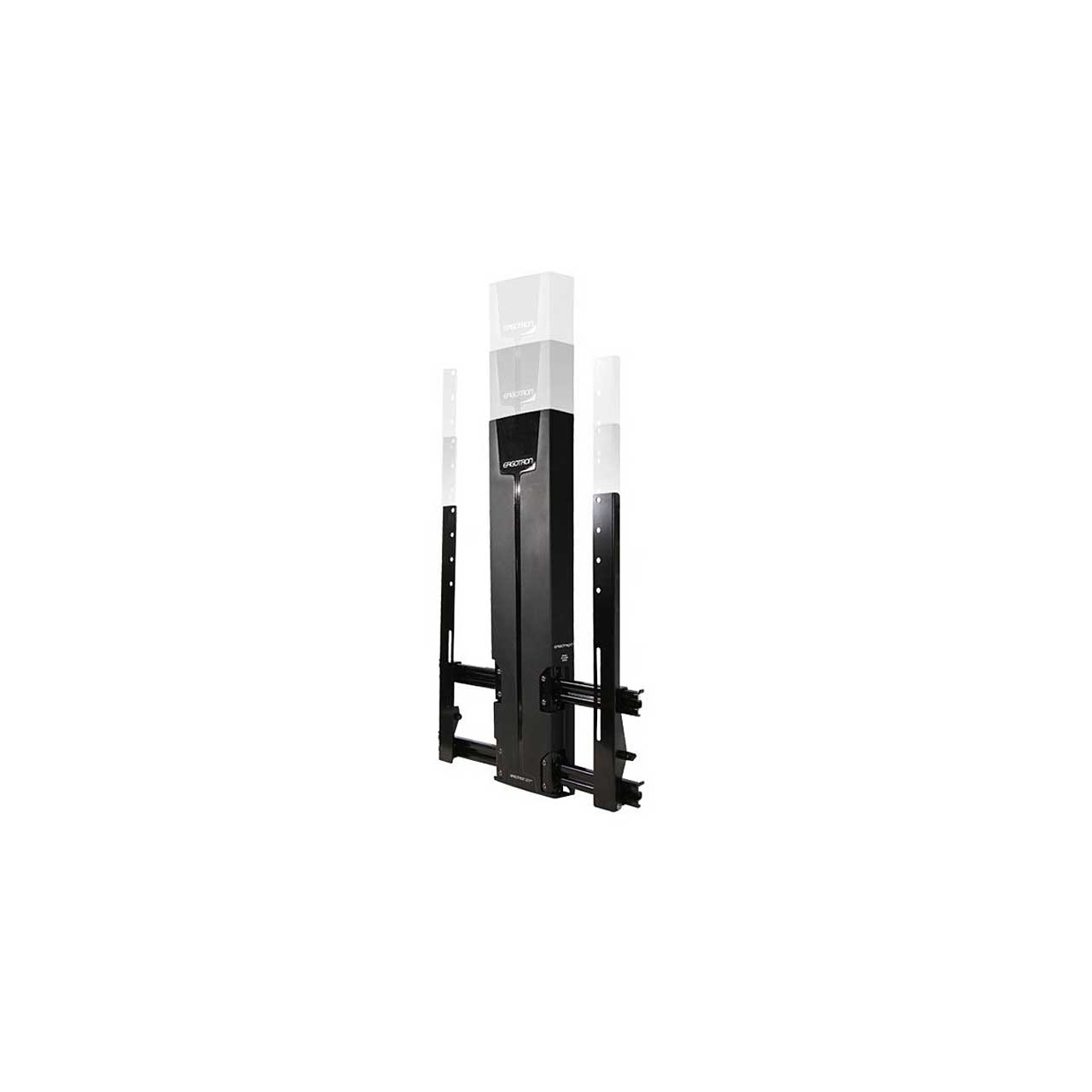

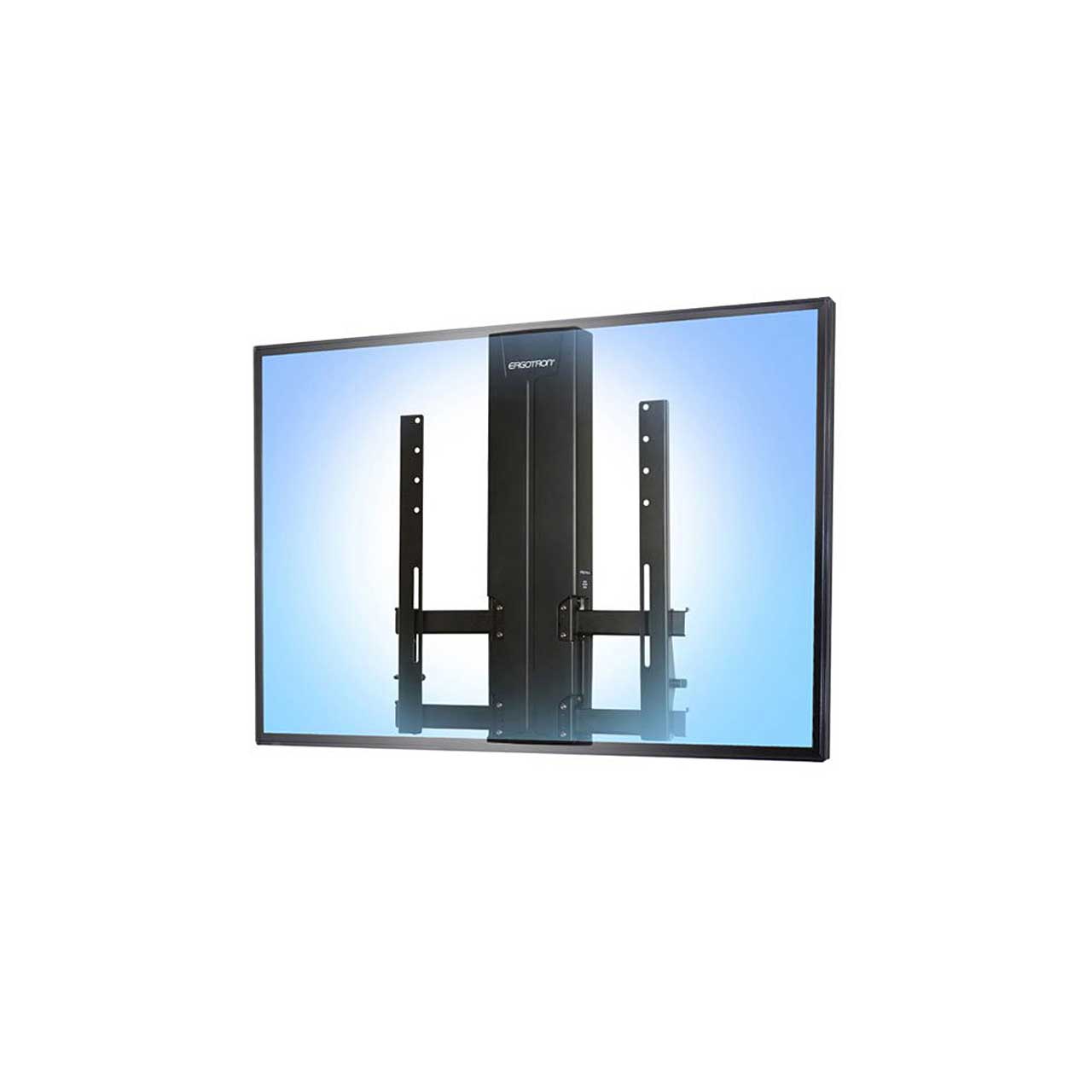

Ergotron 61-061-085 Wall Mount for Flat Panel Display - 30 Inches to 55 Inches Screen Support - 40 lb Load Capacity

QX8311 - Overview

• Features:

  • Lift, lower and tilt for the perfect picture and comfortable viewing
  • Display/TV moves with only a light touch with patented CF technology
  • Discreet mounting hardware nearly disappears
  • Raise TV during standing activities
  • Display stays close to the wall, out of the way; mount depth is 2" (5 cm)
  • Easy to use-simple installation and effortless operation
  • Ratchet-free tilting


• Specifications:

  • Screen:30" - 55"
  • Capacity:20–40 lbs

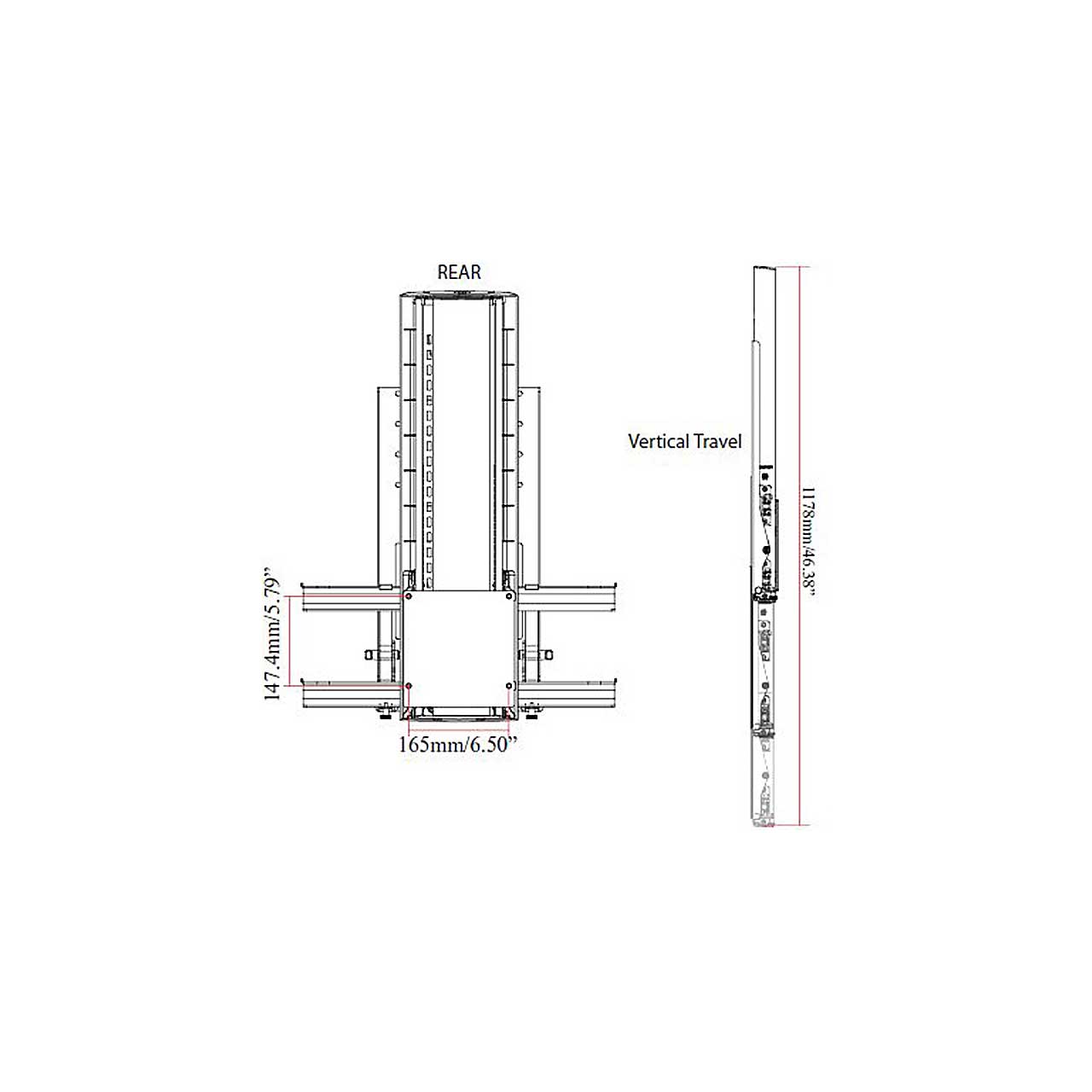

  • Lift:18"
  • Tilt: 10°
  • Distance from wall to back of display: 2"

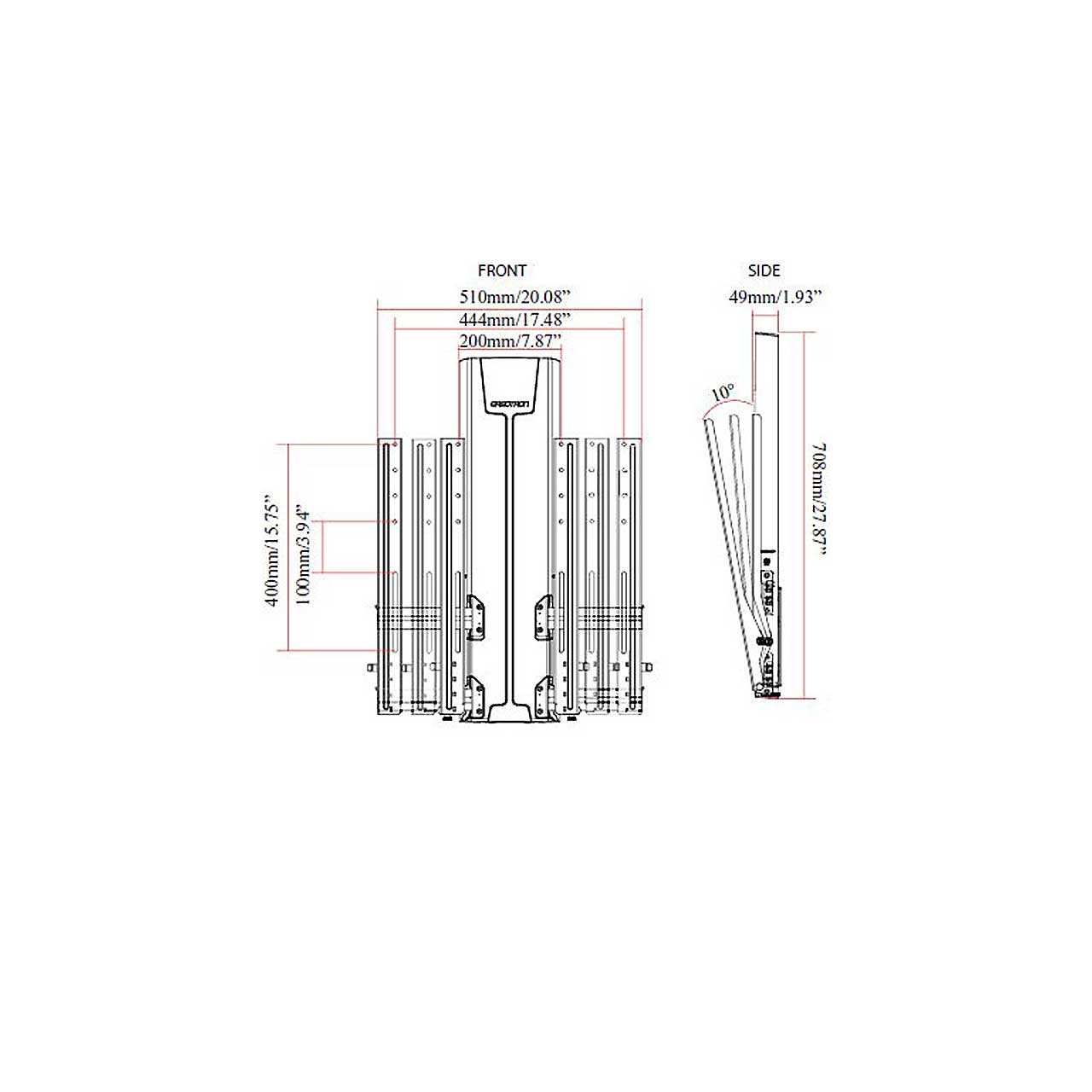

  • Mounting holes must fit within spacing range below:
  • Horizontal = 200 mm (min.) to 400 mm (max.)
  • Vertical = 100 mm (min.) to 400 mm (max.)
  • Shipping Weight: 32.25" x 18" x 5"
  • Shipping Weight: 30 lbs


• Item Includes:

  • Low-profile lift module
  • Mounting template
  • Tilt brackets
  • Installation and mounting hardware
  • Cable management hardware


• Warranty:

  • 5 years


• GTIN:

  0698833035131
