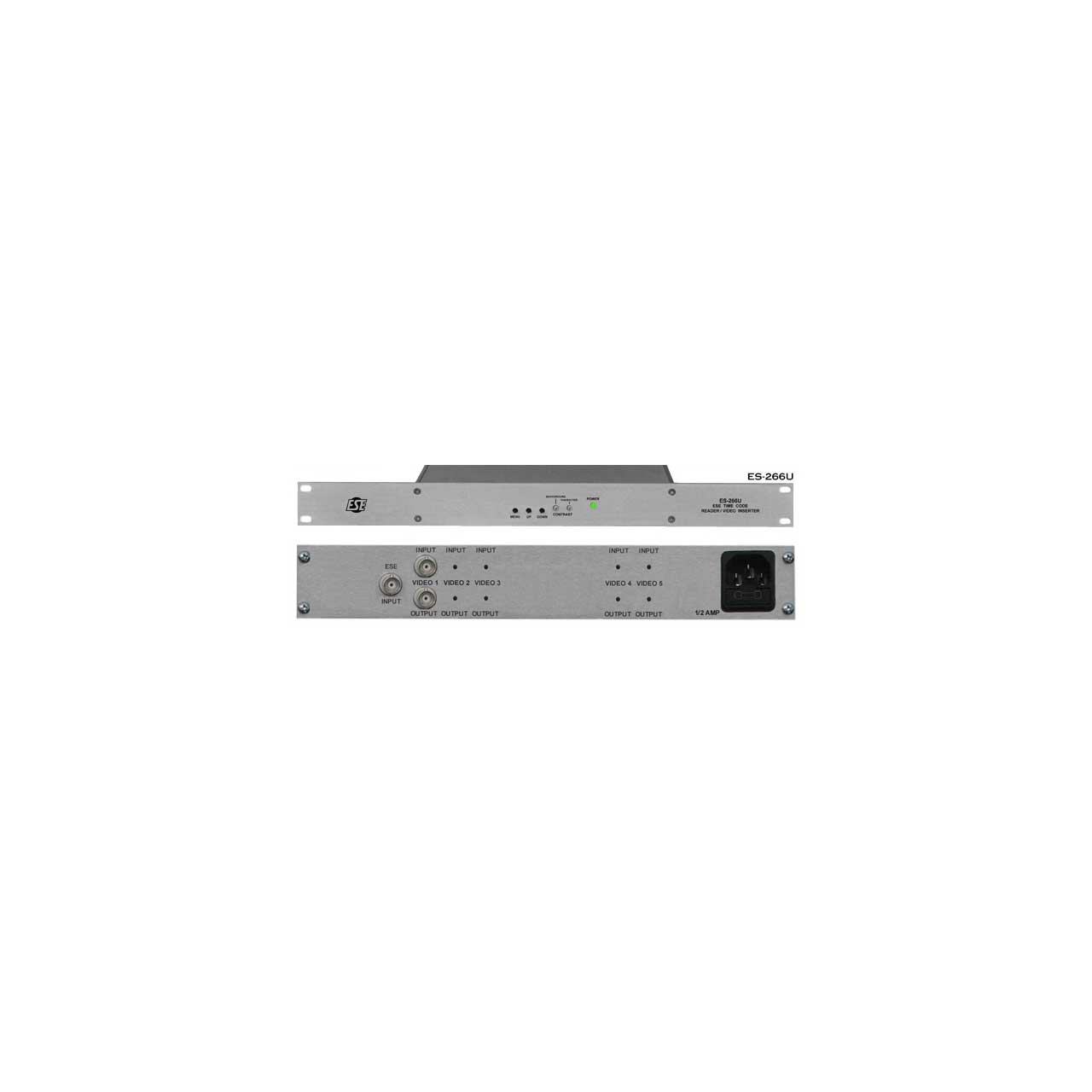

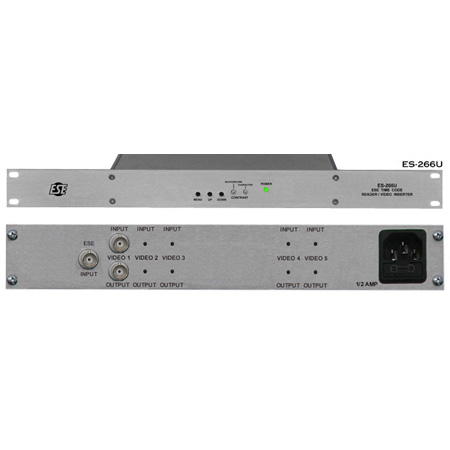

The ES-266U is a Video Time and Date "Inserter" which decodes either ESE or SMPTE Time Code (selectable via an internal DIP switch). Six digits of Time (Hr, Min, Sec) and six digits of Date (Month, Day, Year) are then superimposed onto a video signal looped-thru the unit. On-screen menus allow adjustment of the display Size and Position, Mask Mode (black background on/off and transparent or solid display), Display Mode (Side-by-Side / Stack / Time Only / Date Only), 12/24 Hour mode and Time Zone offset (half-hour increments). The Date may be manually set if receiving time codes which do not provide Date information. The brightness of the Characters and Background may be individually set via front-panel controls. The display may be turned on/off via a front-panel control. An optional RS-232 interface & Windows® Control Panel software may be ordered, which allow remote control of the display modes.
On-screen menus allow adjustment of the ES-266U display Size and Position, Mask Mode (black background on/off and transparent or solid display), Display Mode (side-by-side / stack / time only / date only), 12/24 Hour mode, and Time Zone offset. The Date may be manually set if receiving time codes which do not provide date information (i.e. TC76TM/TC89TM or SMPTE without date-encoded User-Bits). The brightness of the characters and background may be individually set via front-panel controls. The display may be turned on/off via a front-panel control. Two BNC video outputs are provided. An RS-232 interface & Windows Control Panel software are included, which allow remote control of the display modes
Product Options Include:
Black Black Anodized Front Panel.
DC DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
L2 Two Additional Video Input/Output Sets: Available on most Video Inserters.
L4 Four Additional Video Input/Output Sets: Available on most Video Inserters.
P2 Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
R Remote Input: Rear-mounted connector for Remote Control.
SV The BNC video connectors are replaced with S-VHS connectors.
UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
