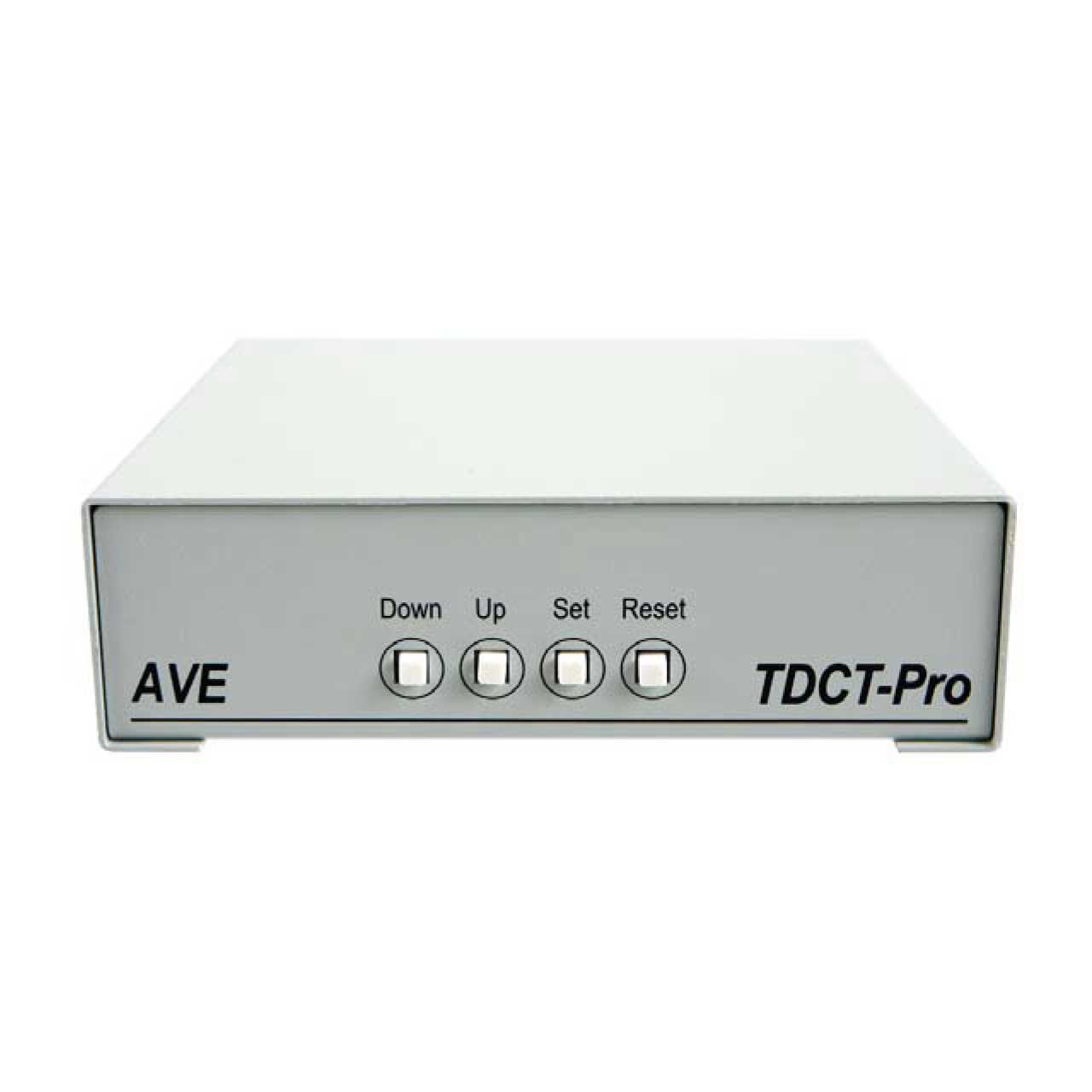

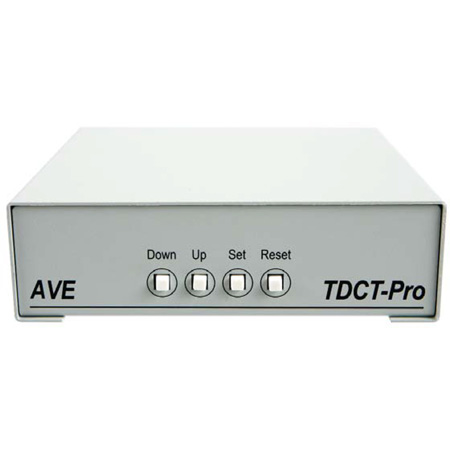

TDCT-PRO Time Date Character and Title Generator

TDCT-PRO - Overview

• Features:

  • Easy on Screen programming
  • Programmable date and time
  • Programmable single line or dual line Time & Date display
  • Programmable Time Format
  • Programmable 12 hour or 24 hour time format.
  • Programmable date.
  • Programmable title.
  • On screen title up to 20 characters, up to 10 character size, and single line display.
  • Gray scale and border selection from front panel and from programming menu.
  • Programmable master and slave selection.
  • Set or change the title of the master or the slave TDCT via serial interfacing between the master TDCT and a communication device (e.g Personal Computer).
  • Synchronizing the time and date between master and slave.
  • Programmable to month, day, year, or year, month, day.
  • DST (Day Light Savings time) can be Programmed to be disabled.


• Specifications:

  • Video Input/Output:BNC-2 Passive video look-through
  • Video Format: NTSC/EIA Volt P-P. 75 ohm termination
  • Display Titler Format: 20 Alpha-Numeric Character Date-Time Format Month,Day,Year, (A-AM, P-PM)
  • Clock Accuracy: 5ppm On-Screen Width 75% of active display width
  • Character Heights:18 lines (8.5% of total image height)
  • Control / Programming Control Interface: 3 Front panel buttons: Select, Up, and Down
  • Status Indicators: 2 Front panel LEDs: Power (Green), Setup (Red)
  • Back-Up Battery: 1 year internal, rechargeable NiMH
  • Warranty: 2 year parts and labor
  • DC Power Connector: 2.1mm 5.5mm
