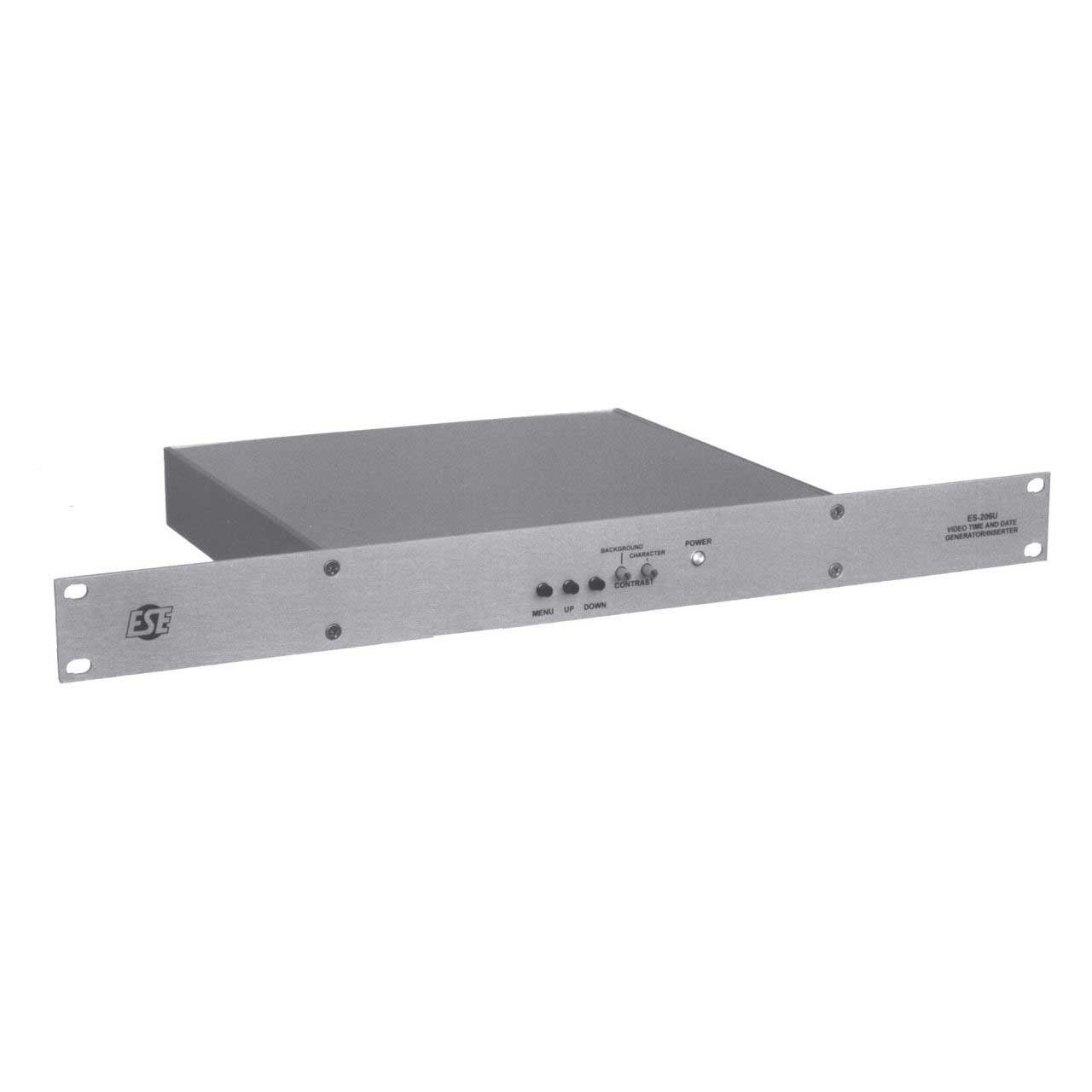

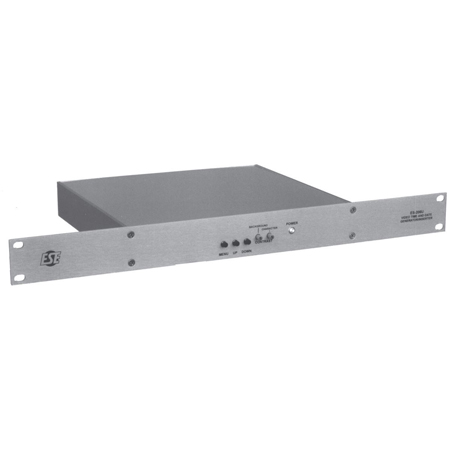

ESE ES 206U Stand-Alone Video Time/Date Generator & Inserter

ITEM #: ES 206U MFG #: ES 206U

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$580.00

Our Price:

$551.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 206U - Overview

206U Video Time and Date Generator/ Inserter

The ES-206U is a "stand-alone" Video Time/Date Generator & Inserter which superimposes Time and Date information onto a looped-thru video signal. The unit generates six digits of date (Month, Day & Year) and six digits of time (Hour, Minute & Second). With the ease of on-screen programming setting the ES-206U is a snap. Controls include Time & Date set and Size, Position & Brightness set. The unit also has several styles of background masks which include, solid characters on video, translucent characters on video or translucent characters on a translucent grey mask. A display setting mode allows the user to view the time and date side by side, stacked, time blanked or date blanked. An optional RS-232 Interface Windows Control Panel Software may be ordered, which allows remote control of the display modes. Other features include 12 or 24 hour selection and daylight savings time mode.

  • Features:

    • Daylight Savings Time Correction
    • Operates With NTSC Or PAL
    • Vertical and Horizontal Size
    • ESE Serial Time CodeTM OutputBrightness Control
    • Multiple Mask Selection
    • On-Screen Programming
    • Leap Second Correction
    • 12 Hour Format (with AM/PM Indicator) Or Optional 24 Format
    • "Blankable" Time or Date
    • Vertical and Horizontal Position Control
    • Side-By-Side Display Can Be Stacked

  • Specifications:

    • Video In/Out: 1 Vpp, 75 ω
    • Electrical: 117 VAC, 50/60 Hz, 4 W Max
    • Mechanical: 1.75" x 19" Rack Mount, 10" deep
    • Options: Black, C (ES-206U Only), D, DC, I/O, J, P2, R, UL
