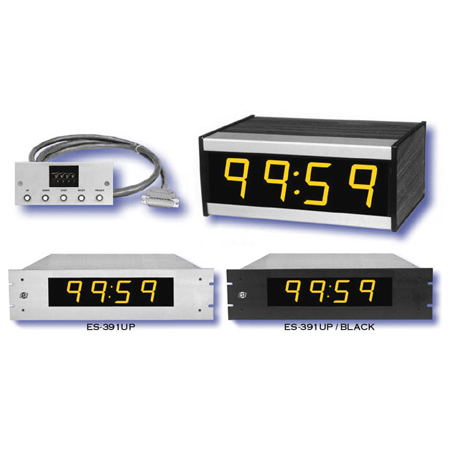

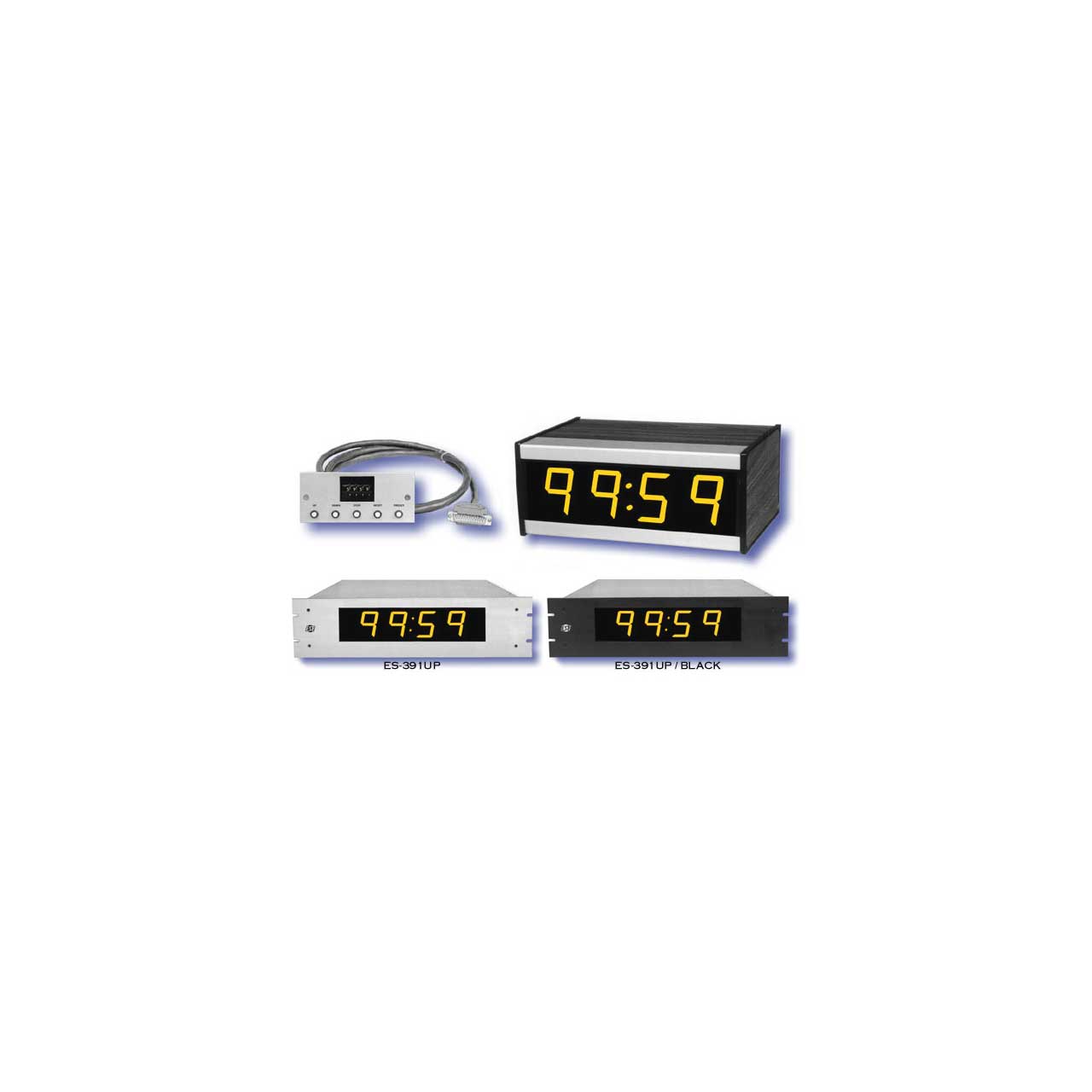

ESE ES 391U 2.3 Inch 100 Minute Up/Down Timer

ES-391U - Overview

• Features:

  • 2.3" Yellow LED Display
  • 100 Minute Up / Down count range (00:00 - 99:59)
  • Thumbwheel Time Preset
  • Up, Down, Stop, Reset & Preset functions
  • Remote Control Input / Control Plate
  • Optional 5.25" Rackmount enclosure (option "P")
  • 220-240 VAC (110-120 VAC is standard) & UL options available
  • Various Options available


• Item Includes:

  • Black: Black Anodized Front Panel. Option 'P' is required.
  • C: Crystal Time Base: A crystal reference is employed for those applications requiring independence from the line frequency. A trimming function is included for greater accuracy (2-3 seconds/week).
  • ESE: ESE Time Code Output: An ESE Time Code output is provided allowing the unit to drive ESE Time Code Slaves.
  • J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
  • N: Reverse Count at Zero: Changes count direction from Down to Up at Zero.
  • P: 19" Front Panel (Rack Mount), this unit will be 3RU.
  • Red: Red LED's: Red LED's instead of amber.
  • S: Parallel BCD Slave: Parallel BCD Slave for use with old style BCD Outputs.
  • T: Tenths of Seconds: Tenths of Seconds LED Display added. Available only if option 'P' or option 'Wall' is specified.
  • UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
  • W: 3-Wire Power Cord: Recommended where static charges can occur. Standard on many units, otherwise a 2-wire cord is supplied.
  • Wall: Wall Mount Enclosure: Black powder-coated wall mount enclosure. Wall mount enclosure replaces standard housing.
  • Y: Relay Closure at Zero: Reed Relay for Control Applications / 100mS Closure.
  • Z: Stop at Zero with Option Y: Stop at Zero with Option Y (10W max load; 500ma switching current).
