ESE ES 466 SMPTE/EBU Presettable Up/Down Timer with Rack Mount Option

ITEM #: ES-466-P MFG #: ES 466 W/ P

Primary Image
ESE
Free Shipping with $49 Minimum Order

List Price:

$995.00

Our Price:

$945.49

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ES 466 W/ P - Overview

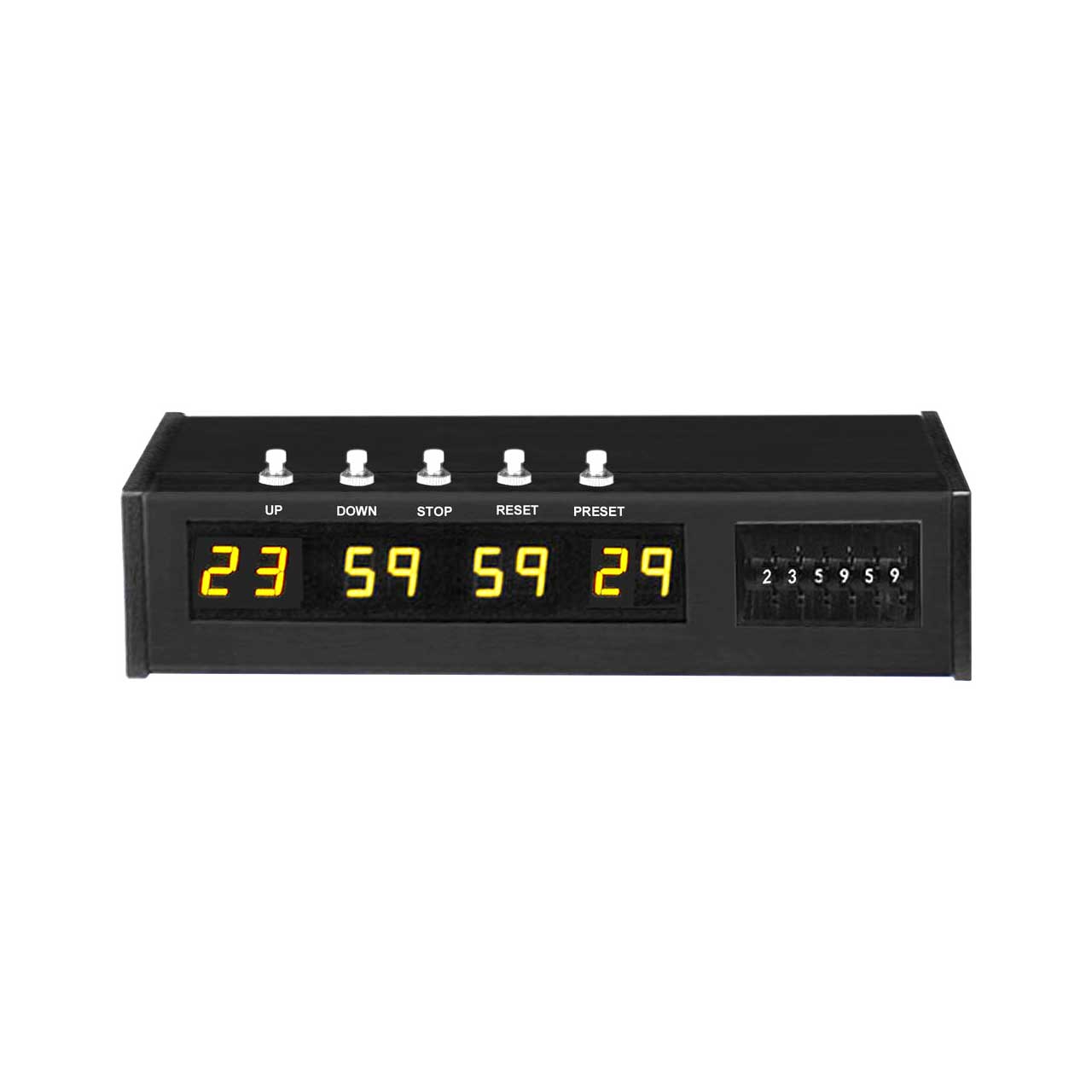

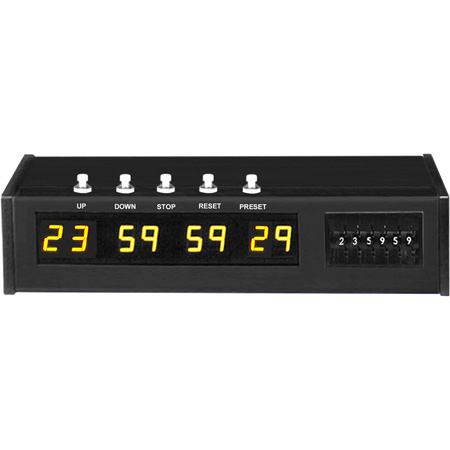

The ES-466 is an eight digit, presettable 24 hour SMPTE Up/Down Timer (00:00:00:00 - 23:59:59:29) with five front panel mounted controls (UP, DOWN, STOP, RESET and PRESET) and an eight digit display. All displays are 0.56" amber LED digits. A SMPTE output is provided on the rear panel XLR connector. The "Bit Order Forward" toggle switch on the rear panel allows the unit to mimic decks that always output "forward" bit order code. EBU Time code is optional.

  • Features:

    • SMPTE Time Code output, EBU optional (balanced XLR)
    • Forward/Reverse or Forward-Only Bit Order, selectable
    • .56" Yellow LED Display
    • 24 Hour Up/Down count range (00:00:00:00 - 23:59:59:29)
    • Thumbwheel Preset of Hours, Minutes & Seconds
    • Optional relay-contact closure output at zero (Option Y)
    • Optional Stop at zero (Option Z)
    • Optional 1.75" Rackmount enclosure (Option P)


  • Specifications:

    • Video Input: 1 VPP, 75ω, BNC loop-thru; switchable termination
    • VITC Lines: 10 - 24
    • VITC Level: 80 IRE nominal; 50 IRE minimum
    • Enclosure: ES-491: Desk-Top
    • ES-496: Rack Mount
    • Dimensions: ES-491: 2.8” H x 8” W x 6” D
    • ES-496: 3.5” H x 19” W x 10” D
    • Electrical: 117 VAC, 50/60 Hz
    • Power: 5W maximum
    • Options: Black, J, LTC, P, RS, UL
