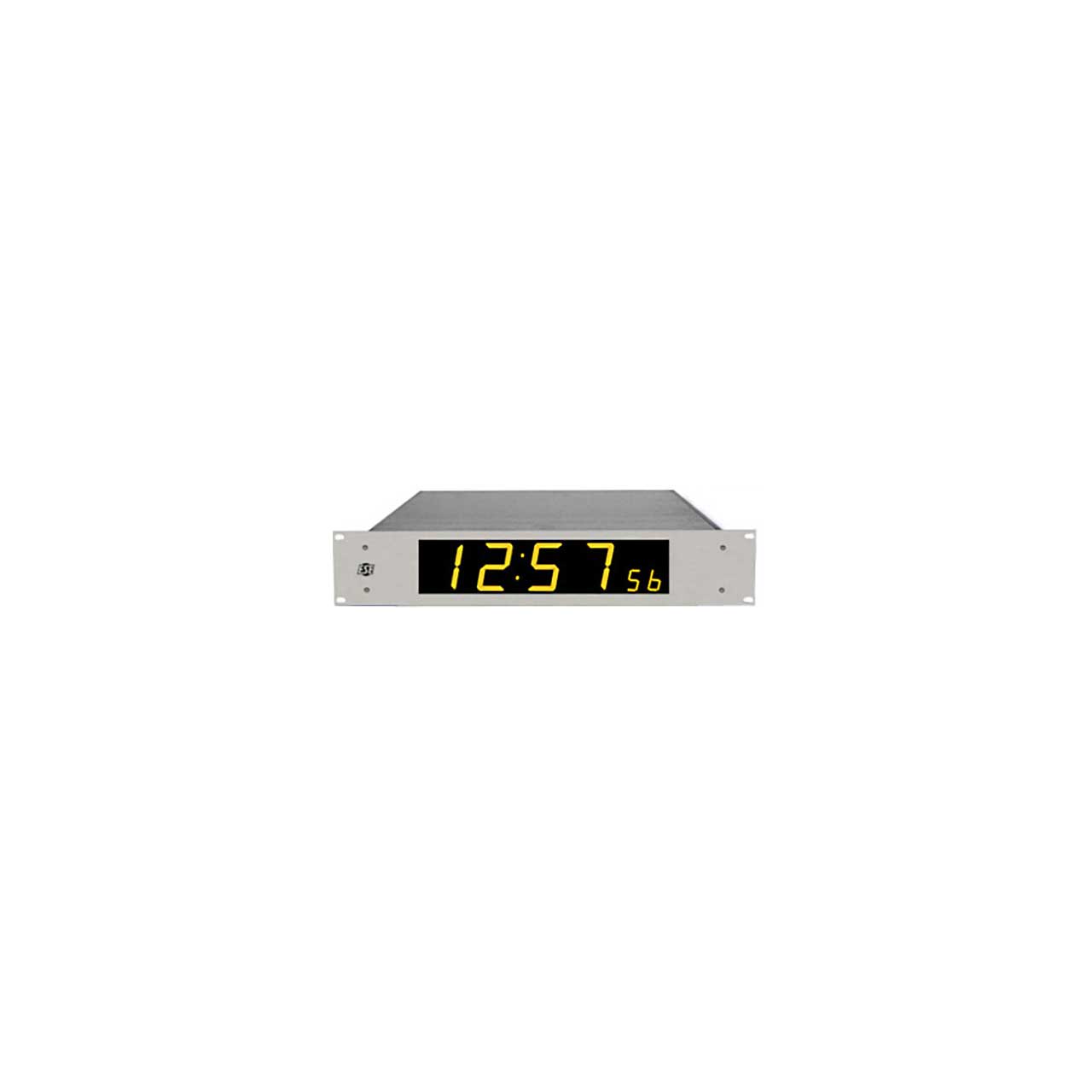

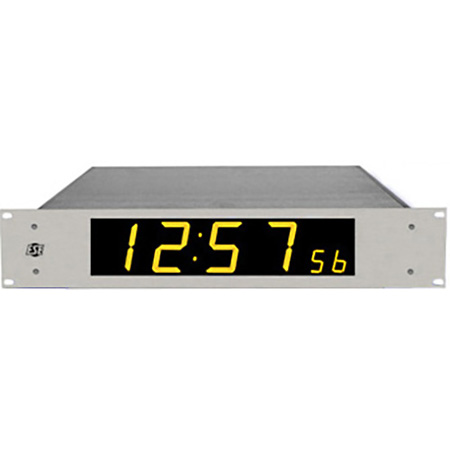

The ES-993U is a Time Code display featuring 2.3" high (Hours & Minutes) and 1" high (Seconds) amber LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure(5" H x 12" W x 3.5" D). The unit accepts, via the rear-mounted terminal block, either ESE Time CodeT (TC76T, TC89T, or TC90T) or SMPTE/EBU Time Code (Time of Day only). RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector. The ES-993U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time CodeT from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).
Available Product Options:
Black Black Anodized Front Panel. Option 'P' is required.
Blue Blue LED Displays
Green Green LED Displays
J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
NTP-C NTP Client: NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs).
P 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
PoE Receives 48V operating power via Ethernet cable.
Red Red LED Displays
TZ Time Zone Offset: Internal DIP switch allows the hours (and half-hour) to be independently offset to any time zone.
UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
W 3-Wire Power Cord: Recommended where static charges can occur. Standard on many units, otherwise a 2-wire cord is supplied.
Please note! This unit comes complete with options "NTP-C" & "PoE" already installed!
PoE option receives 48V operating power via Ethernet cable.
