ESE ES 246/XLR/J Quad 1x6 Audio Distribution Amplifier with XLR Connectors - 220 VAC 50Hz

ITEM #: ESE-ES-246-XLR-J MFG #: ES 246/XLR/J

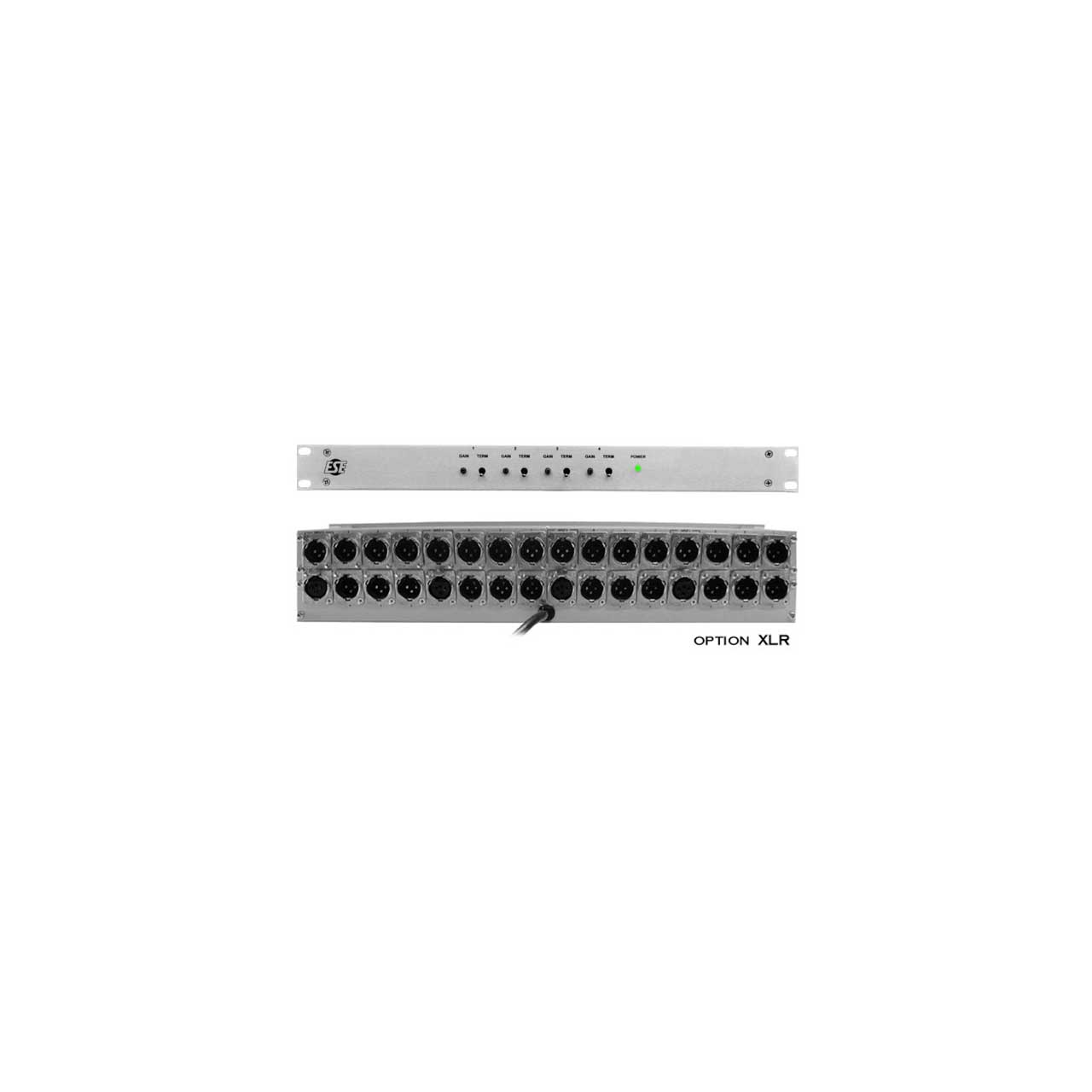

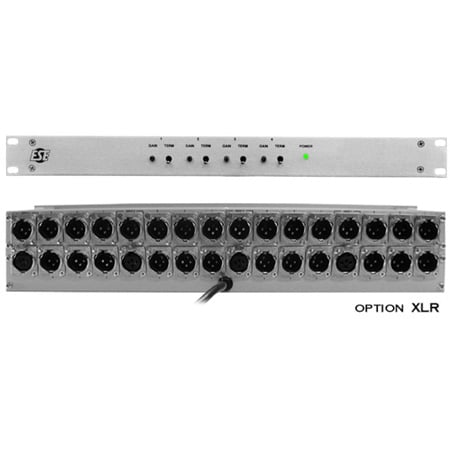

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$725.00

Our Price:

$652.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ES 246/XLR/J - Overview

The ES 246/XLR/J is an ES-246 Audio Distribution Amplifier with XLR Connectors and the 220 VAC/50 Hz Operation option. This unit that accepts a balanced or unbalanced audio signal and produces exact copies of that signal. The outputs are isolated and have recessed gain controls. All inputs and outputs are accessible on terminal blocks for simple "permanent" installations. Or, if option "XLR" is specified, all inputs and outputs are available on XLR connectors for easy disconnect/reconnect. This unit is configured to operate from 220 VAC line voltage. The terminal blocks of this unit are replaced with XLR connectors (the enclosure is doubled in height).

  • Features:

    • 4 independent isolated amplifiers, each with six outputs
    • Terminal Block connector Input & Output (XLR optional)
    • Variable Gain, adjustable for each amplifier, +18 db maximum
    • Transformerless design
    • May also be used for SMPTE & IRIG Time Codes
    • 220-240 VAC (110-120 VAC is standard) & UL options available

  • Specifications:

    • Input: Balanced or Un-balanced 600Ω or 100KΩ, switchable
    • Response: 20 - 20,000 Hz, +/- 0.2dB
    • Gain: +20dB maximum
    • Gain Controls: Four (one per input)
    • Output: 600Ω
    • Output Level: +23dB maximum
    • Connectors: Terminal Block
    • Enclosure: Rack Mount
    • Dimesnions: 1.75" x 19" x 5"
    • Electrical: 117 VAC, 50/60 Hz
    • Power Required: 5 Watts
    • Options: J, UL, XLR
