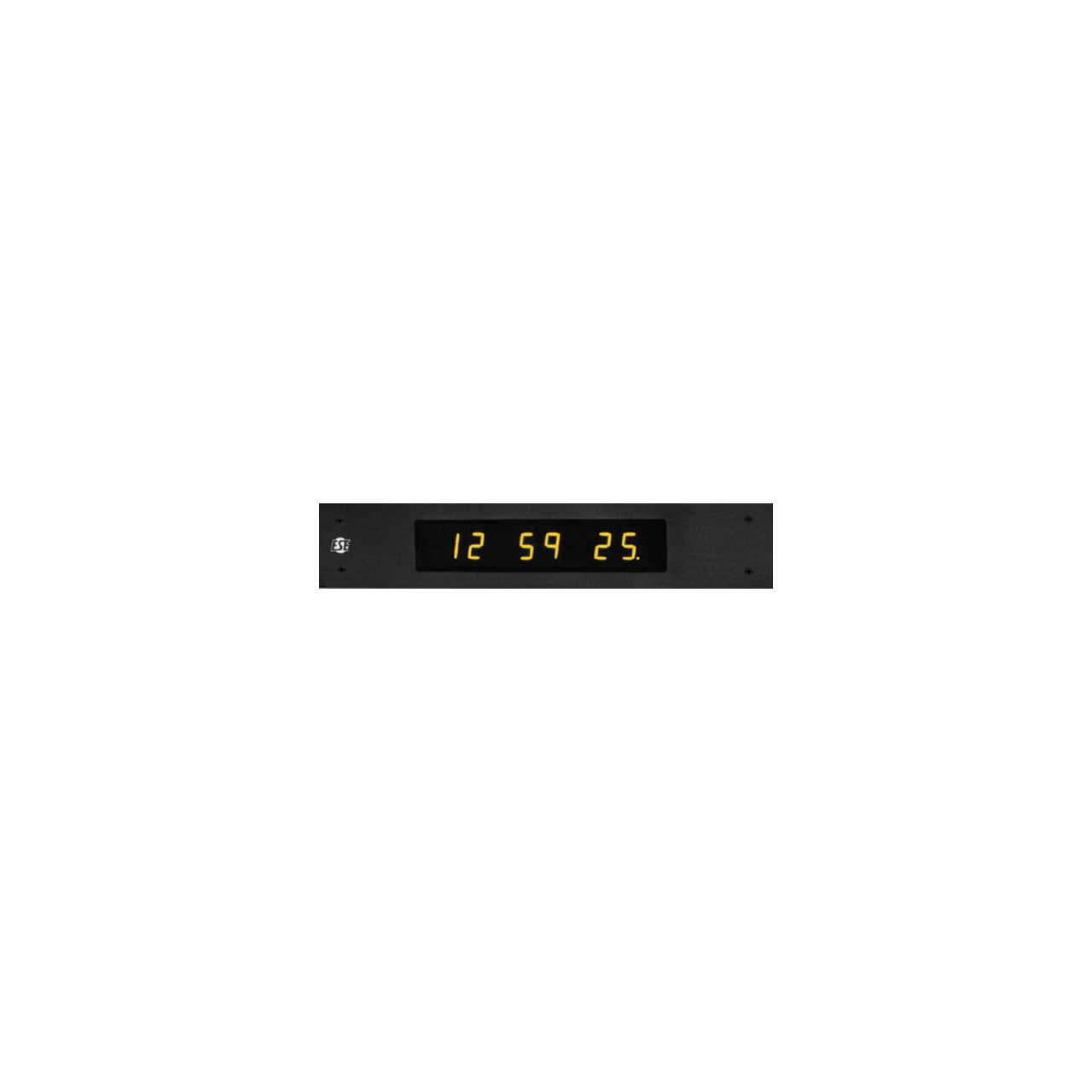

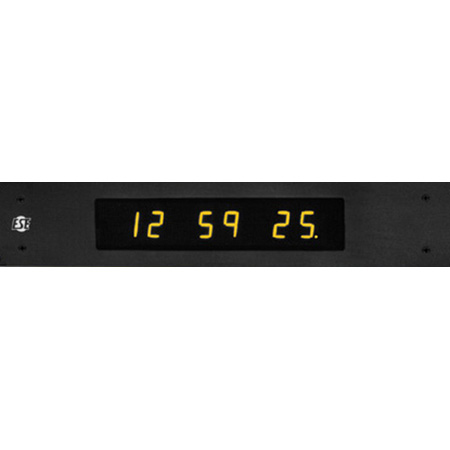

ESE ES-166UE 6-digit 1 Inch Amber LED Time Code Reader In Desk Mount Enclosure with Wall Option

ITEM #: ESE-ES166UE-WALL MFG #: ES 166UE-WALL

Primary Image
ESE
Free Shipping with $49 Minimum Order

List Price:

$435.00

Our Price:

$391.50

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ES 166UE-WALL - Overview

The ESE ES-166UE-WALL is a Time Code display featuring 1" Amber LED displays. The unit accepts, via the rear-mounted BNC connector, either ESE Time Code™ (TC76™, TC89™, or TC90™) or SMPTE/EBU Time Code (Time of Day only). RS-232C ASCII Time Code (format "0" "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector.

The ES-166UE will automatically determine which code is being received. An internal DIP switch is used to configure the display for 12- or 24-Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, an internal DIP switch is installed for this function. If receiving ESE Time Code™ from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).

The unit may be housed in one of several enclosures: the black anodized aluminum case (ES-166UE); the more rugged baked-powder coat aluminum case (LX-166U); a 19" x 3.5" panel/chassis (ES-166UEP) or a wall-mount case (ES-166UE/Wall).


WALL OptionWall Mount Enclosure: Black powder-coated wall mount enclosure. Wall mount enclosure replaces standard housing.

  • Features:

    • Reads SMPTE/EBU, ASCII & ESE Time Code™
    • Automatic Code Detection
    • Six 1" Amber LED Displays
    • Viewing Distance 35'
    • Switchable Between 12 & 24 Hour Format Display
    • Switchable to Date Display
    • Optional Time Zone Offset
    • Optional RS-232 ASCII Output
    • NTP Option Available
    • UL & 220-240 VAC Options Available (110-120 VAC is standard)


  • Specifications:

    • Blue: Blue LED Displays
    • Clear: Clear Anodized Front Panel
    • ESE - Time Code Output: An ESE Time Code output is provided allowing the unit to drive ESE Time Code Slaves.
    • Green: Green LED Displays
    • J - 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
    • NTP-C - NTP Client: NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs).
    • P - 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
    • P2 - Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
    • PoE: Receives 48V operating power via Ethernet cable.
    • Q - Console Mount: The unit is housed in an enclosure 8" deep, front panel is 3.5" x 9" 1/8" clear anodized aluminum.
    • Red: Red LED Displays
    • RS - RS-232C Output: Computer Interface allows the time code data to be shared with a computer. RS-422A may be specified.
    • TZ - Time Zone Offset: Internal DIP switch allows the hours (and half-hour) to be independently offset to any time zone.
    • UL - "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
    • Wall - Wall Mount Enclosure: Black powder-coated wall mount enclosure. Wall mount enclosure replaces standard housing.
