The ES-166UE is a Time Code display featuring 1" Amber LED displays. The unit accepts, via the rear-mounted BNC connector, either ESE Time Code™ (TC76™, TC89™, or TC90™) or SMPTE/EBU Time Code (Time of Day only). RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector.
The ES-166UE will automatically determine which code is being received. An internal DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A").

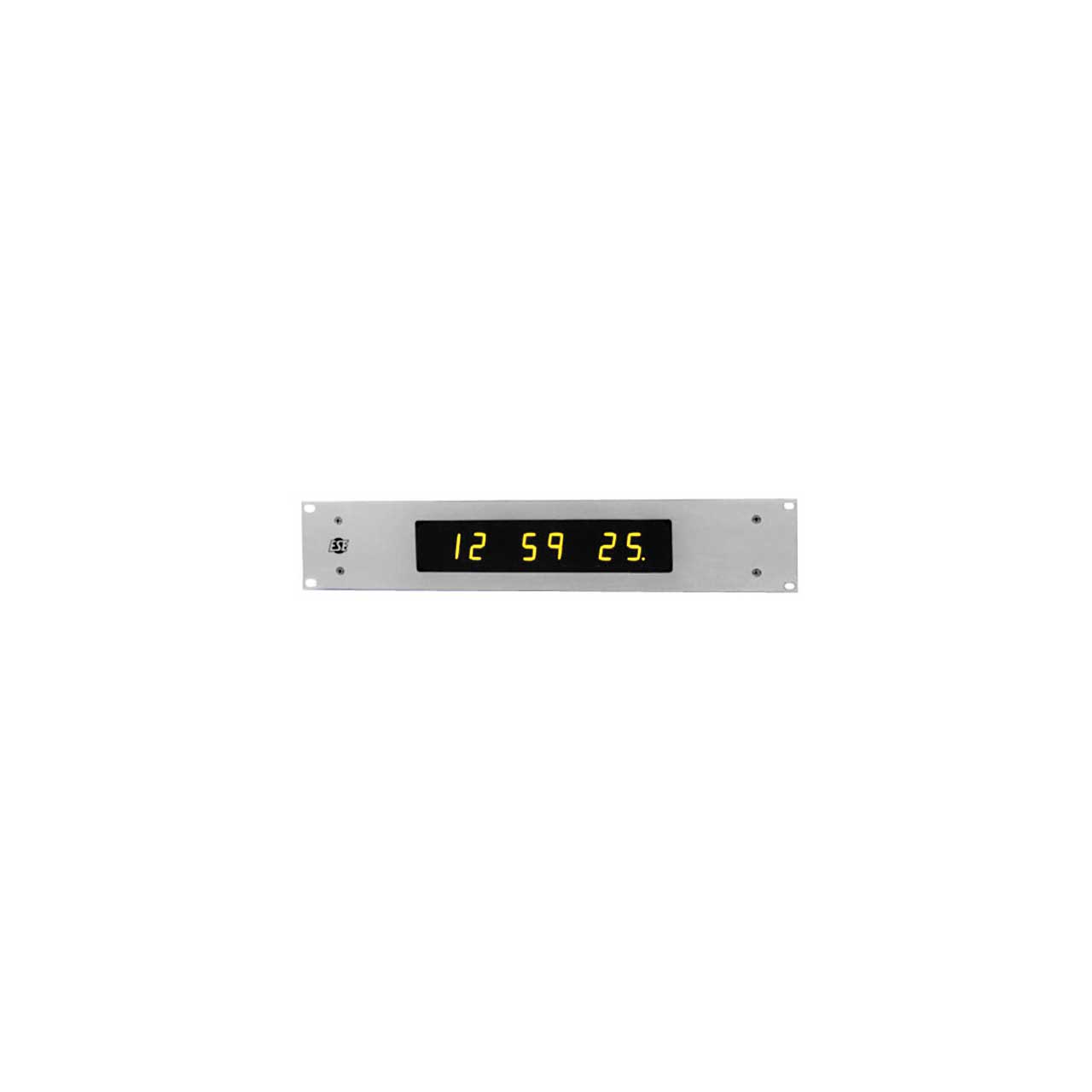

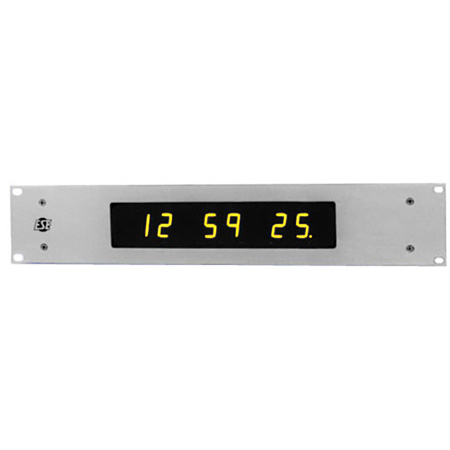

P Option: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
Clear Option: Clear Anodized Front Panel
