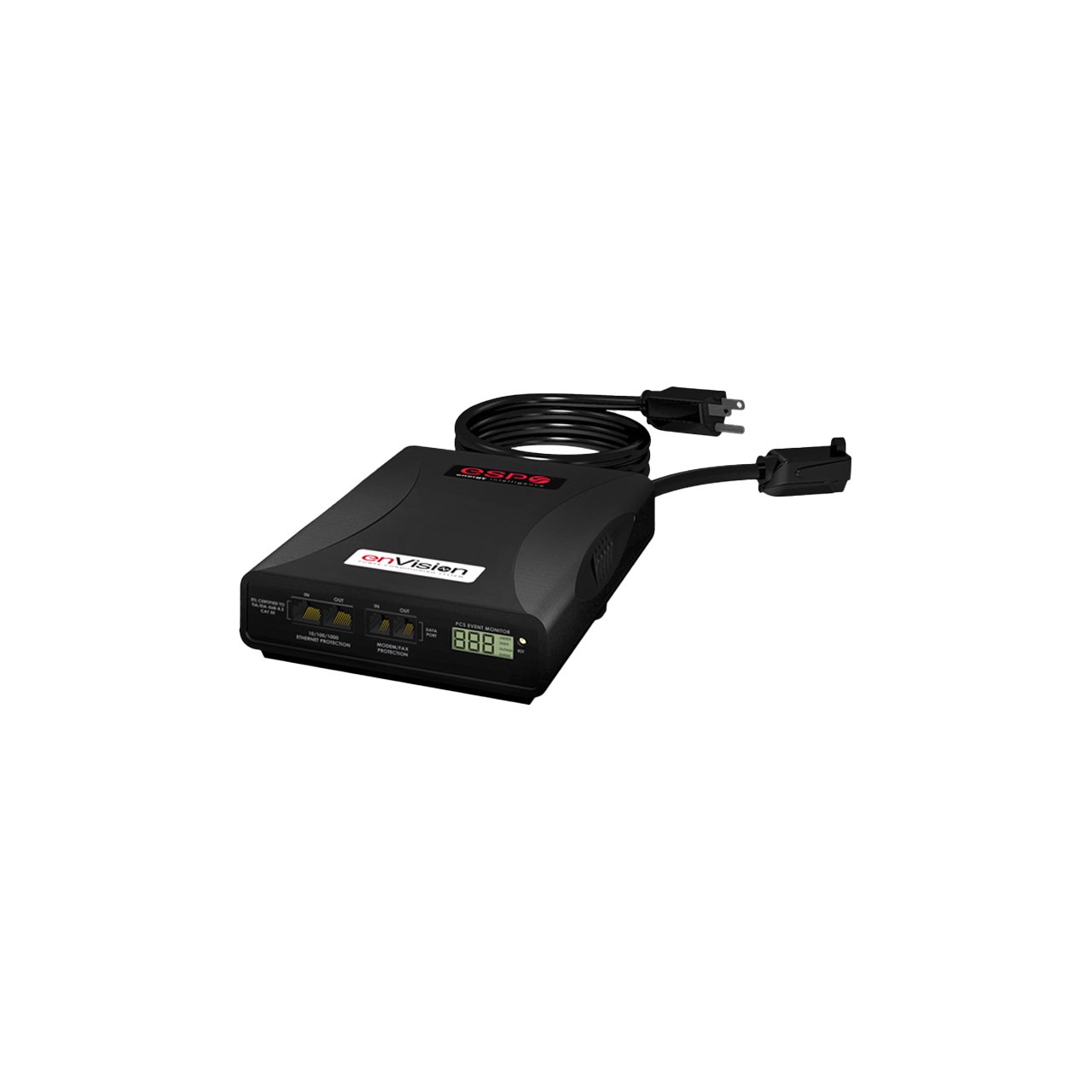

ESP EV-12020 enVision Power Conditioner with Diagnostic Power Filter + Scope Meter/MultiMeter - 120V/20A/5-20R/5-15R

ITEM #: ESP-EV-12020 MFG #: EV-12020

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$510.00

Our Price:

$312.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EV-12020 - Overview

Instant Analysis and Resolution of Power Issues
The ESP EV-12020 enVision 20 Amp surge protectors allow service teams to make informed, fast business decisions that can increase profitability and customer satisfaction. The enVision power conditioning system's predictive analytics software monitors, identifies, analyzes, and offers solutions to resolve power issues that can cause equipment error codes, malfunction and downtime.

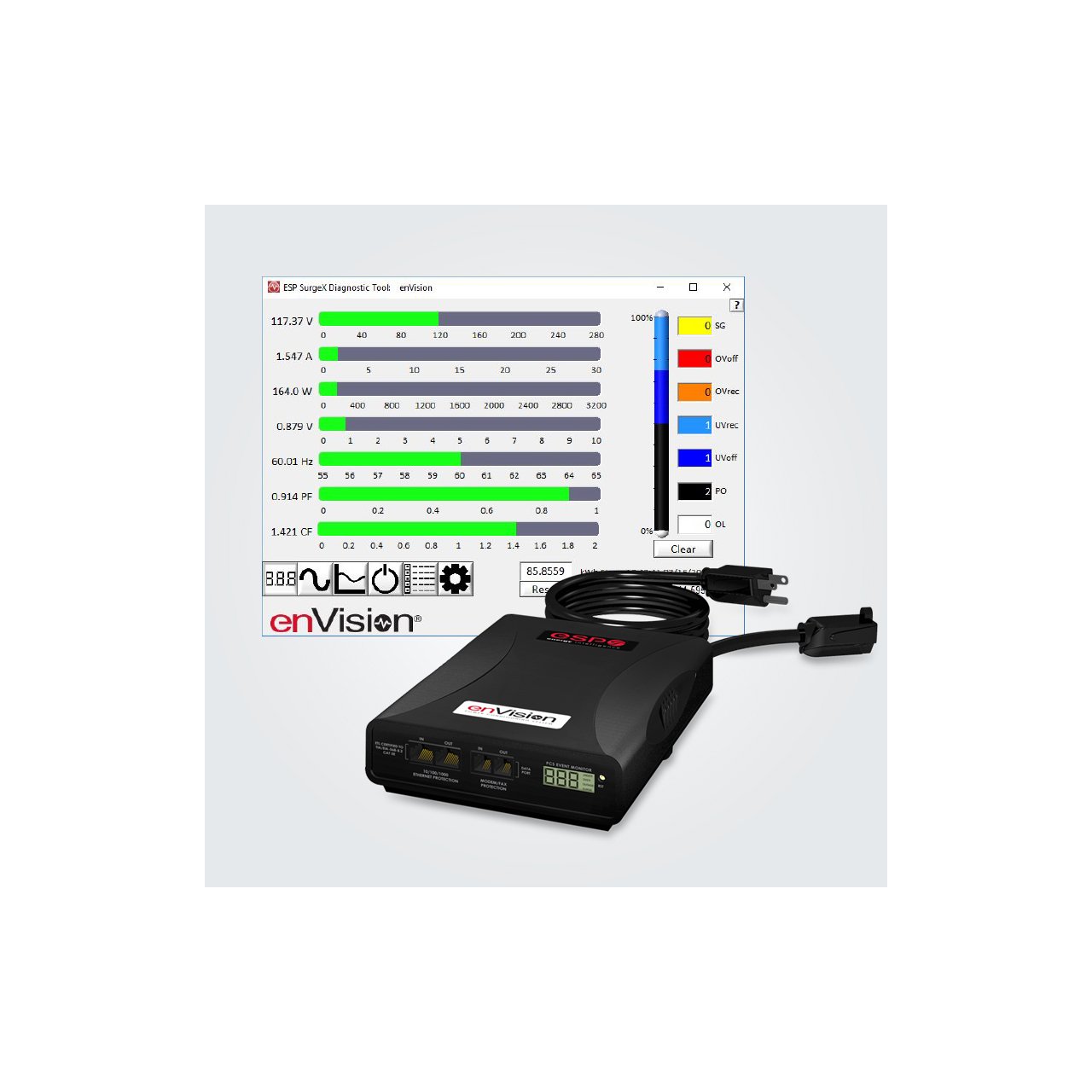

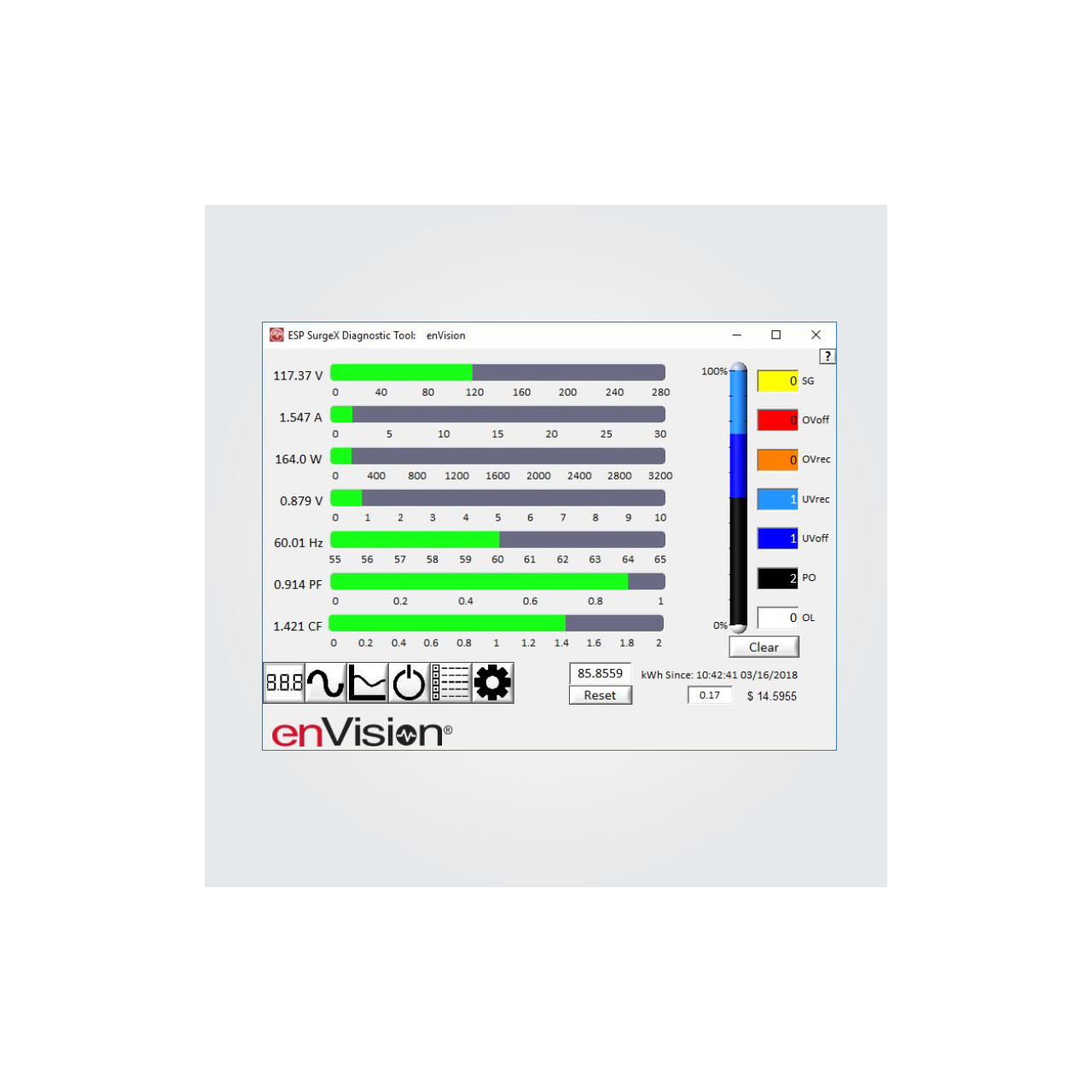

The enVision's electrical troubleshooting diagnostic software provides visibility and control into the power conditions at a customer's site by gathering and analyzing data to facilitate root cause discussions with affected customers. It interprets the data into key metrics and trends, and baselines the factors which influence equipment operation, damage conditions, and inefficiencies. It is the only software that identifies the potential cause of power issues and offers solutions to resolve them.

It also includes Multi-Stage power protection and conditioning with Cat 6 network and ground fault protection to make sure connected equipment is safeguarded when electrical disturbances occur.

  • Features:

    • Measures line and neutral to ground voltage, crest factor, power factor, and line frequency metrics
    • 512 time stamped events with specific date and time
    • Historical max./min./avg. data up to 138 days
    • Customizable settings
    • Multi-Stage power protection and conditioning
    • Catastrophic over/under voltage shutdown
    • Inrush current elimination
    • Internal battery
    • Remote access capable with optional Remote Portal module

  • Specifications:

    • Electrical
    • Load Rating: 20 Amps at 120 Volts
    • Voltage Protection Rating (VPR): 330V All Modes
    • Attenuation:
      - Normal Mode: >30dB 80kHz - 50MHz
      - Common Mode: > 30 dB 70kHz - 50MHz
    • Power Requirement (no load): 4 Watts
    • Under-Voltage Shutdown: Adjustable from 0 V to 110 V, Default 80 V
    • Under-Voltage Record: Adjustable from 0 V to 110 V, Default 100 V
    • Under-Voltage Restore: Adjustable from 80 V to 110 V, Default 105V
    • Over-Voltage Shutdown: Adjustable from 130 V to 160 V, Default 150 V
    • Over-Voltage Record: Adjustable from 130 V to 160 V, Default 145 V
    • Over-Voltage Restore: Adjustable from 130 V to 160 V, Default 140 V
    • Internal Memory Capacity: 512 Power Quality Events with Timestamp, 138 Day Electrical Parameter History at 30 minute intervals. 2.25 Day Electrical Parameters at 10 second intervals.
    • Response Time: 90msec Over-Voltage / 200msec Under-Voltage
    • Under-Voltage Record Event Definition: AC voltage has dropped below: 100V
    • Over-Voltage Record Event Definition: AC voltage has risen above: 135V
    • Power Outage Event Definition: AC voltage has dropped below 20V.
    • Modem/Fax Protection: Single telephone line surge suppression.
    • Ethernet Protection: CAT6 network surge protection

      Standards Compliance
    • Agency Listings: ETL Certified to UL 1283 5th Edition

      Physical
    • Dimensions (HxWxD): 2" x 6.13" x 8.38"
    • Weight: 2.4lbs
    • Temperature Range: 41°F - 95°F (5°C - 35°C)
    • Humidity Range: 5% - 95% R.H. Non-condensing

  • Item Includes:

    • 1x ESP EV-12020 enVision Power Conditioning System with Diagnostic Power Filter + Scope Meter/Multi Meter - 120V/20A
