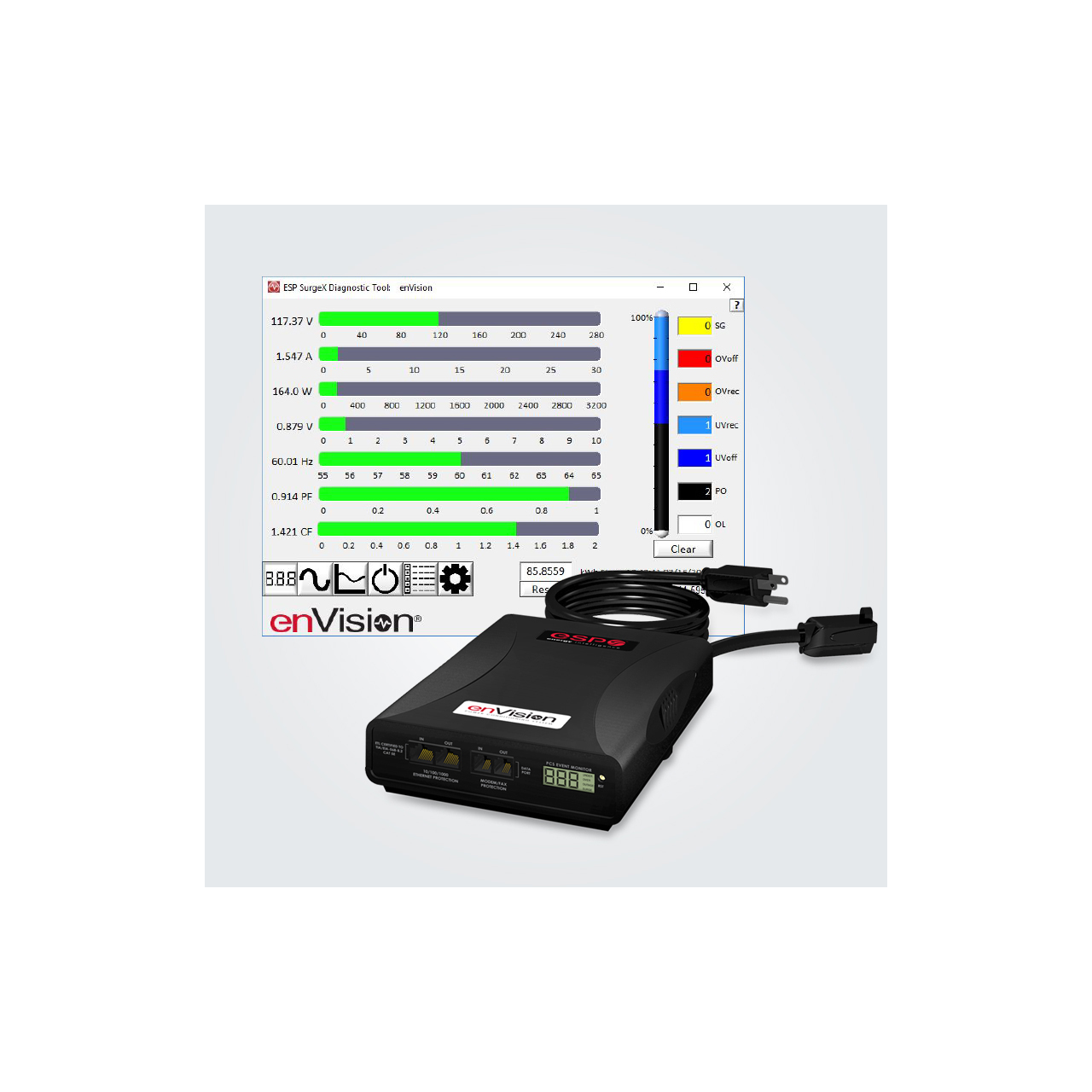

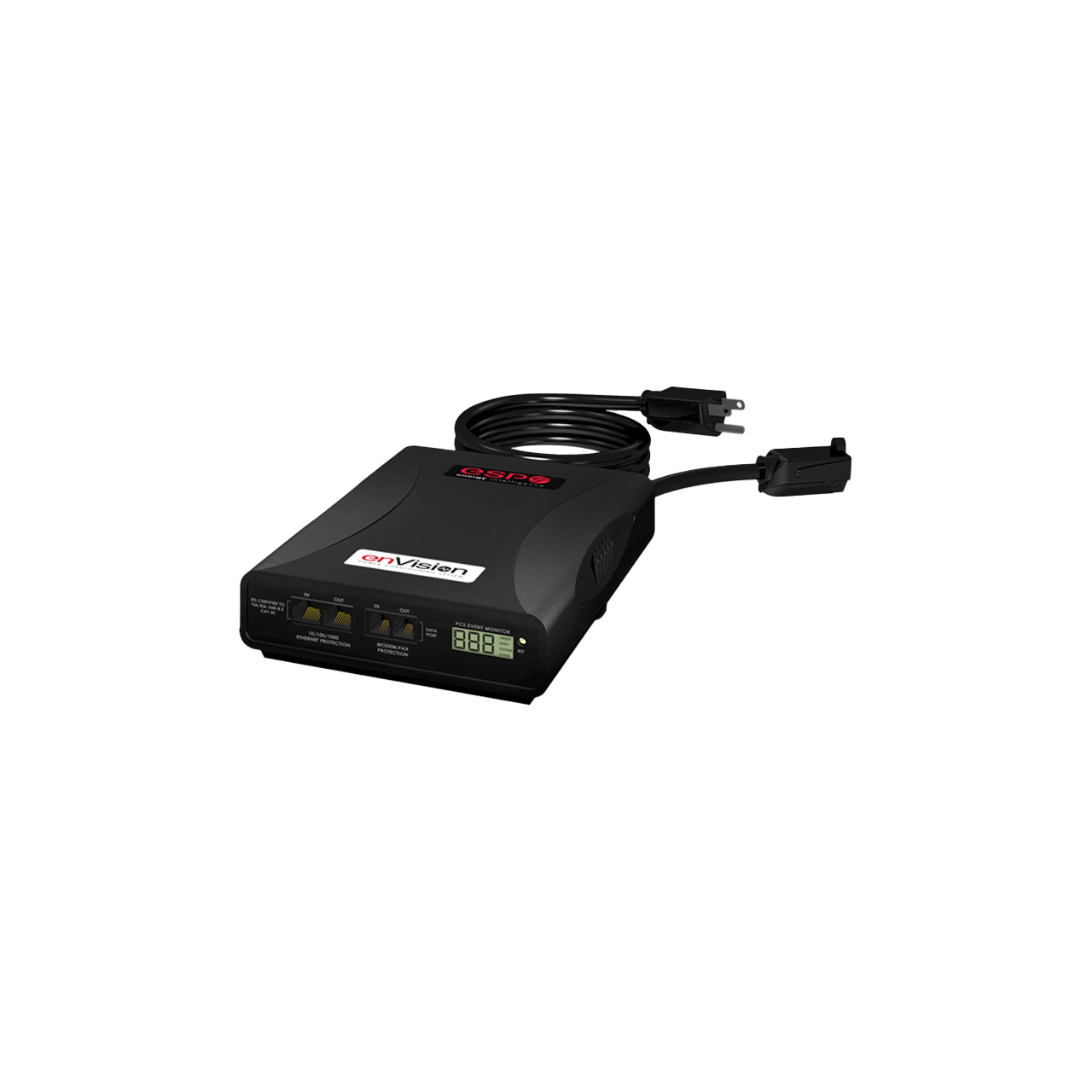

ESP EV-20830-630 enVision Power Conditioner w/ Diagnostic Power Filter/Scope Meter/MultiMeter - 208-240V/30A/NEMA 6-30

ITEM #: ESP-EV-20830-630 MFG #: EV-20830-630

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,380.00

Our Price:

$846.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EV-20830-630 - Overview

Instant Analysis and Resolution of Power Issues
The ESP EV-20830-630 enVision 30 Amp surge protectors allow service teams to make informed, fast business decisions that can increase profitability and customer satisfaction. The ESP enVision power conditioning system's predictive analytics software monitors, identifies, analyzes, and offers solutions to resolve power issues that can cause equipment error codes, malfunction and downtime.

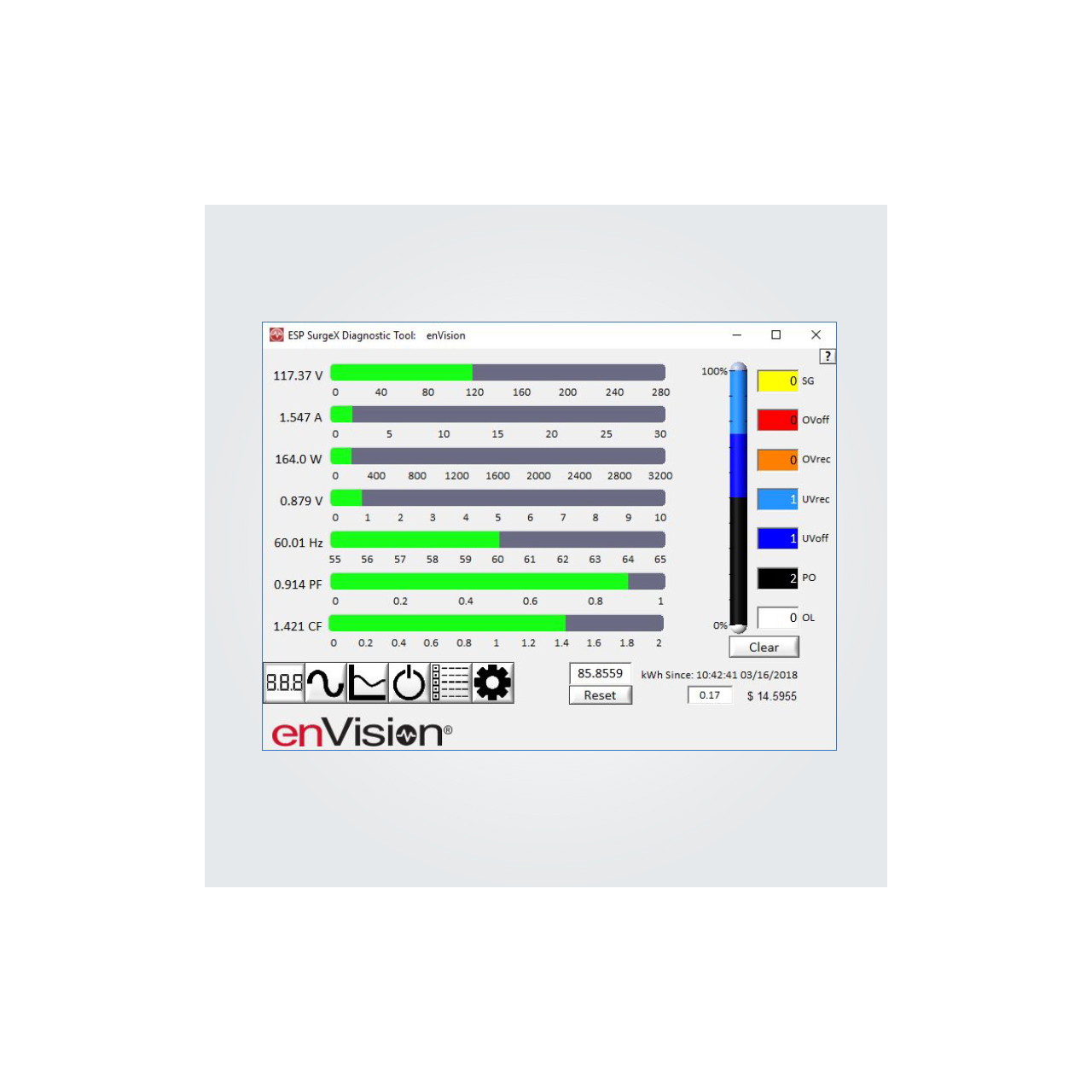

The enVision's electrical troubleshooting diagnostic software provides visibility and control into the power conditions at a customer's site by gathering and analyzing data to facilitate root cause discussions with affected customers. It interprets the data into key metrics and trends, and baselines the factors which influence equipment operation, damage conditions, and inefficiencies. It is the only software that identifies the potential cause of power issues and offers solutions to resolve them.

It also includes Multi-Stage power protection and conditioning with Cat 6 network and ground fault protection to make sure connected equipment is safeguarded when electrical disturbances occur.

  • Features:

    • Measures line and neutral to ground voltage, crest factor, power factor, and line frequency metrics
    • 512 time stamped events with specific date and time
    • Historical max./min./avg. data up to 138 days
    • Customizable settings
    • Multi-Stage power protection and conditioning
    • Catastrophic over/under voltage shutdown
    • Inrush current elimination
    • Internal battery
    • Remote access capable with optional Remote Portal module

  • Specifications:

    • Electrical
    • Load Rating: 30 Amps at 208-240 Volts
    • Voltage Protection Rating (VPR): 500V Line-Line / 600V Line-Ground
    • Attenuation:
      - Normal Mode: >30dB 80kHz - 50MHz
      - Common Mode: > 30 dB 200 kHz - 20MHz
    • Power Requirement (no load): 6 Watts
    • Under-Voltage Shutdown: Adjustable from 0 V to 220 V, Default 160 V
    • Under-Voltage Record: Adjustable from 0 V to 220 V, Default 180 V
    • Under-Voltage Restore: Adjustable from 80 V to 220 V, Default 190 V
    • Over-Voltage Shutdown: Adjustable from 220 V to 300 V*, Default 280 V
    • Over-Voltage Record: Adjustable from 220 V to 300 V*, Default 270 V
    • Over-Voltage Restore: Adjustable from 220 V to 300 V*, Default 260 V
    • Internal Memory Capacity: 512 Power Quality Events with Timestamp, 138 Day Electrical Parameter History at 30 minute intervals. 2.25 Day Electrical Parameters at 10 second intervals.
    • Response Time: 90msec Over-Voltage / 200msec Under-Voltage
    • Under-Voltage Record Event Definition: AC voltage has dropped below: 100V
    • Over-Voltage Record Event Definition: AC voltage has risen above: 135V
    • Power Outage Event Definition: AC voltage has dropped below 20V.
    • Modem/Fax Protection: Single telephone line surge suppression.
    • Ethernet Protection: CAT6 network surge protection

      Standards Compliance
    • TUV Certified to IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013

      Physical
    • Dimensions (HxWxD): 2" x 6.13" x 8.38"
    • Weight: 10lbs
    • Temperature Range: 41°F - 95°F (5°C - 35°C)
    • Humidity Range: 5% - 95% R.H. Non-condensing

  • Item Includes:

    • 1x ESP EV-20830-630 enVision Power Conditioner w/ Diagnostic Power Filter/Scope Meter/MultiMeter - 208-240V/30A/NEMA 6-30
