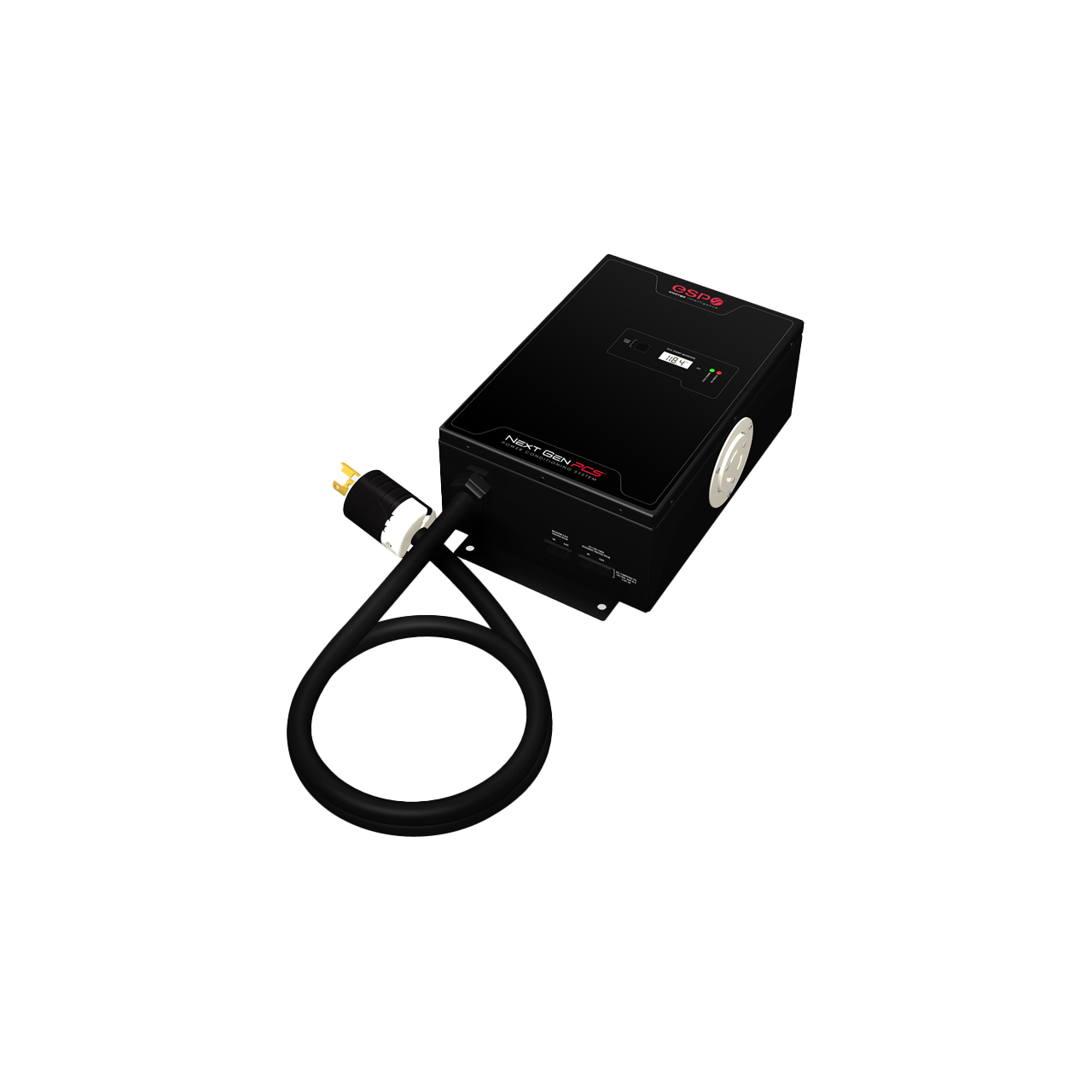

ESP XG-PCS-20820D Next Gen Diagnostic Power Filter - Networked - 208V/15A

XG-PCS-20820D - Overview

• Features:

  • Measures neutral to ground voltage and line frequency metrics
  • 60 time stamped events
  • Downloadable reports
  • Customizable settings
  • Multi-Stage power protection and conditioning technology
  • Catastrophic over/under voltage shutdown
  • Inrush current elimination
  • Remote access capable with optional Remote Portal module


• Specifications:

  • Electrical
  • Load Rating: 15/20 Amps at 120/230 Volts Split Phase
  • Voltage Protection Rating (VPR): 500V L-G, 800V L-L
  • Attenuation:
    - Normal Mode: >30dB 80kHz - 50MHz
    - Common Mode: >30dB 200kHz - 50MHz
  • Power Requirement (no load): 4 Watts
  • Under-Voltage Shutdown: Adjustable from 80 Volts to 95 Volts, or Disabled. Restores at 190 Volts.
  • Over-Voltage Shutdown: Adjustable from 135 Volts to 160 Volts. Restores at 250 Volts.
  • Internal Memory Capacity: 60 Events with timestamp; 999 counts of each event type
  • Voltmeter Accuracy: Peak reading type. Typical product accuracy is 5% between: 40V and 180V: 100V and 300V
  • Timestamp accuracy: 2.5%
  • Response Time: 100msec Over-Voltage / 150msec Under-Voltage
  • Under-Voltage Record Event Definition: AC voltage has dropped below: 180V
  • Over-Voltage Record Event Definition: AC voltage has risen above: 260V
  • Power Outage Event Definition: AC voltage has dropped below 20V.
  • Surge Event Definition: Next Gen PCS Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 700V* or higher and a frequency of 20 kHz or higher. *500V/700V surge voltage amplitude applies to IEEE C62.41 Category B Impulse; surge voltage amplitudes necessary for detection of other surge types may vary.
  • Modem/Fax Protection: Single telephone line surge suppression.
  • Ethernet Protection: Cat5e network surge protection, ETL Certified to TIA/EIA-568-B.2.

    Computer Requirements

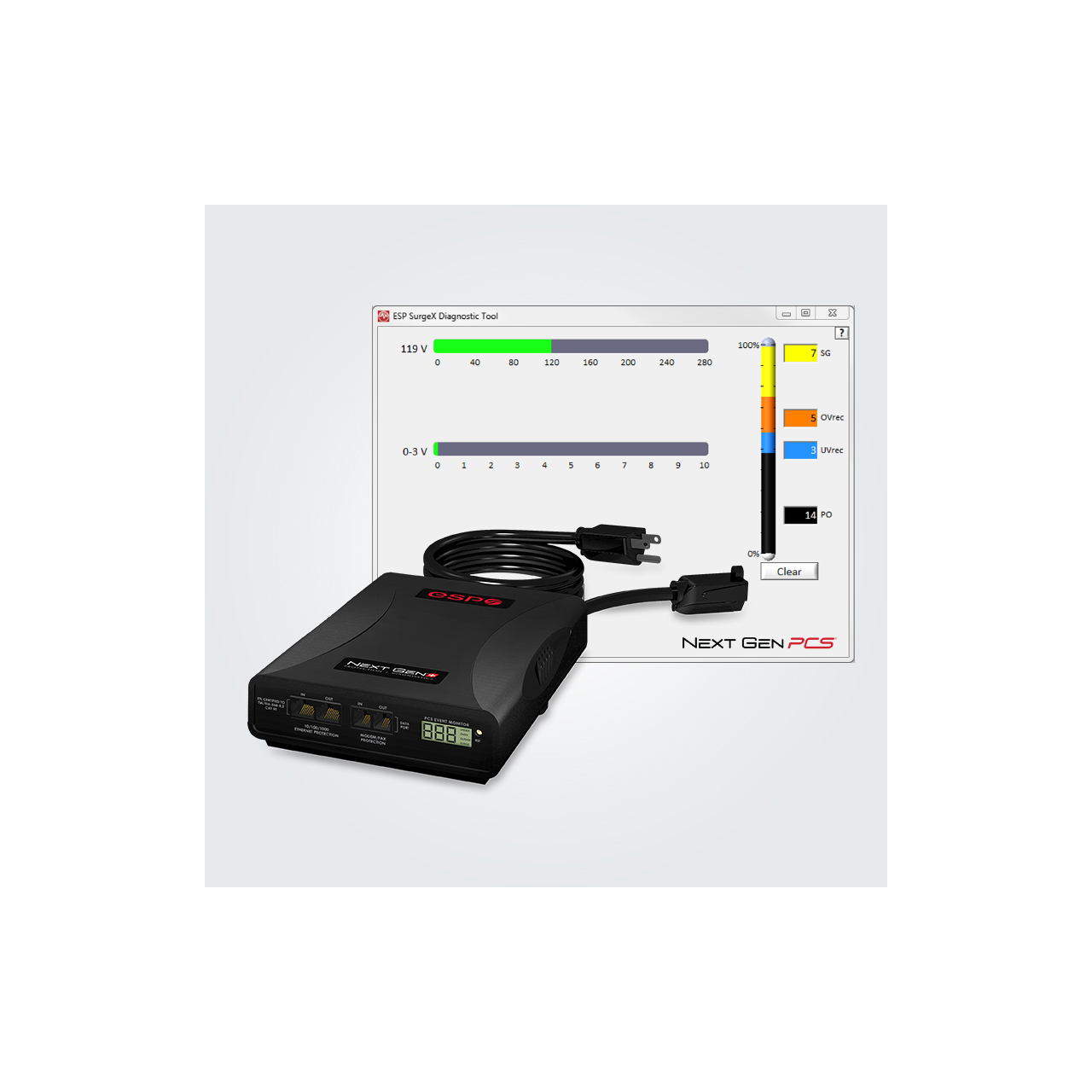

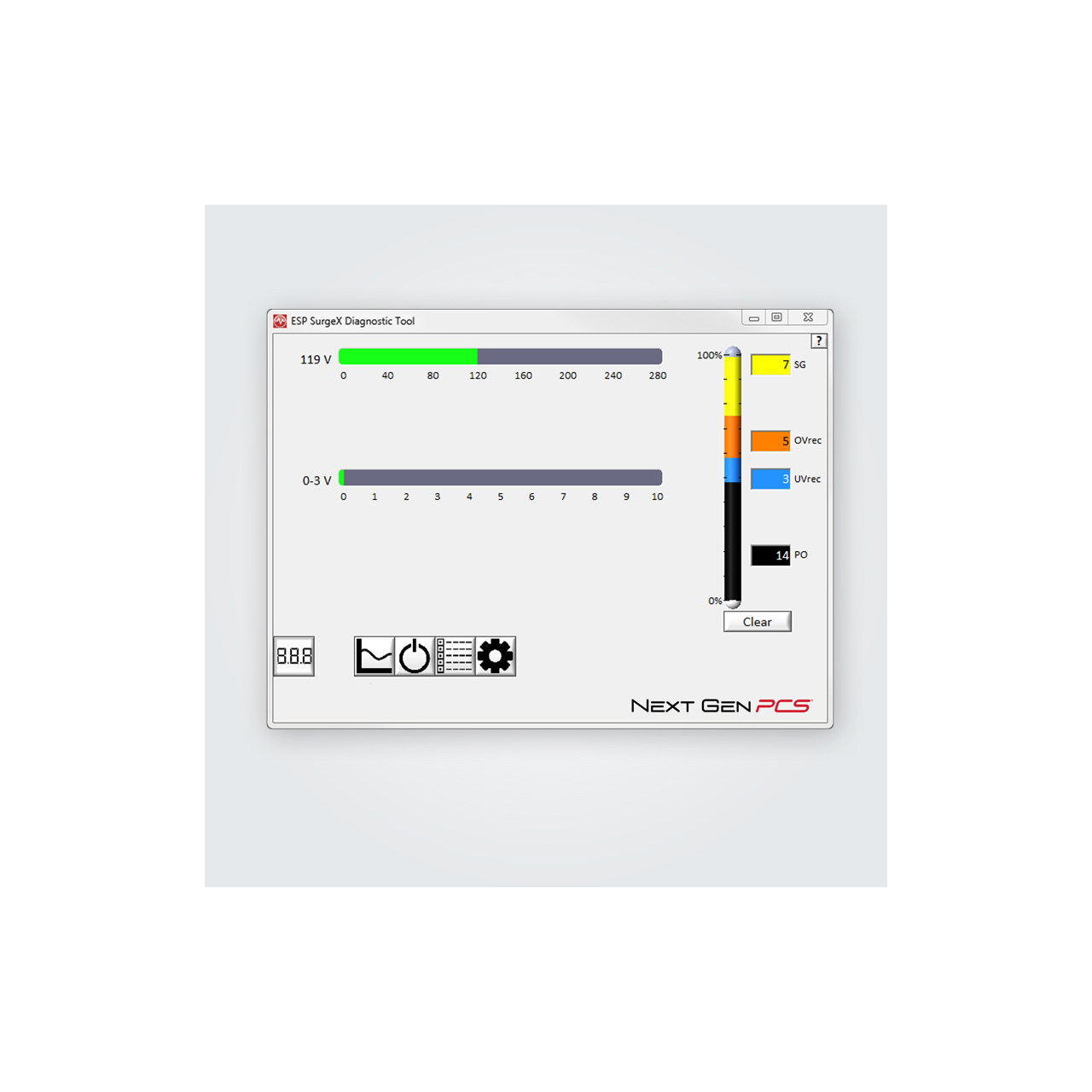

  • PC Requirements: For use with Next Gen PCS Diagnostic Software. Minimum 133MHz Pentium processor (or equivalent), minimum 64MB of RAM, minimum 10MB free hard drive space, VGA or higher resolution monitor, keyboard, mouse, CD or DVD drive, minimum screen resolution of 1024x768, Microsoft Windows 2000/XP/Vista/7.

    Standards Compliance
  • Agency Listings: ETL Certified to UL 1449 (3rd Edition), ETL Certified to TIA/EIA-568-B.2 Cat 5e, Industry Canada Certified

    Physical
  • Dimensions (HxWxD): 2" x 6.13" x 8.38"
  • Weight: 2.6lbs
  • Temperature Range: 41°F - 95°F (5°C - 35°C)
  • Humidity Range: 5% - 95% R.H. Non-condensing


• Item Includes:

  • 1x ESP XG-PCS-20820D Next Gen Diagnostic Power Filter - Networked 208V/15A
