Skaarhoj ETH-TALLY-LINK-V2-X3 Tally Box / 3x Tally Lights Bundle Connects Multiple Tally Lamps using CAT5e or better

ITEM #: ETHTALLYLINKV2X3 MFG #: ETH-TALLY-LINK-V2-X3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,409.00

Our Price:

$1,373.78

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ETH-TALLY-LINK-V2-X3 - Overview

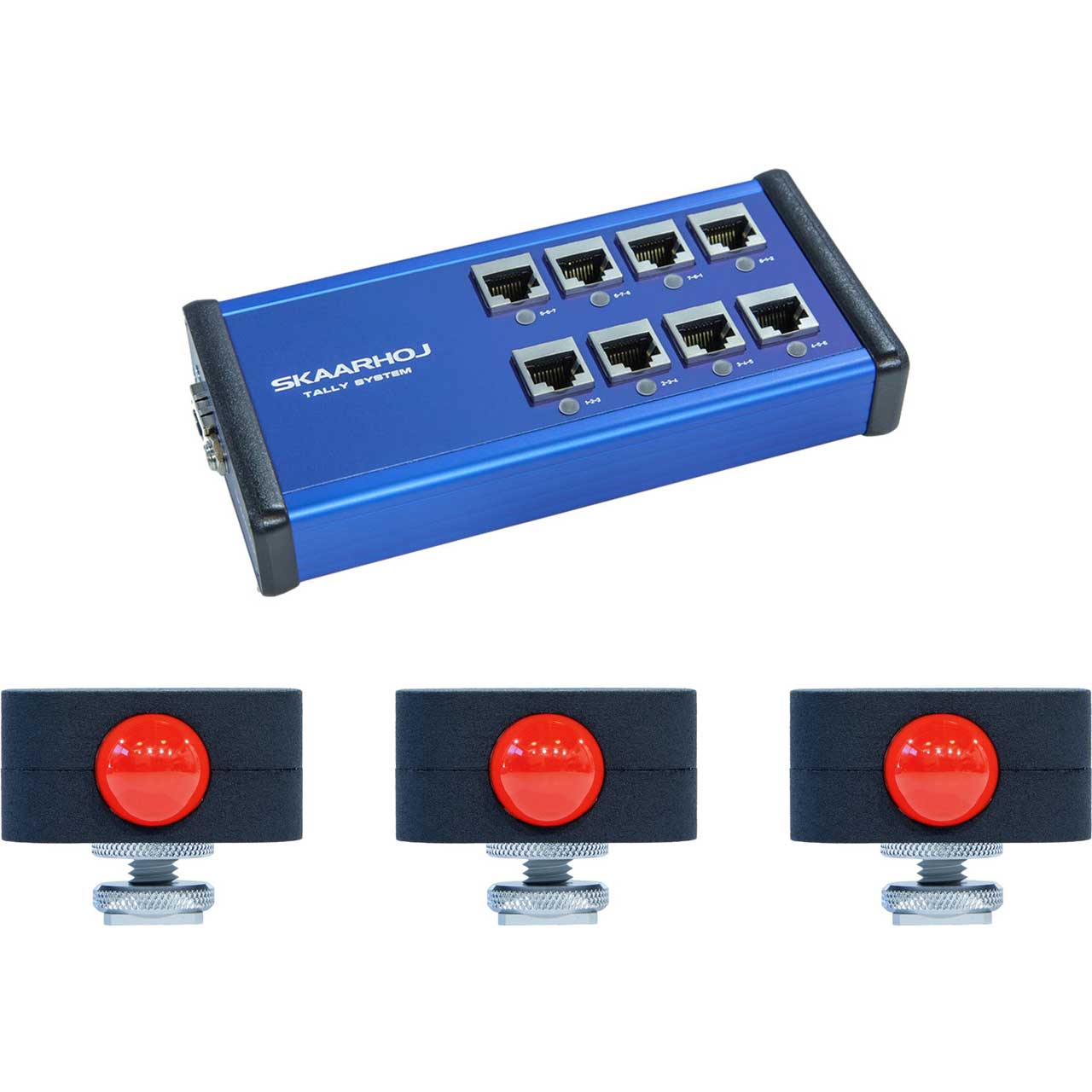

The 8-Channel Tally Box System with Three Tally Lights from SKAARHOJ allows you to take full control of your live video production. The system includes an 8-channel tally box and three tally lights. Each light features two LEDs, a green/red one facing the camera operator and a larger red one facing the presenter. The system offers both program and preview tally, and the lights can be connected one by one or in a daisy chain. An RJ45 port on both the box and the light connects the two.

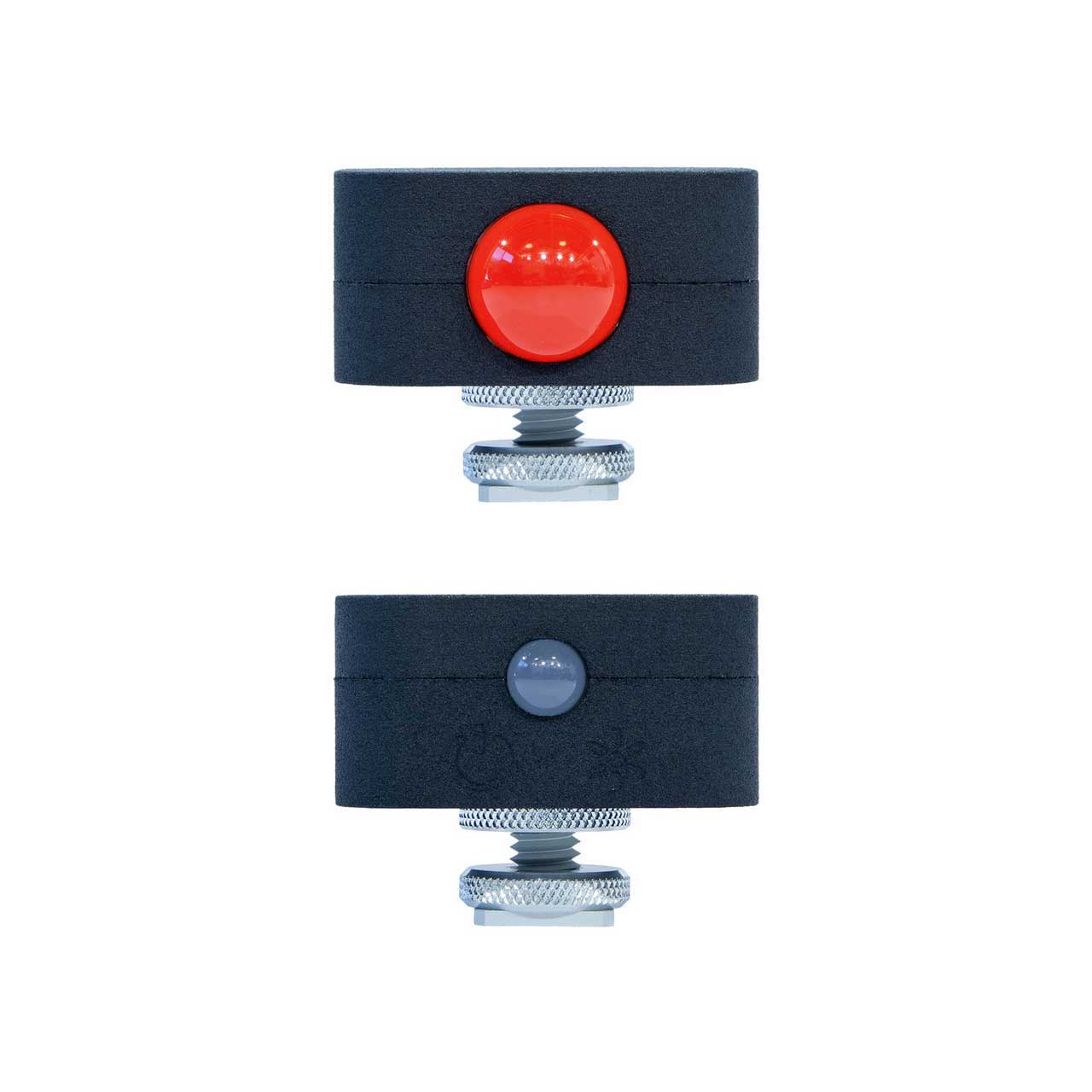

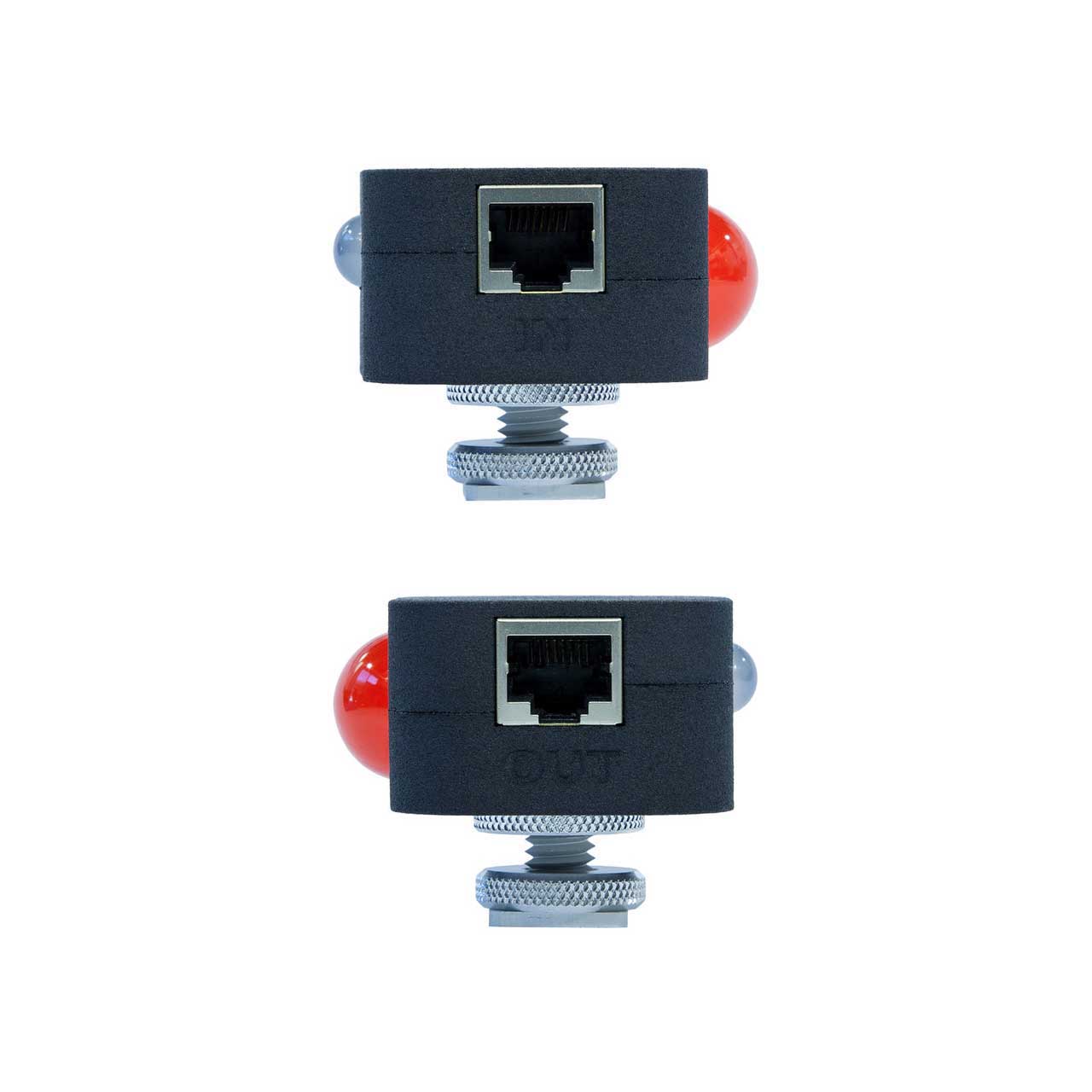

The Tally Light from SKAARHOJ is designed for use with the Tally Box System features two LEDs, one facing the camera operator and a larger one facing the presenter. The operator LED shines red when on program and green when on preview. With the switch on the tally light, the LED can be dimmed when used in low-light conditions and the large main LED shines red and is visible to the presenter to indicate which camera is on program. It also has an on/off switch on the light and two RJ45 ports for connecting to the Tally Box and other lights, and an accessory shoe foot for mounting on cameras.

  • Features:

    • Cold shoe adapter
    • Integrated switchers
    • On/off switch for main LED (red)
    • Dimmed on/off switch for operator LED (red + green)
    • Ethernet with PoE (IEEE802.3af)
    • Daisy chain up to 3 tally lights
    • Made in Denmark

  • Specifications:

    • Channels: 8
    • Compatibility: Blackmagic Design ATEM, vMix, and TriCaster Switchers

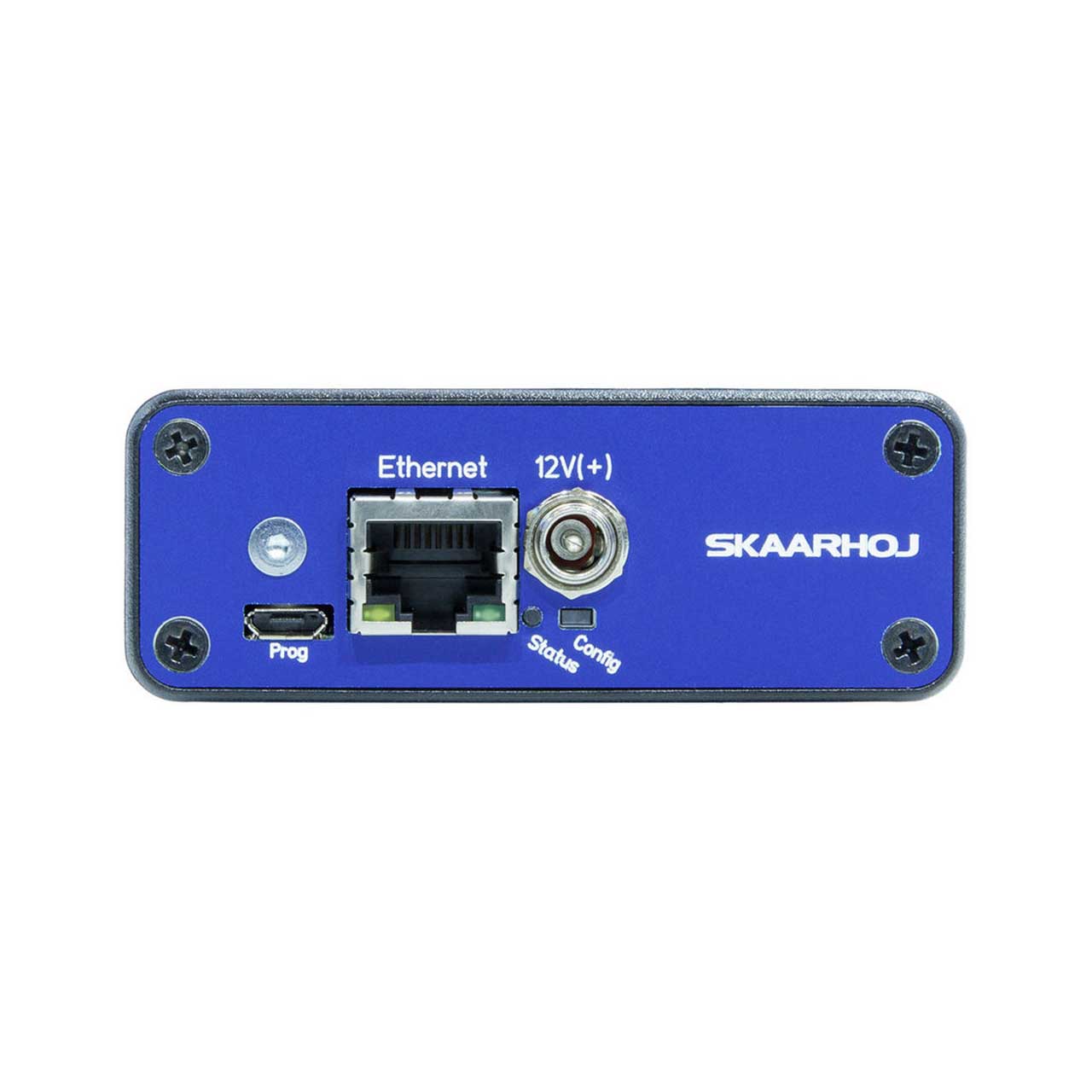

    • Connectors
      8 x RJ45, Tally Outputs
      1 x RJ45, Ethernet port
      1 x Micro-USB, Data Port
      1 x DC, Power
    • Indicators: 8 x LEDs
    • Power Supply: 12 V
    • Dimensions - Tally Box: 6.6 x 3.1 x 1.1 Inches / Tally Light: 1.73 x 2.17 x 1.02
    • Weight: 0.76 Lbs

  • Item Includes:

    • 1x 12V Power Supply:
    • 1x USB cable


ETH-TALLY-LINK-V2-X3 - Required Accessories
