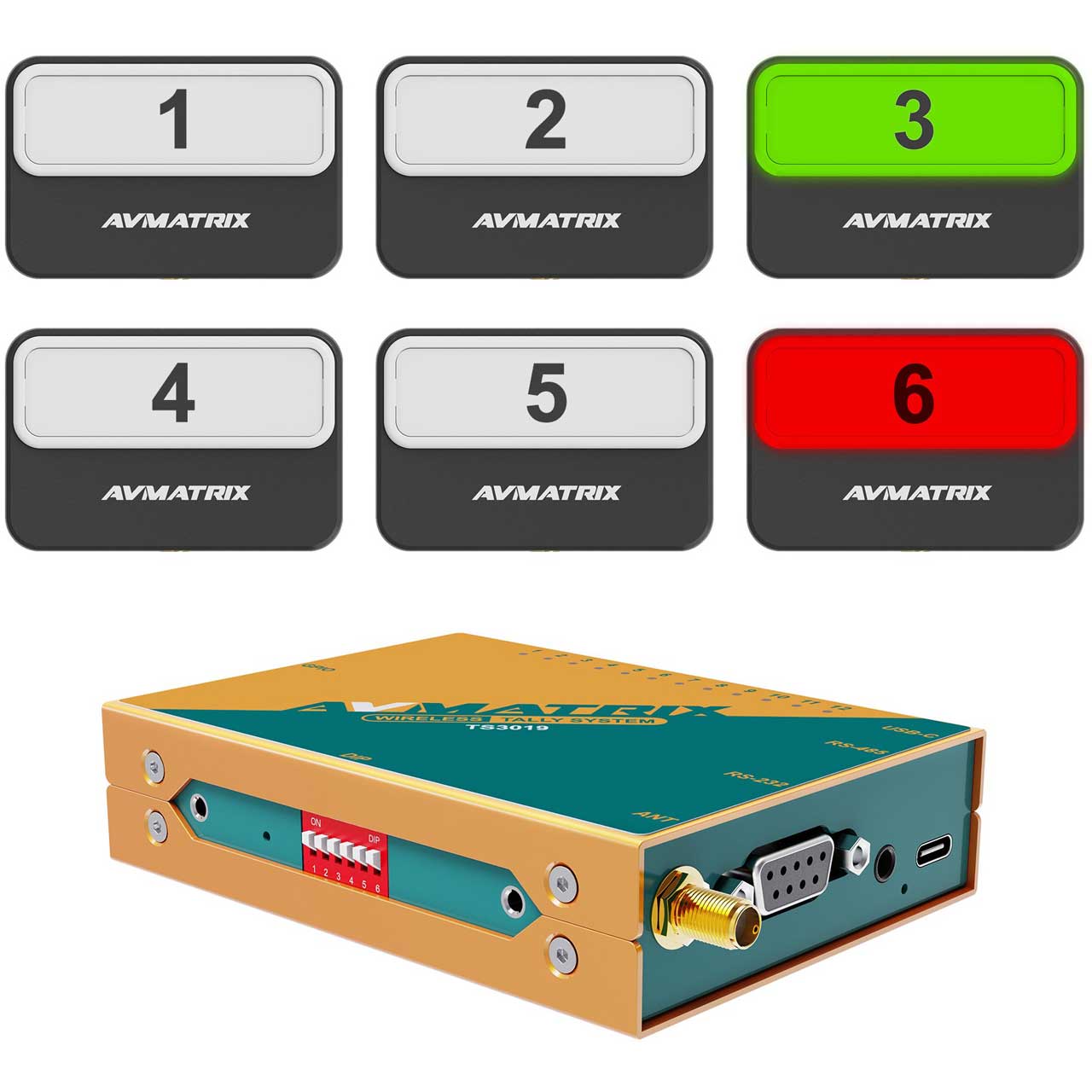

AVMATRIX TS3019-6 200 Meter Wireless Multi-Camera Tally System with 1x Tally Box and 6x Tally Lamps

ITEM #: LIL-TS3019-6 MFG #: TS3019-6

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AVMATRIX
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$599.00

Our Price:

$549.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TS3019-6 - Overview

Tally lamps can recieve the tally signal transmitted from a video switcher with up to a 200m (line-of-sight) distance. The AVMATRIX TS3019-6 wireless tally system supports both 433Mhz wireless and RS-485 wired connection with long and stable signal transmission.

High Compatibility
The tally box supports various interfaces such as GPIO/USB/RS-232/RS-485, which can be compatible with Vmix video switchers. The interfaces can meet users' different needs and applications.

Intuitive Status Display
The tally system supports up to 16 tally lamps. There are both front and rear indicator lights on the tally lamps with 4-level brightness that can be adjusted. Users can also check signal strength and power statuses easily.

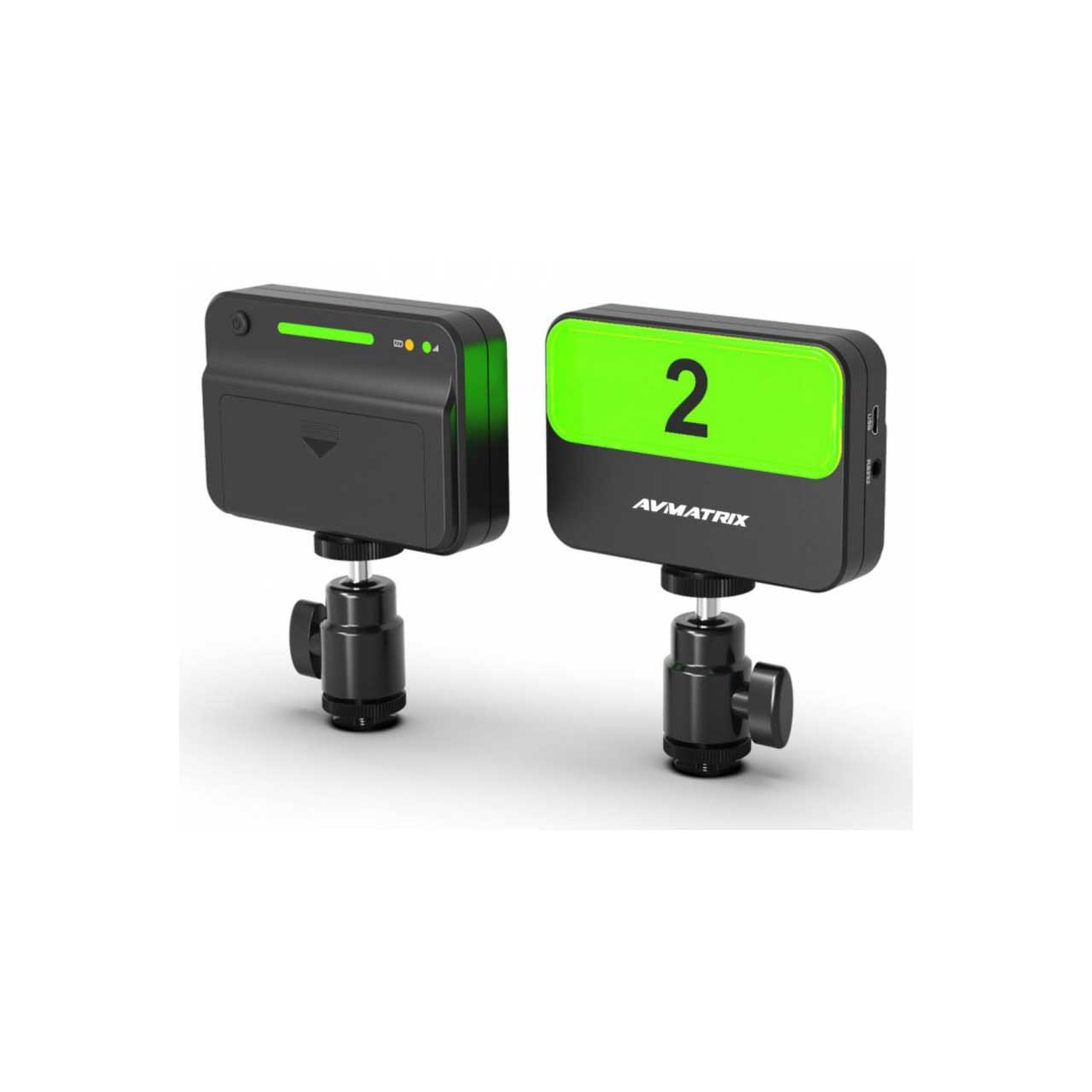

Hot Shoe Mounting
The tally lamp is designed with a 1/4 inch hotshoe hole. It is easy for installation and operation can be widely used in different application scenarios.

Dual Power Supply
The tally lamp can be powered by USB type-C or 18650 li-ion batteries. It supports large-capacity battery installation, which is convenient for outdoor applications. It also can be charged by USB.

  • Features:

    • Support 433Mhz wireless or wired tally connection
    • Up to 200m wireless connection distance (line-of-sight)
    • The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
    • GPIO compatible with AVMATRIX and other video switchers
    • Compatible with VMix via USB Type-C
    • Wireless PTZ camera control via RS-232/RS-485 pass through
    • Up to 16 tally lamps can be supported
    • Both front and rear indicators on the lamps with 4-level adjustable brightness
    • Visible signal strength and battery status on the tally lamp
    • Tally lamp can be powered by USB type-c or 18650 li-ion battery
    • 1/4 inch hot shoe for tally lamp installation


  • Specifications:

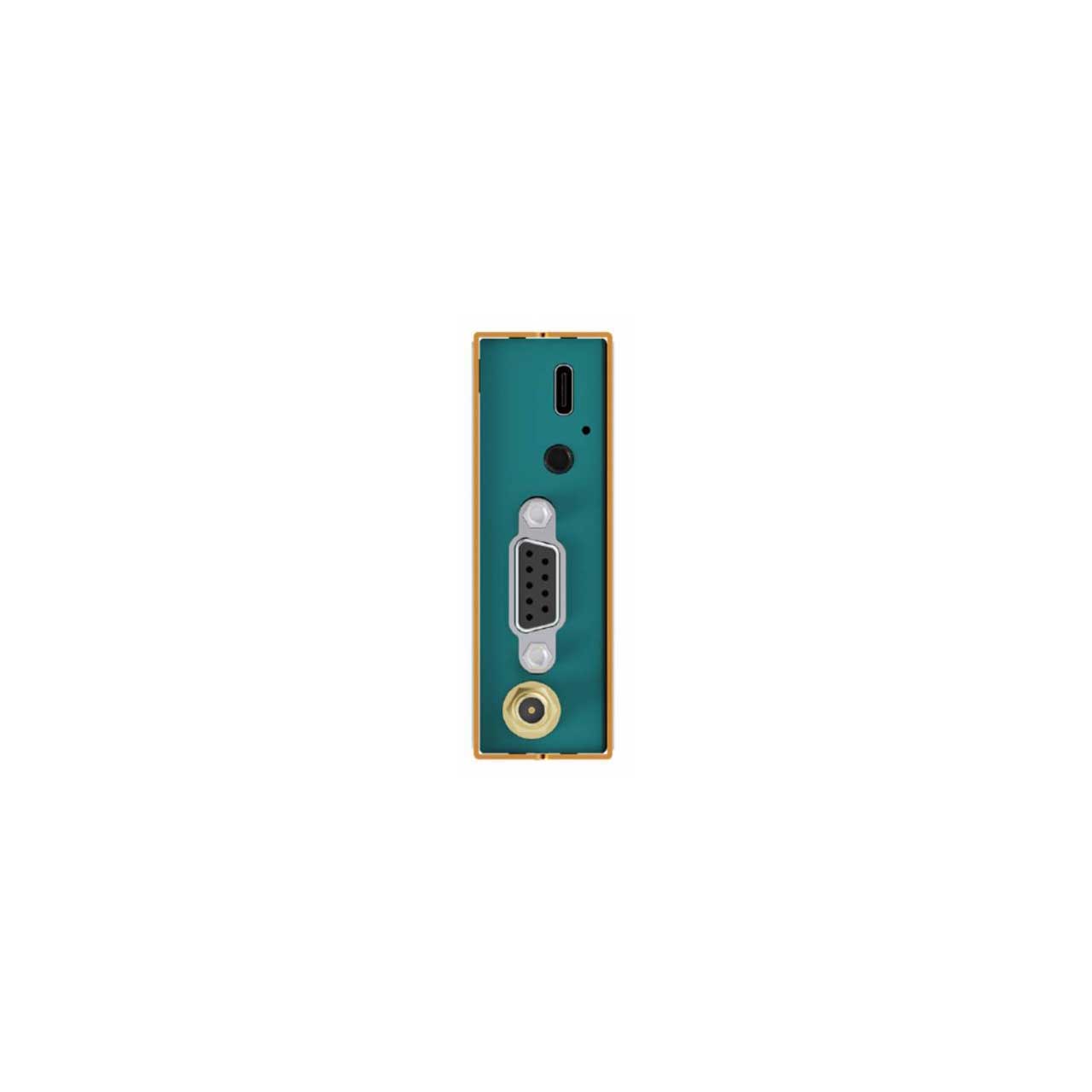

    • Tally Box
    • Connections:
      - 1x GPIO
      - 1x RS-232 terminal
      - 1x RS-485 terminal, 1x USB Type-C
    • Number of Lamps: Suppert up to 16 tally lamps (12 LED indicator)
    • Wireless Distance: Transmission up to 200m (line-of-sight)
    • Wireless Frequency: 433MHz
    • Wireless Connectivity: RS-485 serial connection
    • Application Support: VMix, video switchers with GPIO-tally interface such as AVMATRIX, Roland, SONY, NewTek, Panasonic, DataVideo, or tally converter box with GPIO such as BMD's GPI and tally interface
    • Power: Working Voltage - 5V, power consumption: ≥ 0.2W

      Tally Lamp
    • Connections:
      - 1x USB Type-C
      - 1x Rs-485, Tally out
    • Power Supply: 5V USB power supply or 18650 li-ion battery (optional) power supply
    • Brightness: Support 4-level brightness
    • Battery Operating Time: Up to 9 hours (depending on battery capacity and lamp brightness/usage environment
    • Power: Working voltage - 5V, Power Consumption - &gel 2.5W; Battery Charging Current: 5V 1A
    • Mounting Hole: 1/4" hotshoe

      Physical
    • Dimensions:
      - Tally Box: 4.09" x 2.97" x 0.96" (104mm x 75.5mm x 24.5mm)
      - Tally Lamp: 3.88" x 2.56" x 1.04" (98.5mm x 65mm x 26.5mm)
    • Weight:
      - Tally Box: 11.53oz (327g)
      - Tally Lamp without Battery: 3.17oz (90g)
    • Temperature:
      - Working: -4°F - 140°F (-20°C - 60°C)
      - Storage: -22°F - 158°F (-30°C - 70°C)


  • Item Includes:

    • 1x Tally Box
    • 6x Tally Lamps
    • 1x Suitcase
    • 1x Power Supply(5V 1A)
    • 5x USB 2.0 Type-C Cables
    • 1x Antenna
    • 1x GPIO Connector


  • GTIN:

    6971118001507
