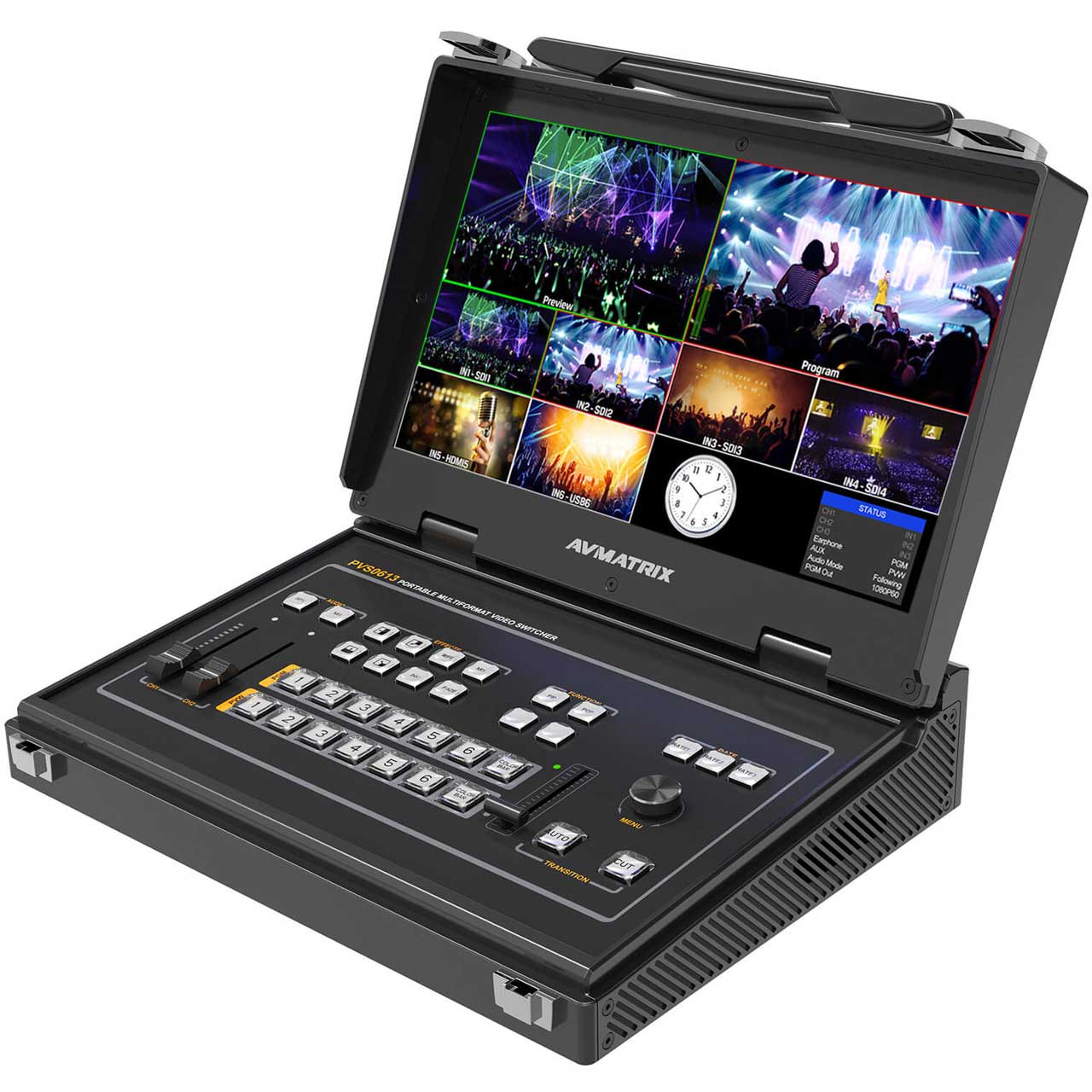

AVMATRIX PVS0613 Portable 6 Channel SDI/HDMI Multi-Format Video Switcher

PVS0613 - Overview

• Features:

  • Inputs: 4x SDI and 2x HDMI inputs
  • Outputs: 2x SDI & 1x HDMI PGM, 1x SDI PVW, 1x SDI & HDMI multiview

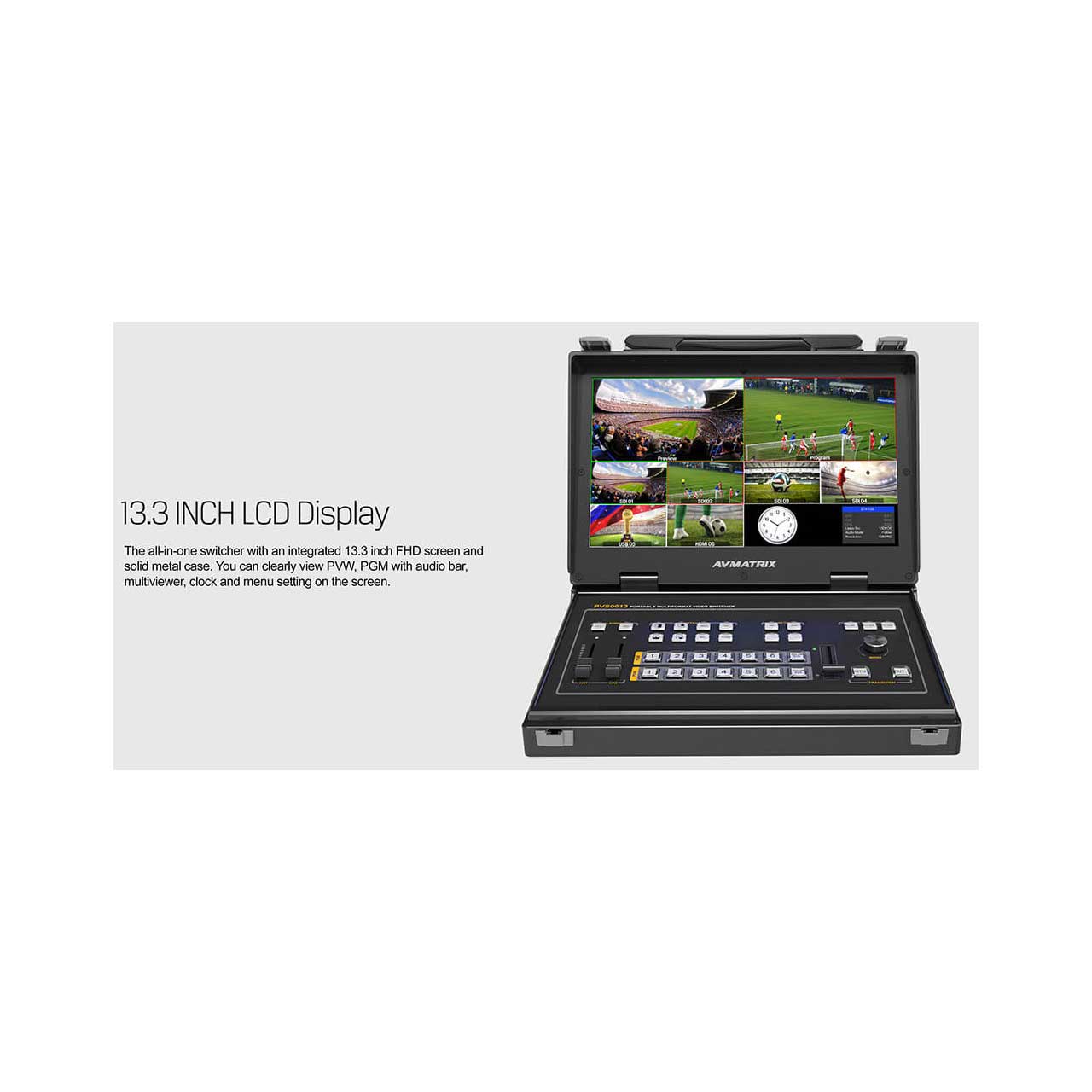

  • 13.3" FHD LCD monitor
  • Portable design, metal case
  • T-Bar/AUTO/CUT transitions and MIX/FADE/WIPE effects
  • PiP mode, both size and position is adjustable
  • Audio mixer: 3.5mm stereo/RCA audio & SDI/HDMI embedded audio
  • GPIO interface for live tally system
  • FTB for emergency situation


• Specifications:

  • Functions
  • Transitions & Effects:
    - Manual T-Bar
    - AUTO
    - CUT, Wipe
    - Fade
    - FTB
  • Streaming: USB-C uncompressed capture, comply with UVC & UAC
  • Layouts:
    - PiP
    - Multiview
  • Audio Mixer:
    - AFV
    - Mixing

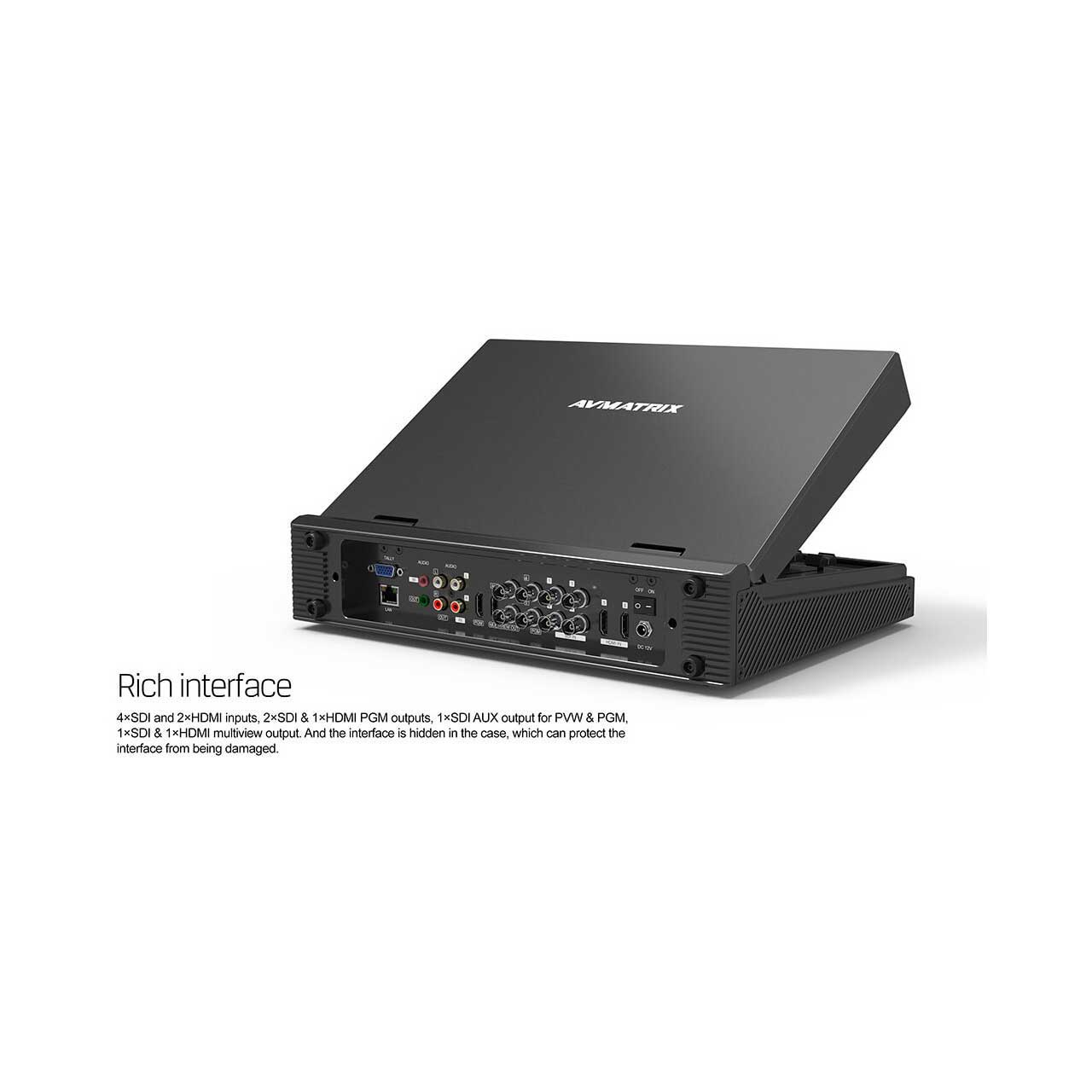

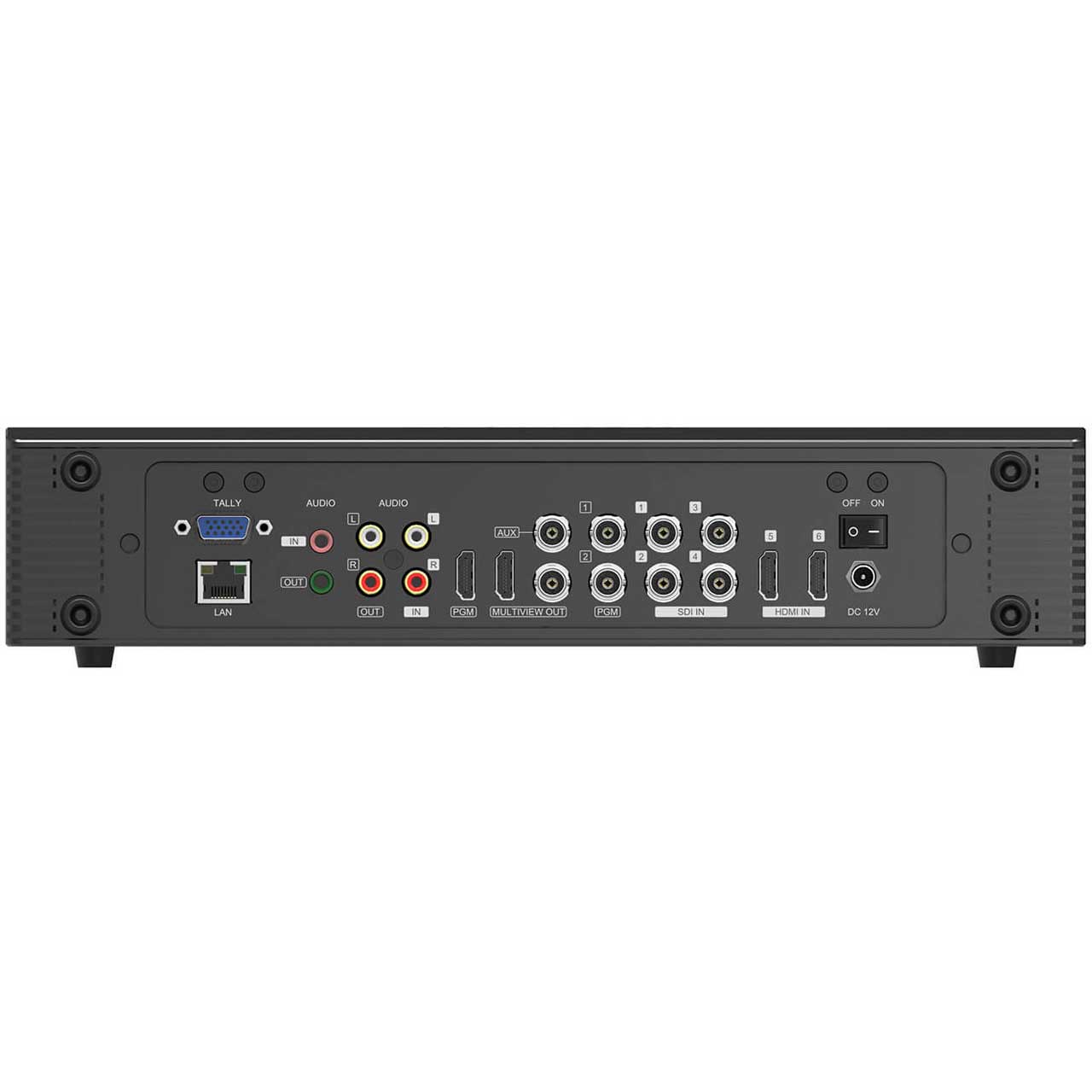

    Inputs
  • SDI Video Inputs: 4x SD/HD/3G-SDI (75Ω)(Auto Detects SD, HD, and 3G-SDI)
  • HDMI Video Inputs: 2x HDMI
  • Analog Audio Inputs:
    - 1x 3.5mm stereo audio
    - 1x RCA (L/R)

    Outputs
  • PGM Outputs:
    - 2x HD/3G-SDI (75Ω)
    - 1x HDMI
  • PGM Streaming Output: 1x USB-C 3.0
  • AUX (PVW/PGM) Output: 1x HD/3G-SDI (75Ω)
  • Multiview Outputs:
    - 1x 3G-SDI (75Ω)
    - 1x HDMI (100Ω)
  • Analog Audio Outputs:
    - 1x 3.5mm stereo audio
    - 1x RCA (L/R)

    Data Interface
  • LAN: 1x RJ45, Synchronize local time
  • Tally: 1x DB-15

    Standards
  • SDI Input Format Support:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080PsF 30/29.97/25/24/23.98
    - 1080i 60/59.94/50
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 625i 50 PAL, 525i 59.94 NTSC
  • HDMI Input Format Support:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080i 50/59.94/50
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 576i 50, 576p 50
  • PGM Output Format:
    - 1080p 60/50/30/25/24
    - 1080i 60/50
  • Multiview Output Format: 1080p 60
  • SDI Compliance: SMPTE 292M/259M/424M
  • USB Capture: Compatible with USB 3.0 and USB 2.0, up to 1080p60Hz

    Physical

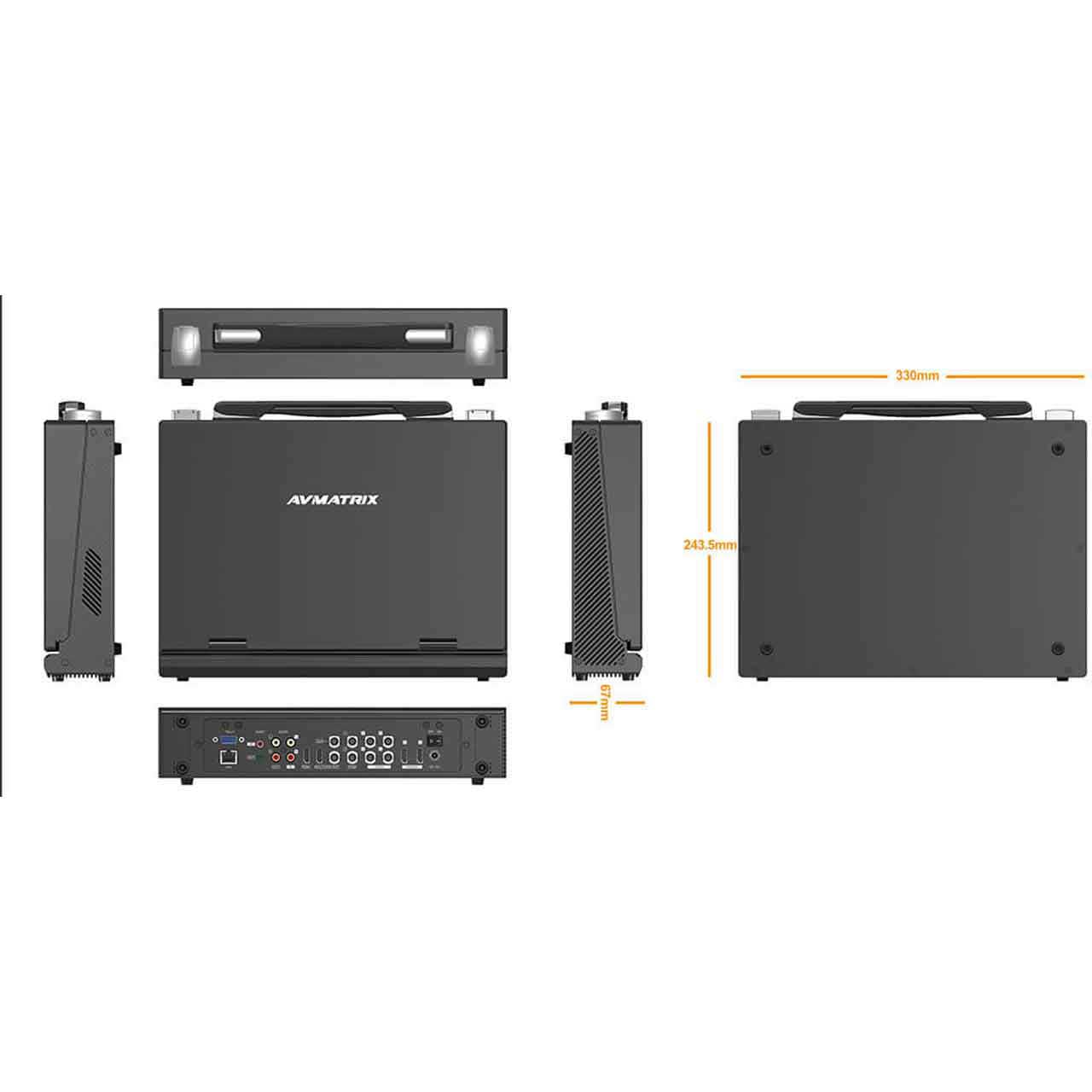

  • Dimensions (LxWxD): 12.99" x 9.59" x 2.64" (330mm x 243.5mm x 67mm)
  • Weight:
    - Net Weight: 8.82lbs (4kg)
    - Gross Weight: 11.02lbs (5kg)
  • Working Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)


  • Power Supply: DC 12V, 2A, 24W


• GTIN:

  6971118000203
